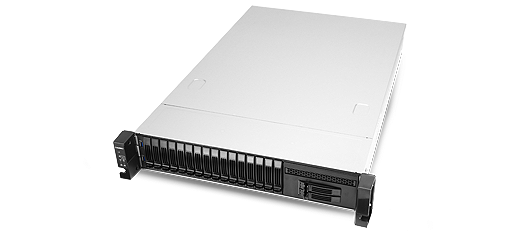

RM23616
2U Economical Computing and Storage Server Chassis
Featuring 12Gbps SAS backplane, flexible LFF storage configurations, and dual processor motherboard, it matches your requirements within the budget.
Compare
Clear GO
Quick Search
  • By Chassis Type
  • By Motherboard
  • By RAID Card
  • By Power Supply
Search
Compare
Features & Benefits

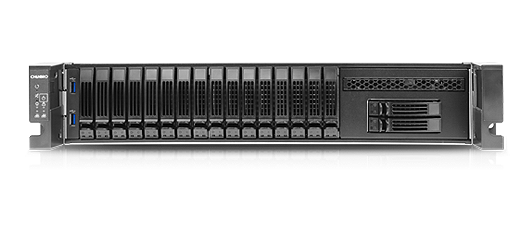

  • Supports 16-bay 2.5" HDD configuration and removable drive cage for two 2.5" HDD and one slim ODD
  • Supports 12Gb/s 16-port backplane with SAS Expander

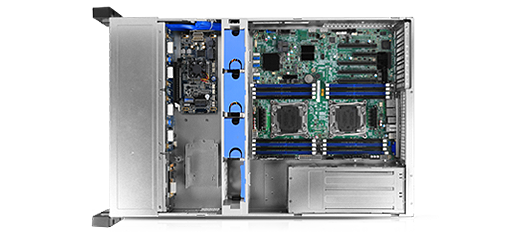

  • Anti-vibration and hot-swap middle fans with smart speed control (on backplane)

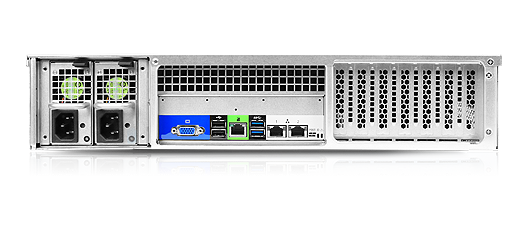

  • Easy-swap 3-slot (Riser) or 7-slot(Low profile) rear window
  • Supports 2U single or 1+1 redundant PSU
  • Specification
  • Download
  • Accessory
  • Compatibility
  • MB Form Factor SSI EEB (12" x 13")
    Dimension (D x W x H) 661.4 x 432.0 x 88.1 (mm)
    26.04” x 17.00” x 3.47”
    Drive Bay 2.5" Hot-swap：16
    2.5" Hot-swap：2
    Slim ODD：1
    Internal 2.5" (Option)：2
    Storage Backplane 12Gb/s SAS expander module
    PSU Form Factor 2U Single or 1+1 Redundant
    Indicator 1 x Power Status
    1 x HDD Status
    2 x LAN Activity
    1 x System Alarm
    Front Control 1 x Power On/Off
    1 x Alarm Mute
    1 x System Reset
    2 x USB3.0
    Cooling Fan 80 x 25/38 mm (3, up to 4), Hot-swap
    System Security Intrusion Switch (Option)
    Expansion Slot Opening 3 x Full Height or 7 x Low Profile
    Net Weight 11.0 kg/24.23 lb
    Gross Weight 12.7 kg/27.97 lb
    Cubic Feet 3.05
    Container Loading (Single Packing) 20':314, 40':638, 40'H:690
  • Category Description Revision Size Download
    Datasheet RM23616 Datasheet V1.1 1.2 MB
    User Manual RM23616 RM23624 12Gbs 16-port 2.5 mini-SAS HD Passive Backplan V.1.0 388.4 KB
    User Manual RM23616 RM23624 12Gbs 24-port Expander Board V.1.0 521.1 KB
  • Category Part. No# Description Support
    Backplane
    84H323610-032    		 Hot-swap Kit, w/8 * 2.5" HDD Tray, 8-port mini-SAS HD Backplane and 50mm I2C cable
    Bracket
    84H323610-017    		 HDD Bracket, 2 x 2.5", Internal, (NCT Part MOQ: 100 pcs)
    Bracket
    84H341710-006    		 HDD Bracket, 2 x 2.5", Internal, Tool-less(NCT Part MOQ: 100 pcs)
    Power Supply
    132-20875-0700C0    		 PSU, 875w, 1+1 Redundant, Acbel R2IS7871A-G, 80+ Gold, PM Bus V1.2
    Rear Window
    84H323610-006    		 Rear Window, 3-slot, Full Height
    Slide Rail
    84H323610-034    		 Slide rail, Tool-less, Travel: 698.4mm
    Slide Rail
    84H341300-002

    20“, P2P:23.6" to 34.1", Traveling Distance 27.7", Loading Weight 27.0 Kg, Non Tool-less
