RM21600 (EOL)

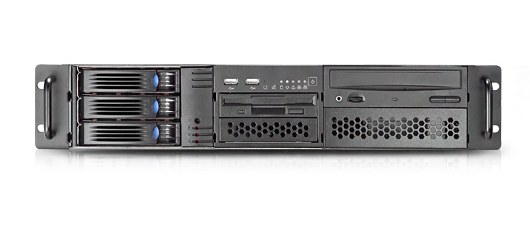

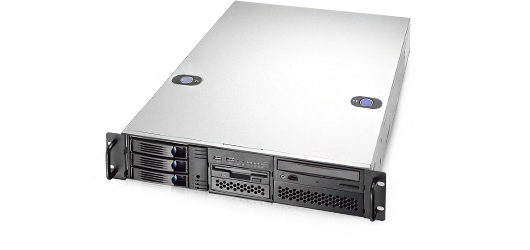

2U Open Bay Server Chassis
It is designed with flexibility of utilizing four 5.25” drive bays to install ODD, tape drive and Chenbro SK family.
Quick Search
  • By Chassis Type
  • By Motherboard
  • By RAID Card
  • By Power Supply
Features & Benefits
  • Supports M/B up to 12” x 13”
  • Versatile configurations available via exposed 4 x 5.25” and 2 x 3.5” bays
  • Optional 4 x hot-swap fan modules
  • Supports 3-slot and 6-slot low profile rear windows
  • Tool-less design on 5.25” device installation
  • Supports 2U single or 1+1 redundant PSU
  • Specification
  • Download
  • Accessory
  • Compatibility
  • Order Information
  • MB Form Factor Extended ATX (12” x 13”)
    Dimension (D x W x H) 660 x 430 x 88 (mm), 26” x 16.9” x 3.5”
    Drive Bay External 3.5":2
    External 5.25":4
    Storage Backplane N/A

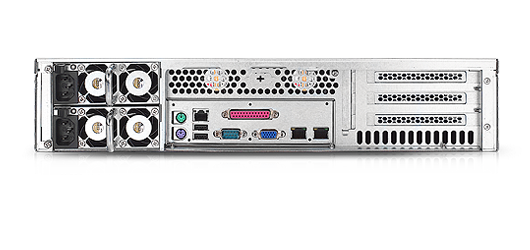

    PSU Form Factor 2U Single or 1+1 Redundant
    Indicator 1 x Power Status, 1 x HDD Activity, 2 x LAN Activity , 1 x Fan Failure and Overheat
    Front Control Power On/Off, Alarm Mute, System Reset, 2 x USB2.0

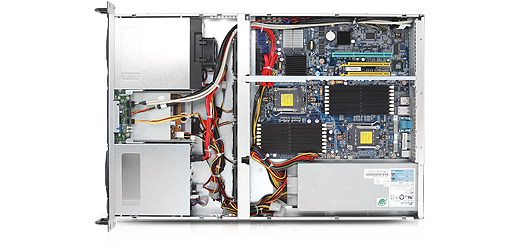

    Cooling Fan Middle: 4 x 80mm (T=32mm) , Rear: 2 x 40mm (Option)
    System Security Intrusion Switch (Option)
    Expansion Slot Opening 3 x Full Height and Full Length or 6 x Low Profile
    Net Weight 8.8kg
    Gross Weight 12.7kg
    Cubic Feet 4.26
    Container Loading (Single Packing) 20’: 250, 40’: 520, 40’H: 575
  • Category Description Revision Size Download
    Datasheet RM21600 Datasheet V1.2 947.8 KB
    User Manual LED Board (80H033216-004), Features and Jumper Settings V1.0 266.5 KB
    User Manual RM21600 Quick Installation Guide V1.1 436.0 KB
  • Category Part. No# Description Support

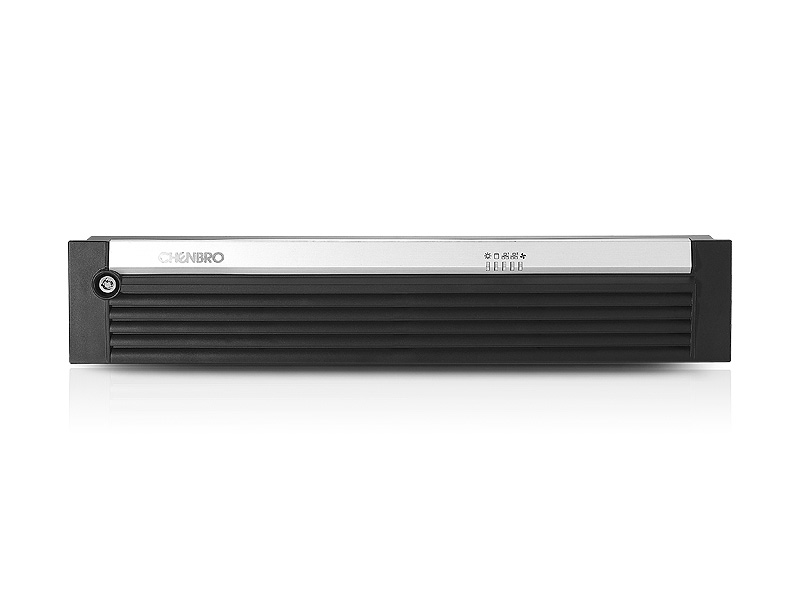

    Front Bezel, 2U, Plastic, SilFox
    Rear Window
    Rear Window, 6-slot, Low Profile
    Rear Window
    Rear Window, For Non-hotswap Fan, w/ 1 pc Riser Card Retainer
    Slide Rail
    Slide Rail, 26", Tool-less
    Slide Rail

    20“, P2P:23.6" to 34.1", Traveling Distance 27.7", Loading Weight 27.0 Kg, Non Tool-less

    Click Part. No# to view item picture
  • Order Code M/B Storage Backplane PSU Back Panel Slide Rail
    RM21600 12"x13" N/A Option 3-Slot, Riser Option
    RM21600-L 12"x13" N/A Option 6-Slot, LP Option
