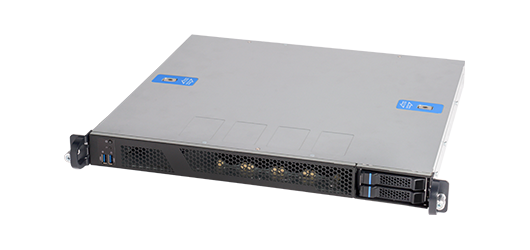

1U Front and Rear I/O Compact Server Chassis
RM14302 is a 409mm short-depth chassis and new cost-effective server chassis designed for entry-level applications with front or rear I/O access.
Quick Search
  • By Chassis Type
  • By Motherboard
  • By RAID Card
  • By Power Supply
Features & Benefits

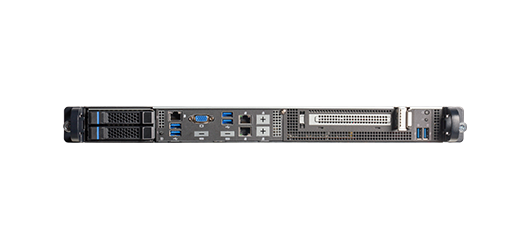

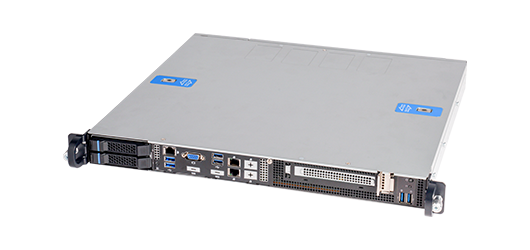

  • 1U rackmount short depth IPC chassis with front or rear I/O output function
  • Board form factor support ATX or uATX
  • 500W Flex ATX PSU, single
  • 2 Bay 2.5" HDD Hotswapable, non fix HDD support
  • 16" slide rail support
  • Specification
  • Download
  • Accessory
  • Compatibility
  • MB Form Factor ATX (12” x 9.6”), uATX (9.6” x 9.6”)
    Dimension (D x W x H) 409.0 x 438.5 x 43.2 (mm)
    Drive Bay External: 2 x 2.5" HDD, Hot-swap, Front:
    Storage Backplane 2-Port 12G SAS/SATA Backplane
    PSU Form Factor 1U Single 500W (80+ Gold)
    Indicator 1 x Power Status, 1 x HDD Activity
    Front Control 1 x Power On/Off, 1 x System Reset, 2 x USB 3.0
    Cooling Fan Rear:
    4 x 40mm (T:56mm), Dual Rotor,
    22500/20500 RPM, PWM, Fix
    4 x 40mm (T:56mm), Dual Rotor,
    22500/20500 RPM, PWM, Fix
    System Security Intrusion Switch (Option)

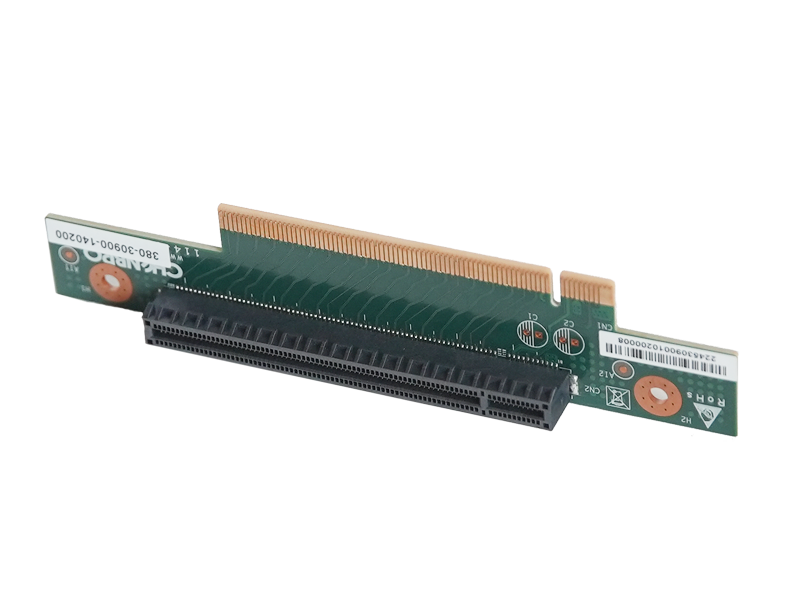

    Expansion Slot Opening 1 x PCIe x16 Riser Card, Supporting Full Height & Half Length
  • Category Description Revision Size Download
    Datasheet RM14302 Datasheet v1.1 1.8 MB
  • Category Part. No# Description Support
    Click Part. No# to view item picture
