ES34169 (EOL)
Compact High Storage Capacity Server Chassis

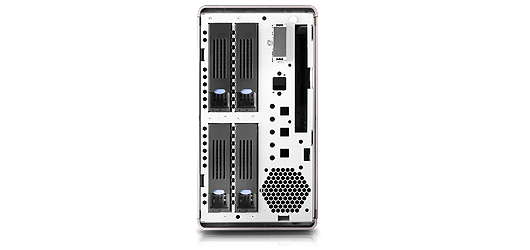

ES34169 is equipped with 4 x 3.5” hot-swap, 1 x internal 2.5” HDDs and slim ODD bays in compact footprint, so it is an ideal solution for either NAS or mini-server.
Quick Search
  • By Chassis Type
  • By Motherboard
  • By RAID Card
  • By Power Supply
Features & Benefits
  • Supports M/B size up to 7"x7"
  • Built-in 4-port 3Gb/s SAS& SATA backplanes
  • Optional 4-in-1 card reader and riser card

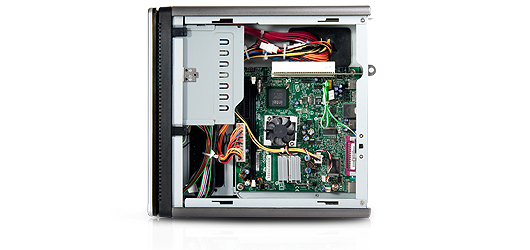

  • Removable motherboard tray for easy installation
  • Supports keylock and Kensington security slot
  • Built-in 120W open frame PSU
  • Specification
  • Download
  • M/B Form Factor mini-ITX(6.7"x 6.7")
    Dimensions (D x W x H) 260x140x260(mm); 10.24"x 5.51"x 10.24"
    Drive Bays Internal 2.5":1
    Slim ODD:1
    3.5" Hot-swap:4
    PSU Form Factor 120W Open Frame
    Indicators Power LED
    HDD Activity LED
    LAN Activity LED x 2
    Event Warning LED x 1
    Front Buttons Power On/Off
    System Reset
    USB2.0 x 2
    Card Reader(Option)
    System Security Kensington Slot

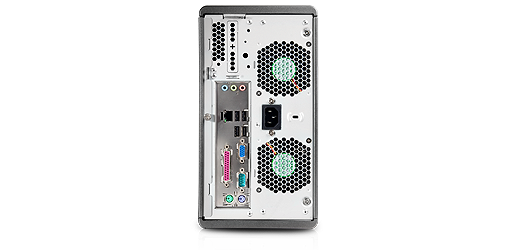

    Cooling Fans Rear: 2x 70mm; Front: 1x 60mm(Option)
    Expansion Slots 1x Low Profile
    HDD Backplane 3Gb/s SAS& SATA
    Metal Thickness 0.7mm, SECC
    Net Weight 4.9Kg
    Gross Weight 5.9Kg
    Front Bezel Included
    Container Loading 20': 672(Single Packing)
    40': 1,344(Single Packing)
    40'H: 1,512(Single Packing)
  • Category Description Revision Size Download
    User Manual ES34169 Installation A1 552.2 KB
