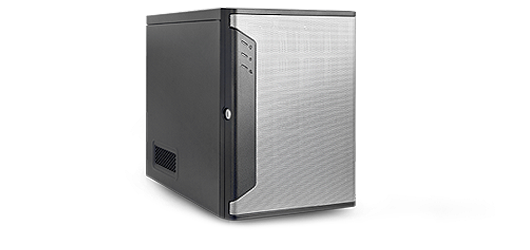

SR301 Series
A Compact, Versatile SOHO Server Chassis
Support mini-ITX M/B and built-in 12Gb/s 4-port SATA/SAS backplane to provide a cost effect NAS solution
Quick Search
  • By Chassis Type
  • By Motherboard
  • By RAID Card
  • By Power Supply
Features & Benefits
  • Built-in 4-port 12Gb/s backplane for SAS and SATA drives
  • Built-in two internal 2.5" drive bays
  • Padlock loop, Kensington slot and intrusion switch
  • Key lock secured front bezel in prevent unauthorized access
  • Optimized hard drive performance and reliability, design with excellent Thermal efficient front bezel and chassis side panel ventilation.
  • Fully utilizes 120mm fan of PS/2 PSU to exhaust heat
  • Balanced thermal and acoustic performance technology
  • Specification
  • Download
  • Accessory
  • Compatibility
  • Order Information
  • M/B Form Factor Mini-ITX (6.7"x 6.7")
    Dimensions (D x W x H) 310 x 200 x 270(mm) , 12.2" x 7.87" x10.63"
    Drive Bays Internal 2.5":2

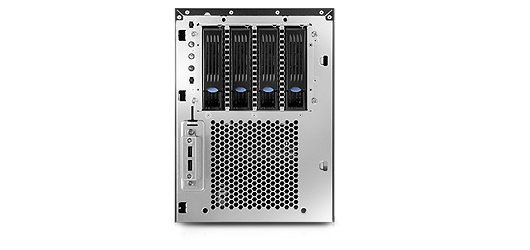

    3.5" Hot-swap:4
    PSU Form Factor PS/2 Single w/120mm Fan
    Indicators 1 x Power Status, 1 x HDD Activity, 1 x Warning LED
    Front Buttons Power On/Off, System Reset, 2x USB2.0
    System Security Padlock Loop, Kensington slot, Intrusion switch
    Cooling Fans Front: 1x120mm
    Expansion Slots 1x Low Profile
    HDD Backplane 12Gb/s SATA & SAS
    Metal Thickness 0.7mm
    Net Weight 5.2kg
    Gross Weight 7kg
    Front Bezel Included
    Cubic Feet 1.85
    Container Loading 20’:564, 40’:1134, 40’HQ:1284 (Single Carton)
  • Category Description Revision Size Download
    Datasheet SR30169 Datasheet V1.4 1.7 MB
    User Manual 6Gb/s 4-port 3.5" SAS/SATA Backplane(80H10230101A0), Rev. A0 V1.1 279.7 KB
    User Manual SR30169 Quick Installation Guide V1.1 391.7 KB
  • Product category Part. No# Description Support
    Cable, Power Cord, 3-Pin, 6ft, 120V USA
    Click Part. No# to view item picture
  • Order Code M/B Size HDD Backplane PSU Cooling Fan Slide Rail
    SR30169T3-250 mini-iTX 12Gbs SATA/SAS 250W 1x120mm N/A
