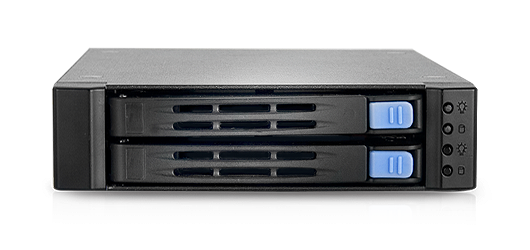

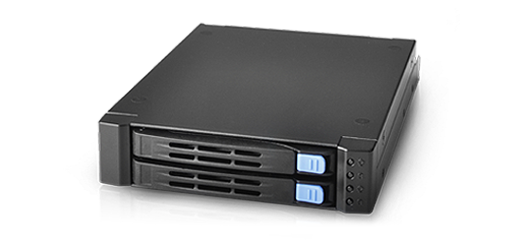

2-bay 2.5" HDD/SSD Enclosure with 12Gb/s SATA Backplane
SK51201 is a 3.5" form factor enclosure compatible for two hot-swap 2.5" SATA HDDs. It is mechanically well designed with great EMI performance and also equipped with HDD failure and activity LEDs.
Quick Search
  • By Chassis Type
  • By Motherboard
  • By RAID Card
  • By Power Supply
Features & Benefits
  • Fits chassis with a standard 3.5" drive bay
  • Compatibile with 2.5" SATA/SAS HDD or SSD under thickness 9.5mm
  • Supports HDD activity and failure indicators on front panel
  • Supports inrush current control for HDD hot-swapping
  • Reserved space for HDD ID label on front panel of HDD carrier
  • Specification
  • Download
  • Accessory
  • Compatibility
  • Order Information
  • Dimensions (Dx Wx H) 142.8 x 101.6 x 25.4 (mm), 5.6" x 4" x 1"
    Drive Bays 2 x 2.5" Hot-swap SATA HDD/SSD bays
    Indicators Power ON/OFF LED Fan and HDD Failure LED
    Front Buttons NA
    Cooling Fans NA
    Materials SGCC (black coating)
    Net Weight 0.34 Kg

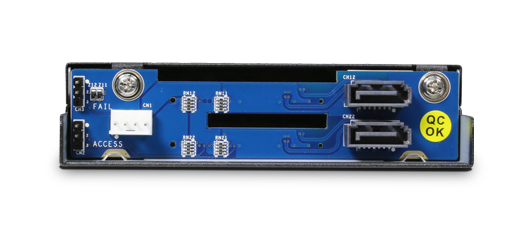

    Backplane 12Gb/s SATA /SAS
    Connectors (To Drive) 2 x (22+7) pins SATA connectors
    Connectors (To Host) 2 x 7 pins SATA connectors
  • Category Description Revision Size Download
    Datasheet 2.5'' HDD Storage Kit Datasheet V1.1 265.7 KB
    User Manual SK51201 Installation Guide with 3Gb/s SATA/SAS Backplane V1.0 205.1 KB
    User Manual 6Gb/s 2-port SATA/SAS BP(80H10551202A0) for SK51201 V1.1 246.6 KB
  • Product category Part. No# Description Support
    HDD Tray
    Tray, 2.5" HDD Tray of SK51201
    Click Part. No# to view item picture
  • Order Code Occupancy Backplane Drive support Fan
    SK51201T2 1x 3.5" 6Gb/s SATA/SAS 2x 2.5" HDD / SSD N/A
    SK51201T3 1x 3.5" 12Gb/s SATA/SAS 2x 2.5" HDD / SSD N/A
