1-bay 2.5" HDD/SSD Enclosure with12Gb/s or 6Gb/s SATA Backplane

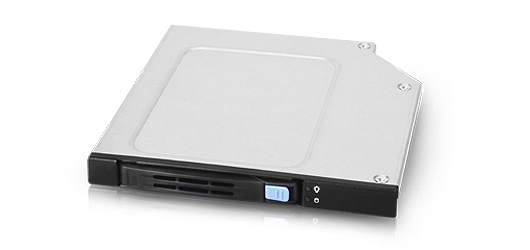

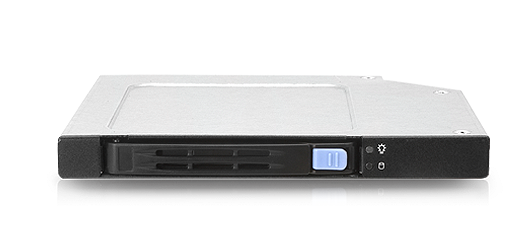

SK51102 is in slim ODD form factor enclosure, compatible for one hot-swap 2.5" HDD/SSD. It is mechanically well designed with great EMI performance and also equipped with hard drive failure and access LED indication.
Quick Search
  • By Chassis Type
  • By Motherboard
  • By RAID Card
  • By Power Supply
Features & Benefits
  • Fits chassis with slim ODD bay
  • Compatible with 2.5" SATA HDD or SSD under thickness 9.5mm
  • Supports HDD activity and failure indicators on front panel
  • Supports inrush current control for HDD hot-swapping
  • Reserved space for HDD ID label on front panel of HDD carrier
  • Specification
  • Download
  • Accessory
  • Compatibility
  • Order Information
  • Dimensions (Dx Wx H) 129.4 x 128 x 12.7 (mm), 5.1" x 5" x 0.5"
    Drive Bays 1 x 2.5" Hot-swap bay support up to 9.5mm SATA HDD/SSD single drive
    Indicators Power ON/OFF LED and HDD Failure LED
    Front Buttons NA
    Cooling Fans NA
    Materials SGCC
    Net Weight 0.23 Kg

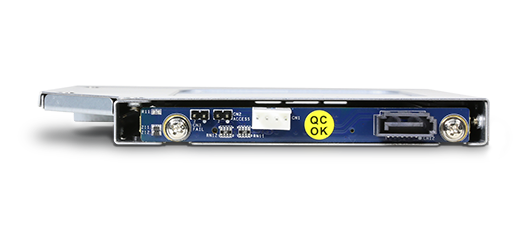

    Backplane 12GGb/s SATA/SAS
    Connectors (To Drive) 1 x (22+7) pins SATA connector
    Connectors (To Host) 1 x 7 pins SATA connector
  • Category Description Revision Size Download
    Datasheet 2.5'' HDD Storage Kit Datasheet V1.1 265.7 KB
    User Manual SK51102 Installation Guide with 3Gbps SATA Backplane V1.0 205.7 KB
    User Manual 6Gb/s 1-port 2.5" SATA Backplane(80H10551102A0) for SK51102 V1.1 560.5 KB
  • Product category Part. No# Description Support
    Click Part. No# to view item picture
  • Order Code Occupancy Backplane Drive support Fan
    SK51102T2 1x Slim ODD Bay 6Gb/s SATA 1x 2.5" HDD/SSD N/A
    SK51102T3 1x Slim ODD Bay 12 Gb/s SATA 1x 2.5" HDD/SSD N/A
