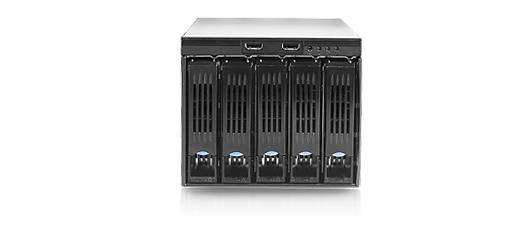

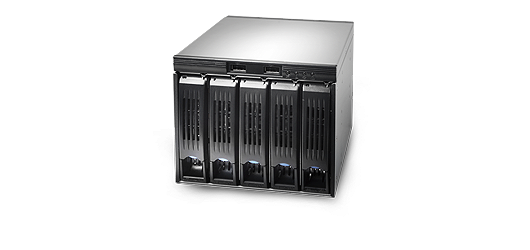

5-bay 3.5" HDD Enclosure with 12Gb/s SAS & SATA Backplane
SK33502 is designed with standard mounting holes for converting 3 x 5.25" drive bays into 5 x 3.5" SATA hot-swap hard drive bays.
Quick Search
  • By Chassis Type
  • By Motherboard
  • By RAID Card
  • By Power Supply
Features & Benefits
  • Fits chassis with three 5.25" drive bays

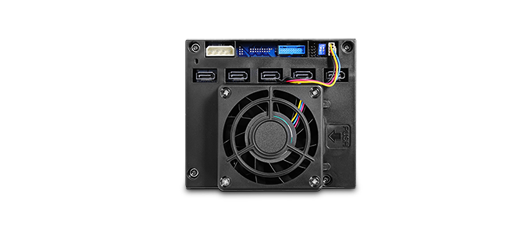

  • Back-mounted 80mm fan to deliver optimized cooling performance
  • Two front access USB ports
  • HDD failure and activity indicators on each hot-swap drive carrier
  • Supports inrush current control for drive hot-swapping
  • Alternative HDD activity and failure single input sources
  • Built-in temperature sensor and overheat warning system
  • Specification
  • Download
  • Accessory
  • Compatibility
  • Order Information
  • Dimensions (Dx Wx H) 218.5 x 146 x 127.3 (mm) 8.6" x 5.8" x 5"
    Drive Bays 5 x 3.5" HDD Hot-swap Tray
    Indicators 1 x Power On/Off
    1 x Overheat, Fan Failure and HDD Failure
    Front Buttons 1 x Alarm Mute
    2 x USB 2.0 or USB 3.0 Port
    Cooling Fans 1 x 80 mm (T = 32 mm) rear fan
    Materials SGCC
    Net Weight 2.23Kg
    Backplane 12Gb/s or 6Gb/s SAS & SATA
    Connectors (To Drive) 5 x (22+7) pins SAS connector
    Connectors (To Host) 5 x 7-pin SAS connector
  • Category Description Revision Size Download
    Datasheet 3.5'' HDD Storage Kit Datasheet V1.1 365.6 KB
    Quick Installation Guide(QIG) SK33502 Quick Guide with 12Gb/s SATA Backplane V1.0 350.7 KB
    Quick Installation Guide(QIG) SK33502 Quick Guide with 6Gb/s SATA Backplane V1.0 410.6 KB
    User Manual 12Gb/s 5-port 3.5" SATA/SAS Backplane for SK33502 V1.2 1.3 MB
  • Product category Part. No# Description Support
    Click Part. No# to view item picture
  • Order Code Occupancy Backplane Drive support Fan
    SK33502T2 3x 5.25" 6Gb/s SAS& SATA 5x 3.5" 80mm
    SK33502T3 3x 5.25" 12Gb/s SAS& SATA 5x 3.5" 80 mm
