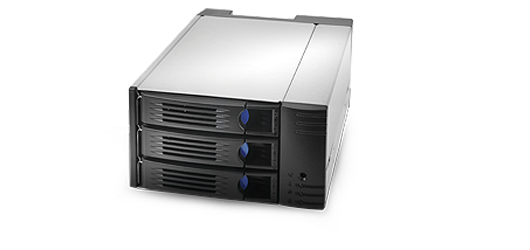

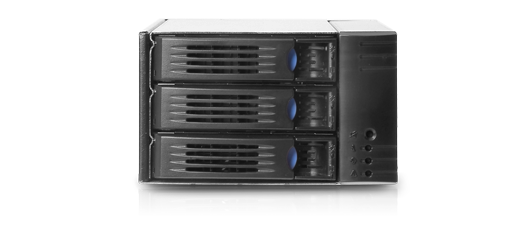

3-bay 3.5" HDD Enclosure with 12Gb/s SAS & SATA Backplane
SK32303 is designed with standard mounting holes for converting 2 x 5.25" drive bays into 3 x 3.5" hot-swap SAS & SATA hard drive bays.
Quick Search
  • By Chassis Type
  • By Motherboard
  • By RAID Card
  • By Power Supply
Features & Benefits
  • Fits chassis with two 5.25" drive bays

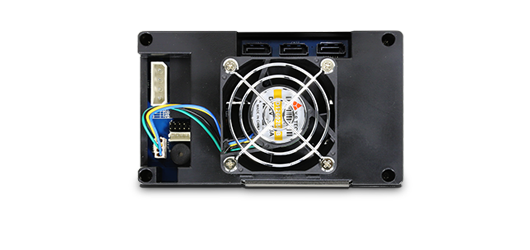

  • Back-mounted 60 mm fan to deliver optimized cooling performance
  • HDD failure and activity indicators on each hot-swap drive carrier
  • Supports inrush current control for drive hot-swapping
  • Alternative HDD activity and failure single input sources
  • Built-in temperature sensor and overheat warning system
  • Specification
  • Download
  • Accessory
  • Compatibility
  • Order Information
  • Dimensions (Dx Wx H) 218.7 x 146 x 84.4 (mm) 8.61" x 5.8" x 3.32"
    Drive Bays 3 x 3.5" HDD Hot-swap Tray
    Indicators 1 x Power On/Off
    1 x Overheat, Fan Failure and HDD Failure
    Front Buttons 1 x Alarm Mute
    Cooling Fans 1 x 60 mm (T = 25 mm), rear-mounted
    Materials SGCC
    Net Weight 1.4 Kg
    Backplane 12Gb/s or 6Gb/s SAS & SATA
    Connectors (To Drive) 3 x (22+7) pins SAS connector
    Connectors (To Host) 3 x 7-pin SAS connector
  • Category Description Revision Size Download
    Datasheet 3.5'' HDD Storage Kit Datasheet V1.1 365.6 KB
    Quick Installation Guide(QIG) SK32303 Quick Guide with 12Gb/s SATA Backplane V1.0 350.7 KB
    Quick Installation Guide(QIG) SK32303 Quick Guide with 6Gb/s SATA Backplane V1.0 410.6 KB
    User Manual SK32303 Installation Guide with 3Gb/s SATA/SAS Backplane V1.0 349.1 KB
    User Manual 12Gb/s 3-port 3.5" SATA/SAS Backplane for SK32303 V1.1 1.1 MB
  • Product category Part. No# Description Support
    Click Part. No# to view item picture
  • Order Code Occupancy Backplane Drive support Fan
    SK32303T2 2x 5.25" 6Gb/s SAS& SATA 3x 3.5" 60 mm
    SK32303T3 2x 5.25" 12Gb/s SAS& SATA 3x 3.5" 60 mm
