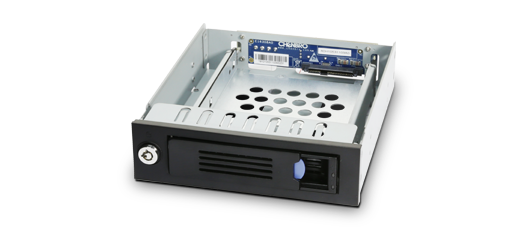

1-bay 3.5" HDD Enclosure with 12Gb/s SAS & SATA Backplane
SK31101 is designed with standard mounting holes for converting 1 x 5.25" drive bay into 1 x 3.5" SATA hot-swap drive bay.
Quick Search
  • By Chassis Type
  • By Motherboard
  • By RAID Card
  • By Power Supply
Features & Benefits
  • Fits chassis with one 5.25" drive bay
  • Top opening to deliver HDD cooling through system fans
  • HDD failure and activity indicators on the hot-swap drive carrier
  • Supports inrush current control for drive hot-swapping
  • Supports HDD failure single input from RAID or Expander card
  • Key lock for HDD security
  • Specification
  • Download
  • Accessory
  • Compatibility
  • Order Information
  • Dimensions (Dx Wx H) 171 x 146 x 43 (mm), 6.73" x 5.8" x 1.6"
    Drive Bays 1 x 3.5" HDD Hot-swap Tray
    Indicators 1 x Power On/Off
    1 x HDD Failure
    Front Buttons Key Lock
    Cooling Fans N / A
    Materials SECC
    Net Weight 0.5 Kg

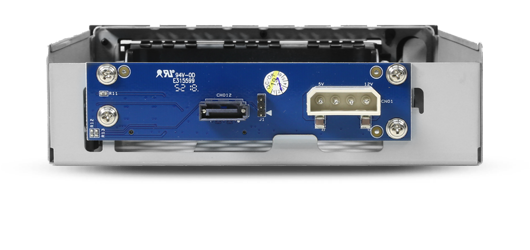

    Backplane 12Gb/s or 6Gb/s SAS & SATA
    Connectors (To Drive) 1 x (22+7) pins SAS connector
    Connectors (To Host) 1 x 7 pins SAS connector
  • Category Description Revision Size Download
    Datasheet 3.5'' HDD Storage Kit Datasheet V1.1 365.6 KB
    User Manual 12Gb/s 1-port SATA/SAS Backplane, For SK31101 V1.0 879.5 KB
    User Manual SK31101 Installation Guide with 3Gb/s SATA/SAS Backplane V1.0 217.7 KB
  • Product category Part. No# Description Support
    Click Part. No# to view item picture
  • Order Code Occupancy Backplane Drive support Fan
    SK31101T2 1x 5.25" 6Gb/s SAS& SATA 1x 3.5" N/A
    SK31101T3 1x 5.25" 12Gb/s SAS& SATA 1x 3.5" N/A
