NR40700 (EOL)
4U 48-bay High Density Storage Server Chassis
It addresses the demand of high density storage in limited space with featuring 48 x 3.5" top-loaded HDD bays and 6Gb/s SAS Expander backplane.
Compare
Clear GO
Quick Search
  • By Chassis Type
  • By Motherboard
  • By RAID Card
  • By Power Supply
Search
Compare
Features & Benefits

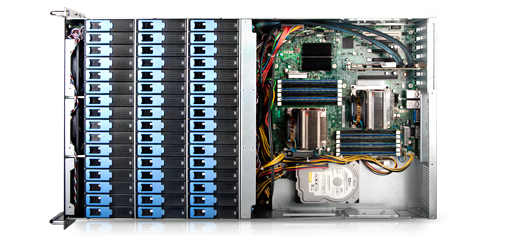

  • High Density, High Availability: 48 hot-swap top load HDD bays in a 4U 19”rackmount chassis. Up to 192TB storage capacity for data consolidation.

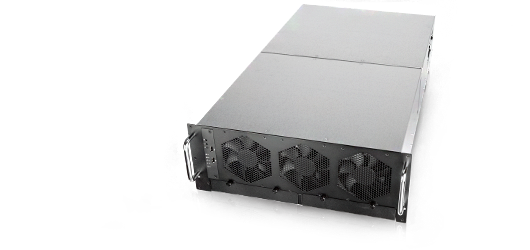

  • Efficient IT Administration: Two-piece top cover for maintain HDDs independently. Full travel ball bearing rails for support on-site maintenance. Sturdy chassis structure with user-friendly side handles. Modular BP tray design for easy maintenance.
  • High Performance, High Reliability: 24-port 6Gb/s SATA expander backplane for higher system efficiency and expandability. Equipped with 3 mini-SAS connectors on each backplane for increased system performance. Anti-vibration middle fan bar design to increase system reliability.
  • Specification
  • Download
  • Accessory
  • Compatibility
  • Order Information
  • Form Factor 4U
    MB Form Factor Extended ATX (12” x 13”)
    Dimensions (D x W x H) 800 x 438.5 x 176(mm)
    31.5" x 17.3" x 6.9"
    Drive Bays 3.5" Hot-swap：48
    2.5" Hot-swap：2(option)
    Internal: 1 x 3.5” or 1 x 2.5” (option)：

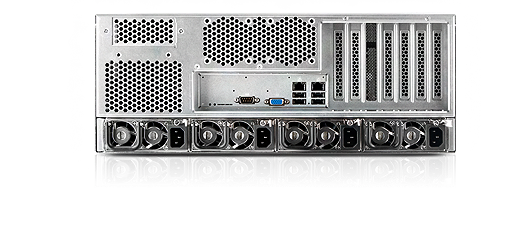

    PSU Form Factor 1550W, 2+1+0 Redundant
    Indicators 1 x Power Status, 1 x HDD Activity, 2 x LAN Activity, 1 x Alarm LED
    Front Control Power On/Off
    System Reset
    USB2.0 x 2

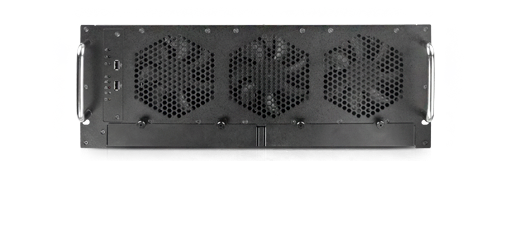

    Cooling Fans Front: 3 x 120mm
    Middle: 3 x 120mm
    Expansion Slots 7 x Full Height
    HDD Backplane 6Gb/s mini-SAS with Expander
    Net Weight 32Kg
    Gross Weight 46.7Kg
    Front Bezel N/A
    Cubic Feet 12.09
    Container Loading (Single Packing) 20': 90; 40': 190; 40'H:210
  • Category Description Revision Size Download
    Datasheet NR40700 Datasheet V1.1 16.0 MB
    User Manual 6Gb/s 24-port 3.5" mini-SAS expander backplane(80H10024001A0) V1.0 1.7 MB
    User Manual NR40700 Quick Installation Guide V1.1 455.6 KB
  • Product category Part. No# Description Support
    Bracket

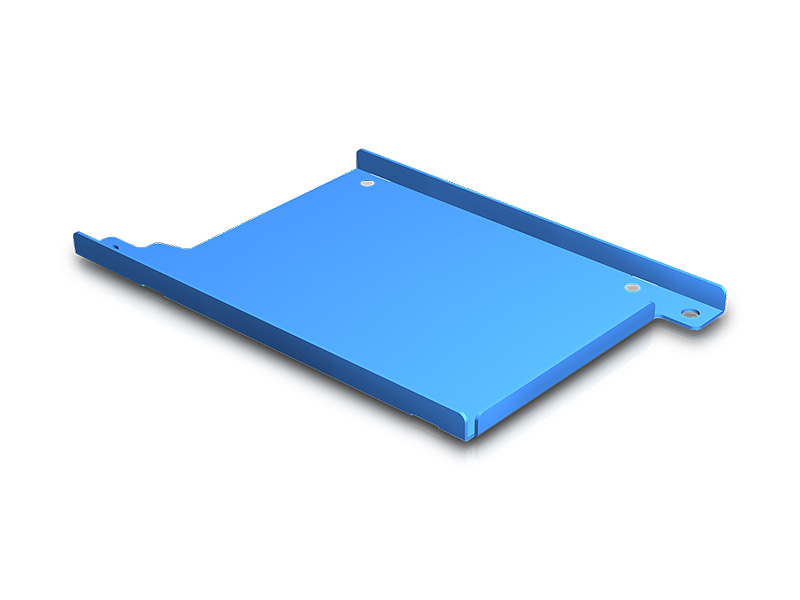

    55H103137A002    		 Bracket, HDD holder, 2.5", Internal
    HDD Cage

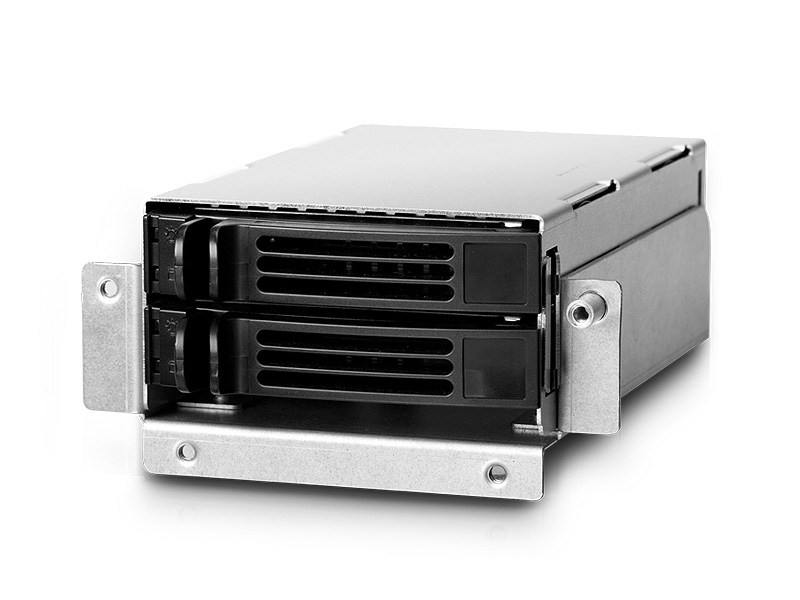

    84H024010-011    		 HDD cage, 2.5" 2-bay, w/2-port 6Gbps SAS& SATA backplane
    Click Part. No# to view item picture
  • Order Code M/B Size HDD Backplane PSU Rear Window Slide Rail
    NR40700-S0200 12"x13" 6Gb/s mini-SAS w/Expander 1550W 7 x FH Included
