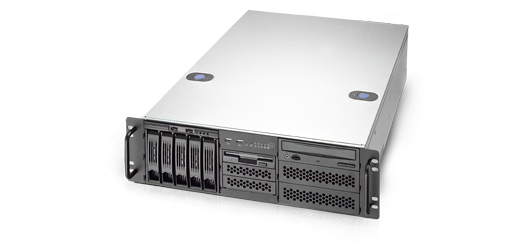

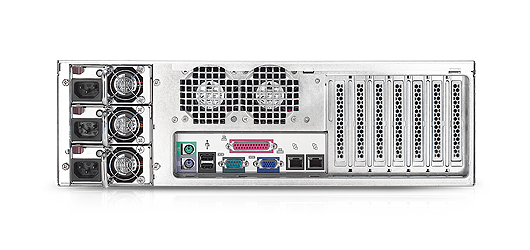

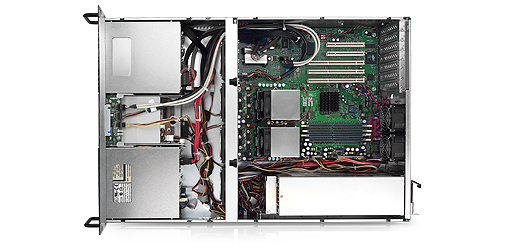

RM31300 (EOL)
3U Open Bay Server Chassis
It is designed with flexibility of utilizing six 5.25” drive bays to install ODD, tape drive and Chenbro SK family.
Compare
Clear GO
Quick Search
  • By Chassis Type
  • By Motherboard
  • By RAID Card
  • By Power Supply
Search
Compare
Features & Benefits
  • Supports M/B up to 12” x 13”

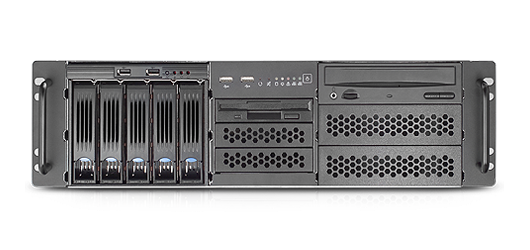

  • Exposed 6 x 5.25” and 3 x 3.5” bays for maximum configuration flexibility
  • Compatible with CHENBRO SK family for HDD hot-swap function
  • Optional 4 x hot-swap fan modules
  • Tool-less design for 5.25” device installation
  • Supports 2U single or 1+1 redundant PSU
  • Specification
  • Download
  • Accessory
  • Compatibility
  • Order Information
  • Form Factor 3U
    MB Form Factor Extended ATX (12” x 13”)
    Dimensions (D x W x H) 660 x 430 x 132 (mm), 26” x 16.9” x 5.2”
    Drive Bays External 5.25"：6
    External 3.5"：3
    PSU Form Factor 2U Single or 1+1 Redundant
    Indicators 1 x Power Status, 1 x HDD Activity, 2x LAN Activity , 1 x Fan Failure and Overheat
    Front Control Power On/Off, Alarm Mute, System Reset, 2 x USB 2.0
    System Security Intrusion Switch
    Cooling Fans Middle: 4 x 80mm (T=32mm), Rear: 2 x 80mm (T=25mm) (Option)
    Expansion Slots 7 x Full Height and Full Length
    HDD Backplane N/A
    Net Weight 12.3kg
    Gross Weight 16.4kg
    Front Bezel Option
    Cubic Feet 5.07
    Container Loading (Single Packing) 20’: 196, 40’: 404, 40’H: 454
  • Category Description Revision Size Download
    Datasheet RM31300 Datasheet V1.2 1.2 MB
    User Manual LED Board(80H033216-004), Features and Jumper Settings V1.0 266.5 KB
    User Manual RM31300 Quick Installation Guide V1.1 426.6 KB
  • Product category Part. No# Description Support

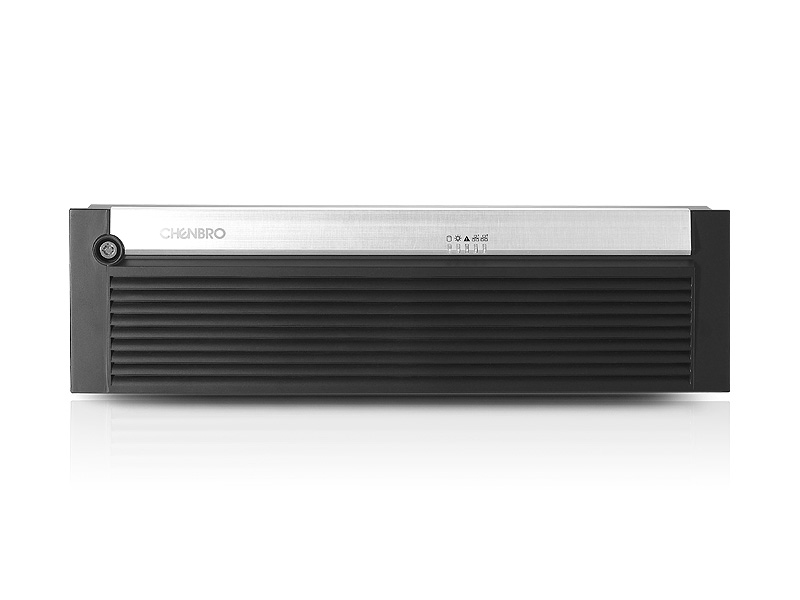

    Bezel
    84H331310-001    		 Front Bezel, 3U, Plastic, SilFox
    Bezel
    84H331610-032    		 Front Bezel, 3U, Plastic, Bricker

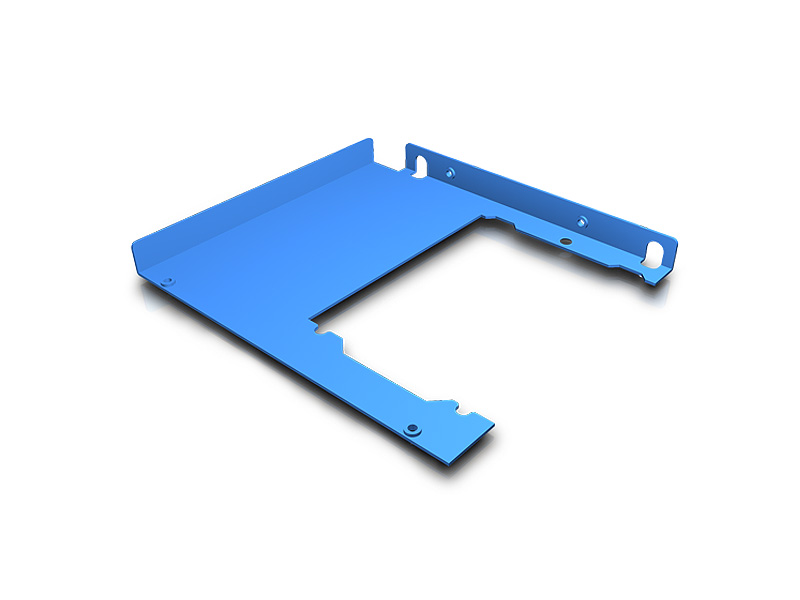

    Bracket
    84H331210-013    		 Bracket, PSU, 3U, For P2G-6510P/SS460H2U /P2H-5500V 80+ / P2G-5650V 80+
    Bracket
    84H331310-009    		 Bracket, PSU, 3U, For C2W-5620V/C2W-5820V
    Power Supply
    32H2062000202    		 PSU, 1+1 Redundant, 620W, C2W-5620V, PMBus 1.1
    Power Supply
    32H2065001101    		 PSU, 650W,1+1 Redundant, Acbel R2IS7651A-G, 80+ Gold, PM Bus V1.2
    Power Supply
    32H2082000202

    PSU, 1+1 Redundant, 820W, C2W-5820V, PMBus 1.1
    Power Supply
    32H2087501101    		 PSU, 875W, 1+1 Redundant, Acbel R2IS7871A-G, 80+ Gold, PM Bus V1.2
    Slide Rail
    84H321710-041    		 Slide Rail, 26", Tool-less
    Click Part. No# to view item picture
