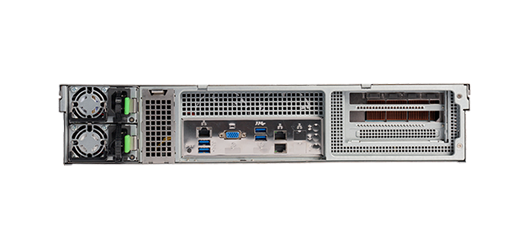

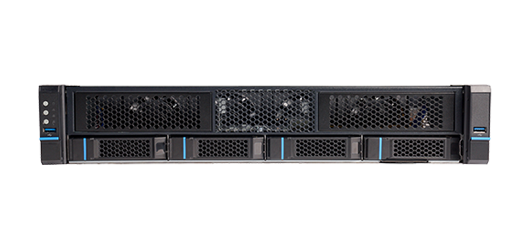

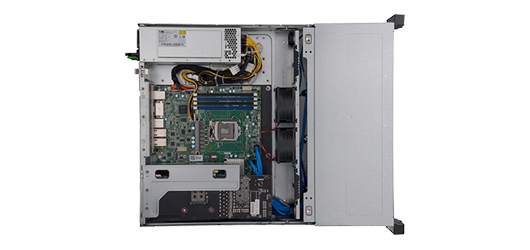

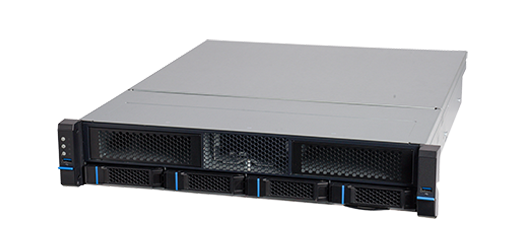

RM245 GPU
2U High Flexible Storage Server Chassis
Offers flexible solutions by choosing your own modular parts integrated into the system to fulfill enterprise demand.
Compare
Clear GO
Quick Search
  • By Chassis Type
  • By Motherboard
  • By RAID Card
  • By Power Supply
Search
Compare
Features & Benefits
  • Supports MB size up to 12” x 10.5”
  • Features tool-less 3.5" HDD tray
  • Supports 8-bay or 12-bay 3.5" HDD cage for different applications
  • Supports 12Gb/s backplane w/ or w/o Expander
  • Easy-swap rear window for 3-slot or 7-slot configuration
  • Optional rear 2-bay 2.5" HDD cage for OS drive security
  • Supports 1 + 1 CRPS or 2U single PSU
  • Specification
  • Download
  • Accessory
  • Compatibility
  • MB Form Factor ATX (12" x 9.6") or Micro-ATX (9.6" x 9.6")
    Dimensions (D x W x H) 559 x 438 x 87 (mm), 22" x 17.2" x 3.5"
    Drive Bays RM24500 GPU: 1 x 3.5” (Internal)+ 1 x2.5” (Internal), 2 x Open Bay：
    RM24504 GPU: 4 x 3.5" (Hot-swap), 2 x Open Bay：
    Optional 2 x 2.5" for OS (Hot-swap, 1+1 CRPS SKU only)：
    PSU Form Factor - SKU1 : Redundant CRPS 1+1, 800W
    - SKU2 : 1 CRPS + PDB, 800W
    Indicators Front Panel: 1 x Power Status, 2 x LAN Activity, 1 x UID,1 x HDD Status, 1 x System Status
    Front Control 1 x Power On/Off, 1 x System Reset, 1 x UID, 1 x USB 3.0
    System Security Intrusion Switch (Option)
    Cooling Fans Middle: 80 x 38 mm (2, up to 3), 11000 PWM, Non Hot-swap
    Expansion Slots 3 x Full Height and Full Length (Right), support 1x double Wide GPU(Default: PCIe bracket w/o riser card)
    HDD Backplane - RM24504: 3.5" 4-port 12Gbps, Mini-SAS HD
    - 2.5” 2-port 12Gbps SAS/SATA (Option)
  • Category Description Revision Size Download
    Datasheet Datasheet RM245 GPU v1.0 865.4 KB
  • Product category Part. No# Description Support
    Bezel
    384-23705-3106A0    		 Bezel, 2U, Metal w/o Key-lock, Black
    Bezel
    384-23705-3107A0    		 Bezel, Front w/ Key-lock, Black, RM237/238
    Cable
    CL-PWR-US    		 Cable, Power Cord, 3-Pin, 6ft, 120V USA
    HDD Module
    384-23701-3116B0    		 HDD Cage, 2-bay 2.5 w/12Gbps SAS & SATA Backplane, 2* 650mm SATA III Cable
    HDD Tray
    384-14602-3123A0
    Tray, Mix, 3.5" HDD Tray (#383-14655-3039a0), Tool-less, RM14604
    Rail
    384-14303-3102A0    		 Rail, Simple Rail Long, RM143/RM146/RM133 (MOQ=8)
    Rail
    84H314610-003    		 Rail, Ball Bearing, 2-Section, Tool-less 23
    Riser BRKT
    384-23812-3102A0    		 Bracket, Rear Window (FH), Riser BKT + Screw Type, 3-Slot, RM238
    Riser Card
    384-PCB00066B0A0    		 For 2U, 1-Slot, PCI-e x16 riser Gen4
    SK
    SK51102T3    		 SK, 1x2.5"HDD Bay in Slim ODD Cage,w/12gb/s SATA BP
    Click Part. No# to view item picture
