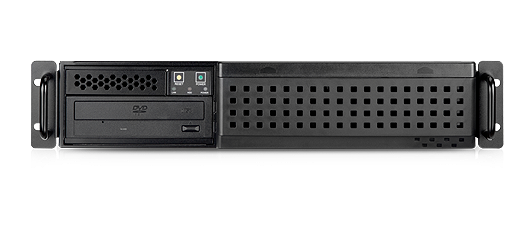

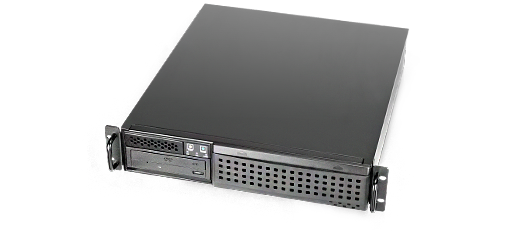

RM22300 (EOL)
2U Cost Effective Industrial Server Chassis
With whole chassis coating, air filter, and dedicated HDD cooling fans, it guarantees reliable operation in harsh environment.
Compare
Clear GO
Quick Search
  • By Chassis Type
  • By Motherboard
  • By RAID Card
  • By Power Supply
Search
Compare
Features & Benefits

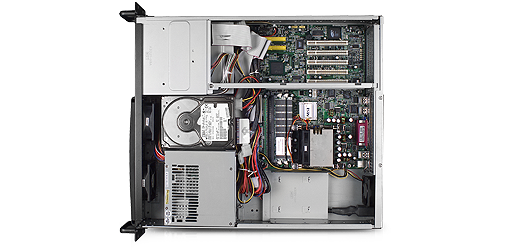

  • Support M/B up to 12" x 9.6"

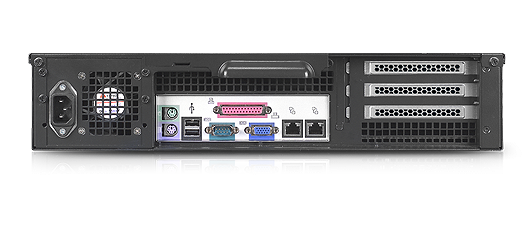

  • Support 3-slot and 6-slot low profile rear windows
  • Black coating on whole chassis for harsh environment
  • 4 x 3.5" internal bays with dedicated fan cooling
  • Built-in easy-swap air filter
  • Support single PS/2 PSU with 80mm fan
  • Specification
  • Download
  • Accessory
  • Compatibility
  • Order Information
  • Form Factor 2U
    MB Form Factor ATX (12”x9.6”)
    Dimensions (D x W x H) 493 x 422 x 88 (mm), 19.4” x 16.6” x 3.5”
    Drive Bays External 5.25"：1
    External 3.5"：1
    Internal 3.5"：4
    PSU Form Factor PS/ 2 Single
    Indicators 1 x Power Status, 1 x HDD Activity, 1 x LAN Activity
    Front Control Power On/Off, System Reset, 1 x USB 2.0
    System Security Intrusion Switch
    Cooling Fans Front: 2 x 80mm (T=25mm) , Rear: 1 x 60mm (T=25mm)
    Expansion Slots 3 x Full Height or 6 x Low Profile
    HDD Backplane N/A
    Net Weight 7.0kg
    Gross Weight 10.0kg
    Front Bezel Option
    Cubic Feet 3.03
    Container Loading (Single Packing) 20’: 324, 40’: 678, 40’H: 829
  • Category Description Revision Size Download
    Datasheet RM22300 Datasheet V1.2 1.5 MB
    User Manual RM22300 Quick Installation Guide V1.1 471.5 KB
  • Product category Part. No# Description Support
    Bezel

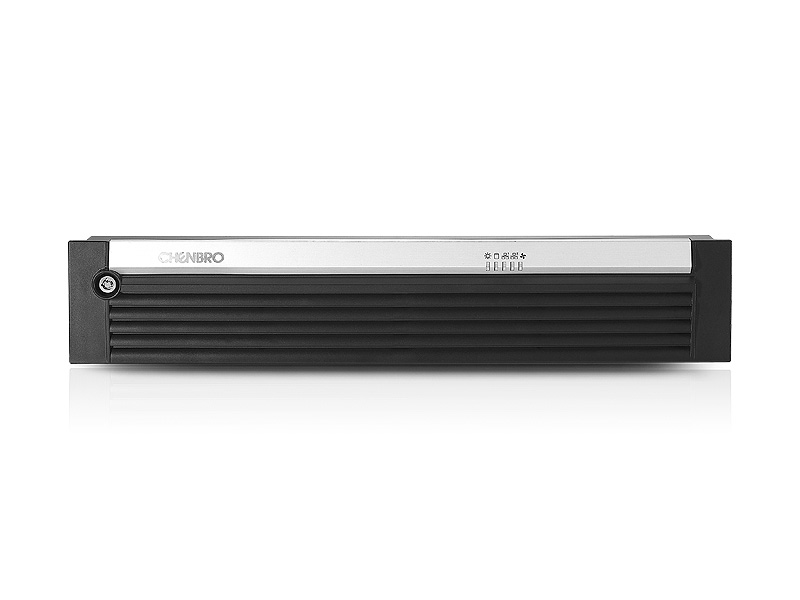

    84H322310-001    		 Front Bezel, 2U, Plastic, SilFox
    Power Supply
    32H1030000706    		 PSU, 300W, PS/2 Single, FSP300-70PFL, 80+, w/80mm fan
    Power Supply
    32H1030001104    		 PSU, 300W, PS/2 Single, Acbel PC7036-7H1G, 80+, w/80mm fan
    Slide Rail

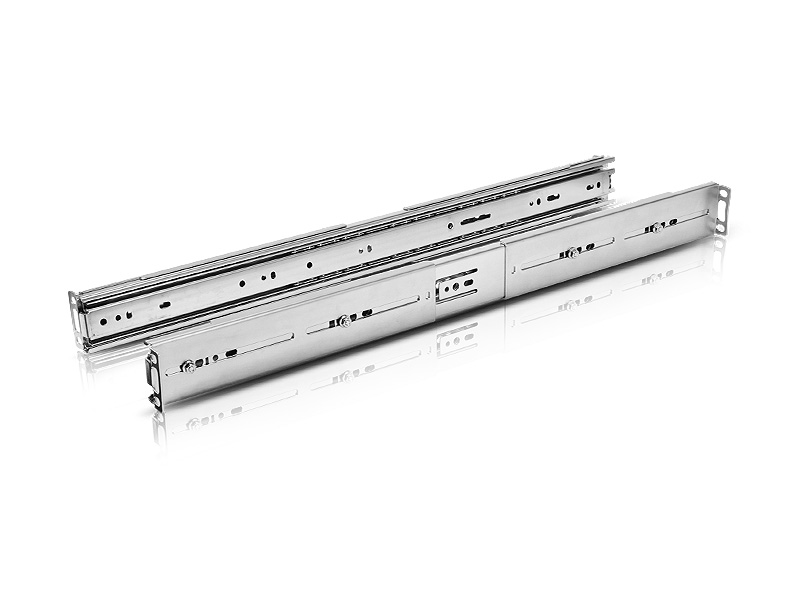

    84H322310-005    		 Slide Rail, 22", w/4pcs mounting plates
    Click Part. No# to view item picture
  • Order Code M/B Size HDD Backplane PSU Rear Window Slide Rail
    RM22300 12"x9.6" N/A Option 3-Slot, Riser Option
    RM22300-L 12"x9.6" N/A Option 3-Slot, Riser Option
