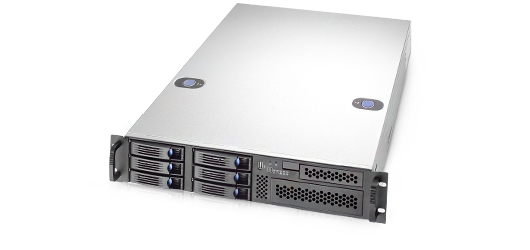

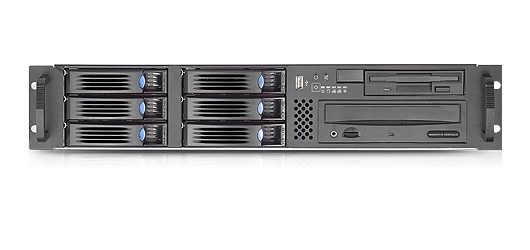

RM21706
2U General Purpose Server Chassis
Equipped with six 3.5" HDD Hot-swap, one 3.5" and one 5.25" bays make it affordable for general purpose server.
Compare
Quick Search
  • By Chassis Type
  • By Motherboard
  • By RAID Card
  • By Power Supply
Compare
Features & Benefits
  • Supports M/B up to 12” x 13”
  • Supports 12Gb/s SAS/SATA backplane
  • Versatile configurations available via exposed 1 x 5.25” and 1 x 3.5” bays
  • Optional 4 x hot-swap fan modules

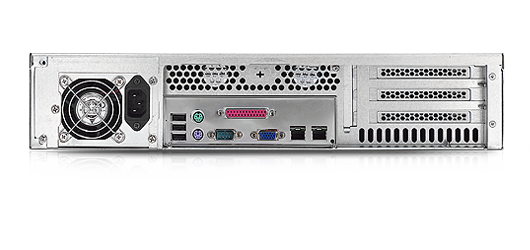

  • Supports 3-slot full height and 6-slot low profile rear windows
  • Supports 2U single or 1+1 redundant PSU
  • Specification
  • Download
  • Accessory
  • Compatibility
  • Order Information
  • Form Factor 2U
    MB Form Factor E-ATX (12” x 13”)
    Dimensions (D x W x H) 660 x 430 x 88 (mm)
    26” x 16.9” x 3.5”
    Drive Bays External 5.25":1
    External 3.5":1
    3.5" Hot-swap:6
    Internal 3.5":1
    PSU Form Factor 2U Single or 1+1 Redundant
    Indicators 1 x Power Status
    1 x HDD Activity
    2 x LAN Activity
    1 x Fan Failure and Overheat
    Front Control 1 x Power On/Off
    1 x Alarm Mute
    1 x System Reset
    1 x USB2.0
    System Security Intrusion Switch
    Cooling Fans Middle: 4 x 80mm , Rear: 2 x 40mm (Option)
    Expansion Slots 3 x Full Height and Full Length or 6 x Low Profile
    HDD Backplane 12Gb/s
    Net Weight 9.5kg
    Gross Weight 13.4kg
    Front Bezel Option
    Cubic Feet 4.26
    Container Loading (Single Packing) 20’: 250, 40’: 520, 40’H: 575
  • Category Description Revision Size Download
    Datasheet RM21706 Datasheet V1.2 1014.1 KB
    User Manual 3Gb/s 6-port 3.5" SATA/SAS Backplane(80H103217-004) V1.0 762.7 KB
    User Manual 6Gb/s 6-port 3.5" SATA/SAS Backplane(80H10321712A0), Rev.A0 V1.0 363.4 KB
    User Manual 3Gb/s 6-port 3.5" mini-SAS Backplane(80H10321709A0) V1.0 442.1 KB
    User Manual 6Gb/s 6-port 3.5" mini-SAS Backplane(80H10321711A0), Rev.A0 V1.0 4.5 MB
    User Manual RM21706 Quick Installation Guide V1.1 513.4 KB
  • Product category Part. No# Description Support

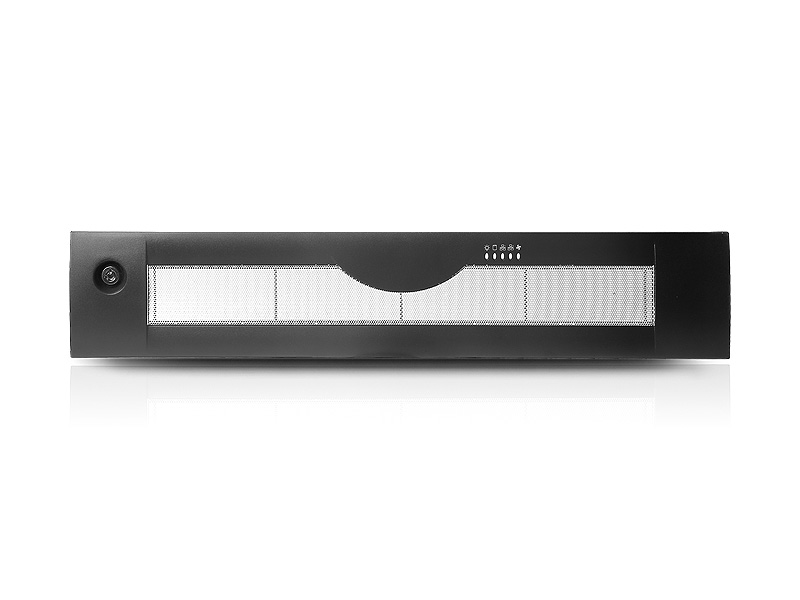

    Bezel
    84H321410-049
    Bezel, Third Type, RM21706

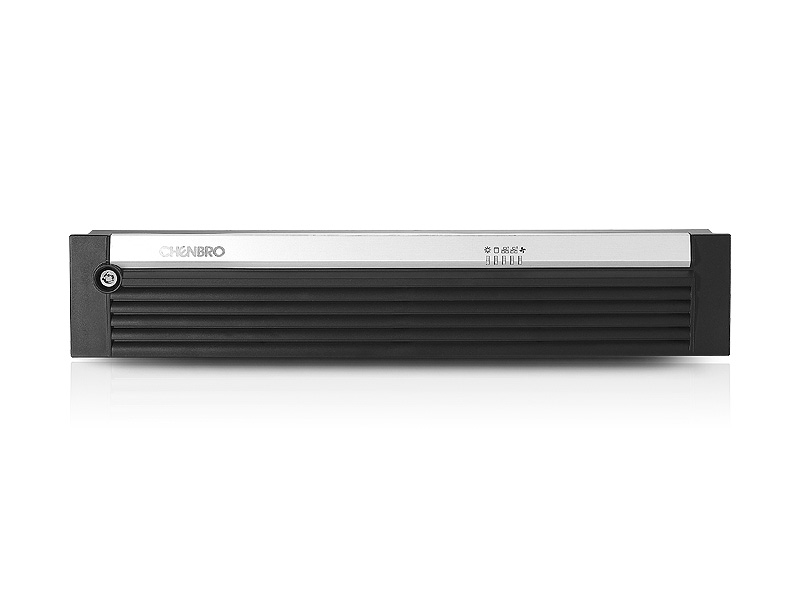

    Bezel
    88H321500-001
    Bezel, Plastic Panel, BKCC1012
    Cable
    CL-PWR-US
    Cable, Power Cord, 3-Pin, 6ft, 120V USA
    Fan
    30H080032-112

    Fan, 80*32, L300mm(4P4C), Ball, 5000RPM, FD128032HB-P, Y.S

    HDD Tray
    84H321710-032
    Tray, HDD Tray, 3.5" Dummy, BK
    Power Supply
    132-20650-0701C0
    PSU, Redundant 1+1, 650w, P24:740/P8:640/P4+4:650mm, C0, Acbel
    Power Supply
    132-20875-0700C0
    PSU, Redundant 1+1, 875w, P24:740/P8:640/P4+4:650mm, C0, Acbel
    PSU
    132-20650-0701C1
    PSU, Redundant1+1, 650W, P24:740/P8:640/P4+4:650MM, C0, Acbel
    PSU
    132-20875-0700C1

    PSU, Redundant1+1, 875W, P24:740/P8:640/P4+4:650mm, C0, ACBEL

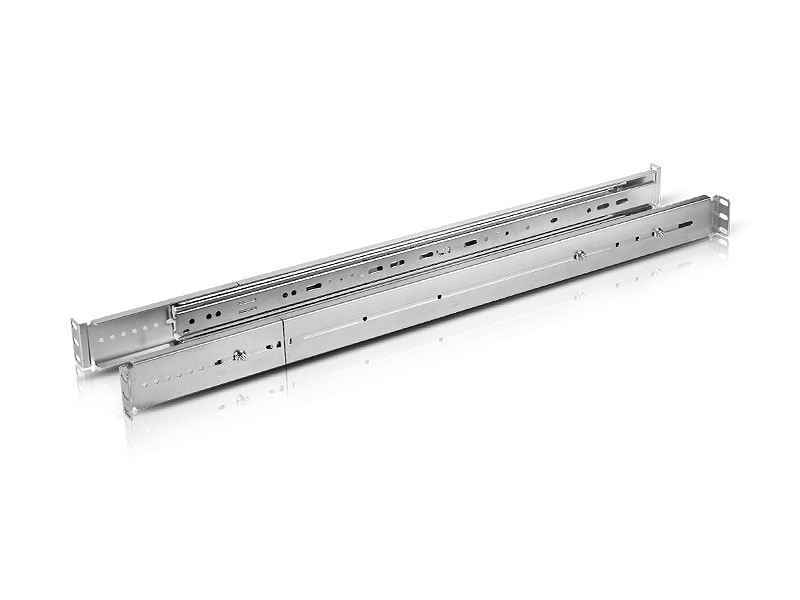

    Rail
    84H323610-034
    Rail, 26", Tool-less, 2U-4U, 3A61-661, w/Plate x 4, Tool-less

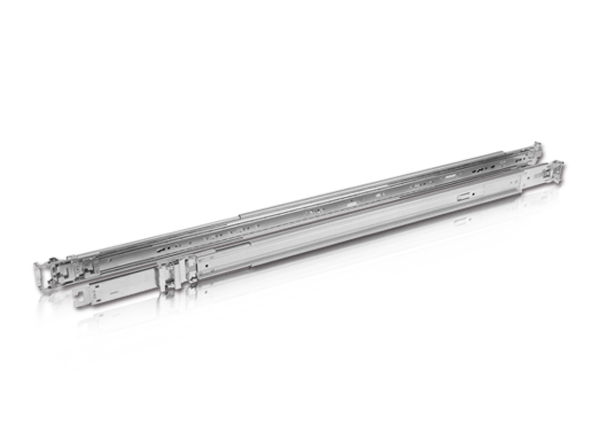

    Rail
    84H341300-002

    Rail, King Slide 21.9" (2pcs/set), 2U - 4U

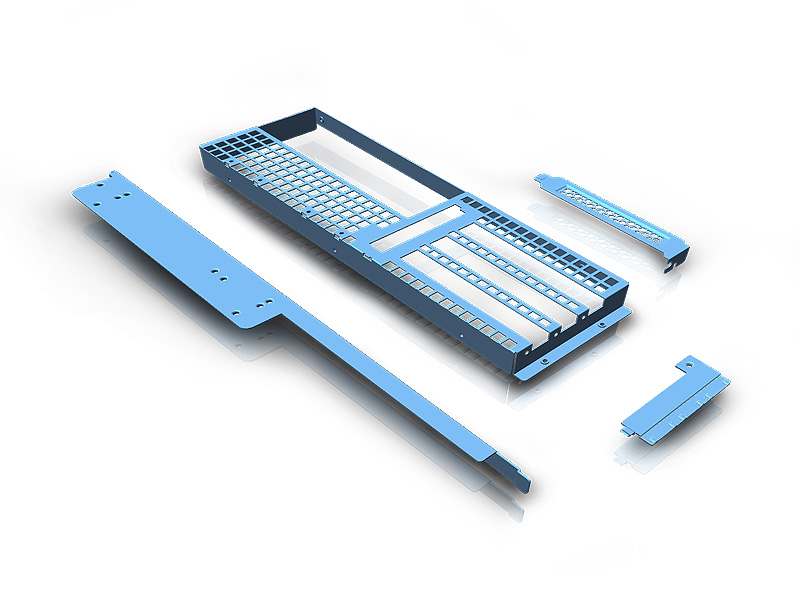

    Riser BRKT
    88H321400-001
    Bracket, Rear Window, STD RW, w/Riser BKT, Stand Off + Screws, RM
    SK
    SK31101T3
    SK, 12g, 5.25" to 1 x Hot-swap 3.5" HDD Bay
    SK
    SK41101-BK-H
    SK, HDD Tray, Internal, 1 x 5.25" to 3.5" HDD/FDD Bay, BK
    SK
    SK41202
    SK, 1 x 5.25 (internal) to 1 x Slim ODD+ internal 3.5 HDD/FDD Bay
    SK
    SK41203
    SK, HDD Tray, Internal, 1 x 3.5" HDD/FDD to 2 x 2.5" HDD Bays
    SK
    SK51102T3
    SK, 1x2.5"HDD Bay in Slim ODD Cage,w/12gb/s SATA BP
    SK
    SK51201T3
    SK, 1 x 3.5" to 2 x 2.5" HDD Bay, w/12gb/SATA BP
    Click Part. No# to view item picture
