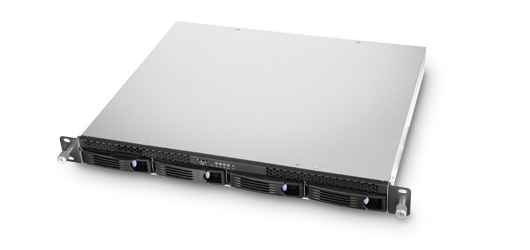

1U 4-bay NAS Server Chassis
RM14204 is a 4-bay NAS chassis suitable for all Mini-ITX motherboards without auido jacks. With 3 internal 2.5" drive bays, it delivers the flexibility for wide-range NAS configurations.
Quick Search
  • By Chassis Type
  • By Motherboard
  • By RAID Card
  • By Power Supply
Features & Benefits
  • Supports up to three internal 2.5” HDD/SSD drives
  • Optional 6Gb/s or 12Gb/s 4-port SAS & SATA backplane
  • Supports mini-ITX M/B and Flex ATX PSU
  • 3 x 40mm PWM rear fans with anti-vibration
  • Front access information tag for easy server management
  • Tool-less installation in internal 2.5" drives and rear fans
  • Specification
  • Download
  • Accessory
  • Compatibility
  • Order Information
  • Form Factor 1U
    MB Form Factor Mini-ITX (6.7” x 6.7”)
    Dimensions (D x W x H) 381 x 430 x 43.4 (mm)
    15” x 16.93” x 1.71”
    Drive Bays 3.5" Hot-swap:4
    2.5" Hot-swap:3

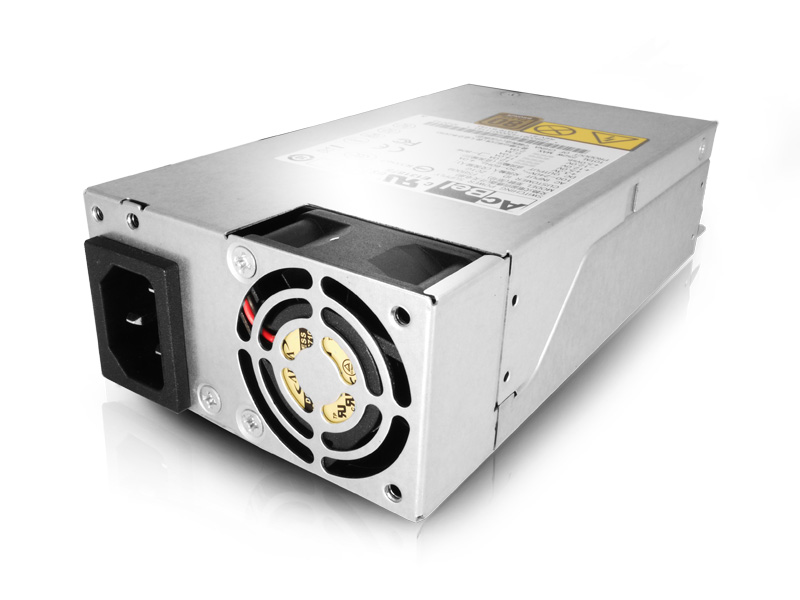

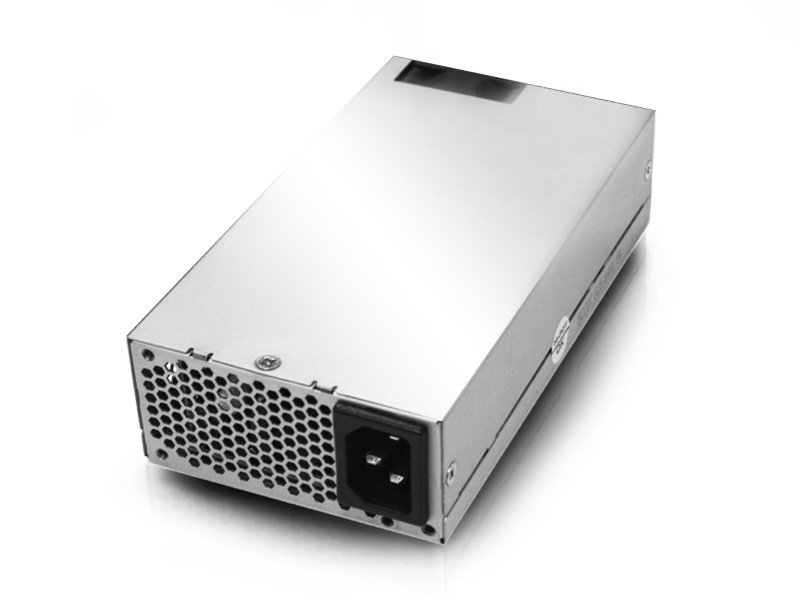

    PSU Form Factor Flex ATX
    Indicators 1 x Power Status
    1 x HDD Activity
    2 x LAN Activity
    Front Control 1 x Power On/Off
    1 x System Reset
    1 x USB2.0

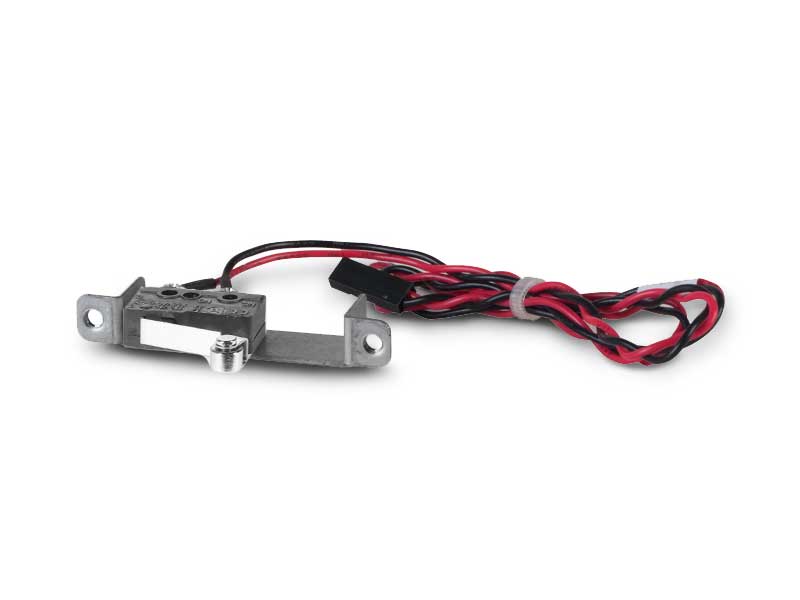

    System Security Intrusion Switch (Option)
    Cooling Fans Rear: 2 x 40mm, T=28mm (Up to 3), PWM
    Expansion Slots N/A
    HDD Backplane 12Gb/s
    Net Weight 4.3kg
    Gross Weight 6.1kg
    Front Bezel Option
    Cubic Feet 2.07
    Container Loading (Single Packing) 20': 400, 40': 800, 40'H: 960
  • Category Description Revision Size Download
    Datasheet RM14204 Datasheet V1.1 816.7 KB
    Quick Installation Guide(QIG) RM14204 Quick Installation Guide V1.0 3.6 MB
  • Product category Part. No# Description Support
    Cable, Power Cord, 3-Pin, 6ft, 120V USA
    HDD Tray
    Tray, HDD Tray, 3.5" Dummy, BK
    MB I/O

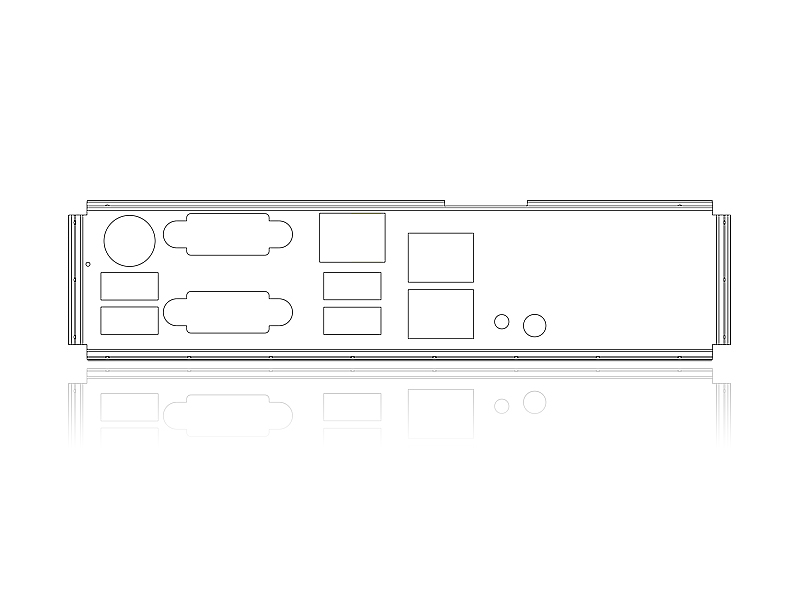

    I/O Gasket (w/Square Hole)
    Rail, 26" King Slide Tool-less Rail, 1U
    Click Part. No# to view item picture
  • Order Code M/B Size Middle Fan HDD Backplane PSU Slide Rail
    RM14204T3-250 6.7” x 6.7” Rear: 2 x 40mm (T=28mm) 12Gb/s SATA 250W Option
