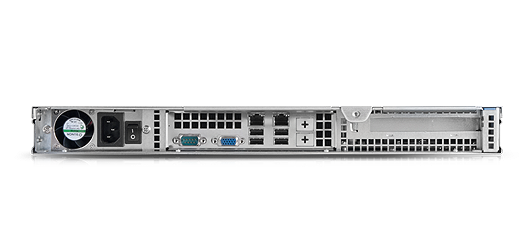

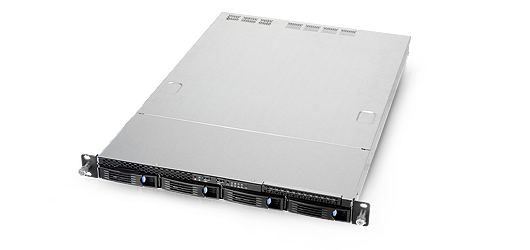

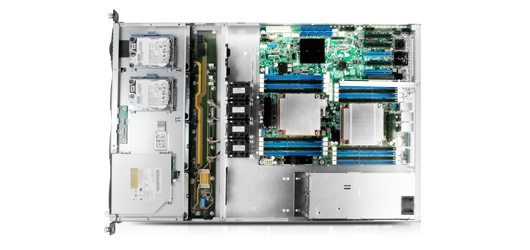

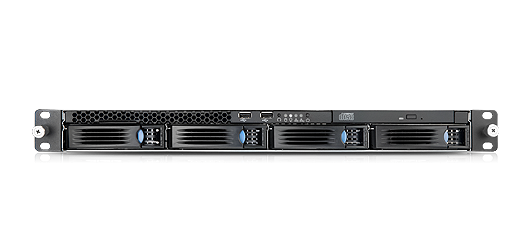

1U Entry Computing and Storage Server Chassis
Featuring flexible fan configuration, smart fan control and high working temperature make it ideal for data center application.
Quick Search
  • By Chassis Type
  • By Motherboard
  • By RAID Card
  • By Power Supply
Features & Benefits
  • Tool-less installation on 2.5” HDD bays, add-on card and fans
  • Flexible fan configurations in thickness 28mm, 48mm and 56mm
  • Supports 4-port 12Gb/s or 6Gb/s SATA backplane
  • Middle fans with anti-vibration mechanism
  • 3.5” HDD carrier for 3.5” HDD or 2.5” HDD/SSD
  • Built-in info tag
  • Specification
  • Download
  • Accessory
  • Compatibility
  • Order Information
  • Form Factor 1U
    MB Form Factor E-TX (12” x 13”)
    Dimensions (D x W x H) 658.4 x 430 x 43.3 (mm)
    25.92” x 16.93” x 1.7”
    Drive Bays Slim ODD:1
    3.5" Hot-swap:4
    Internal 2.5":2

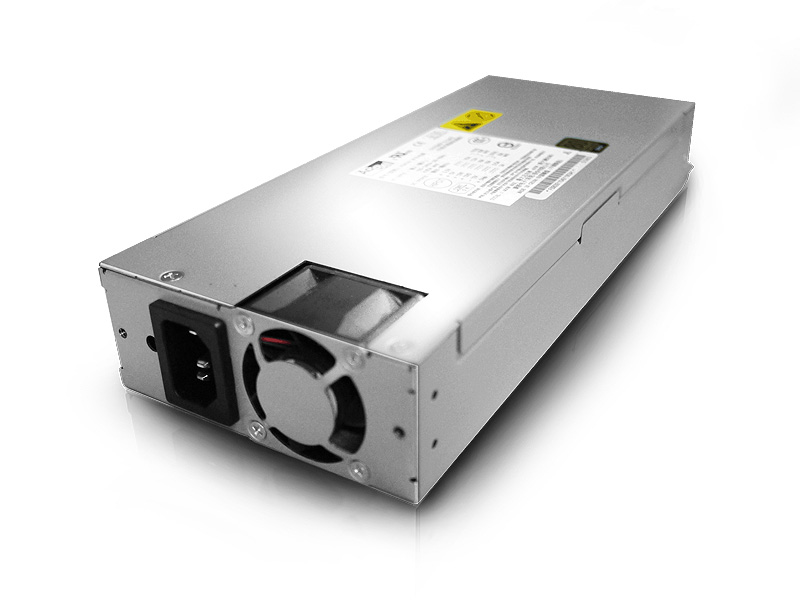

    PSU Form Factor 1U Single or Redundant
    Indicators 1 x Power Status
    1 x HDD Activity
    2 x LAN Activity
    1 x Fan Failure and Overheat (RPSU SKU)
    Front Control 1 x Power On/Off
    1 x Alarm Mute
    1 x System Reset
    2 x USB2.0
    System Security N/A
    Cooling Fans Middle: 4 x 40 mm, T=28 mm (Up to T=56mm) (Up to 6)

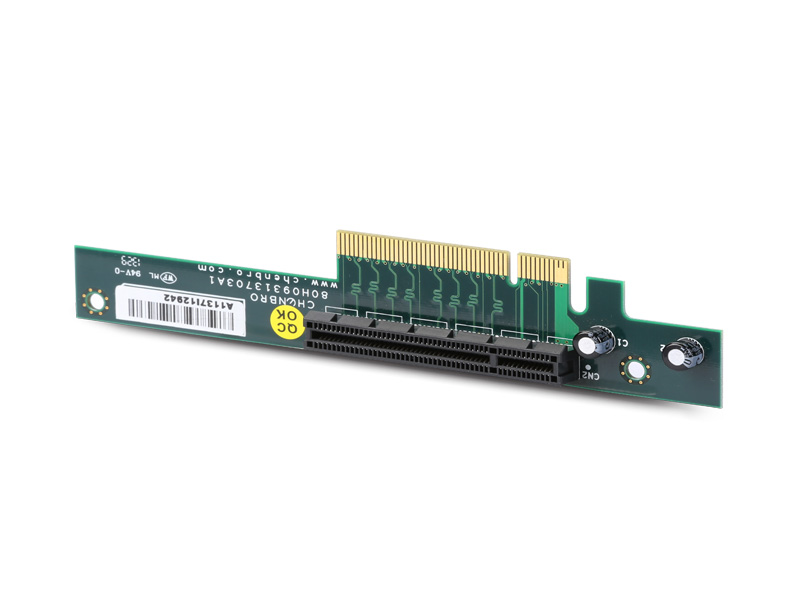

    Expansion Slots 1 x Full Height & Length
    HDD Backplane 12Gb/s SATA
    Net Weight 6.8kg
    Gross Weight 9.0kg
    Front Bezel N/A
    Cubic Feet 2.04
    Container Loading (Single Packing) 20': 450, 40':930, 40'H:1050
  • Category Description Revision Size Download
    Datasheet RM13604 Datahseet V1.2 1.2 MB
    Firmware Intel S2600CW SDR for SKU RM13604T2-CW X00 7.3 KB
    User Manual 6Gb/s 4-port 3.5" SATA/SAS Backplane (80H10313601A0), Rev. A0 V1.0 416.0 KB
    User Manual LED Board(80H03324101A0), Features and Jumper Settings V1.0 762.6 KB
    User Manual RM13604 Quick Installation Guide V1.1 516.9 KB
  • Product category Part. No# Description Support

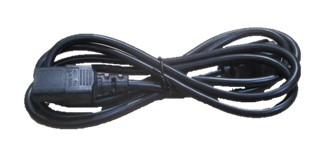

    Cable, Power Cord, 3-Pin, 6ft, 120V USA
    HDD Tray

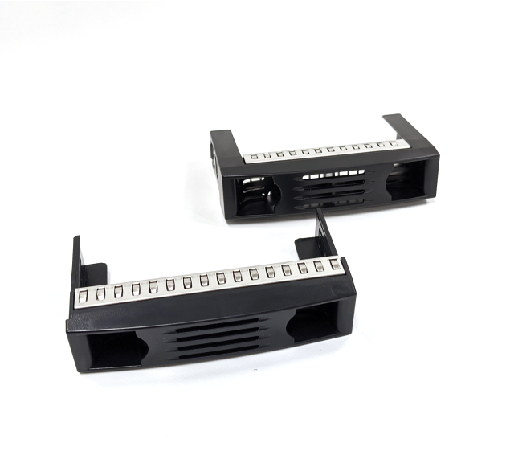

    Tray, HDD Tray, 3.5" Dummy, BK

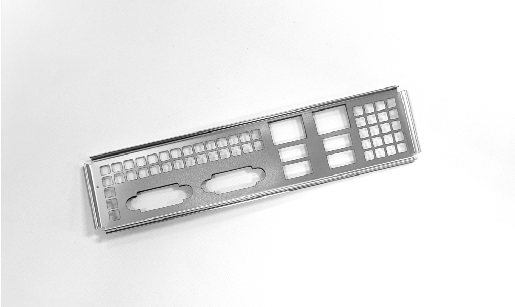

    MB I/O

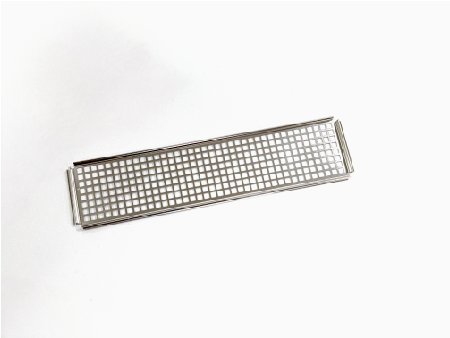

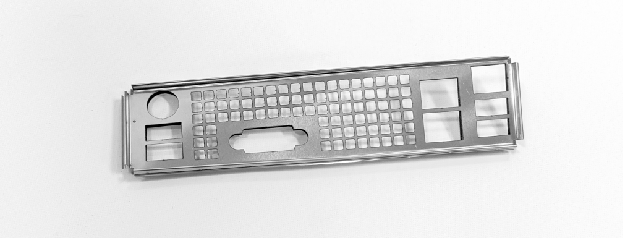

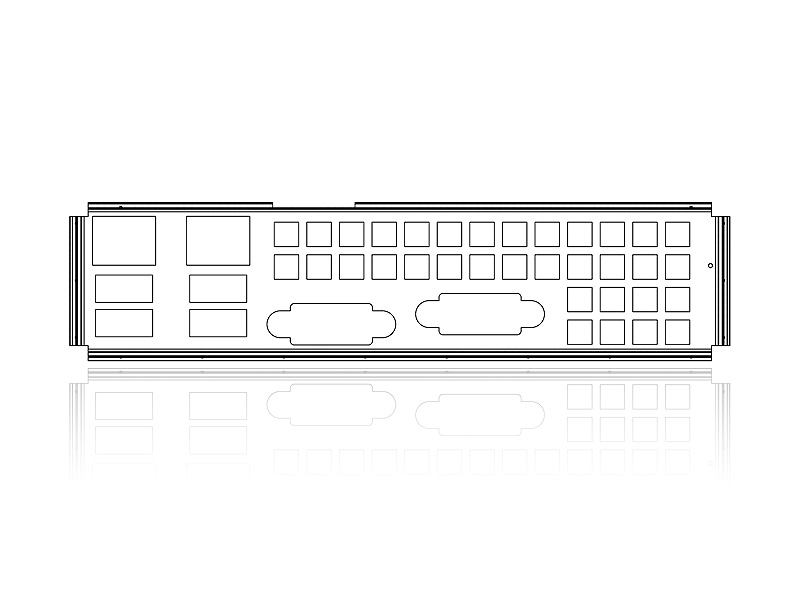

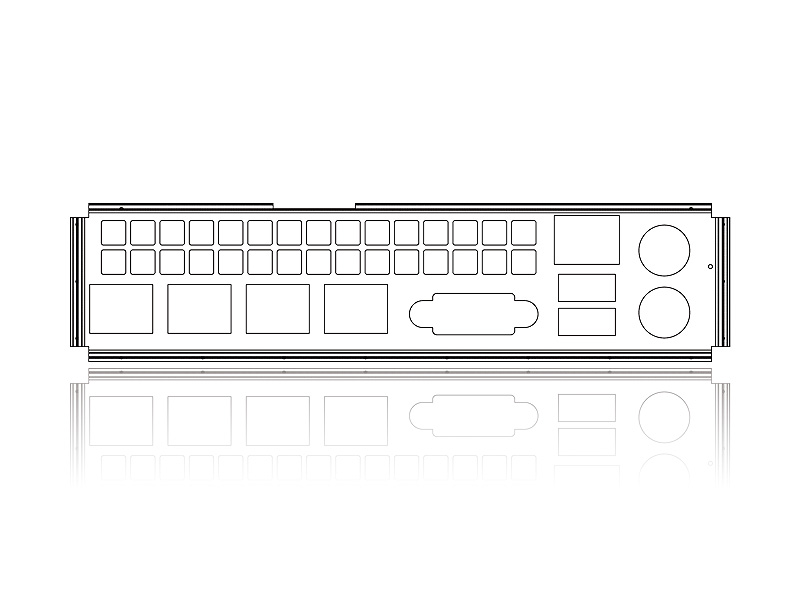

    I/O Gasket (w/Square Hole)

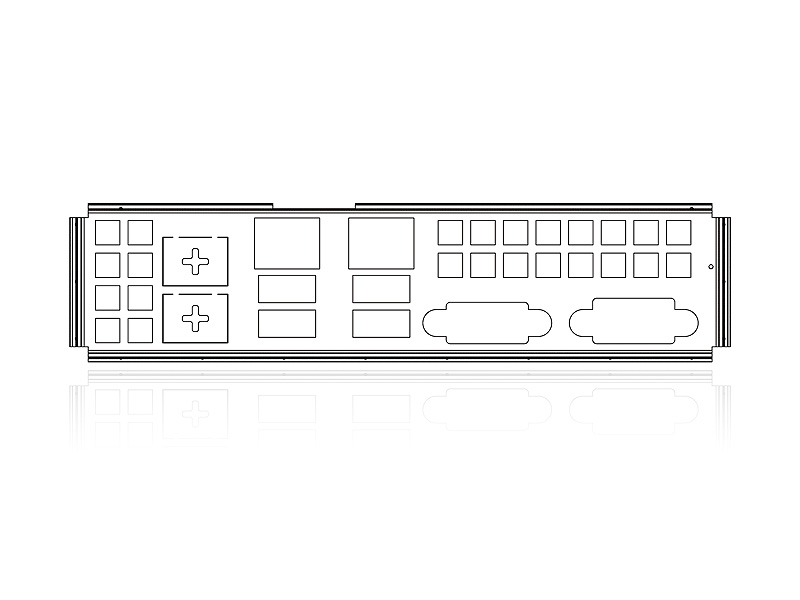

    MB I/O

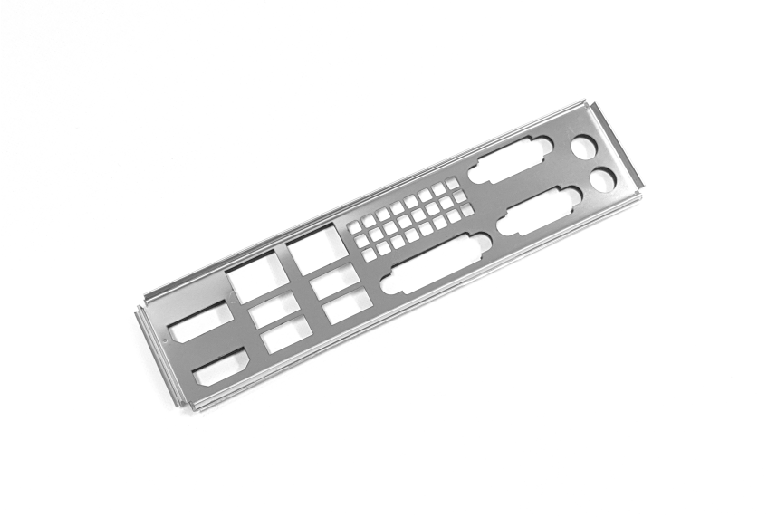

    I/O, Gigabyte, MX31
    MB I/O
    I/O, Gasket "X11SSV-Q", RM13604
    MB I/O
    I/O for Intel S1200SPO/S1200SPL/S1200SPS
    MB I/O
    I/O for ASUS Z10PA-D8 IO for RM13604

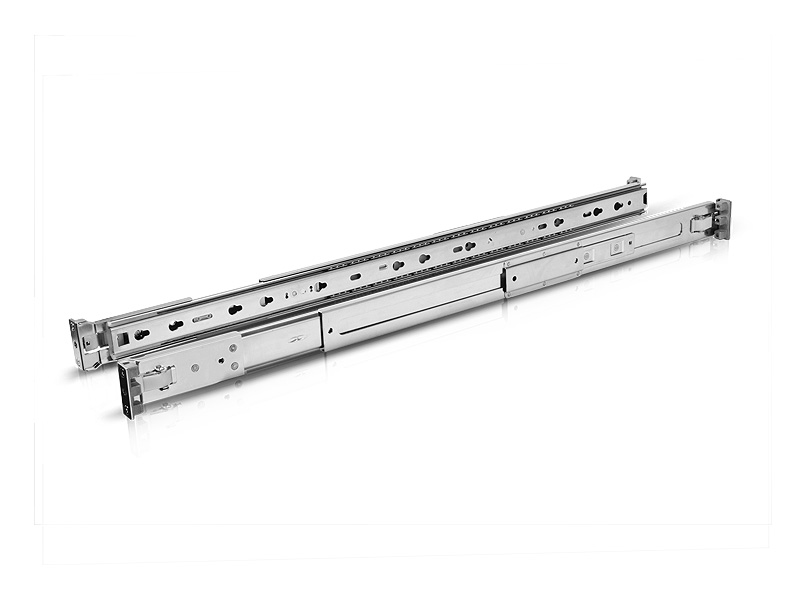

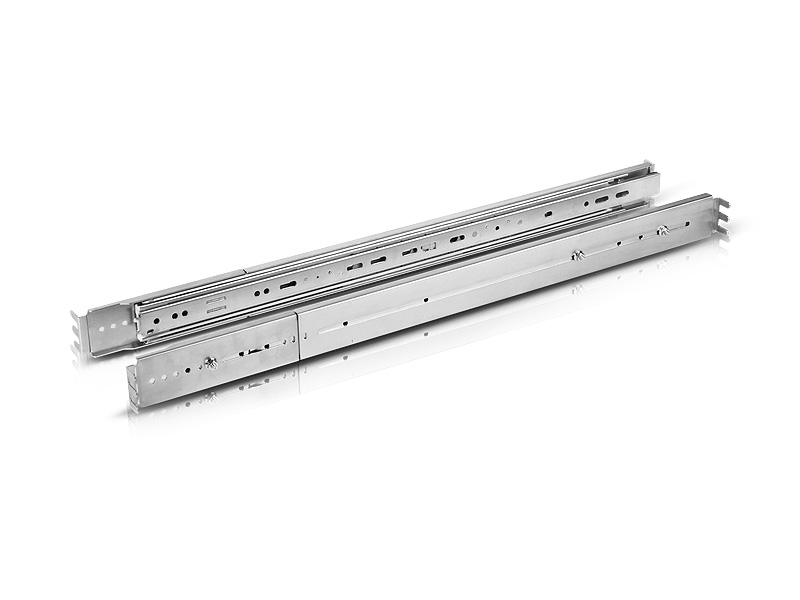

    Rail, 26" King Slide Tool-less Rail, 1U

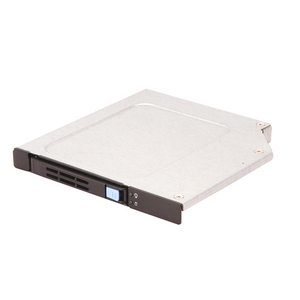

    SK, 1x2.5"HDD Bay in Slim ODD Cage,w/12gb/s SATA BP
    Click Part. No# to view item picture
  • Order Code M/B Size Middle Fan HDD Backplane PSU
    RM13604T3-R 12"x13" 4x 4028mm 12Gb/s SAS& SATA Option(Redundant)
