RM13108 (EOL)

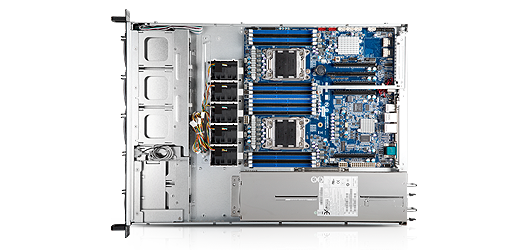

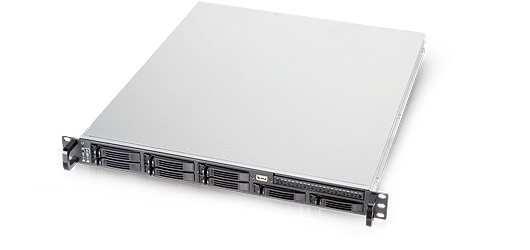

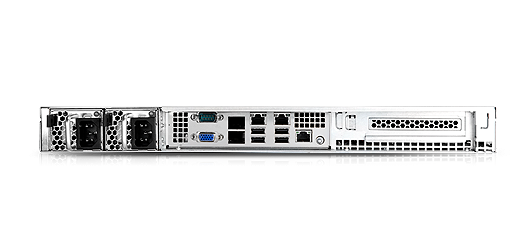

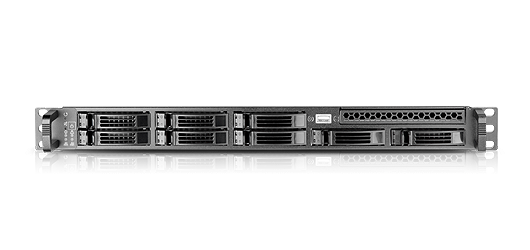

1U 2.5" High Storage Dense Server Chassis
With supporting 1U redundant PSU and 2.5" 6Gb/s backplane, it delivers high data security and the best I/O performance for computing applications.
Compare
Clear GO
Quick Search
  • By Chassis Type
  • By Motherboard
  • By RAID Card
  • By Power Supply
Search
Compare
Features & Benefits
  • Supports M/B up to 12” x 13”
  • Built-in 8-port 6Gb/s SATA backplane for 2.5” HDD/SSD
  • Fan holder with anti-vibration mechanism
  • Supports 1U single or redundant PSU
  • Compatible with SK51102 in ODD bay
  • Specification
  • Download
  • Accessory
  • Compatibility
  • Order Information
  • Form Factor 1U
    MB Form Factor Extended ATX (12”x13”)
    Dimensions (D x W x H) 597 x 430 x 43.5 (mm), 23.5” x 16.9” x 1.7”
    Drive Bays Slim ODD：1
    2.5" Hot-swap：8
    PSU Form Factor 1U Single or Redundant
    Indicators 1 x Power Status, 2 x LAN Activity , 1 x Fan Failure and Overheat
    Front Control Power On/Off, Alarm Mute, System Reset, 1 x USB2.0
    System Security Intrusion Switch (option)
    Cooling Fans Middle: 5 or 6 x 40mm, T=28mm (Up to T=56mm), PWM
    Expansion Slots 1 x Full Height and Full Length
    HDD Backplane 6Gb/s SATA
    Net Weight 6.8kg
    Gross Weight 10.3kg
    Front Bezel Option
    Cubic Feet 3.33
    Container Loading (Single Packing) 20’: 330, 40’: 681, 40’H: 743
  • Category Description Revision Size Download
    Datasheet RM13108 Datahseet V1.2 999.0 KB
    User Manual 3Gb/s 8-port 2.5" SATA/SAS Backplane (80H103131-003) V1.0 181.8 KB
    User Manual 6Gb/s 8-port 2.5" SATA/SAS Backplane (80H10313107A0), Rev. A0 V1.0 2.1 MB
    User Manual LED Board(80H033131-001), Features and Jumper Settings V1.0 1.3 MB
    User Manual RM13108 Quick Installation Guide V1.1 458.8 KB
  • Product category Part. No# Description Support
    I/O Shield
    84H313110-009    		 I/O shield, 1U, For Intel S5520HC/S5500BC/S3420GP
    I/O Shield
    84H313710-009    		 I/O shield, 1U, For Intel S2600CP/S2600CO
    I/O Shield
    84H313710-022    		 I/O Shield, 1U, For ASUS Z9PE-D16
    Power Supply

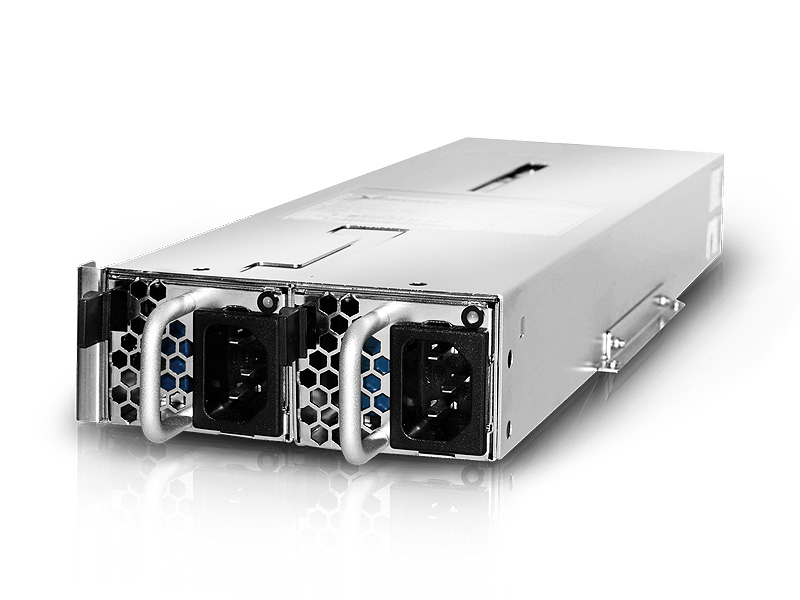

    32H2065002202    		 PSU, 650W, 1+1 Redundant, YH-8651BA11R, PMBus 1.1
    Power Supply
    32H245022-001    		 PSU, 450W, 1+1 Redundant, YH-8451BER, PMBus 1.1
    Power Supply
    32H265022-001    		 PSU, 650W, 1+1 Redundant, YH-8651BAR, PMBus 1.1
    Riser Card

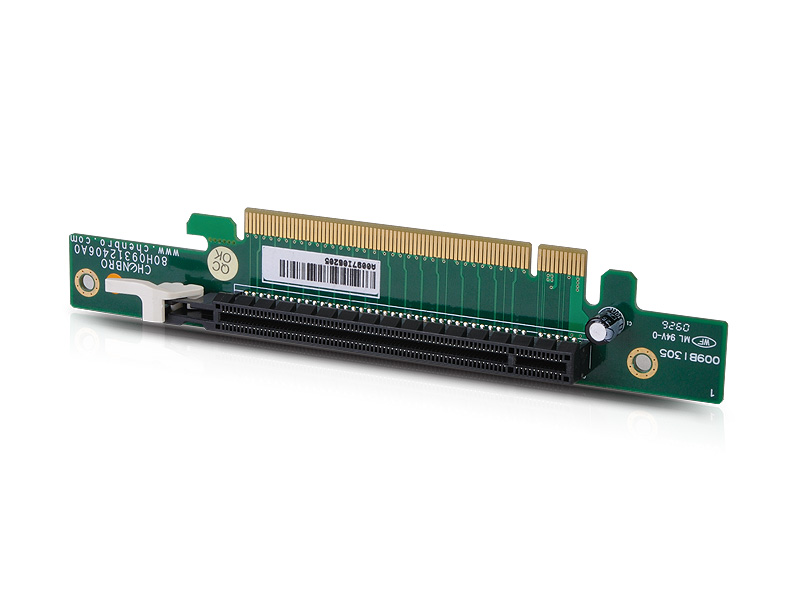

    80H09312406A0    		 Riser Card, 1-Slot, PCI-E 16x
    Riser Card
    80H09313701A0    		 Riser Card, 1-Slot, PCI-E 8x
    Slide Rail
    84H311710-095    		 Slide Rail, 26"
    Click Part. No# to view item picture
  • Order Code M/B Size HDD Backplane PSU Rear Window Slide Rail
    RM13108T2 12"x13" 6Gb/s SATA Option 1-FF Option
