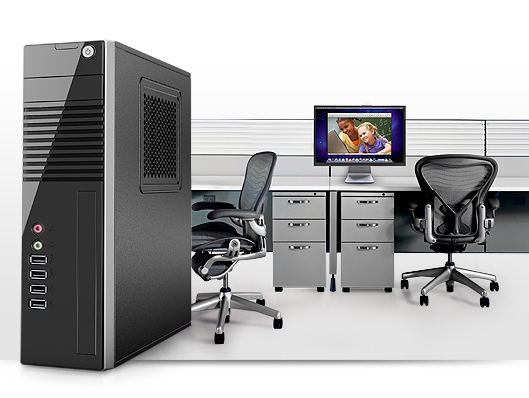

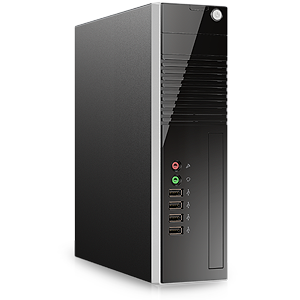

PC784 Series (EOL)
Ultra Slim mini-ITX Desktop/Tower PC Chassis
PC784 is mini-ITX chassis with the latest Intel platform support. With its silent thermal technology and compact size, it is an ideal solution for office and space-sensitive applications.
Compare
Clear GO
Quick Search
  • By Chassis Type
  • By Motherboard
  • By RAID Card
  • By Power Supply
Search
Compare
  • Feature & Benefit
  • Specification
  • Download
  • Accessory
  • Order Information
    • Supports the latest Intel Haswell thermal requirement
    • Supports 60mm front fan installation
    • Removable drive cage for easy installation
    • Supports 2x USB2.0 and 2x USB3.0 ports
    • Security provision: Padlock loop, Kensington slot and intrusion switch
    • Stylish rotatable logo pad(PC78439)
    • Supports Flex ATX PSU
  • M/B Form Factor Mini-ITX
    Dimensions (Dx Wx H) 225mm x 75mm x 270mm, 8.9" x 3.0" x 10.6"
    PSU Form Factor Flex ATX
    Indicators Power Status x 1, HDD Activity x 1
    Front Buttons Power On/Off, USB 2.0 x 4, Audio x 2
    System Security Kensington Slot, Padlock Loop, Intrusion Switch(option)
    Cooling Fans Front: 60mm x 1
    Expansion Slots N/A
    Sheet Metal Material SGCC
    Metal Thickness 0.6mm
    Container Information 20': 1,032, 40': 2,112, 40'H: 2,464
  • Category Description Revision Size Download
    Datasheet Datasheet_PC784 V1.3 1.8 MB
    Datasheet PC783-PC784 Datahseet V1.2 4.1 MB
  • Product category Part. No# Description Support
    Fan
    30H060025-204    		 Fan, 60x25mm, 3P3C, Sleeve, 3000RPM, L500mm
    FPIO
    83H801713-001    		 FPIO, 2xUSB3.0+ 2xUSB2.0, For PC713/722/783/784
    Power Supply
    32H1025001101    		 PSU, 250W, Flex ATX, FSB009, w/PFC, 80+ (BRONZE), w/EuP
    Click Part. No# to view item picture
  • Order Code PSU FAN Side Venting 2nd HDD Cage FPIO
    PC78438 250W(Flex-ATX) Option Yes N/A USB2.0x4+Audio(HD)
    PC78439 250W(Flex-ATX) Option Yes N/A USB2.0x4+Audio(HD)
    PC78476 250W(Flex-ATX) Option Yes N/A USB2.0x4+Audio(HD)
