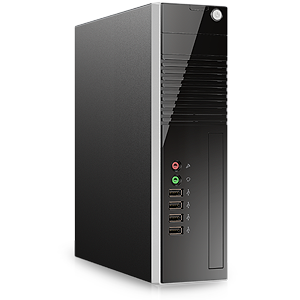

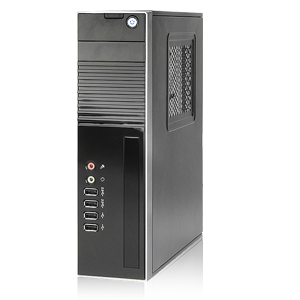

PC783 Series
Ultra Slim Tool-less Mini-ITX Desktop/Tower PC Chassis
PC783 is a Mini-ITX chassis with the latest Intel platform support. It features tool-less mechanical design and silent thermal solution. It is an ideal product solution for office and space-sensitive applications.
Quick Search
  • By Chassis Type
  • By Motherboard
  • By RAID Card
  • By Power Supply
  • Feature & Benefit
  • Specification
  • Download
  • Accessory
  • Order Information
    • Supports the latest Intel platform thermal requirement
    • Supports 60mm front fan installation
    • Removable drive cage for easy installation
    • Advanced tool-less installation for side cover, 2.5" HDD/SSD, and slim ODD
    • Supports 2x USB2.0 and 2x USB3.0 ports
    • Security provision: Padlock loop, Kensington slot and intrusion switch
    • Stylish rotatable logo pad(PC78339)
    • Supports Flex ATX PSU
  • M/B Form Factor Mini-ITX
    Dimensions (Dx Wx H) 225mm x 75mm x 270mm, 8.9" x 3.0" x 10.6"
    Drive Bays Internal 2.5":2
    Slim ODD:1
    PSU Form Factor Flex ATX
    Indicators Power Status x 1, HDD Activity x 1, Diagnostic x 2
    Front Buttons Power On/Off, USB 2.0 x 4, Audio x 2
    System Security Kensington Slot, Padlock Loop, Intrusion Switch(option)
    Cooling Fans Front: 60mm x 1 (Option)
    Expansion Slots N/A
    Sheet Metal Material SGCC
    Metal Thickness 0.6mm
    Container Information 20': 1,032, 40': 2,112, 40'H: 2,464
  • Category Description Revision Size Download
    Datasheet Datasheet_PC783 V1.3 2.0 MB
  • Product category Part. No# Description Support

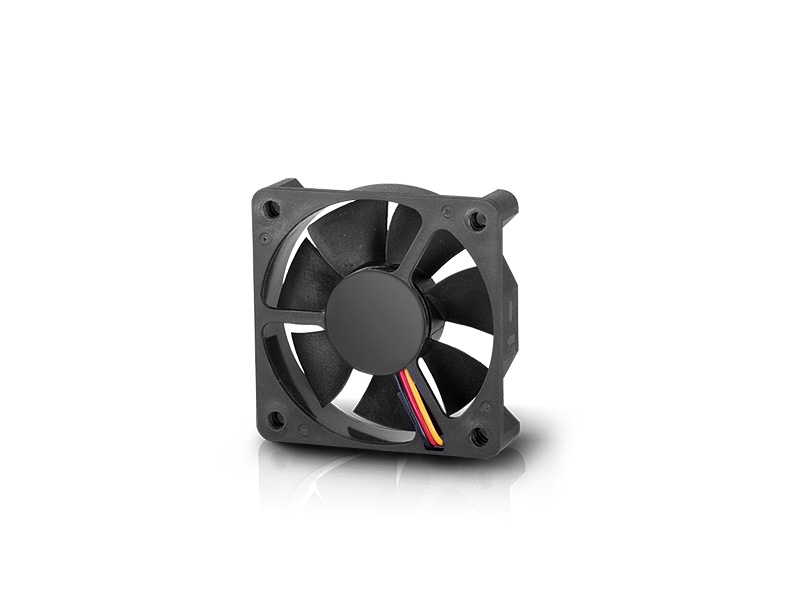

    Fan, 60x25mm, 3P3C, Sleeve, 3000RPM, L500mm

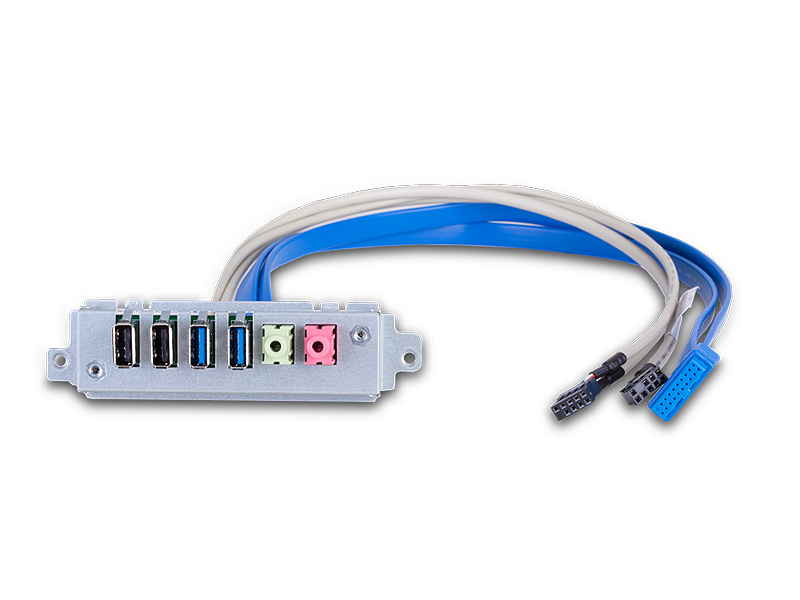

    FPIO, 2xUSB3.0+ 2xUSB2.0, For PC713/722/783/784
    Power Supply

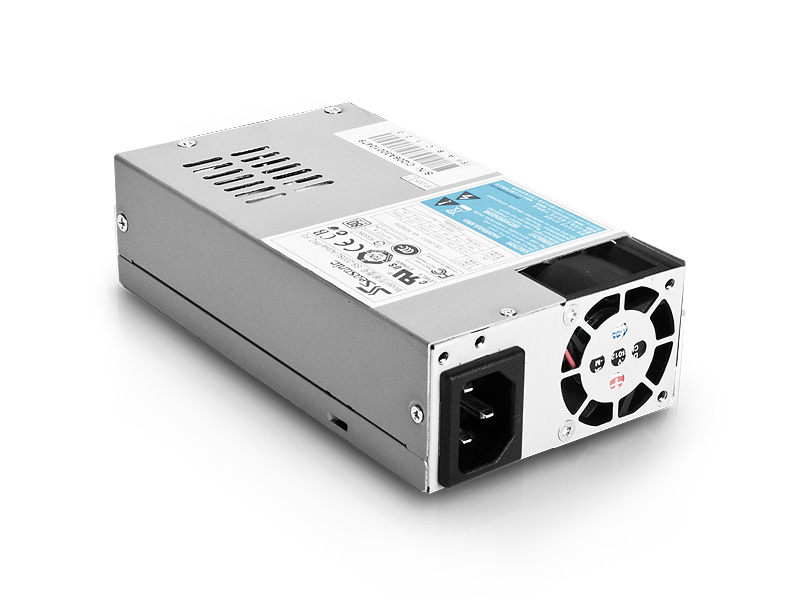

    PSU, 250W, Flex ATX, FSB009, w/PFC, 80+ (BRONZE), w/EuP
    Click Part. No# to view item picture
  • Order Code PSU FAN Side Venting 2nd HDD Cage FPIO
    PC78338-250 250W(Flex-ATX) Option Yes N/A USB2.0x4+Audio(HD)
