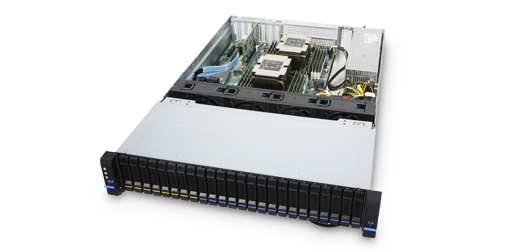

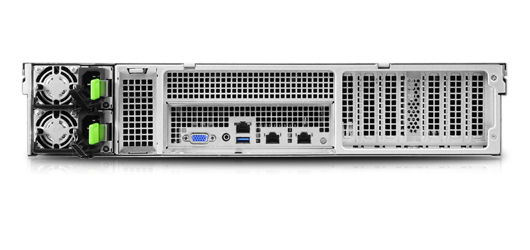

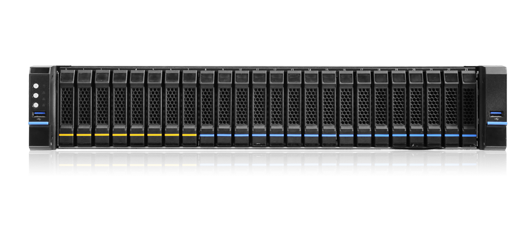

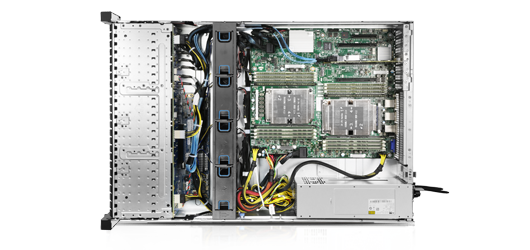

RB238G13 Series
2U Dual Sockets Versatile Storage Server
Supports hybrid flash array, offering Intel VROC, Apache Pass, and Redfish compliance with remarkable thermal efficiency. Perfect for robust and efficient platforms in virtualization world.
Quick Search
  • By Chassis Type
  • By Motherboard
  • By RAID Card
  • By Power Supply
Features & Benefits
  • SAS/SATA HDD and NVMe SSD hybrid storage designed for software-defined storage applications
  • Built-in direct-attached NVMe drives to prevent bandwidth bottleneck
  • Scale-up storage space of internal M.2 SSDs equipped as an alternative OS drive
  • Efficient thermal solution to support 8 x NVMe (25W/ea.) and 2 x CPU (165W/ea.)
  • Tool-less drive carrier design for easy installation
  • Hot-swappable fan to mitigate the risk while fan running failure
  • Specification
  • Download
  • Accessory
  • Compatibility
  • Order Information
  • Form Factor 2U
    CPU Intel Purley Platform , Cascade Lake Xeon Scalable Processor
    CPU Socket LGA3647
    Chipset Intel C621
    Memory Type DDR4 (Apache Pass Support)
    Memory Capacity Up to 2TB
    Max DIMM Slots 16 DIMMs
    Memory Speed 2666MHz
    CPU Heatsink 2U Passive
    Dimensions (Dx Wx H) 658.2 x 438.0 x 87.0 (mm)
    25.92" x 17.24" x 3.42"
    TPM Version TPM 2.0 Module
    Drive Bays 2.5” SAS/SATA Drive:16
    U.2 NVMe Drive, Hot-swap:8
    M.2 SATA or NVMe (2280/22110) (SATA RAID through RSTe):2
    PSU Form Factor 1+1 CRPS, 1200W
    Video Integrated on AST2500 BMC, 16MB of DDR4 Video Memory
    Indicators 1 x System Power
    1 x UID
    1 x HDD Activity
    1 x System Status
    2 x LAN Activity
    USB 1 x USB 3.0 Port
    Front Control 1 x System Power
    1 x UID
    1 x Reset
    2 x USB 2.0
    Cooling Fans Middele : 4 x 80mm (T=38mm), Hot-swap
    Expansion Slots 3 x PCIe Gen 3 @ x16 HH/HL
    1 x PCIe Gen 3 @ x8 HH/HL
    Net Weight 23.0 kg
  • Category Description Revision Size Download
    Datasheet RB238 Series Datasheet V1.1 V1.1 1.8 MB
    User Manual RB238 User Manual V1.0 V.1.0 5.2 MB
  • Product category Part. No# Description Support
    Bezel, Front w/ Key-lock, Black, RM237/238
    Click Part. No# to view item picture
  • Order Code PSU Middle Fan M/B
    RB238G13-U04 1200W CRPS 80 x 38 (4) SSI EEB
    RB238G13-U08 1200W CRPS 80 x 38 (4) SSI EEB
