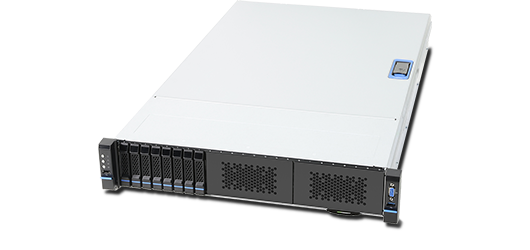

2U High-Performance Server with Expansion Flexibility
With dual 2nd Generation Intel® Xeon® Scalable Processors and 24 DIMMs, RB23708-U2 delivers large memory capacity, flexible storage, and toolless design for HPC solutions.
Quick Search
  • By Chassis Type
  • By Motherboard
  • By RAID Card
  • By Power Supply
Features & Benefits

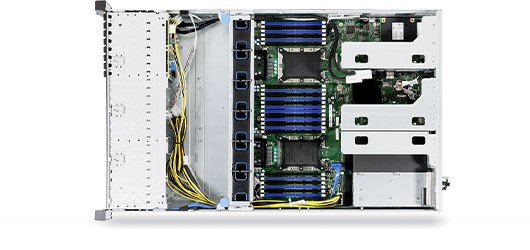

  • Supports Intel S2600WFTR motherboard
  • Supports hot-swap 8 x 2.5" HDD/SSD
  • Supports 4 x FHFL + 2 x FHHL + 2 x HHHL PCIe card
  • Supports 1+1 CRPS (80+ Platinum)
  • Optimizes thermal performance by 6 x 6038 mm hot-swap cooling fan
  • Toolless fan module, fan cage, top cover, HDD tray, slide rail, PCIe bracket
  • Optional toolless slide rail
  • Specification
  • Download
  • Accessory
  • Compatibility
  • Form Factor 2U
    MB Intel S2600WFTR (Wolf Pass)
    CPU Dual 2nd Generation Intel® Xeon® Scalable Processors, up to 165W
    Chipset Intel C624 Chipset
    Memory Type DDR4 UDIMM ECC, 2933 MT/s, 1.2V
    Memory Capacity Up to 7.5TB
    Max DIMM Slots 24 x DDR4 DIMM Slot, 6 x Channel per processor
    CPU Heatsink 1U Passive

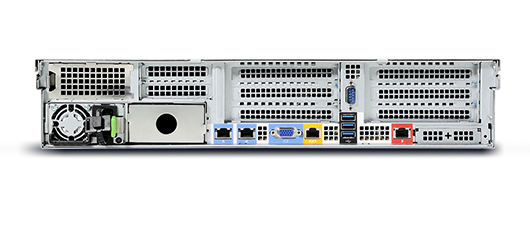

    I/O Modules 1 x UID
    2 x 10GbE Base-T, RJ-45
    1 x MGNT
    3 x USB3.0
    Dimensions (Dx Wx H) 735 x 438 x 87 (mm), 28.94" x 17.24" x 3.43"
    TPM Version 2.0
    Drive Bays 2.5" Hot-swap:8
    Ethernet Dual RJ45, Network Interface Connectors supporting 1GBASE-T Single RJ45-Dedicated, 1GbE Server Management port
    PSU Form Factor 1+1 CRPS, 80+ Platinum
    Indicators 1 x Power Status
    2 x LAN Activity
    1 x UID
    Front Control 1 x Power On/Off
    1 x System Reset
    1 x UID
    1 x VGA
    1 x USB3.0
    1 x USB2.0
    Cooling Fans 60 x 38 mm (6), 17KRPM, Hot-swap
    Expansion Slots Riser Card 1&2:
    - 1 x PCIe x16 slot (Gen3 x8), FHFL
    - 1 x PCIe x16 slot (Gen3 x8), FHFL
    - 1 x PCIe x8 slot (Gen3 x8), FHHL
    Riser Card 3:
    - 1 x PCIe x8 slot (Gen3 x8), HHHL
    - 1 x PCIe x8 slot (Gen3 x4), HHHL
    1 x I/O Module
    1 x Integrated RAID Module
    HDD Backplane 2.5" 8-port 12Gbps SAS/SATA Backplane
    Net Weight 16.63 Kg
  • Category Description Revision Size Download
    Certification RB237 Series UL V1.0 177.0 KB
    Certification RB237 Series CE V1.0 343.3 KB
    Certification RB237 Series FCC V1.0 182.4 KB
    Certification RB237 Series CB V1.0 126.3 KB
    Datasheet RB237 Series Datasheet V1.0 25.0 MB
    User Manual RB237 Series User Manual V1.1 6.5 MB
  • Product category Part. No# Description Support
    Power Supply

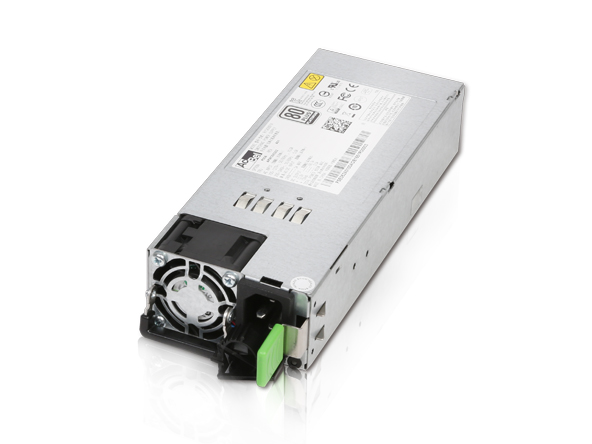

    PSU, CRPS, 800W, Hot Swap, w/o PDB, ACBEL, 1X
    Rail, Slide Rail, Tool-less, 3 Section, 3A5612784, RM238
    Rail, Ball Bearing, 2-Section, Tool-less 23
    Click Part. No# to view item picture
