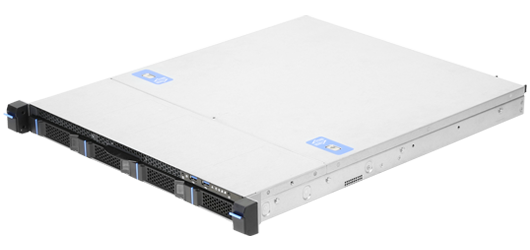

RB14604
1U Single Socket Entry Level Server
Designed specifically for small and midsize businesses. It’s an easy-to-use server solution packages with uATX motherboard which ensure a reliable, cost-effective, performance-tuned solution for the business IT needs.
Compare
Clear GO
Quick Search
  • By Chassis Type
  • By Motherboard
  • By RAID Card
  • By Power Supply
Search
Compare
Features & Benefits
  • Improved power, performance, and reliability of the Intel Xeon E processor
  • 80PLUS GOLD level single PSU with high power efficiency
  • Dedicated cooling fan and customized air duct to dissipate up to 95W CPU efficiently
  • Tool-less mechanism such as storage drive, HDD tray, system fan, for easy operation to save maintenance time
  • Specification
  • Download
  • Accessory
  • Compatibility
  • Form Factor 1U
    MB Intel M10JNP2SB (Juniper Pass)
    CPU Intel Xeon E Processor (Single LGA1151), up to 95W TDP
    Chipset Intel C246 Chipset
    Memory Capacity 4 x DIMM slots supporting up to 128GB DDR UDIMM ECC 2666 MT/s, 1.2V
    CPU Heatsink 1U passive

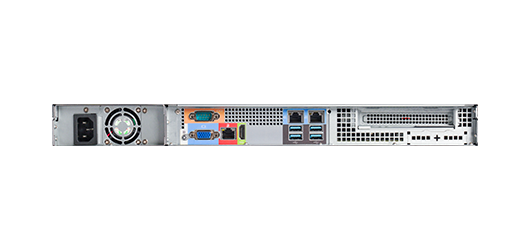

    I/O Modules 4 x USB3.1 Gen2
    1 x COM port
    Dimensions (Dx Wx H) 547.6 x 438.5 x 43.5 (mm)
    21.56’’ x 17.26’’ x 1.71’’
    TPM Version TPM 2.0 Module
    Drive Bays 3.5" Hot-swap：4
    2.5" Internal SSD：2
    Slim ODD (Optional)：1
    Ethernet 4 x 1GbE Base-T RJ45
    1 x MGNT
    PSU Form Factor 400W Single, 80+ Gold (default)
    Serial Port 1 x ASPEED IPMI2.0 Compliant AST 2500 BMC
    Video D-sub VGA port
    Indicators 1 x Power Status
    2 x LAN Activity
    1 x UID
    1 x HDD Status
    1 x System Status

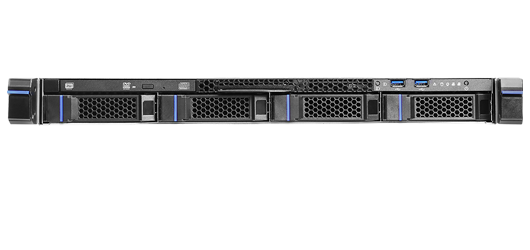

    Front Control 1 x Power On/Off
    1 x System Reset
    1 x UID
    2 x USB3.1 Gen1
    Cooling Fans Middle : 3 x 40 mm (default)
    Expansion Slots 1 x FHHL, PCIe x8 Gen 3.0
    HDD Backplane 3.5" 4-port 12Gbps SAS/SATA
    Net Weight 14.0 Kg
  • Category Description Revision Size Download
    Certification UL_RB14604_60950 V1.0 673.8 KB
    Certification CB_RB14604_62368 V1.0 176.0 KB
    Certification CB_RB14604_60950 V1.0 207.1 KB
    Certification RB14604 CE V1.0 347.2 KB
    Certification RB14604 FCC V1.0 326.5 KB
    Certification UL_RB14604_62368 V1.0 673.4 KB
    Datasheet RB14604 Datasheet V1.0 1012.7 KB
    User Manual User manual V1.3 1.6 MB
  • Product category Part. No# Description Support
    Backplane
    380-14610-3000A2    		 3.5" 4-port 12Gbps SAS/SATA Backplane
    Cable
    126-14611-3003A0    		 LED&SW Cable, Front Panel Board to MB, 600mm
    Cable
    126-14611-3004A0    		 COM Port Cable
    Cable
    126-14611-3005A0    		 SGPIO Cable, Backplane to MB, 420mm
    Cable
    126-14612-3007A1    		 SATA Cable, 650mm
    Cable
    126-14612-3008A1    		 SATA Cable, 280mm
    Cable
    126-14612-3009A1    		 SATA Cable, 400mm
    Cable
    126-14612-3010A1    		 SATA Cable, 500mm
    Cable
    26H03342203A1    		 USB 3.0 Cable, Front Panel Board to MB, 750mm
    Fan
    130-04028-3100A0    		 40x28mm System Fan
    HDD Tray
    384-14602-3124A0    		 3.5" HDD TRAY,Panel BK, Screw-on
    Heat Sink
    166-14603-E000A0    		 CPU Heatsink
    PCBA
    80H03314601B0    		 3.5" 4-port 12Gbps SAS/SATA Backplane
    Power Supply
    132-10400-0700A2    		 400W Single PSU
    Rail

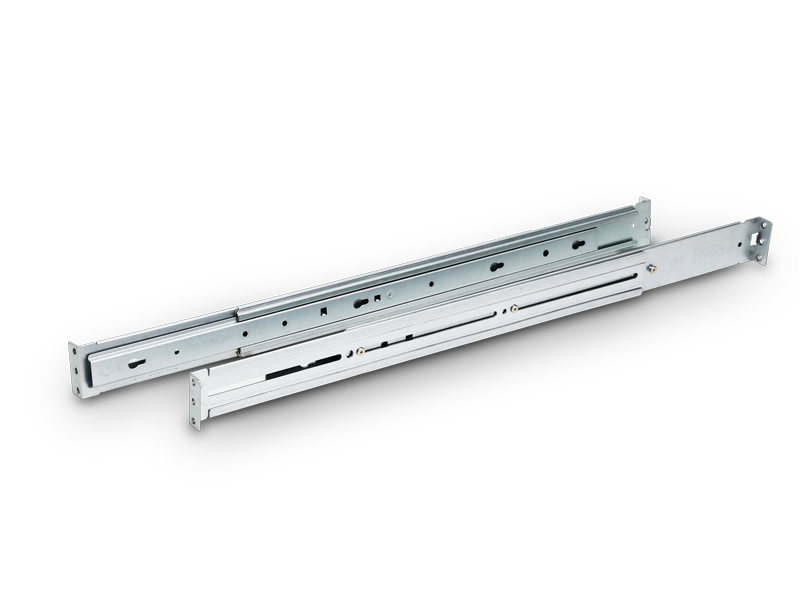

    384-14303-3102A0    		 Rail, Simple Rail Long, RM143/RM146/RM133 (MOQ=8)
    Rail
    384-14303-3103A0    		 AS'Y Component, RM14300, Simple Rail Short, 8BOX/16CTN/Pallet
    Rail

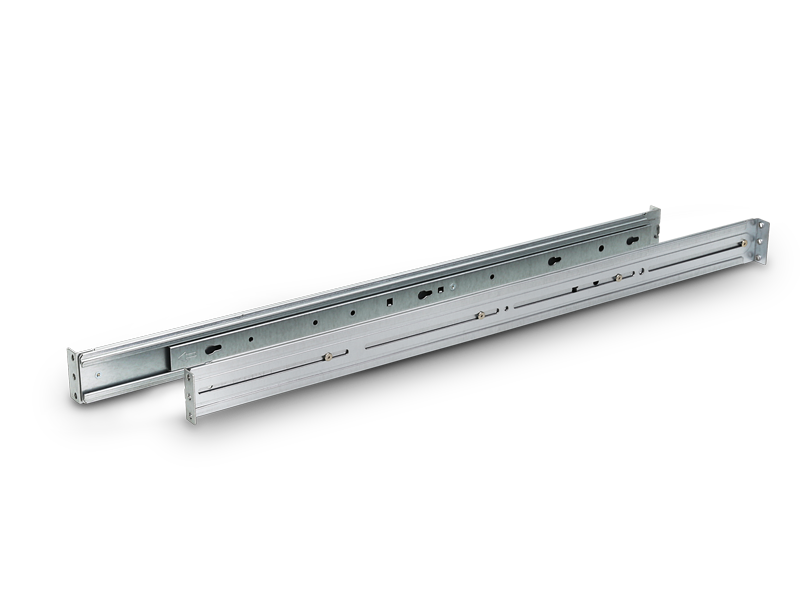

    84H314610-003    		 Rail, Ball Bearing, 2-Section, Tool-less 23
    Click Part. No# to view item picture
