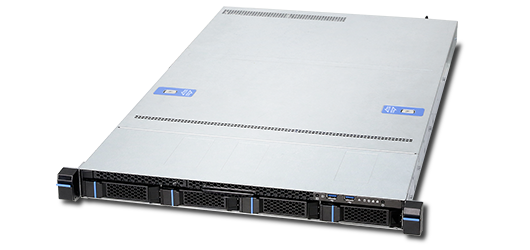

1U Ultimate Tuned Dual-Socket Barebone System
Powerful computing capability combined with flexible storage, add-in card, and fan configurations meet business IT, data center and cloud applications.
Quick Search
  • By Chassis Type
  • By Motherboard
  • By RAID Card
  • By Power Supply
Features & Benefits
  • Supports Intel S2600WF motherboard
  • Supports 4-bay 3.5” drive cage (tri-mode)
  • Supports 2 x FHHL PCIe card
  • Tool-less 3.5" HDD tray
  • Tool-less top cover
  • Optional 2-bay 2.5” internal drive and 1-slim ODD bay for maximum configuration flexibility
  • Optimizes thermal performance by 6 x 4056 mm easy-swap cooling fan
  • Supports 1+1 CRPS (80+ Platinum)
  • Specification
  • Download
  • Accessory
  • Compatibility
  • Form Factor 1U

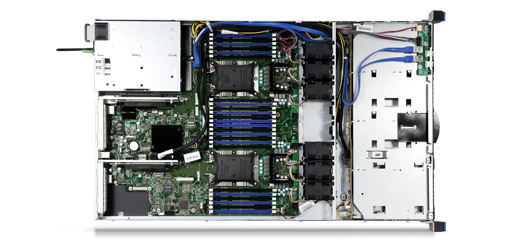

    MB Intel S2600WFTR (Wolf Pass)
    CPU Dual 2nd Generation Intel® Xeon® Scalable Processors, up to 165W
    Chipset Intel® C624 chipset
    Memory Type 24 x DDR4 DIMM Slot, 6 x Channel per processor
    Up to 7.5TB, DDR4 UDIMM ECC, 2933 MT/s, 1.2V
    CPU Heatsink 1U passive

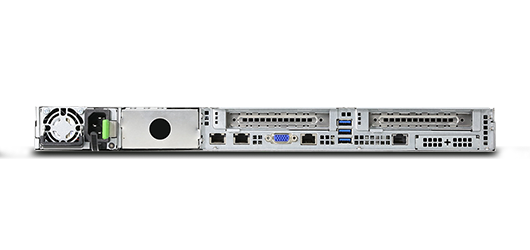

    I/O Modules 1 x UID
    2 x 10GbE Base-T, RJ-45,
    1 x MGNT
    3 x USB3.0
    Dimensions (Dx Wx H) 735.0 x 438.5 x 43.2 (mm)
    28.94" x 17.26" x 1.70"
    TPM Version 2.0
    Drive Bays 3.5" Hot-swap:4
    2.5" Internal:2
    Slim ODD (Optional):1
    Ethernet Dual RJ45, Network Interface Connectors supporting 1GBASE-T Single RJ45-Dedicated, 1GbE Server Management port
    PSU Form Factor 800W CRPS, 80+ Platinum (single unit default)
    Indicators 1 x Power Status
    2 x LAN Activity
    1 x UID

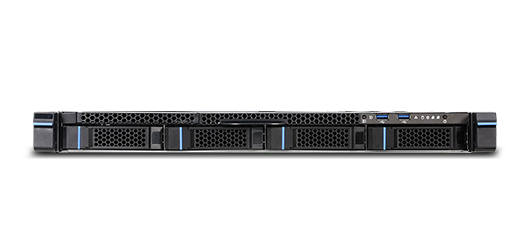

    Front Control 1 x Power Status
    2 x LAN Activity
    1 x UID
    1 x System Alarm
    2 x USB3.0
    Cooling Fans Middle : 6 x 4056 mm, 22.5K RPM
    Expansion Slots 2 x FHHL PCIe Gen 3.0 x16
    1 x I/O Module
    1 x Integrated RAID Module
    HDD Backplane 3.5” 4-port SAS/SATA/NVMe PCIe Gen 3 (Tri-mode)
    Net Weight 11.6 Kg
    Gross Weight 15.3 Kg
    Cubic Feet 3.48
    Container Loading (Single Packing) 20':200, 40':380 (Single Packing)
  • Category Description Revision Size Download
    Datasheet RB13804 Datasheet V1.0 2.0 MB
    User Manual RB13804 User Manual V1.1 2.6 MB
  • Product category Part. No# Description Support
    Power Supply
    PSU, CRPS, 800W, Hot Swap, w/o PDB, ACBEL, 1X

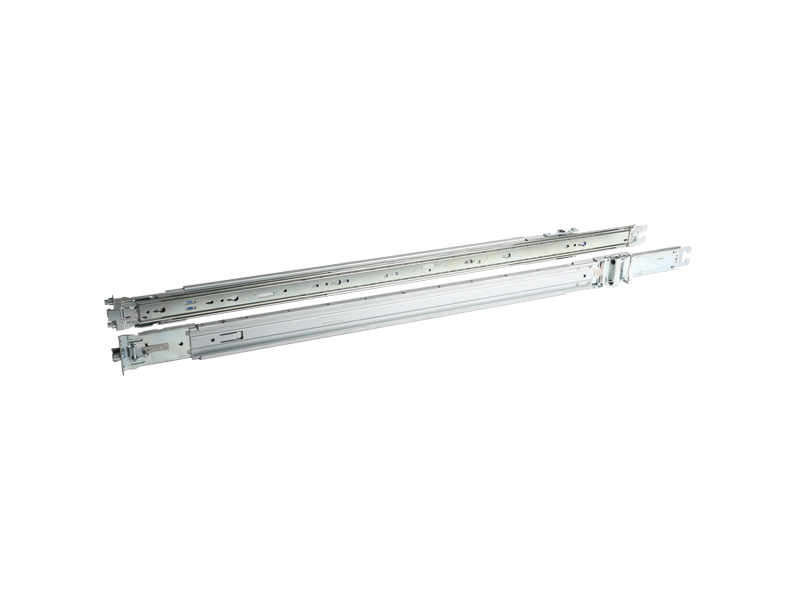

    Rail, Ball Bearing, 2-Section, Tool-less 23
    Click Part. No# to view item picture
