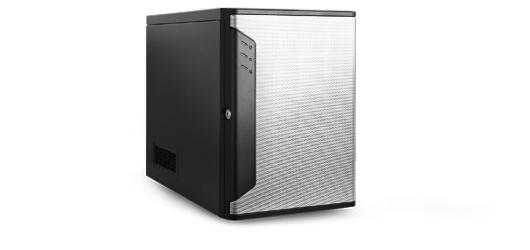

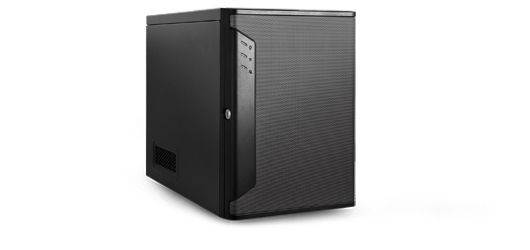

SR301 PLUS
Compact Server Chassis for SOHO and SMB Offices
Quiet and small, equipped with balanced thermal and performance technology for small office server and NAS applications.
Compare
Quick Search
  • By Chassis Type
  • By Motherboard
  • By RAID Card
  • By Power Supply
Compare
Features & Benefits
  • Built-in 4-port 12Gbps mini-SAS HD backplane
  • Built-in two internal 2.5" drive bays for OS mirroring
  • Supports PCI-e 3.0 slot opening

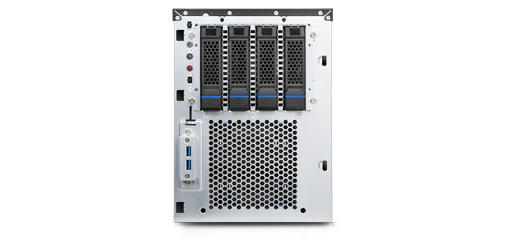

  • Four Tool-less HDD trays for quick HDD installation
  • Four Thumb screws to secure both side covers
  • Tool-less Installation for fan and air duct assembly
  • Supports a padlock loop, a Kensington slot and a 3-wire intrusion switch
  • Front bezel lock to prevent unauthorized access
  • Maximum venting holes on front bezel and HDD trays
  • Fully utilizes 120mm PSU fan to exhaust heated air
  • Smart fan control technology to balance thermal and acoustic challenges
  • Specification
  • Download
  • Accessory
  • Compatibility
  • Order Information
  • M/B Form Factor Mini-ITX (6.7"x 6.7")
    Dimensions (D x W x H) 310 x 200 x 270(mm)
    12.2" x 7.87" x 10.63"
    Drive Bay Internal 2.5":2
    3.5" Hot-swap:4
    PSU Form Factor PS/2 Single (w/120 mm fan)
    Indicator 1 x Power Status
    1 x HDD Activity
    1 x Fan Failure and Overheat
    Front Button 1 x Power On/Off
    1 x System Reset
    2 x USB3.0
    System Security Key Lock,
    Padlock Loop,
    Kensington slot,
    3-wire Intrusion switch
    Cooling Fan Front: 1 x 120mm
    Rear: Built-in PS/2 PSU (Option)
    Expansion Slot 1 x Low Profile
    HDD Backplane 4-port 12Gb/s mini-SAS HD
    Metal Thickness 0.7mm
    Net Weight 5.2kg
    Gross Weight 7.0kg
    Front Bezel Option
    Cubic Feet 1.85
    Container Loading 20’:564
    40’:1134
    40’HQ:1284
  • Category Description Revision Size Download
    Datasheet SR30169 specification and key feature V1.2 1.7 MB
    Quick Installation Guide (QIG) SR30169 Quick Installation Guide V1.1 391.7 KB
    User Manual SR 301 Plus 12Gb/s Mini-SAS HD Backplane User Manual V1.0 1.5 MB
  • Category Part. No# Description Support
    Cable
    26H03210707B0

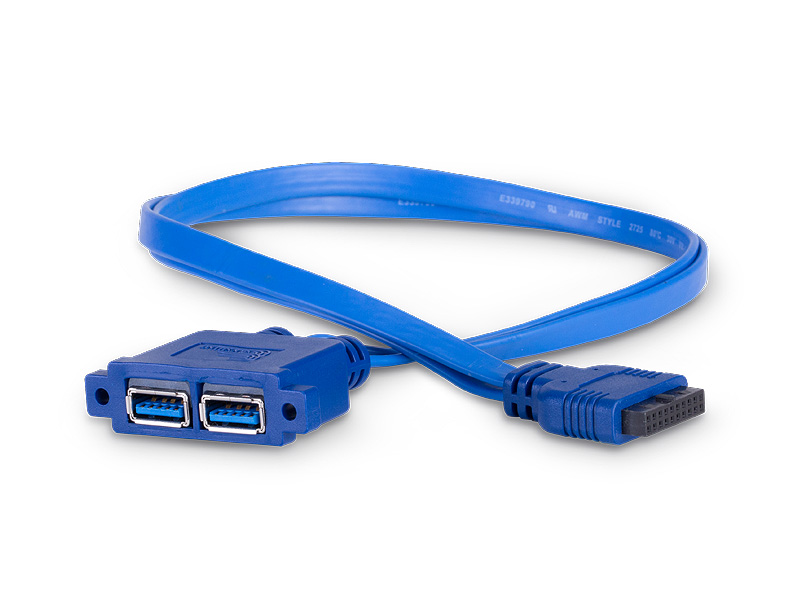

    Cable, USB2.0, 2-port, 510mm
    Cable
    26H12343101A0

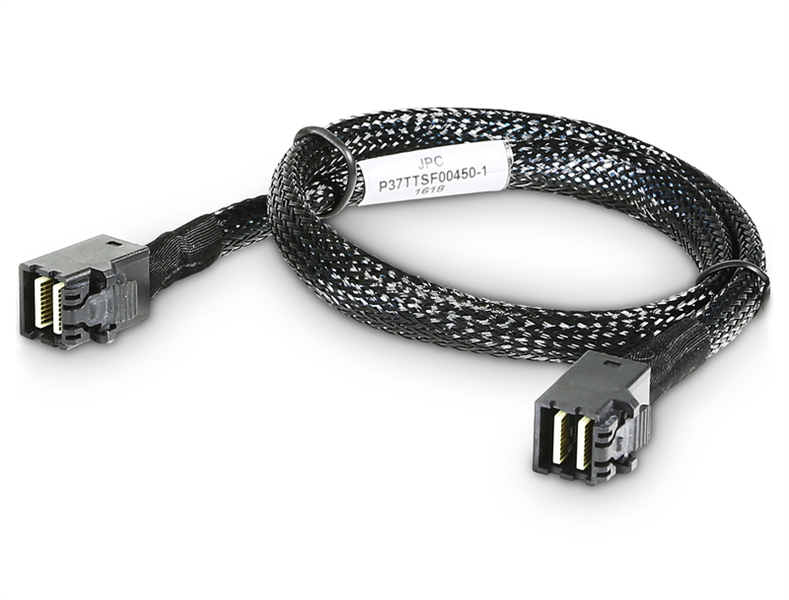

    Cable, mini-SAS HD (Host) to mini-SAS HD, 450mm

    Click Part. No# to view item picture
  • Order Code M/B Size HDD Backplane PSU Cooling Fan Slide Rail
    SR30169M3+ mini-ITX 12Gb/s Mini-SAS HD Option 1x120mm N/A
