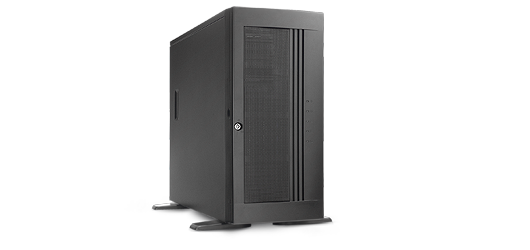

SR105 PLUS
Versatile EATX Tower Server Chassis
Effortless installation and flexible thermal options make this an ideal dual-socket chassis solution for mainstream server applications
Compare
Quick Search
  • By Chassis Type
  • By Motherboard
  • By RAID Card
  • By Power Supply
Compare
Features & Benefits

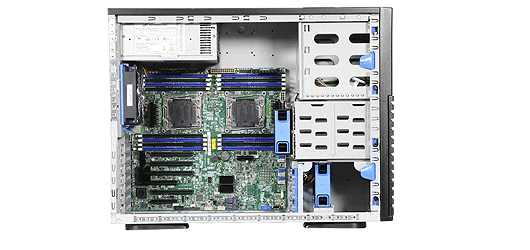

  • Supports up to 12" x 13" M/B

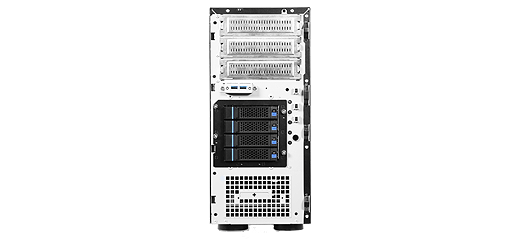

  • Supports removable 4-bay 3.5" HDD Hot-swap and internal cages
  • 3.5" HDD Hot-Swap cages with 12Gb/s mini-SAS HD Backplane
  • Hot-swap cage with four patented tool-less 3.5" HDD trays
  • 3.5" Internal HDD cage with patented anti-vibration technologies
  • A dedicated 80mm fan for 3.5" HDD cooling
  • A optional 80mm front fan for PCI-e card cooling
  • Supports PCI-e 3.0 expansion slot opening
  • Tool-less installation for bezel, HDD cage, side cover and fans
  • Supports key lock, 3-wire intrusion switch and Kensington security slot
  • Front bezel lock to prevent unauthorized access
  • Supports Rack installation by slide rails(SR10566 Plus only)
  • Supports single PS/2 and 1+1 Redundant PSU
  • Specification
  • Download
  • Accessory
  • Compatibility
  • Order Information
  • M/B Form Factor Extended ATX (12” x 13”)
    Dimensions (D x W x H) 553 x 198 x 425 (mm)
    20.9” x 7.8” x 16.7”
    Drive Bay External 5.25":3
    3.5" Hot-swap:4
    Internal 3.5":4
    PSU Form Factor PS/2 Single or n+1 Redundant
    Indicator 1 x Power Status
    1 x HDD Activity
    2 x LAN Activity
    1 x Fan Failure and Overheat
    Front Button 1 x Power On/Off
    1 x System Reset
    1 x Alarm Mute
    2 x USB3.0
    System Security 3-wire Intrusion Switch,
    Key lock
    Kensington security slot
    Cooling Fan Front: 1 x 80mm (Built-in HDD cage), PWM
    1 x 80mm (Option for PCI-e card), PWM

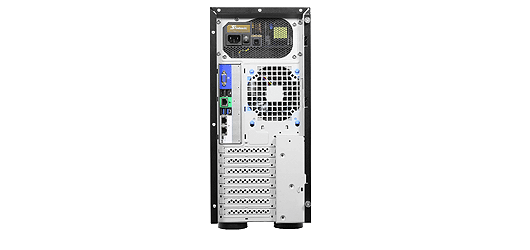

    Rear: 1 x 120mm, PWM
    Expansion Slot 7 Full Height (5 x full length + 2 x half length)
    HDD Backplane 12Gb/s mini-SAS HD
    Metal Thickness 0.8mm
    Net Weight 9.0kg
    Gross Weight 11.0kg
    Front Bezel Option
    Cubic Feet 3.31
    Container Loading 20’: 315
    40’: 651
    40’H: 720
  • Category Description Revision Size Download
    Datasheet SR105 Plus_Datasheet V.1.0 1.2 MB
    User Manual SR105-Plus_User Manual V.1.1 2.6 MB
  • Category Part. No# Description Support
    Bracket
    84H210510-004

    Rackmount Handle, Black, 2pcs/set, SR20966/SR10566

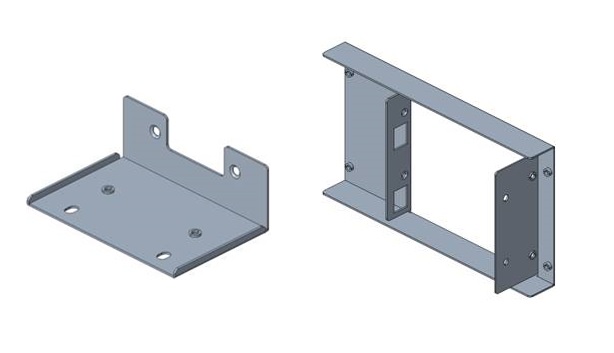

    Bracket
    84H210510-019
    Power Bracket(NCT), For Acbel R2i Series, for SR105, 2pcs/set
    HDD Cage
    384-10501-2101A0
    3.5" HDD cage, w/ 4-port 12Gbps mini-SAS HD BP & 80mm PWM Fan, Tool-less Tray
    HDD Cage
    384-10502-2100A0
    3.5" HDD cage, Internal, w/ Enhanced Anti-vibration Rubber & 80mm PWM Fan
    HDD Cage
    84H220910-062
    4-bay, 3.5" Non Hot-swap, w/92mm Fan
    HDD Cage
    84H220910-085
    4-bay, 3.5" Hot-swap, w/4-port 12Gbps SATA/SAS Backplane& 80mm Fan
    HDD Cage
    84H220910-087
    4-bay, 3.5" Hot-swap, w/4-port 12Gbps mini-SAS HD Backplane& 80mm Fan
    Power Supply
    132-20500-0500A0
    PSU, 500W, 1+1 Redundant, w/Bracket, FSP500-50RAB
    Slide Rail
    84H210710-024
    Slide Rail, 26", Ball Bearing, SR20966/SR10566/SR107
    Click Part. No# to view item picture
  • Order Code HDD Backplane HDD Cage PSU Cooling Fan
    SR10569+ N/A Option Option 1x120mm
    SR10569-C4+ N/A 3.5" non Hot-swap Option 1x120mm; 1x80mm
    SR10569M3-C4+ 12Gb/s mini-SAS HD 3.5" Hot-swap Option 1x120mm; 1x80mm
