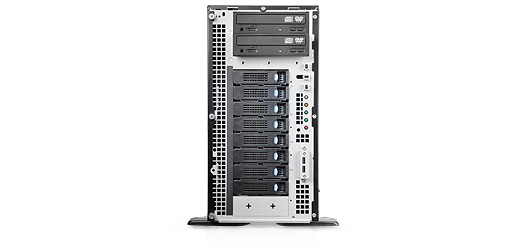

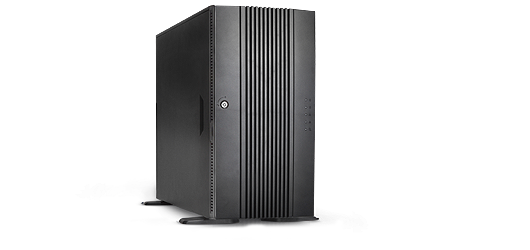

SR112 Series
Fault Tolerance Tower Server Chassis
With 5U form factor, SR112 is multi-function chassis, Rackmount or Stand-alone, for many kinds of applications in office or computing intensity applications.
Compare
Quick Search
  • By Chassis Type
  • By Motherboard
  • By RAID Card
  • By Power Supply
Compare
Features & Benefits
  • Optional 4-bay 3.5" HDD kit with 12Gb/s or 6Gb/s backplane
  • Optional 8-bay 2.5" HDD cage with 6Gb/s mini-SAS backplane
  • Tool-less installation on bezel, HDD cage, side cover and fans
  • Supports 3x92mm hot-swap middle fans
  • Supports key lock and Kensington security slot
  • Rack-able by slide rail
  • Supports PS/2 single and 2+1 redundant PSUs
  • Specification
  • Download
  • Accessory
  • Compatibility
  • Order Information
  • M/B Form Factor E-ATX (12” x 13”)
    Dimensions (D x W x H) 620 x 220 x 425 (mm)
    24.4” x 8.7” x 16.7”
    Drive Bay External 5.25":2
    External 3.5":1
    Internal 3.5":2
    3.5" Hot-swap:8(option)
    PSU Form Factor PS/2 Single or 2+ 1 Redundant
    Indicator 1 x Power Status
    1 x HDD Activity
    2 x LAN Activity
    1 x Fan Failure and Overheat
    Front Button 1 x Power On/Off
    1 x Alarm Mute
    1 x System Reset
    2 x USB2.0/ USB3.0 (Option)
    System Security Intrusion Switch, Key lock and Kensington Security Slot
    Cooling Fan Middle: 3 x 92 mm (T=25mm), PWM, Hot-swap
    Rear: 1 x 120 mm, PWM
    Expansion Slot 7 x Full Height and Full Length
    HDD Backplane 12Gb/s mini-SAS HD (for 3.5" HDD cage only)
    Metal Thickness 1.0 mm
    Net Weight 15.5kg
    Gross Weight 20.0kg
    Front Bezel SR11269
    Cubic Feet 5.53
    Container Loading 20’: 140
    40’: 280
    40’H: 336
  • Category Description Revision Size Download
    Datasheet SR112 Series Datasheet V1.2 1.2 MB

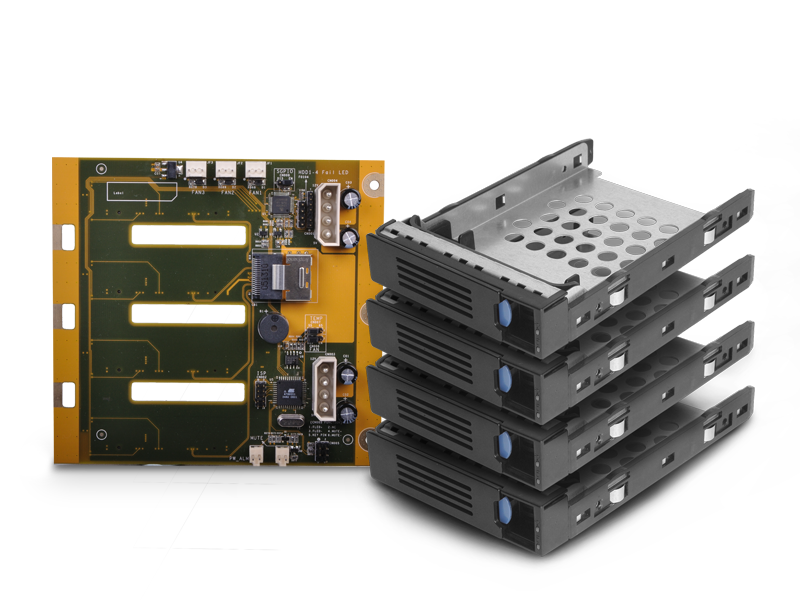

    User Manual 6Gb/s 4-port SATA/SAS Backplane(80H10211202A0), for 4-Bay 3.5" Hot-swap Kit V1.0 399.6 KB
    User Manual 6Gb/s 4-port mini-SAS Backplane(80H10211203A0), for 4-Bay 3.5" Hot-swap Kit V1.0 267.6 KB
  • Category Part. No# Description Support
    Bracket

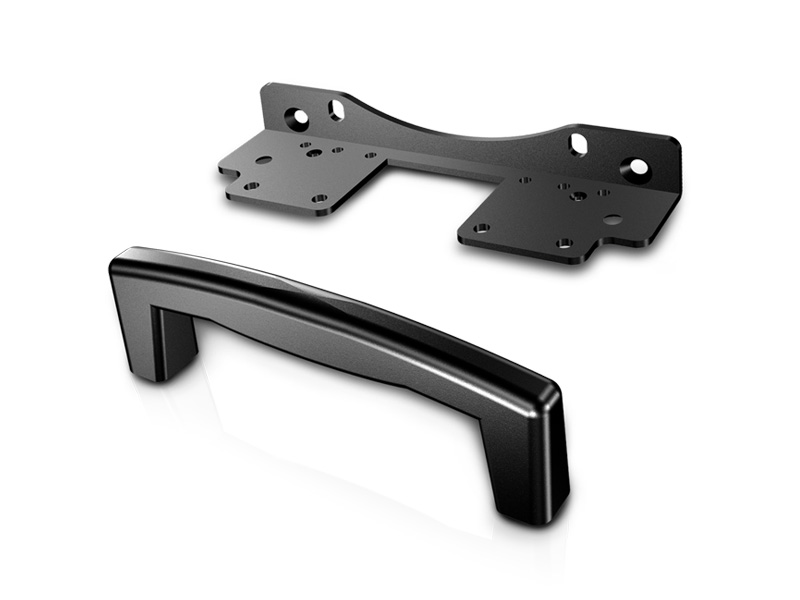

    84H210710-035
    Bracket, Rackmount Handle, Black, 2pcs/set
    HDD Kit

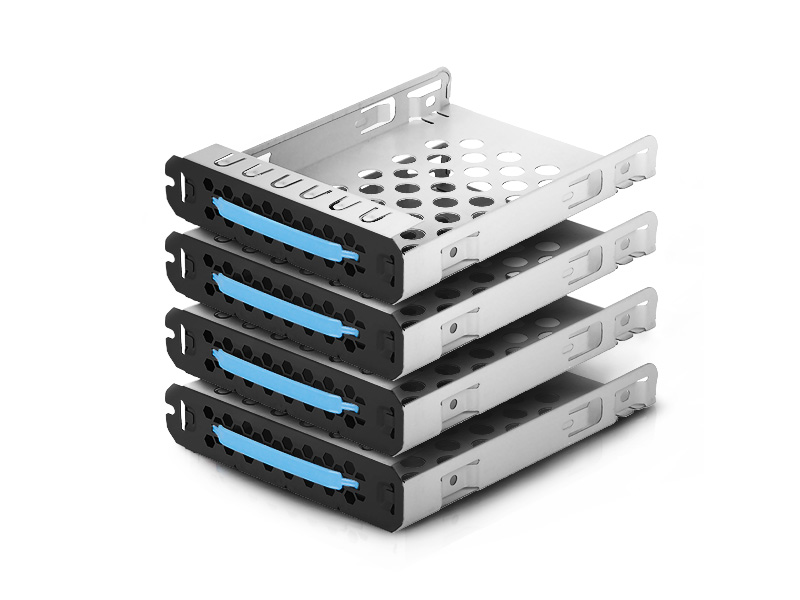

    84H211210-004
    HDD Kit, 4x 3.5" Non-Hotswap trays, Internal
    HDD Kit

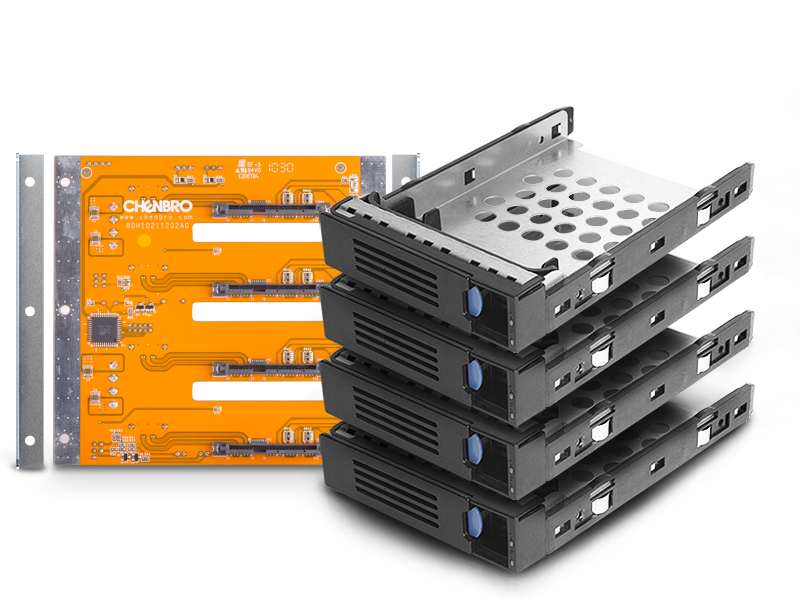

    84H211210-017

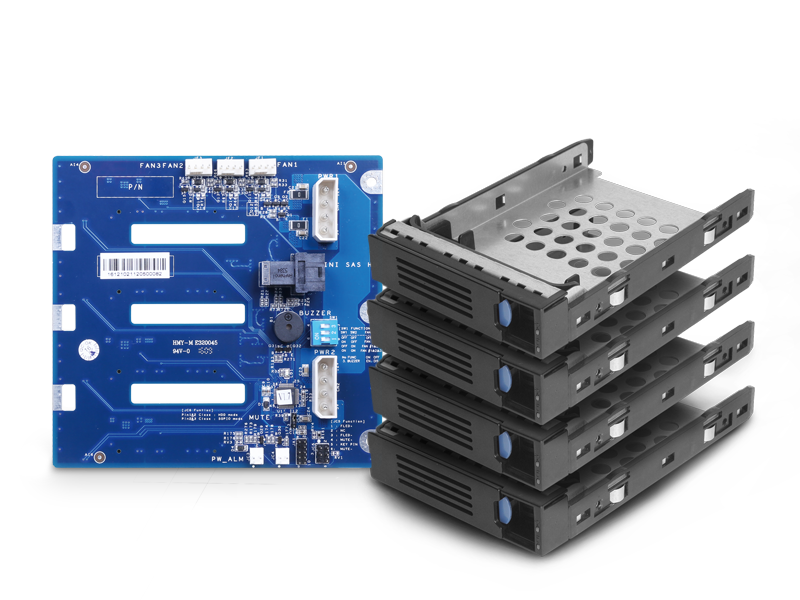

    HDD Kit, 4x3.5" HDD trays, w/4-port 12Gbps mini-SAS HD backplane
    Slide Rail

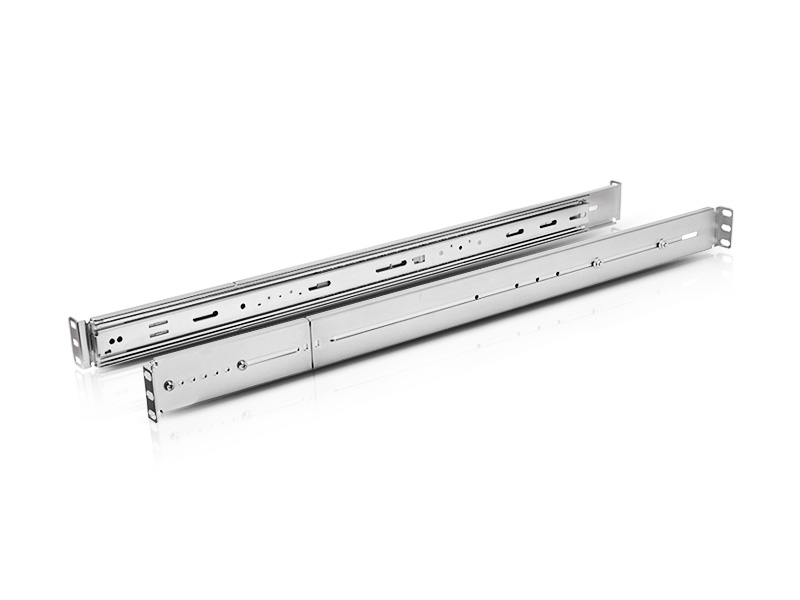

    84H210710-024
    Slide Rail, 26", Ball Bearing, SR20966/SR10566/SR107
    Click Part. No# to view item picture
  • Order Code M/B Size HDD Backplane PSU Cooling Fan Slide Rail
    SR11269M3-H4 12"x13" 1x 12Gb/s mini-SAS HD Option 1x120mm+3x92mm Option
    SR11269M3-H8 12"x13" 2x 12Gb/s mini-SAS HD Option 1x120mm+3x92mm Option
    SR11269-N4 12"x13" N/A(w/4x Internal 3.5" Tray) Option 1x120mm+3x92mm Option
