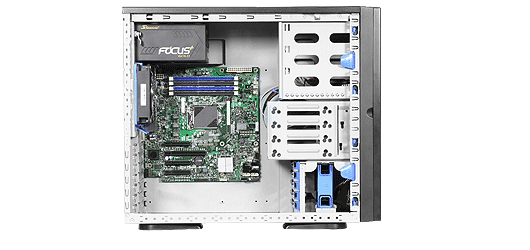

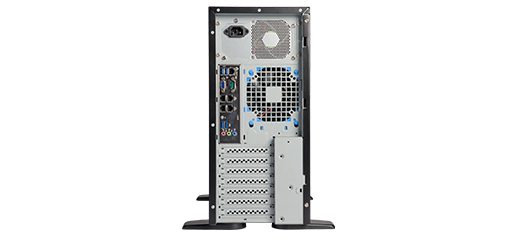

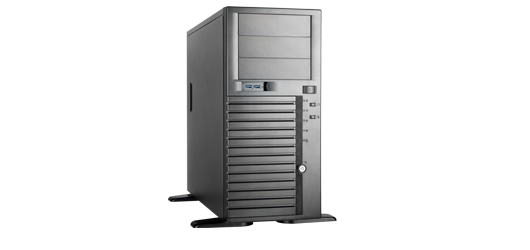

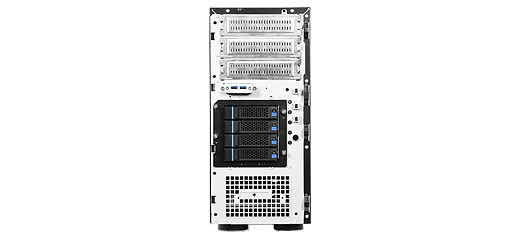

SR209 PLUS
Feature-rich ATX Tower Server Chassis
With the size to fit a wide range of system boards, it is an ideal single-socket chassis solution for entry to mainstream server applications
Compare
Quick Search
  • By Chassis Type
  • By Motherboard
  • By RAID Card
  • By Power Supply
Compare
Features & Benefits
  • Supports up to 12" x 9.6" M/B
  • Supports removable 4-bay 3.5" HDD Hot-swap and internal cages
  • 3.5" HDD Hot-Swap cages with 12Gb/s mini-SAS HD Backplane

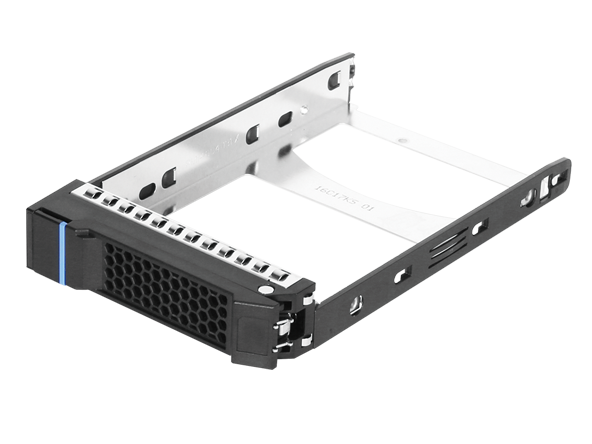

  • Hot-swap cage with four patented tool-less 3.5" HDD trays
  • 3.5" Internal HDD cage with patented anti-vibration technologies
  • A dedicated 80 mm fan for 3.5" HDD cooling
  • A optional 80 mm front fan for PCI-e card cooling
  • Supports PCI-e 3.0 expansion slot opening
  • Tool-less installation for bezel, HDD cage, side cover and fans
  • Supports key lock, 3-wire intrusion switch and Kensington security slot
  • Front bezel lock to prevent unauthorized access
  • Supports Rack installation by slide rails(SR20966 Plus only)
  • Supports single PS/2 PSU
  • Specification
  • Download
  • Accessory
  • Compatibility
  • Order Information
  • M/B Form Factor ATX (12” x 9.6”)
    Dimensions (D x W x H) 465 x 198 x 425(mm)
    18.3” x 7.8” x 16.7”
    Drive Bays External 5.25":3
    3.5" Hot-swap:4
    Internal 3.5":4
    PSU Form Factor PS/2 Single
    Indicators 1 x Power Status
    1 x HDD Activity
    2 x LAN Activity
    1 x Fan Failure and Overheat
    Front Buttons 1 x Power On/Off
    1 x System Reset
    1 x Alarm Mute
    2 x USB3.0
    System Security 3-wire Intrusion Switch,
    Key lock
    Kensington security slot
    Cooling Fans Front: 1 x 80 mm (Built-in HDD cage), PWM
    1 x 80 mm (Option for PCI-e card), PWM
    Rear: 1 x 120 mm, PWM
    Expansion Slots 7 full height (5 x full length + 2 x half length)
    HDD Backplane 12Gb/s mini-SAS HD
    Metal Thickness 0.8 mm
    Net Weight 7.8 kg
    Gross Weight 9.8 kg
    Front Bezel Option
    Cubic Feet 2.94
    Container Loading 20’: 350, 40’: 734, 40’H: 820
  • Category Description Revision Size Download
    Datasheet SR209 Plus_Datasheet V.1.0 1.1 MB
    User Manual SR209-Plus_User Manual V1.0 4.0 MB
  • Category Part. No# Description Support
    Bracket
    84H210510-004

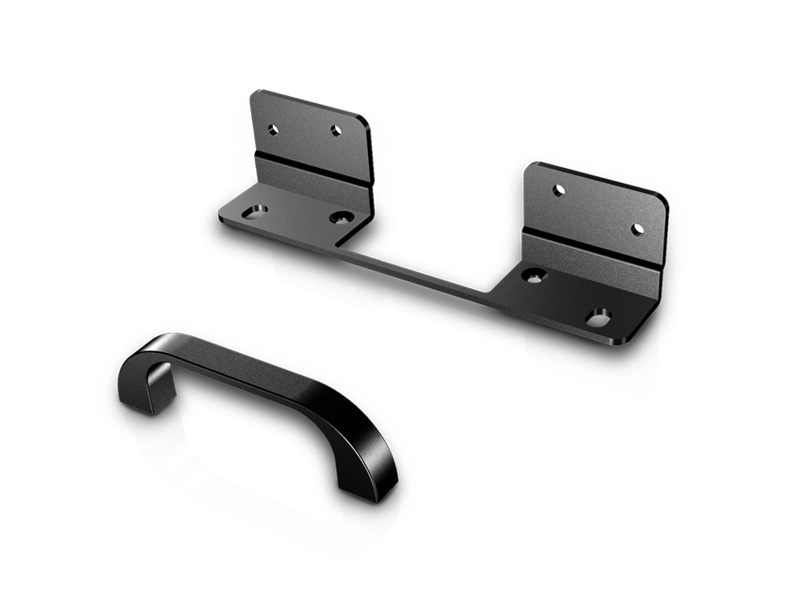

    Rackmount Handle, Black, 2pcs/set, SR20966/SR10566

    HDD Cage
    384-10501-2101A0

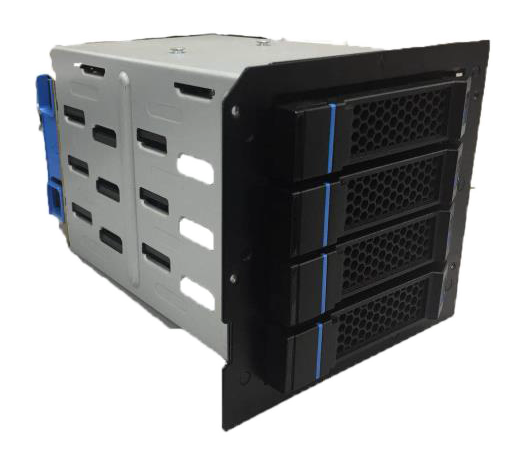

    Cage, 3.5" HDD, w/ 4-port 12Gbps mini-SAS HD BP & 80mm PWM Fan, Tool-less Tray
    HDD Cage
    384-10502-2100A0

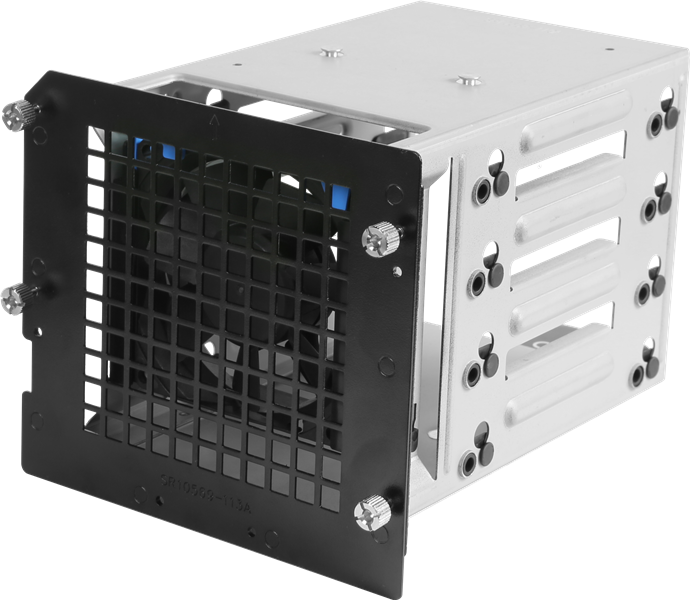

    Cage, 3.5" HDD, Internal, w/ Enhanced Anti-vibration Rubber & 80mm PWM Fan
    HDD Cage
    84H220910-062

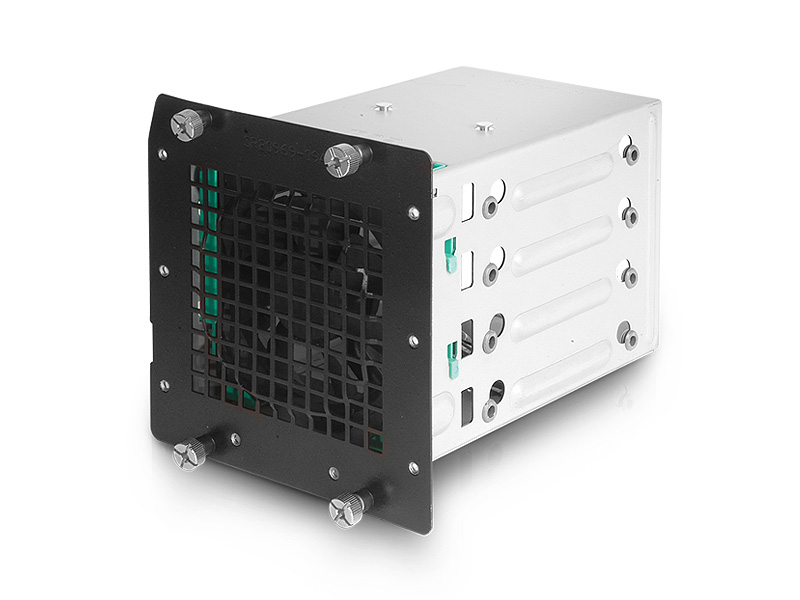

    4-bay, 3.5" Non Hot-swap, w/92mm Fan
    HDD Cage
    84H220910-085
    4-bay, 3.5" Hot-swap, w/4-port 12Gbps SATA/SAS Backplane& 80mm Fan
    HDD Cage
    84H220910-087

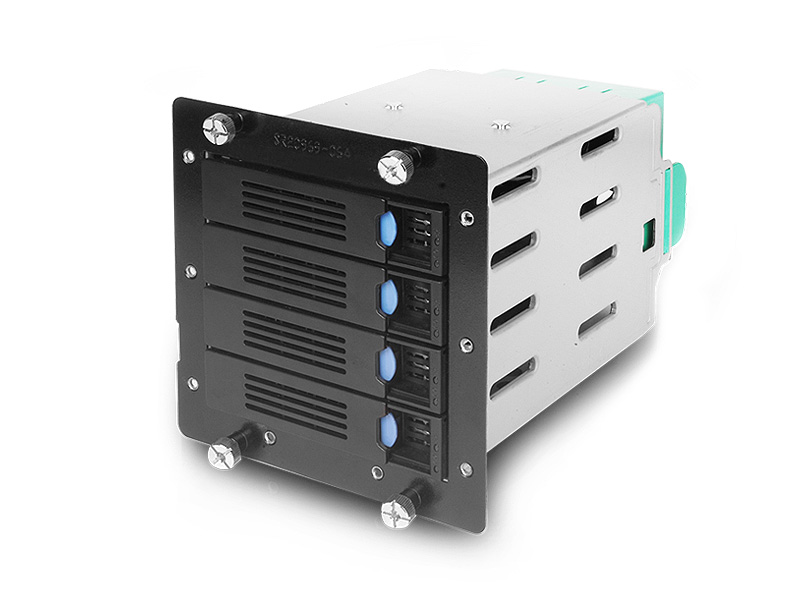

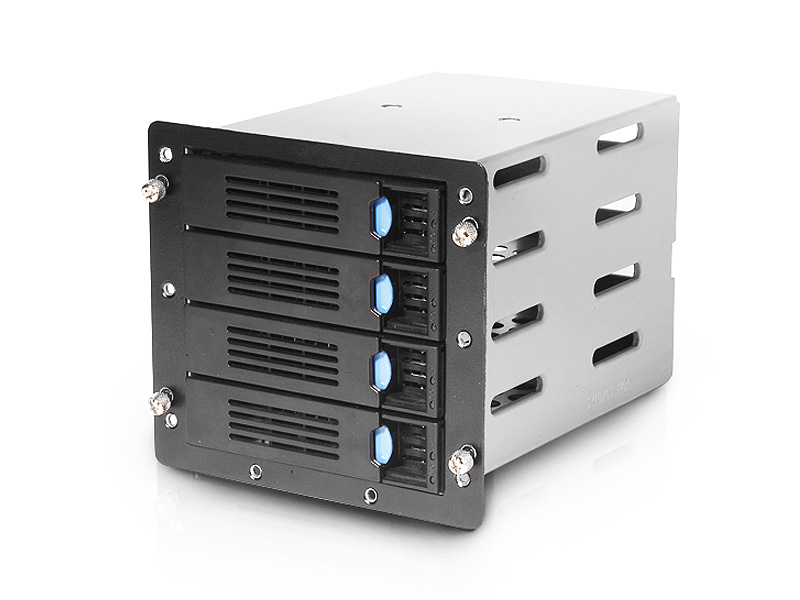

    4-bay, 3.5" Hot-swap, w/4-port 12Gbps mini-SAS HD Backplane& 80mm Fan
    Power Supply
    132-20500-0500A0

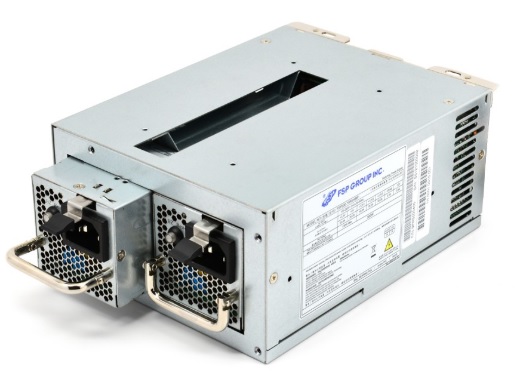

    PSU, 500W, 1+1 Redundant PSU, FSP500-50RAB, w/PSU Bracket
    Slide Rail
    84H210710-024
    Slide Rail, 26", Ball Bearing, SR20966/SR10566/SR107
    Click Part. No# to view item picture
  • Order Code HDD Backplane HDD Cage PSU Cooling Fan
    SR20969+ N/A Option Option 1x120mm
    SR20969-C4+ N/A 3.5" non Hot-swap Option 1x120mm; 1x80mm
    SR20969M3-C4+ 12Gb/s mini-SAS HD 3.5" Hot-swap Option 1x120mm; 1x80mm
