CK22804 (EOL)

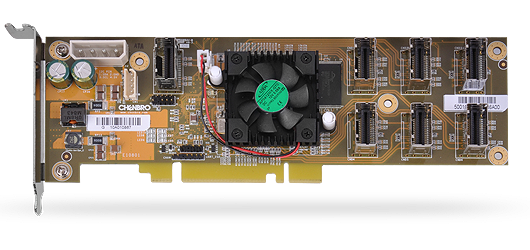

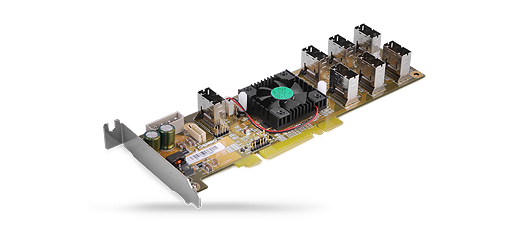

6Gb/s Low-Profile 28-Port SAS Expander Card
CK22804 supports 24 internal HDDs. With 4-port RAID controller card, It is ideal for high density storage server.
Compare
Quick Search
  • By Chassis Type
  • By Motherboard
  • By RAID Card
  • By Power Supply
Compare
Features & Benefits
  • Built-in LSI SASIIX28 6Gb/s SAS Expander Controller
  • Supports up to 24 SAS/SATA HDD in directly connection
  • Supports HDD failure and activity indication and HDD ID mapping
  • Mechanical fitting compatible with PCI-e 4x, 8x, 16x and PCI slots
  • Firmware upgradeable through RS-232 interface
  • 4 pin power connector to power from PSU cable
  • Extra mounting holes and seven upright SFF-8087 connectors for attaching chassis
  • Specification
  • Download
  • Accessory
  • Compatibility
  • Order Information
  • Order Code CK22804H0C01
    HW Rev. A0
    FW Rev. 0701
    Dimensions ( LxW) 200 x 63.34mm
    Chipset LSI SASIIX28
    Internal Ports Input from SAS HBA / RAID Card : 4-port (1x Mini-SAS)
    Output to Backplane : 24-port (6x Mini-SAS)
    Support OS Windows Server 2003
    Windows Server 2008
    Red Hat 5.0
    Cent OS 5.3
    FreeBSD
    Ubuntu 9.04
    Cable Options SFF-8087 to SFF-8087 Mini-SAS cable 600 mm
    SFF-8088 to SFF-8088 External Mini-SAS cable 860 mm
    Power Dissipation 12 Watts
  • Category Description Revision Size Download
    Datasheet 6Gb/s SAS Expander Cards Datasheet V1.1 454.8 KB
    Driver 6Gb/s SAS Expander with FW1401/0701, for Windows Server 2003 V1.1 576 Bytes
    Driver 6Gb/s SAS Expander with FW0701, for Windows Server 2003 V1.0 3.7 KB
    User Manual CK22804 Quick Installation Guide V1.1 208.0 KB
  • Category Part. No# Description Support
    Cable
    26H113215-030
    Cable, SFF-8087 to SFF-8087, 600mm
    Cable
    26H12323601A0

    Cable, mini-SAS(Host) to 4x SATA, w/Sideband, 600mm

    Click Part. No# to view item picture
  • Order Code Form Factor Internal Connector External Connector Firmware Version Hardware Version
    CK22804H0C01 Low Profile 6x SFF-8087 N/A 0701 B1
