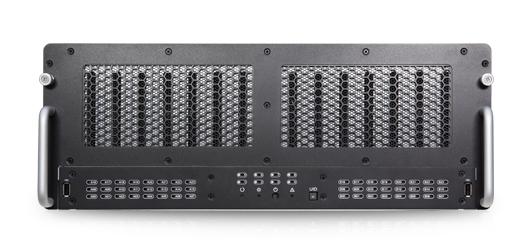

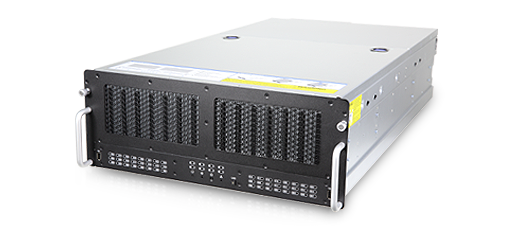

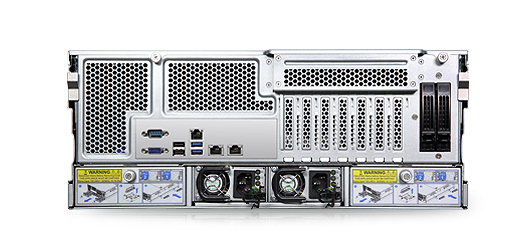

RM43348
4U 48-bay Top-loaded High Dense Storage Chassis

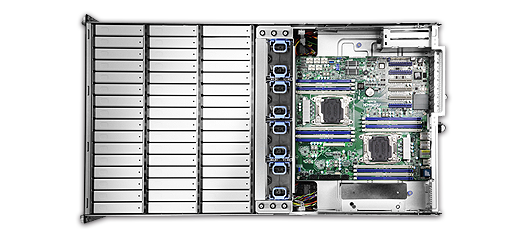

The RM43348 can accommodate forty-eight 3.5” top access hot-swap hard drives and an EATX motherboard supporting the latest Intel® Xeon processor E5-2600/1600 V3 product families.
Compare
Quick Search
  • By Chassis Type
  • By Motherboard
  • By RAID Card
  • By Power Supply
Compare
Features & Benefits
  • Hard drive LED indicators and identification labels for immediate disk function information
  • Hot-swap fan modules with hysteresis feature to smooth the fan speed transition
  • Redundant fan modules and power supplies for system reliability and failover
  • Removable side handles and motherboard tray for easier installation and maintenance
  • Optional cable management arm for slide rails to make the rear of system neat and clean
  • Specification
  • Download
  • Accessory
  • Compatibility
  • Order Information
  • Form Factor 4U
    MB E-ATX (12” x 13”)
    Dimensions (D x W x H) 832.8 x 448 x 175.8 (mm)
    32.79” x 17.24” x 6.92”
    Drive Bay 3.5" Hot-swap:48
    External 3.5" (Optional):2
    External 2.5" (Optional):2
    Power Supply 1+1 Redundant, 1100W 80Plus Gold
    Indicator 1 x Power Status
    48 x HDD Activity
    8 x Fan Failure
    1 x Overheat & PSU Failure
    Front Control 1 x Power On/Off
    1 x System Reset
    1 x UID
    System Security N/A
    Cooling Fan Middle: 8 x 80mm (T=38mm), PWM
    Expansion Slot 7 x Low Profile
    Storage Backplane 2 x 24-port 12Gb/s mini-SAS HD w/Expander
    Net Weight 30.0kg
    Gross Weight 55.0kg
    Front Bezel N/A
    Cubic Feet 14.7
    Container Loading (Single Packing) 20': 76, 40': 154, 40'H: 172 (Single + Pallet)
  • Category Description Revision Size Download
    Datasheet RM43348 Datasheet V1.2 2.8 MB
    User Manual RM43348 Installation Manual A0 2.0 MB
  • Category Part. No# Description Support
    Bracket
    83H553433-010
    Bracket, Metal Cover, For opening of 2-bay HDD Cage
    Bracket
    83H553433-011
    Bracket, 2-bay 3.5" HDD, Internal

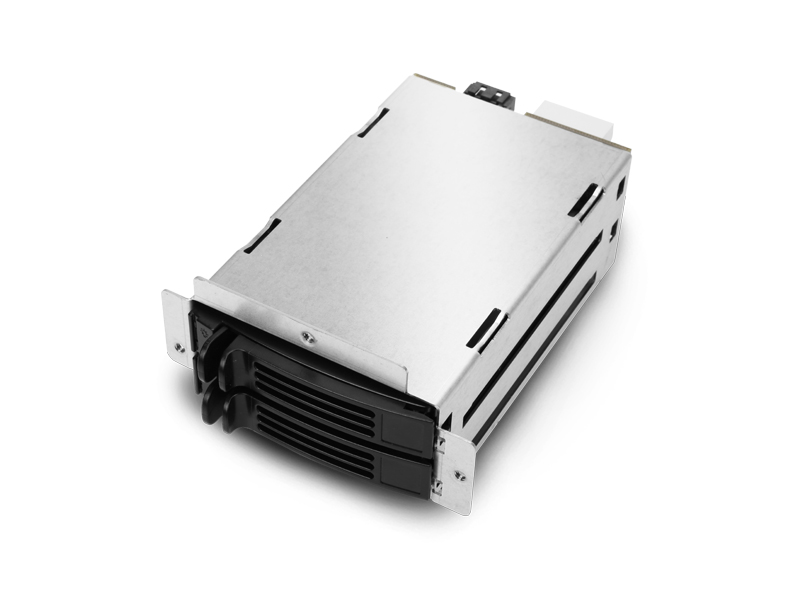

    Drive Cage
    83H803433-003
    2-bay, 2.5" Hot-swap, w/2-port 6Gbps mini-SAS Backplane

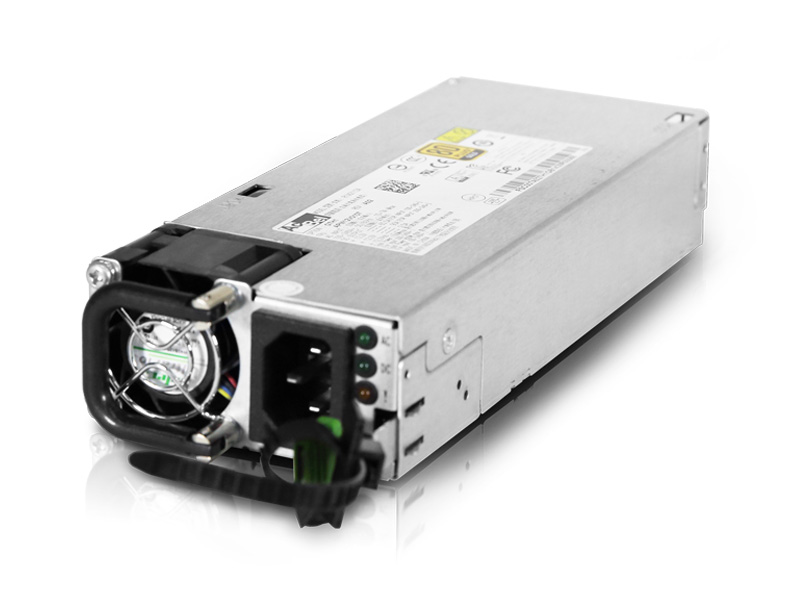

    Power Supply
    32H1110001101
    PSU, 1100w, 1+1 Redundant, AcBel R1IA2112A, 80+ gold
    Slide Rail
    84H024010-012
    Slide Rail, Tool-less, 34.6"
    Slide Rail
    84H343210-003
    Cable Management ARM, For Slide Rail(84H024010-012) only
    Click Part. No# to view item picture
  • Order Code M/B HDD Backplane Middle Fan USB PSU Slide Rail
    RM43348E3-RB00L 12"x13" 12Gb/s SAS Expander 4 x 80mm,PWM 2 X USB 2.0 1100W Redundant Included
