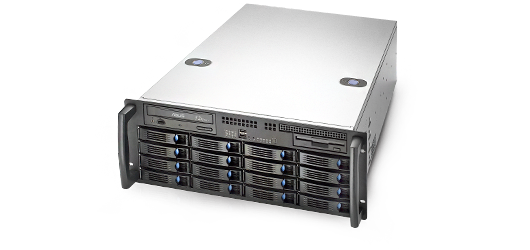

RM41416 (EOL)

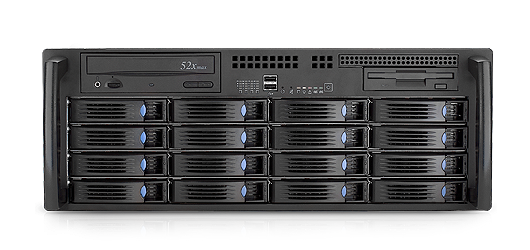

4U 16-bay High Dense Storage Server Chassis
With 5.25", 3.5" and slim ODD bays, it can install additional storage devices to increase add-on values and extend application fields.
Compare
Quick Search
  • By Chassis Type
  • By Motherboard
  • By RAID Card
  • By Power Supply
Compare
Features & Benefits
  • Supports 16 x 3.5” hot-swap HDD bays and 1 x 3.5” internal OS drive bay
  • Exposed 5.25” bay to enhance configuration flexibility
  • Card retainer to hold low profile and full height add-on cards
  • 5x 80mm hot-swap Fans
  • Supports 12Gb/s mini-SAS HD backplane
  • Supports PS/2 single or 1+1 redundant PSU
  • Specification
  • Download
  • Accessory
  • Compatibility
  • Order Information
  • Form Factor 4U
    M/B Form Factor Extended ATX (12” x 13”)
    Dimensions (Dx Wx H) 660 x 430 x 176 (mm), 26” x 16.9” x 6.9”
    Drive Bays External 3.5":1
    External 5.25":1
    Slim ODD:1
    3.5" Hot-swap:16
    Internal 3.5":1
    PSU Form Factor PS/2 Single or 1+1 Redundant
    Indicators 1 x Power Status, 1 x HDD Activity, 2 x LAN Activity , 1 x Fan Failure and Overheat
    Front Control Power On/Off, Alarm Mute, System Reset, 2 x USB2.0
    System Security Intrusion Switch
    Cooling Fans Middle: 5 x 80mm (T=32mm), Hot-swap , Rear: 2 x 80mm (Option)
    Expansion Slots 7x Full Height and Full Length
    HDD Backplane 12Gb/s mini-SAS HD
    Net Weight 20.3kg
    Gross Weight 24.7kg
    Front Bezel Option
    Cubic Feet 5.82
    Container Loading (Single Packing) 20’: 160, 40’: 328, 40’H: 383
  • Category Description Revision Size Download
    Datasheet RM41416 Datasheet V1.2 1.3 MB
    Quick Installation Guide(QIG) RM41416 Quick Installation Guide V1.1 4.4 MB
    User Manual 6Gb/s 4-port 3.5" mini-SAS Backplane(80H10321516A1) Rev. A1 V1.1 664.7 KB
    User Manual 3Gb/s 4-port 3.5" mini-SAS Backplane(80H103215-013) Rev. A0 V1.0 605.9 KB
    User Manual 3Gb/s 4-port 3.5" mini-SAS Backplane(80H103215-013) Rev. A1 V1.0 623.8 KB
  • Category Part. No# Description Support
    Bezel
    84H341410-003

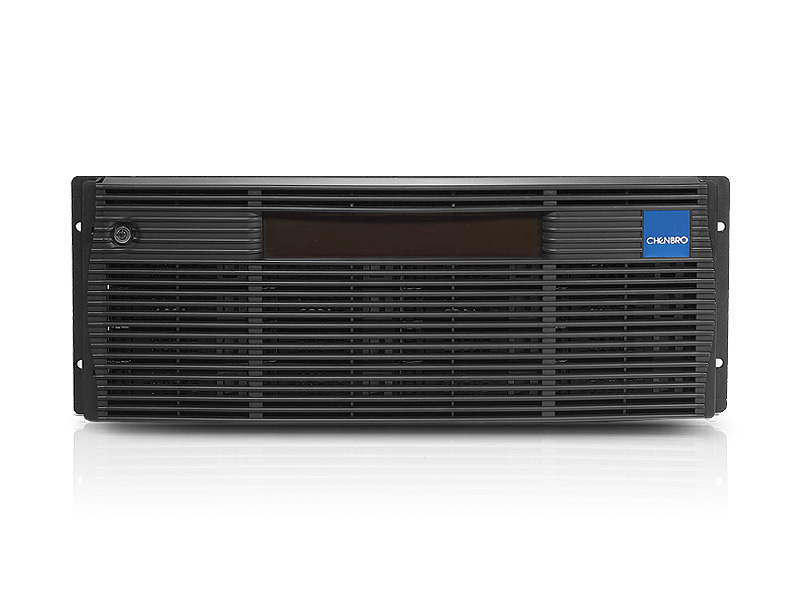

    Front Bezel, 4U, Plastic

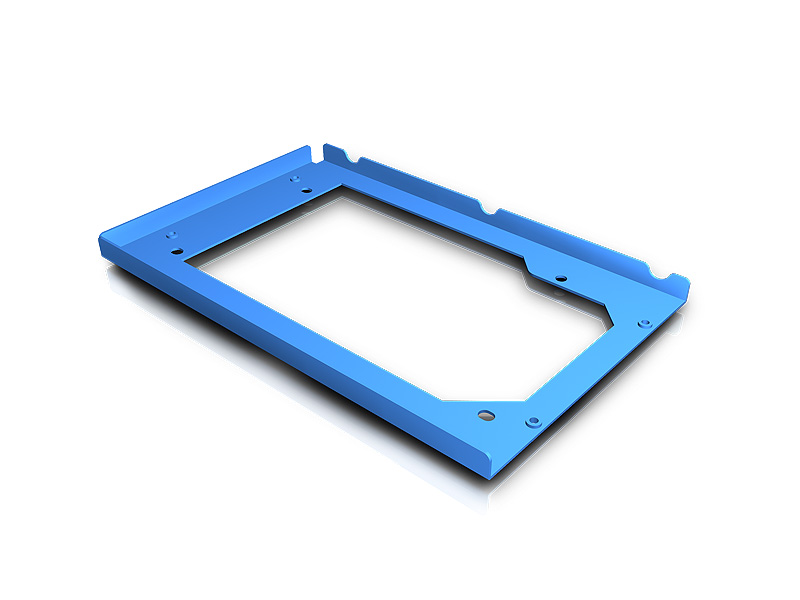

    Bracket
    84H341410-010
    Bracket, PSU, 4U, For R3G-6650P

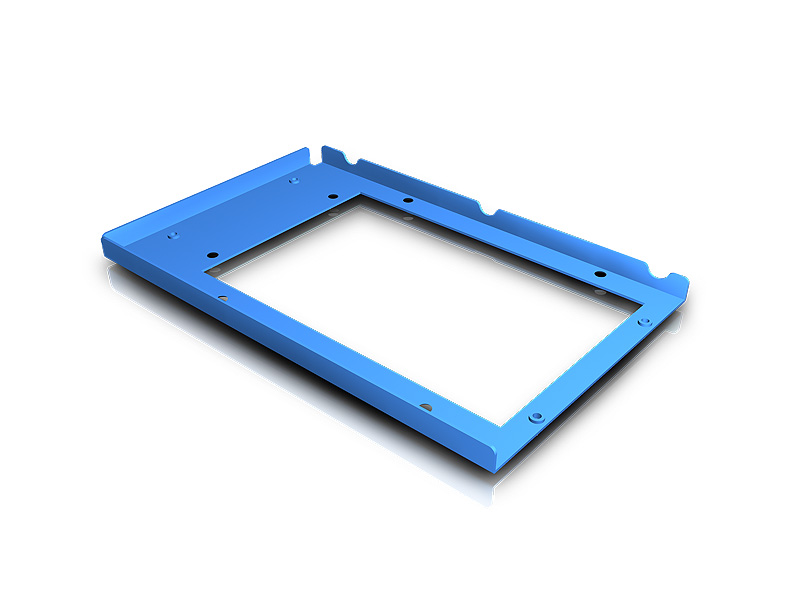

    Bracket
    84H341410-012
    Bracket, PSU, 4U, For PS/2 PSU
    Bracket
    84H341410-015

    Bracket, PSU, 4U, For M1Z3-6760P

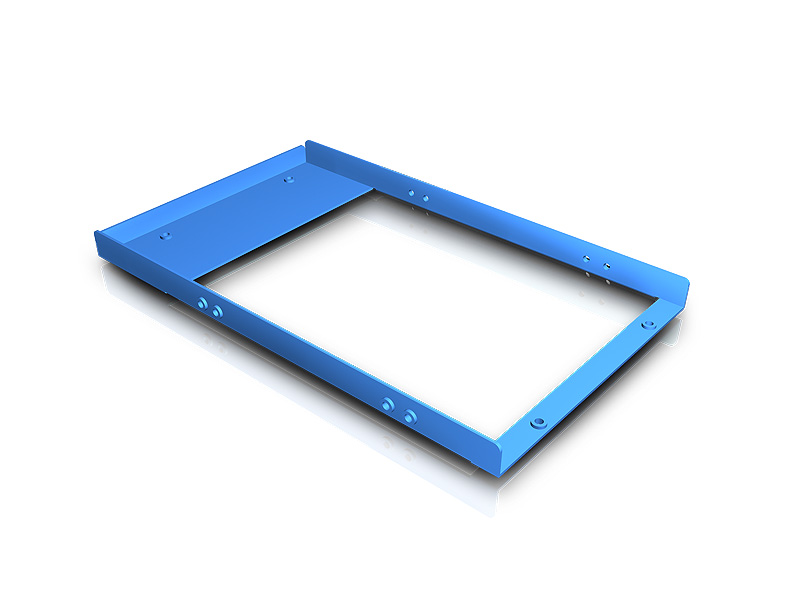

    Bracket
    84H341410-026
    Bracket, PSU, 4U, For C2W-5620V / C2W-5820V

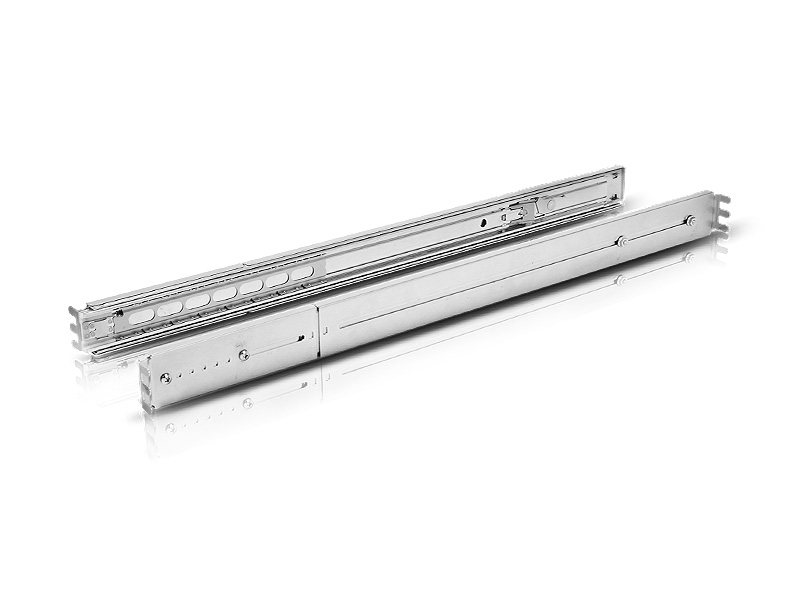

    Slide Rail
    84H321510-022
    Slide Rail, 26", For 2U/3U/4U
    Click Part. No# to view item picture
  • Order Code M/B HDD Backplane PSU Rear Window Slide Rail
    RM41416 12"x13" Option Option 7-Slot,FF Option
    RM41416M3 12"x13" 12Gb/s mini-SAS HD Option 7-Slot,FF Option
