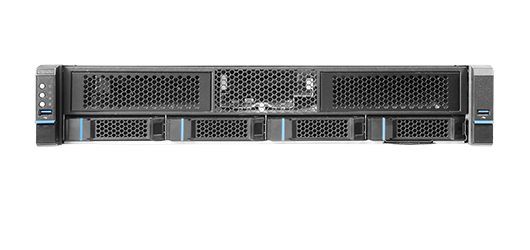

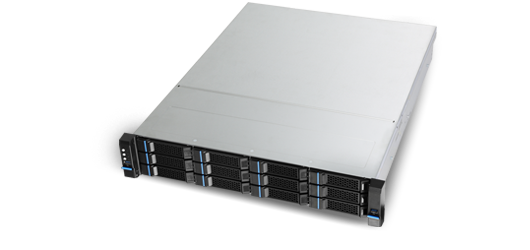

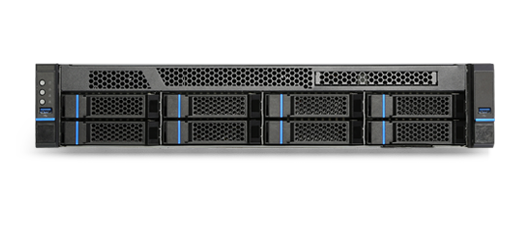

RM245 Series
2U ATX Highly Flexible Storage Server Chassis
With eight or twelve 3.5" HDD hot-swap bays, 12Gb/s backplane, and flexible fan configuration, RM245 Series can address the demands in a broad range of applications.
Compare
Quick Search
  • By Chassis Type
  • By Motherboard
  • By RAID Card
  • By Power Supply
Compare
Features & Benefits
  • Supports M/B size up to 12" x 10.5"
  • Features tool-less 3.5" HDD tray
  • Supports 8-bay or 12-bay 3.5" HDD cage for different applications
  • Supports 12Gb/s backplane w/ or w/o Expander
  • Built-in up to two front access USB3.0 ports

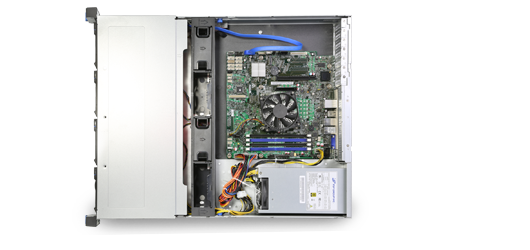

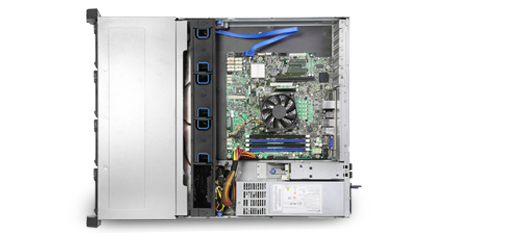

  • Supports up to four 80mm middle fans with smart speed control on backplane

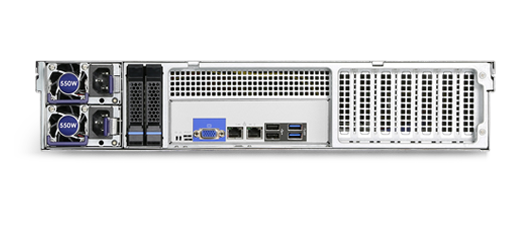

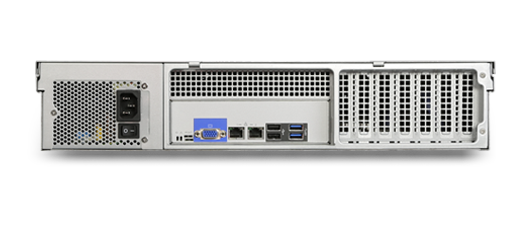

  • Easy-swap rear window for 3-slot or 7-slot configuration
  • Optional rear 2-bay 2.5" HDD cage for OS drive security
  • Supports 1 + 1 CRPS or 2U single PSU
  • Specification
  • Download
  • Accessory
  • Compatibility
  • Order Information
  • Form Factor 2U
    MB ATX (12" x 9.6"), up to CEB
    Dimensions (D x W x H) 559 x 438 x 87 (mm)
    22" x 17.2" x 3.5"
    Drive Bay RM24508 (3.5" Hot-swap):8
    RM24508 (Slim ODD):1
    RM24508 (Internal 2.5"):2
    RM24512 (3.5" Hot-swap):12
    Option (2.5" Hot-swap, Rear) for OS or Cache:2
    Power Supply 1+1 CRPS (80+ Platinum) or Single 2U
    Indicator 1 x Power Status
    2 x LAN Activity
    1 x UID
    1 x HDD Status
    1 x System Status
    Front Control 1 x Power On/Off
    1 x System Reset
    1 x UID
    2 x USB3.0
    System Security Intrusion Switch (Option)
    Cooling Fan Middle: 3 x 80 mm (Up to 4), PWM (Hot-swap & Non Hot-swap)
    Expansion Slot 7 x Low Profile or 3 x Full Height
    Storage Backplane 3.5" 12Gb/s SAS Passive or Active (with Expander) Backplane [Mini-SAS HD]
    Net Weight 9.5kg
    Gross Weight 12.0kg
    Front Bezel Option
    Cubic Feet 2.89
    Container Loading (Single Packing) 20': 260, 40': 560, 40'H: 616
  • Category Description Revision Size Download
    Datasheet RM245 Series Datasheet V1.0 1.7 MB
    User Manual RM245 User Manual V1.0 V.1.0 6.4 MB
  • Category Part. No# Description Support

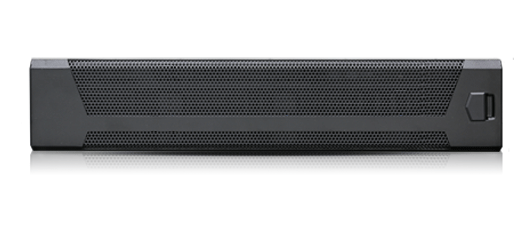

    Bezel
    384-23705-3106A0
    Front Bezel, 2U, Metal
    Bracket
    384-23808-3100A0
    PCIe Holder Retention Bracket, for 3-slot Full Height PCIe Card Holder
    Cable
    26H11313705A0

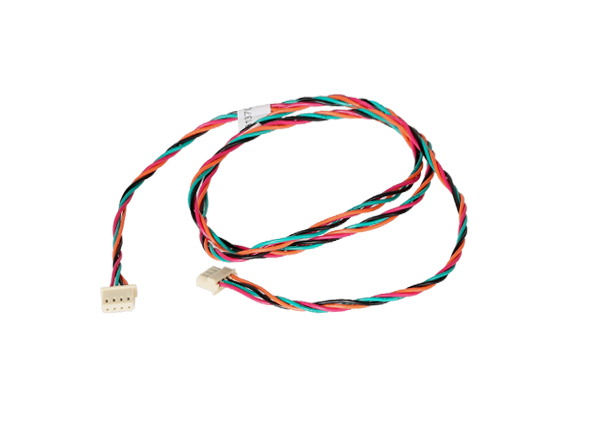

    I2C, 4-pin, 800mm, MB to Storage Backplane
    Cable
    26H12314607A0

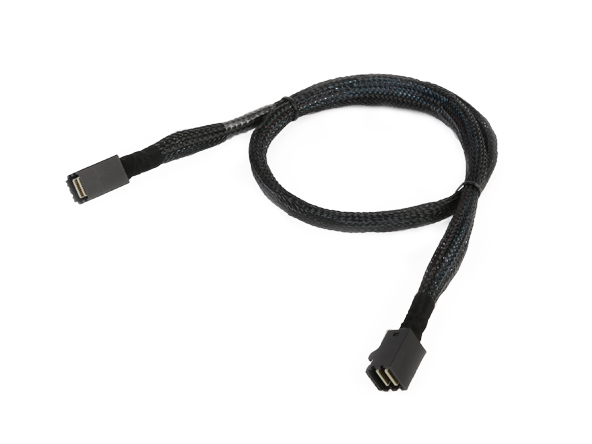

    Cable, mini-SAS HD to mini-SAS HD, 550mm
    HDD Tray
    84H314610-004
    3.5" HDD Tray, Tool-less
    Holder
    384-23712-3102A0
    PCIe Card Holder, 3-slot, Full Height
    Power Supply
    132-10400-0504A0

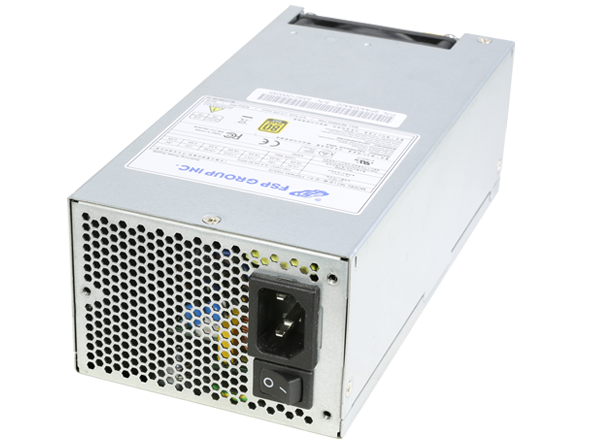

    PSU, 400W, 2U Single, 80+ Gold

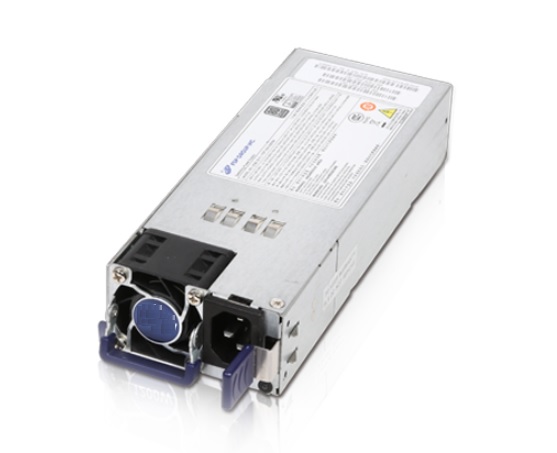

    Power Supply
    132-20550-0502A1
    PSU, CRPS, 550W, Hot-swap, with PDB, FSP, 1+1(132-20550-0502A1)

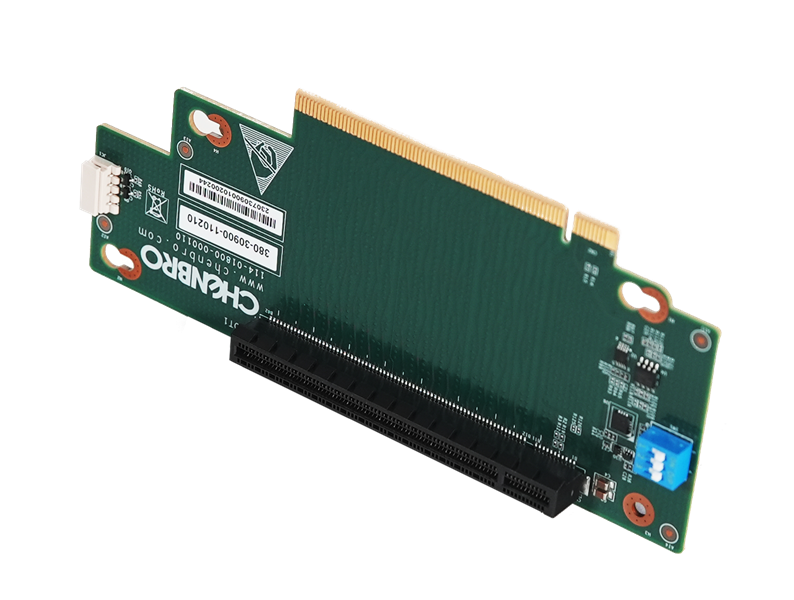

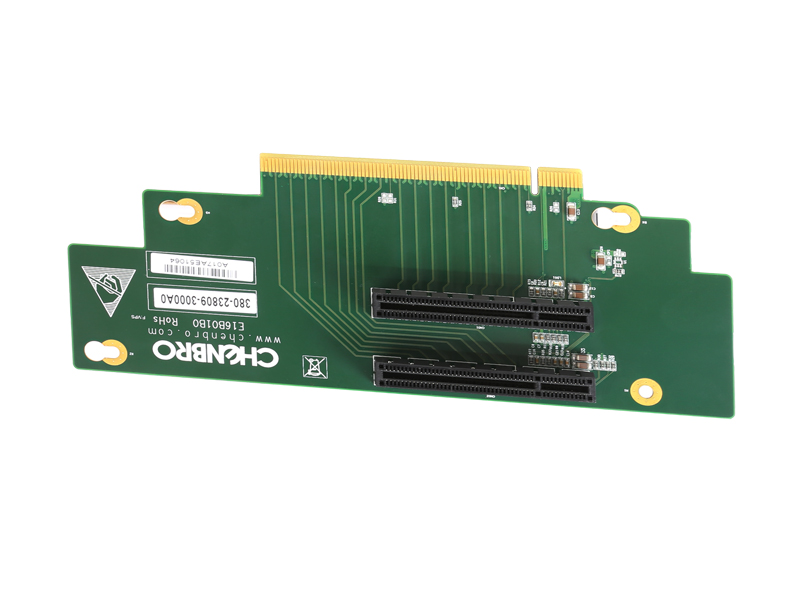

    Riser Card
    384-23812-3101A0
    Riser Card, PCBA, 2 x PCIe Gen3 x8

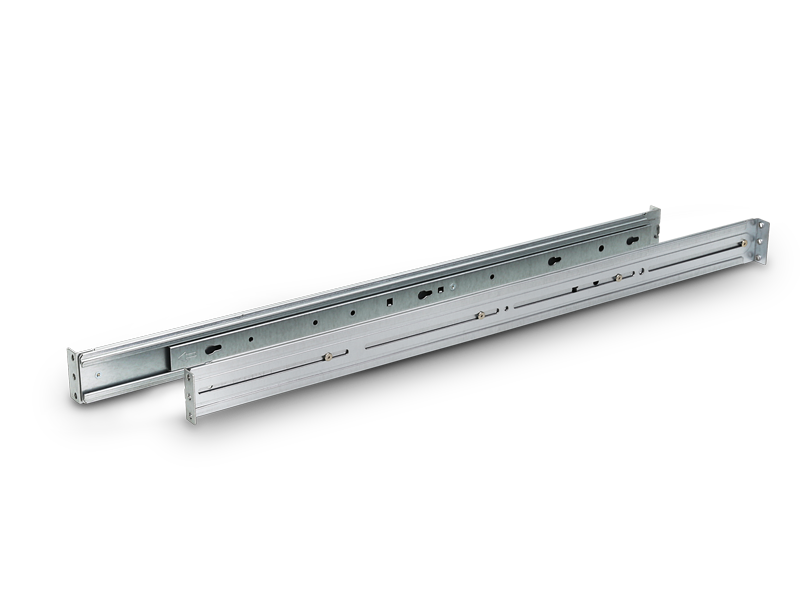

    Slide Rail
    384-14303-3100A0
    23.2“ Slide Rail, Post to Post: 23.6" to 39.3", Traveling Distance 9.2", Loading Weight 20.6kg, Non Tool-less
    Slide Rail
    384-23803-3300A0
    32.8“ slide rail, P2P:26.3" to 36.9", Traveling Distance 30.7", Loading Weight 30.8 Kg, Tool-less
    Slide Rail
    84H314610-003
    23.6“, Post to Post: 26" to 33", Traveling Distance 22", Loading Weight 18.8kg, Tool-less
    Upgrade Kits
    384-23701-3116A0

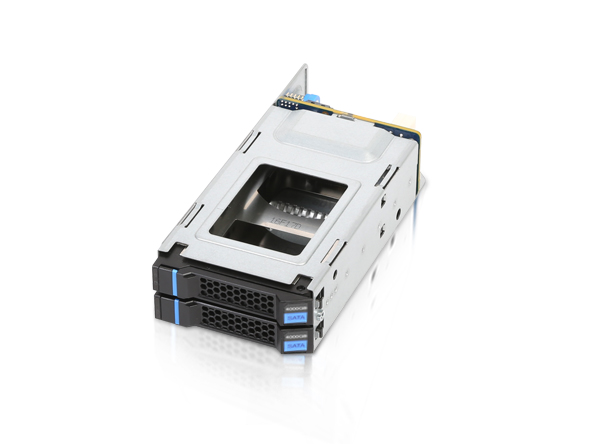

    2.5" 2-bay Cage, with 2-port 12Gb/s SATA/SAS Backplane (Redundant PSU Version Only)
    Click Part. No# to view item picture
  • Order Code M/B HDD Backplane Middle Fan PSU
    RM24508M3-L 12" x 9.6" 8-port 12Gb/s SAS/SATA 2 x 8038 Single 2U (Option)
    RM24508M3-R550L 12" x 9.6" 8-port 12Gb/s SAS/SATA 3 x 8038 (Hot-swap) 1 + 1 CRPS
    RM24512E3-R550L 12" x 9.6" 12-port 12Gb/s Mini-SAS HD with Expander 3 x 8038 (Hot-swap) 1 + 1 CRPS
    RM24512E3-RL 12" x 9.6" 12-port 12Gb/s Mini-SAS HD with Expander 3 x 8038 1 + 1 CRPS (Option)
    RM24512M3-L 12" x 9.6" 12-port 12Gb/s Mini-SAS HD 2 x 8038 Single 2U (Option)
    RM24512M3-R550L 12" x 9.6" 12-port 12Gb/s Mini-SAS HD 3 x 8038 (Hot-swap) 1 + 1 CRPS
