RM238 Series
2U Dual Sockets General Purpose Flexible Server/Storage Chassis
With modular and full tool-less designs, it can address the demands in a broad range of applications.
Compare
Quick Search
  • By Chassis Type
  • By Motherboard
  • By RAID Card
  • By Power Supply
Compare
Features & Benefits
  • Provide modular configuration of NVMe solution to easily deal with the complex workloads
  • Supports MB size up to 12" x 13"
  • Features tool-less 2.5" and 3.5" HDD trays

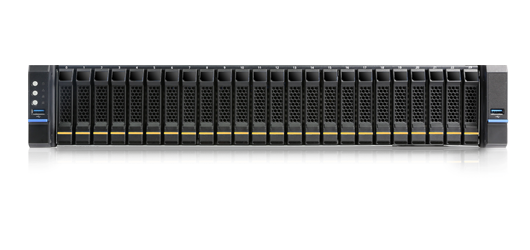

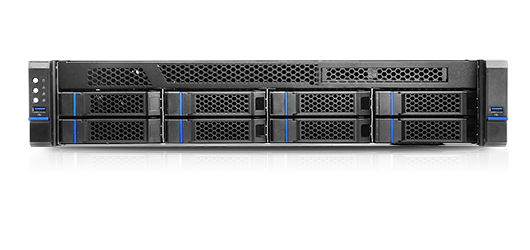

  • Supports 8-bay, 12-bay or 24-bay 2.5"/3.5" HDD cage for different applications
  • Optional rear 2-bay 2.5" HDD/SSD cage for OS or cache drive

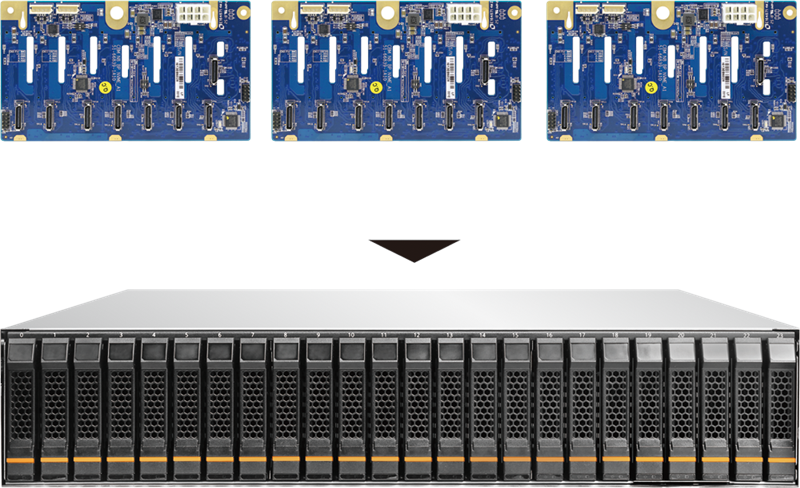

  • Diversified SATA/SAS, NVMe, and tri-mode backplanes for flexible storage configurations

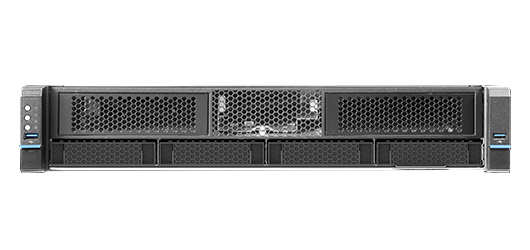

  • Built-in two front access USB3.0 ports

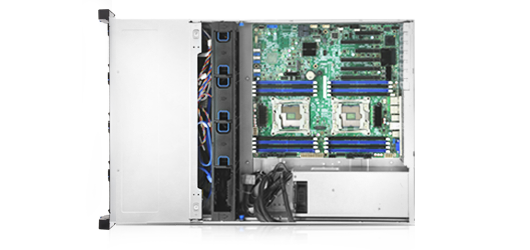

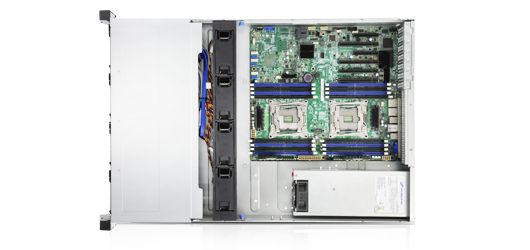

  • Supports up to four 80mm hot-swap fans with smart speed control on backplane

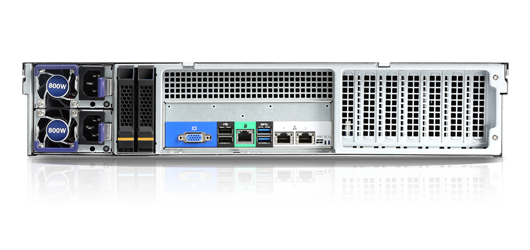

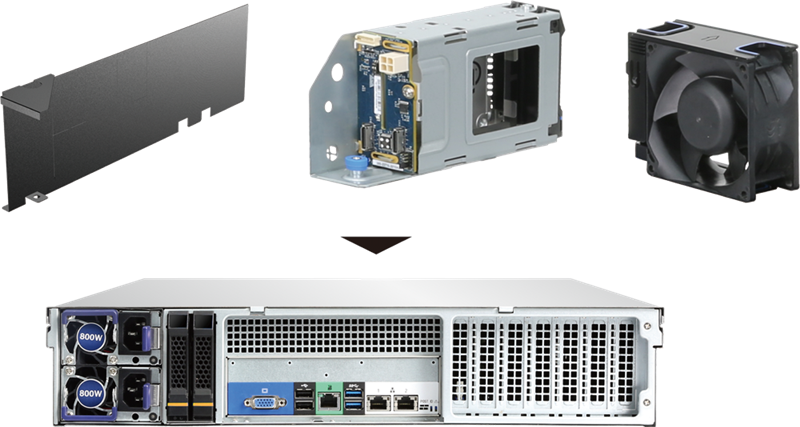

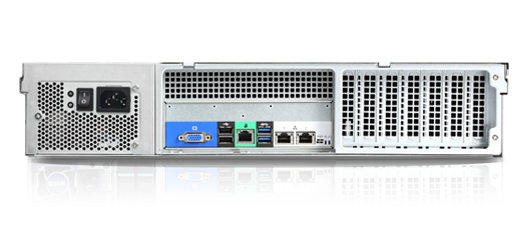

  • Easy-to-maintain back panel bracket with 3-slot full height or 7-slot half height choice
  • Supports 1+1 CRPS or single 2U PSU
  • Specification
  • Download
  • Accessory
  • Compatibility
  • Order Information
  • Form Factor 2U
    MB E-ATX (12" x 13”)
    Dimensions (D x W x H) 658.2 x 438 x 87 (mm)
    25.92" x 17.24" x 3.42"

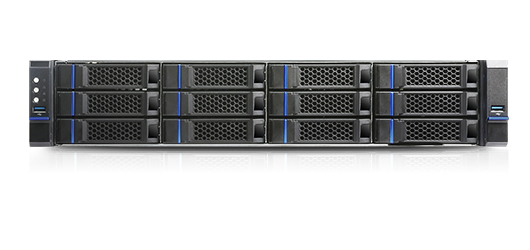

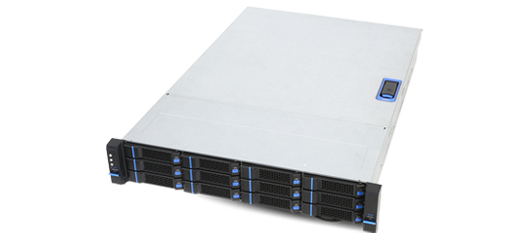

    Drive Bay RM23808 (3.5" Hot-swap):8
    RM23808 (Slim ODD):1
    RM23808 (Internal 2.5"):2
    RM23812 (3.5" Hot-swap):12

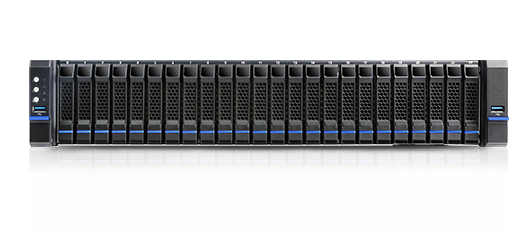

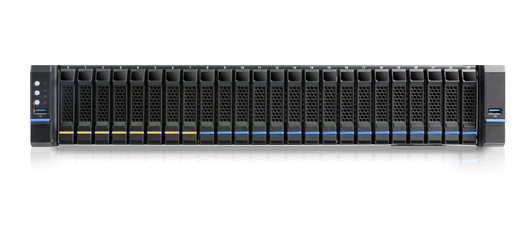

    RM23824 (2.5" Hot-swap):24

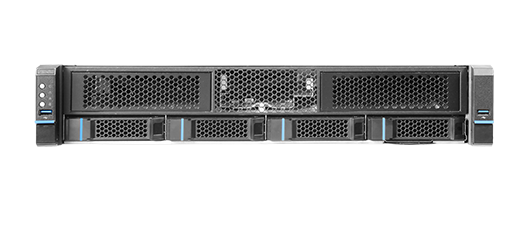

    Option (2.5" Hot-swap, Rear) for OS or Cache:2
    Power Supply 1+1 CRPS (80+ Platinum) or Single 2U
    Indicator 1 x Power Status
    2 x LAN Activity
    1 x UID
    1 x HDD Status
    1 x System status
    Front Control 1 x Power On/Off
    1 x System Reset
    1 x UID
    2 x USB3.0
    System Security Intrusion Switch (Option)
    Cooling Fan Middle: 3 x 80mm (Up to 4), PWM (Hot-swap/Non Hot-swap)
    Expansion Slot 7 x Low Profile or 3 x Full Height
    Storage Backplane 3.5" 12Gb/s SAS Passive or Active (with Expander) Backplane [Mini-SAS-HD]
    2.5" 12Gb/s SAS Passive or Active (with Expander) Backplane [Mini-SAS-HD]

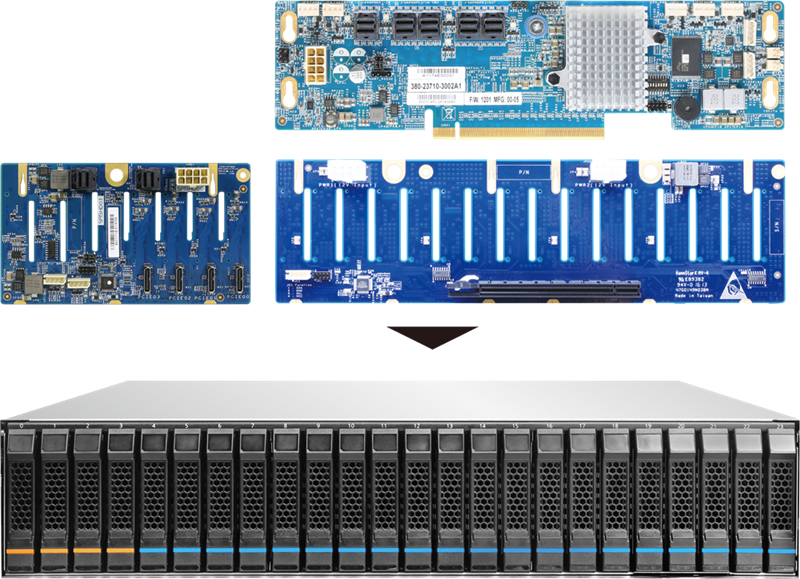

    2.5" PCIe Gen3 NVMe Passive Backplane [OCuLink]

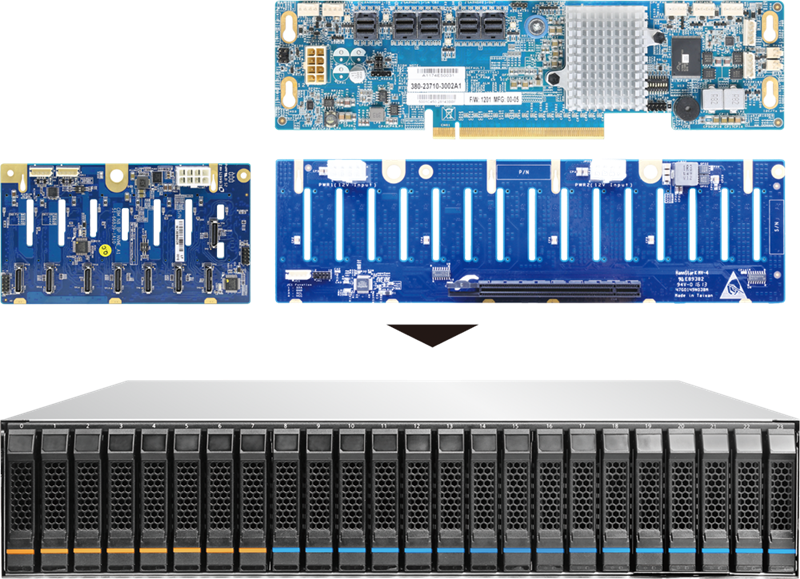

    2.5" Tri-mode (SATA/SAS/NVMe) Passive Backplane [Mini-SAS HD & OCuLink]
    Net Weight 11.5kg
    Gross Weight 14.0kg
    Front Bezel Option
    Cubic Feet 3.3
    Container Loading (Single Packing) 20': 200, 40': 460, 40'H: 506
  • Category Description Revision Size Download
    Configuration Guide RM238 Series Configuration Guide V1.1 519.9 KB
    Datasheet RM238 Series Datasheet V1.7 1.7 MB
    Product Brief RM238 Series Product Brief V1.0 378.1 KB
    Quick Installation Guide (QIG) RM238 Series QIG V1.0 12.7 MB
    Technical Product Specification (TPS) RM238 Series TPS V1.1 6.4 MB
    User Manual RM238 Series User Manual V1.0 9.6 MB
  • Category Part. No# Description Support
    Backplane
    80H10323703A1
    2.5" 2-port 12Gb/s SAS Backplane
    Bezel
    384-23705-3106A0
    Front Bezel, 2U, Metal
    Bracket
    384-23804-3103A0
    Bracket, for FSP 2U CRPS PSU
    Bracket
    384-23808-3100A0
    PCIe Holder Retention Bracket, for 3-slot Full Height PCIe Card Holder
    Cable
    126-23712-3004A0

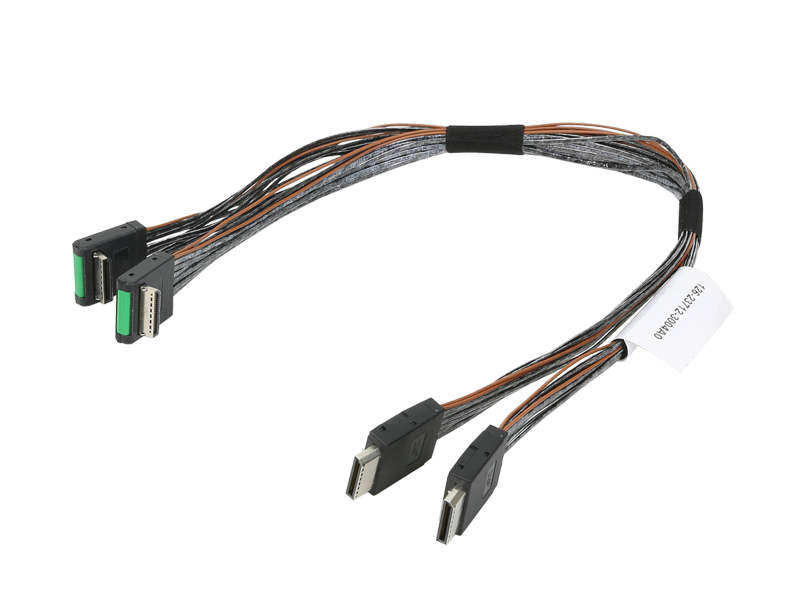

    Cable, OCuLink Vertical to OCuLink Right Angle, 2-in-1, 300mm
    Cable
    126-23712-3005A0
    Cable, OCuLink Vertical to OCuLink Vertical, 4-in-1, 650mm/600mm
    Cable
    26H11313705A0
    I2C, 4-pin, 800mm, MB to Storage Backplane
    Cable
    26H12314604A0

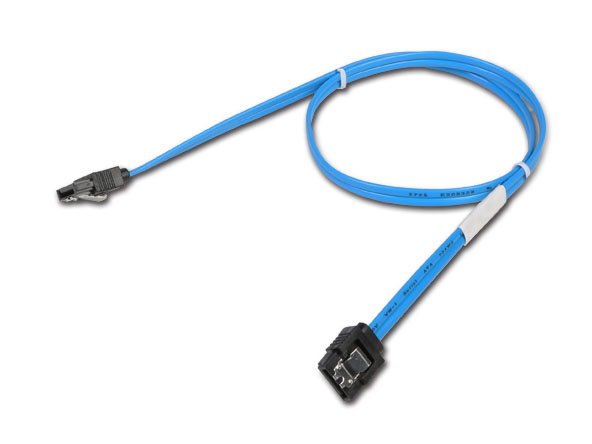

    SATA to SATA, 7-pin, SATAIII, 650 mm, w/lock
    Cable
    26H12314607A0
    Cable, mini-SAS HD to mini-SAS HD, 550mm
    Fan
    384-23811-3101A0

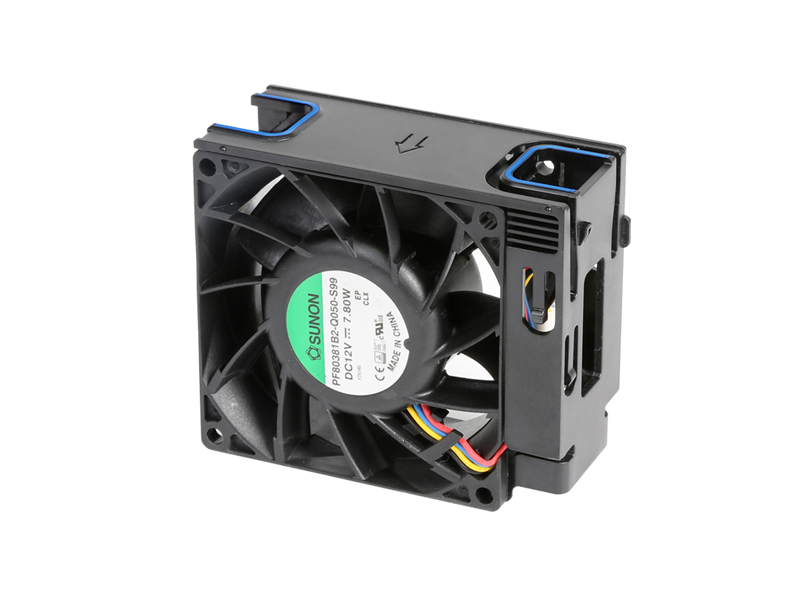

    Fan, 80mm, T=38mm, PWM, SUNON, Hot-swap, with Fan Bracket
    HDD Tray
    84H314610-004
    3.5" HDD Tray, Tool-less
    Holder
    384-23712-3102A0
    PCIe Card Holder, 3-slot, Full Height
    PCIe Card
    384-23820-3101A0

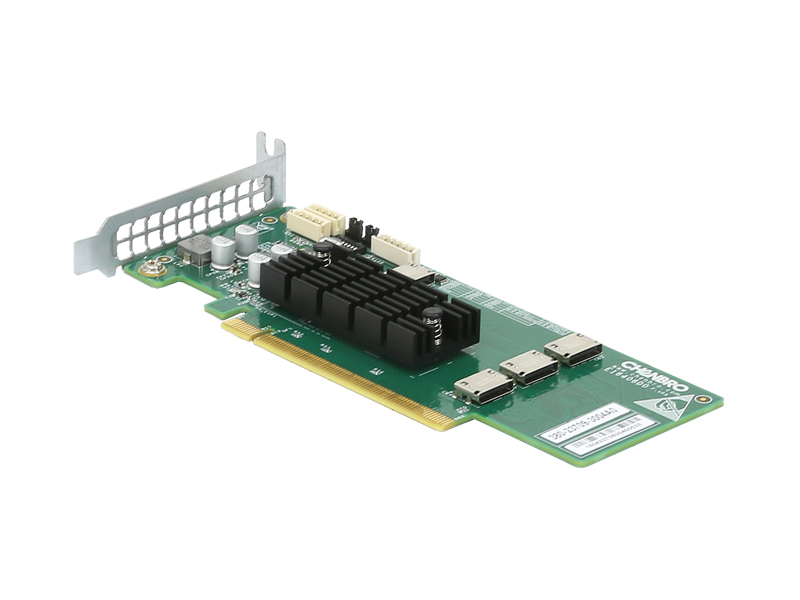

    Re-Timer PEK Card, 4-port, PCIe x16
    Power Supply
    132-10700-0500A1

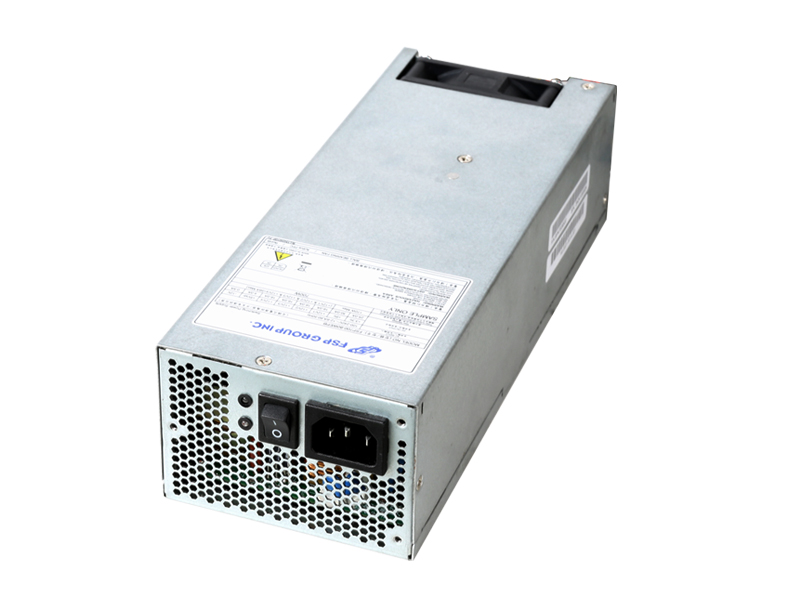

    PSU, 700W, Single 2U, FSP700-80WEPB
    Power Supply
    384-23804-3100A1

    PSU, 800w, 1+1 CRPS, FSP, with Power Cage and Power Distribution Board, FSP800-20ERM

    Power Supply
    384-23804-3101A0

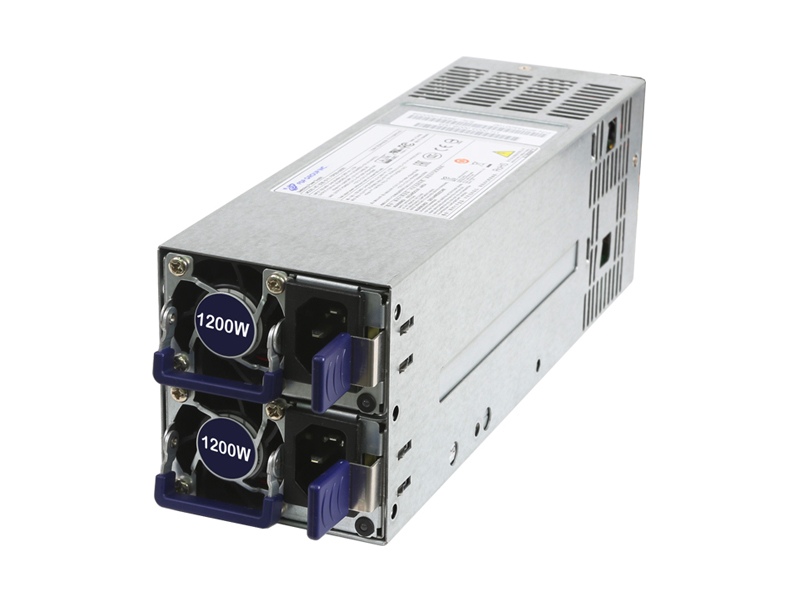

    PSU, 1200w, 1+1 CRPS, FSP, with Power Cage and Power Distribution Board, FSP1200-50ERS
    Riser Card
    384-23812-3101A0
    Riser Card, PCBA, 2 x PCIe Gen3 x8
    Slide Rail
    384-14303-3100A0
    23.2“ Slide Rail, Post to Post: 23.6" to 39.3", Traveling Distance 9.2", Loading Weight 20.6kg, Non Tool-less
    Slide Rail
    384-23803-3300C0
    32.8“ slide rail, Post to Post: 26.3" to 36.9", Traveling Distance 30.7", Loading Weight 30.8kg, Tool-less
    Slide Rail
    84H314610-003
    23.6“, Post to Post: 26" to 33", Traveling Distance 22", Loading Weight 18.8kg, Tool-less
    Upgrade Kits
    384-23701-3116A0
    2.5" 2-bay Cage, with 2-port 12Gb/s SATA/SAS Backplane (Redundant PSU Version Only)
    Upgrade Kits
    384-23801-3103A0
    2.5" 2-bay Cage, Hot-swap, w/2-port NVMe Backplane and Mylar Air Duct
    Upgrade Kits
    384-23801-3104A0
    2.5" 2-bay Cage, Hot-swap, w/2-port NVMe Backplane, Oculink Cable, and Mylar Air Duct
    Click Part. No# to view item picture
  • Order Code HDD Backplane Middle Fan PSU
    RM23808M3-LC 12Gb/s SAS passive 4 x 8025 Option
    RM23808M3-R800L 12Gb/s SAS passive 3 x 8038 800W CRPS
    RM23812E3-L 12Gb/s SAS active with expander 3 x 8038 Option
    RM23812E3-R800L 12Gb/s SAS active with expander 3 x 8038 800W CRPS
    RM23812E3-RL 12Gb/s SAS active with expander 3 x 8038 Option
    RM23812M3-RL 12Gb/s SAS passive 3 x 8038 Option
    RM23824E3-L 12Gb/s SAS active with expander 3 x 8038 Option
    RM23824E3-RC00L 12Gb/s SAS active with expander 3 x 8038 1200W CRPS
    RM23824E3-RL 12Gb/s SAS active with expander 3 x 8038 Option
    RM238N20T4-RL PCIe Gen3 NVMe passive (2pcs), Tri-mode (1pc) 4 x 8038 Option
    RM238N24-RL PCIe NVMe passive (3pcs) 4 x 8038 Option
    RM238N4T20-RL 12Gb/s SAS active with expander, Tri-mode (1pc) 4 x 8038 Option
    RM238N8T16-RL 12 Gb/s SAS active with expander, PCIe NVMe passive (1pc) 4 x 8038 Option
