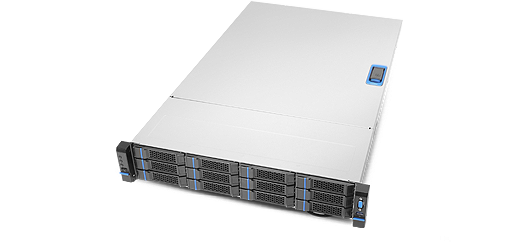

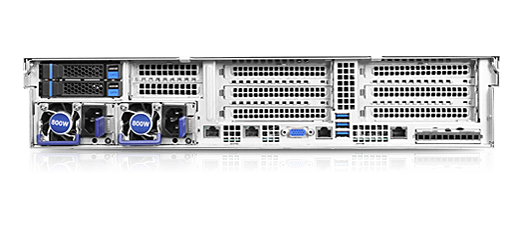

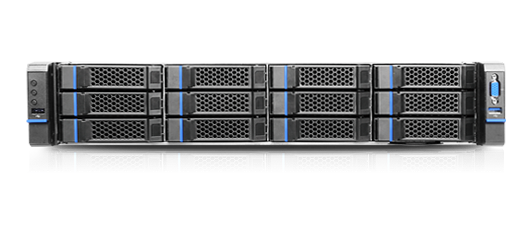

RM237 Series
2U High Flexibility and Computing-intensity Server Chassis

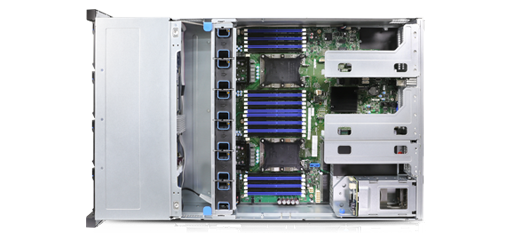

It supports Intel S2600WT and S2600WF family MBs, adopting modular design in HDD cages, fan brackets and add-in card brackets which boost the virtual performance of MB.
Compare
Quick Search
  • By Chassis Type
  • By Motherboard
  • By RAID Card
  • By Power Supply
Compare
Features & Benefits
  • Supports MB size up to 16.7" x 17" (Custom)
  • Supports Intel S2600WT and S2600WF family motherboards

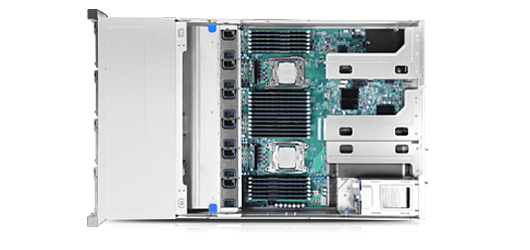

  • Modular design for HDD cages, M/B trays, fan cages, and add-in card cages
  • Tool-less 2.5" / 3.5" HDD tray
  • Diversified 12Gb/s HDD backplanes for flexible storage configurations
  • Optional rear-mounted 2-bay 2.5" HDD cage with 12Gb/s backplane
  • Supports 1+1 redundant CRPS PSU
  • Specification
  • Download
  • Accessory
  • Compatibility
  • Order Information
  • Form Factor 2U
    MB 16.7" x 17" (Custom)
    Dimensions (D x W x H) 735 x 438 x 87 (mm)
    29" x 17.2" x 3.5"
    Drive Bays RM23708 (Slim ODD):1
    RM23708 (3.5" Hot-swap):8
    RM23708 (Internal 2.5"):2
    RM23712 (3.5" Hot-swap):12

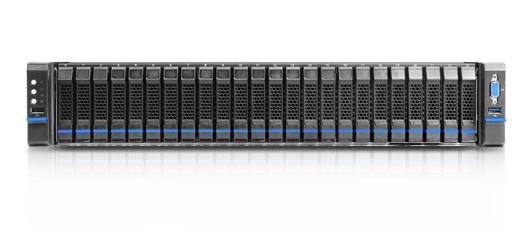

    RM23724 (2.5" Hot-swap):24
    Option (2.5" Hot-swap, Rear) for OS or Cache:2
    Power Supply 1+1 Redundant CRPS
    Indicators 1 x Power Status
    2 x LAN Activity
    1 x Status
    1 x UID
    Front Control 1 x Power On/Off
    1 x System Reset
    1 x UID
    1 x VGA
    1 x USB3.0
    1 x USB2.0
    System Security Intrusion Switch (Option)
    Cooling Fans Middle: 6 x 60 mm (T=38mm), PWM (Hot-swap)
    Expansion Slots 6 x Full Height & 2 x Low Profile (Max.)
    Storage Backplane 3.5" 12Gb/s SAS Passive or Active (with Expander) Backplane [Mini-SAS HD]
    2.5" 12Gb/s SAS Passive or Active (with Expander) Backplane [Mini-SAS HD]
    Net Weight 14.9kg
    Gross Weight 19.0kg
    Front Bezel Option
    Cubic Feet 4.75
    Container Loading (Single Packing) 20': 160, 40': 336
  • Category Description Revision Size Download
    Configuration Guide RM237 series Configuration Guide V1.2 553.9 KB
    Datasheet RM237 Datasheet V1.0 3.3 MB
    Product Brief RM237 Series Product Brief V1.2 470.6 KB
    Product Brief RM23724 Product Brief V1.0 328.9 KB
    Product Brief RM23712 Product Brief V1.0 320.4 KB
    Quick Installation Guide (QIG) RM237 Series_QIG V1.0 10.6 MB
    Technical Product Specification (TPS) TPS_RM237 Series v1.2 7.0 MB
  • Category Part. No# Description Support

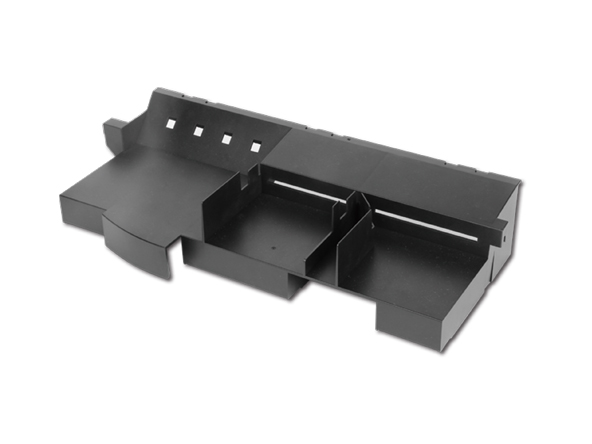

    Air Duct
    84H323710-028
    PC black, For Intel S2600WT2
    Backplane
    80H10323703A1
    2.5" 2-port 12Gb/s SAS Backplane
    Bezel
    384-23705-3106A0
    Front Bezel, 2U, Metal

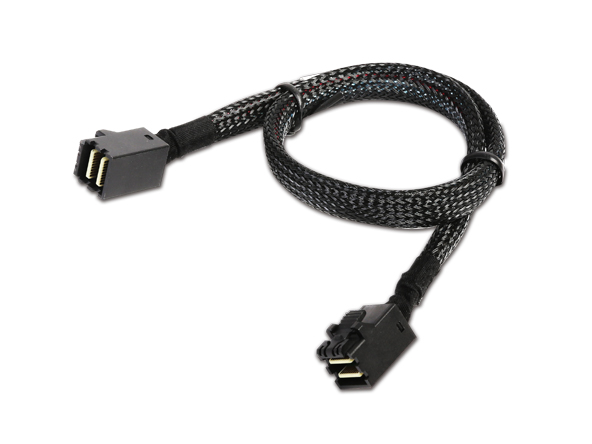

    Cable
    126-23612-3005A0
    Mini-SAS HD to Mini-SAS HD, 600mm
    Cable
    26H06323701A0
    Power Cable, MINIFIT8P to MINIFIT8P x2, 780/620 mm (For RM23724 only)

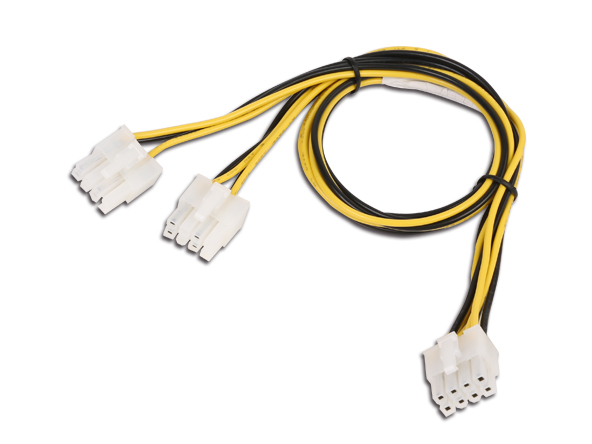

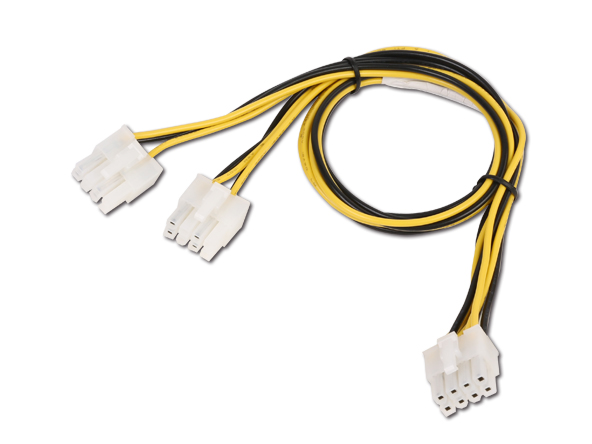

    Cable
    26H06323703A0
    Power Cable, MINIFIT8P to MINIFIT8P x2, 500/780 mm
    Cable
    26H06323705A0
    Power Cable, Mini-Fit 4P to Micro-Fit 6P, 270mm
    Cable
    26H11323701A0
    SGPIO Cable, 270mm
    Cable
    26H12314601A0
    SATA to SATA, 7-pin, SATAIII, 350 mm, w/lock
    Cable
    26H12314606A0
    Mini-SAS HD (Host) to Mini-SAS HD, 350 mm, For RM23724 only
    HDD Module
    84H323710-027
    2.5" 2-bay, Hot-swap, Rear Installation, w/12Gbps SAS Backplane and Cables
    Power Supply
    132-41200-0700A0
    PSU, CRPS, 1200W, Hot-swap, w/o PDB, ACBEL, Single Module
    Power Supply
    32H1075002501
    PSU, CRPS, 750W, Hot-swap, w/o PDB, INTEL, Single Module

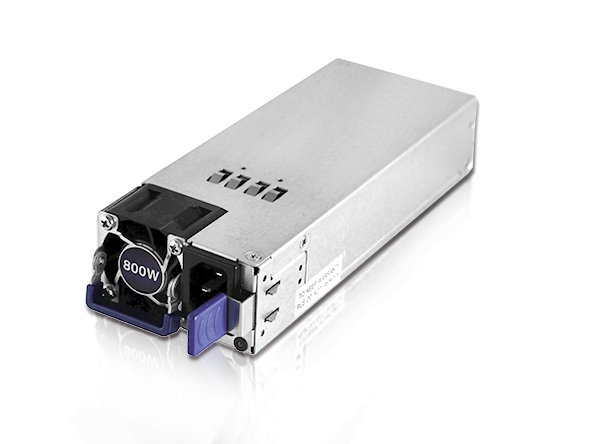

    Power Supply
    32H1080000701
    PSU, CRPS, 800W, Hot-swap, w/o PDB, FSP, Single Module
    Power Supply
    32H1080001101
    PSU, CRPS, 800W, Hot-swap, w/o PDB, ACBEL,Single Module
    Riser Card
    384-23720-3102A0
    Full Height PCIe Module (w/ Riser card:80H09323703A0: ONE x16 &One x8 and mounting retainer)
    Riser Card
    80H09323701A2

    2x PCI-e x16, 1x PCI-e x8 Rev. A2

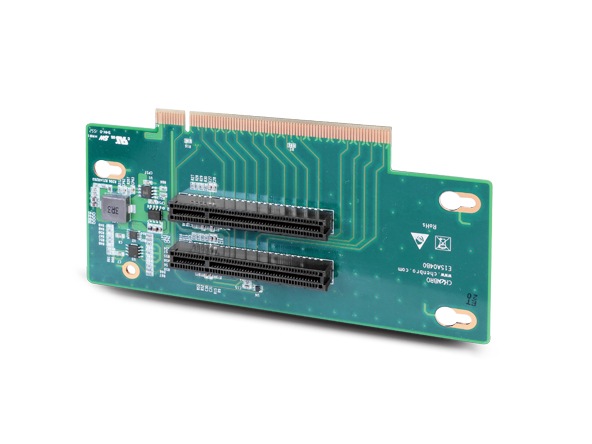

    Riser Card
    80H09323702A1

    2x PCI-e x8, Rev. A1

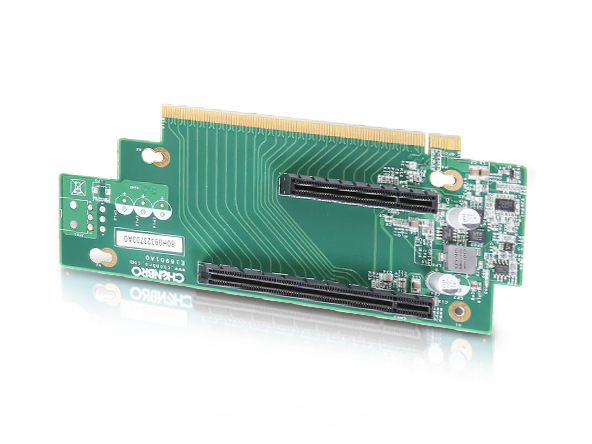

    Riser Card
    80H09323703A0
    One x16 & One x8, For RM23724 only
    Riser Card
    84H323710-016
    Full height PCIe Module (w/ Riser card:80H09323701A2: Two x16 and one x8 and mounting retainer)
    Riser Card
    84H323710-025
    Low Profile PCIe Module (w/ Riser card:80H09323702A1:Two x8 and mounting retainer)

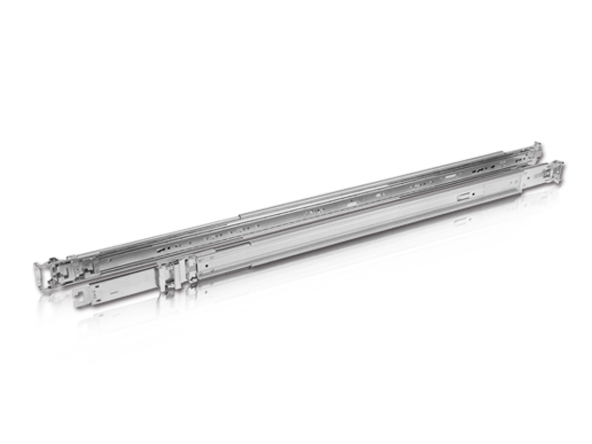

    Slide Rail
    84H314610-003
    23.6“, Post to Post: 26" to 33", Traveling Distance 22", Loading Weight 18.8kg, Tool-less
    Slide Rail
    84H323710-002
    34“, P2P:28.4" to 37.8", Traveling Distance 35.4", Loading Weight 22.7 Kg, tool-less
    Click Part. No# to view item picture
  • Order Code M/B HDD Backplane Middle Fan Back Panel
    RM23708M3-WF 16.7" x 17" 12Gb/s SAS passive 6 x 6038 3-slot/FH
    RM23712E3-WF 16.7" x 17" 12Gb/s SAS active with expander 6 x 6038 3-slot/FH
    RM23712E3-WT 16.7" x 17" 12Gb/s SAS active with expander 6 x 6038 3-slot/FH
    RM23724E3-WF 16.7" x 17" 12Gb/s SAS active with expander 6 x 6038 3-slot/FH
    RM23724E3-WT 16.7" x 17" 12Gb/s SAS active with expander 6 x 6038 3-slot/FH
