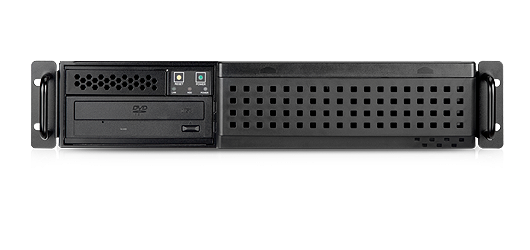

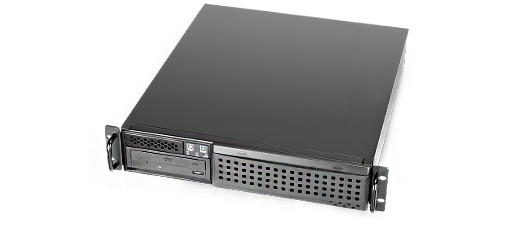

RM22300 (EOL)
2U Cost Effective Industrial Server Chassis
With whole chassis coating, air filter, and dedicated HDD cooling fans, it guarantees reliable operation in harsh environment.
Compare
Quick Search
  • By Chassis Type
  • By Motherboard
  • By RAID Card
  • By Power Supply
Compare
Features & Benefits
  • Support M/B up to 12" x 9.6"

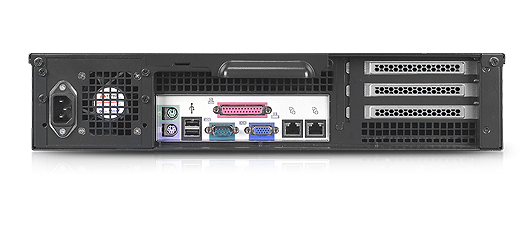

  • Support 3-slot and 6-slot low profile rear windows
  • Black coating on whole chassis for harsh environment

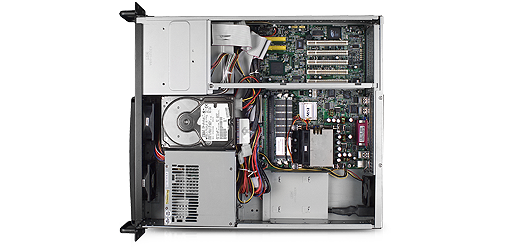

  • 4 x 3.5" internal bays with dedicated fan cooling
  • Built-in easy-swap air filter
  • Support single PS/2 PSU with 80mm fan
  • Specification
  • Download
  • Accessory
  • Compatibility
  • Order Information
  • Form Factor 2U
    M/B Form Factor ATX (12”x9.6”)
    Dimensions (Dx Wx H) 493 x 422 x 88 (mm), 19.4” x 16.6” x 3.5”
    Drive Bays External 5.25":1
    External 3.5":1
    Internal 3.5":4
    PSU Form Factor PS/ 2 Single
    Indicators 1 x Power Status, 1 x HDD Activity, 1 x LAN Activity
    Front Control Power On/Off, System Reset, 1 x USB 2.0
    System Security Intrusion Switch
    Cooling Fans Front: 2 x 80mm (T=25mm) , Rear: 1 x 60mm (T=25mm)
    Expansion Slots 3 x Full Height or 6 x Low Profile
    HDD Backplane N/A
    Net Weight 7.0kg
    Gross Weight 10.0kg
    Front Bezel Option
    Cubic Feet 3.03
    Container Loading (Single Packing) 20’: 324, 40’: 678, 40’H: 829
  • Category Description Revision Size Download
    Datasheet RM22300 Datasheet V1.2 1.5 MB
    User Manual RM22300 Quick Installation Guide V1.1 471.5 KB
  • Category Part. No# Description Support

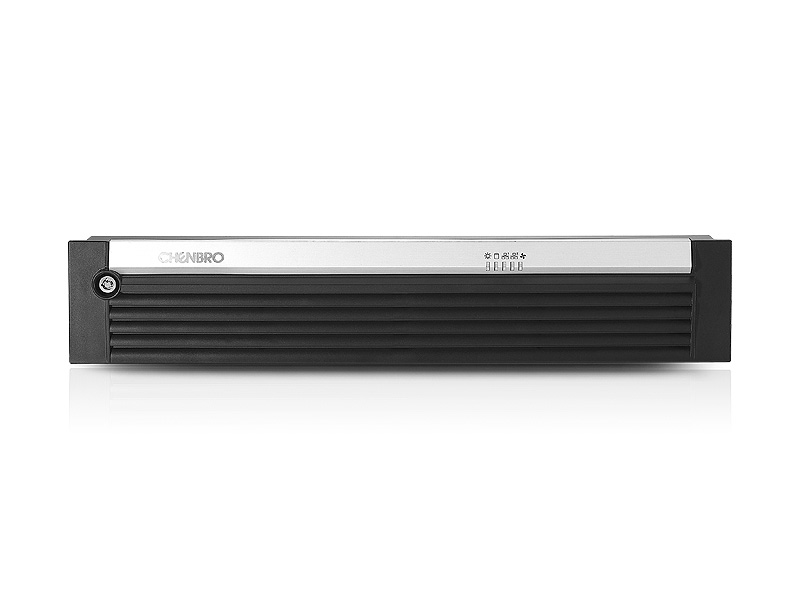

    Bezel
    84H322310-001
    Front Bezel, 2U, Plastic, SilFox
    Power Supply
    32H1030000706
    PSU, 300W, PS/2 Single, FSP300-70PFL, 80+, w/80mm fan
    Power Supply
    32H1030001104
    PSU, 300W, PS/2 Single, Acbel PC7036-7H1G, 80+, w/80mm fan

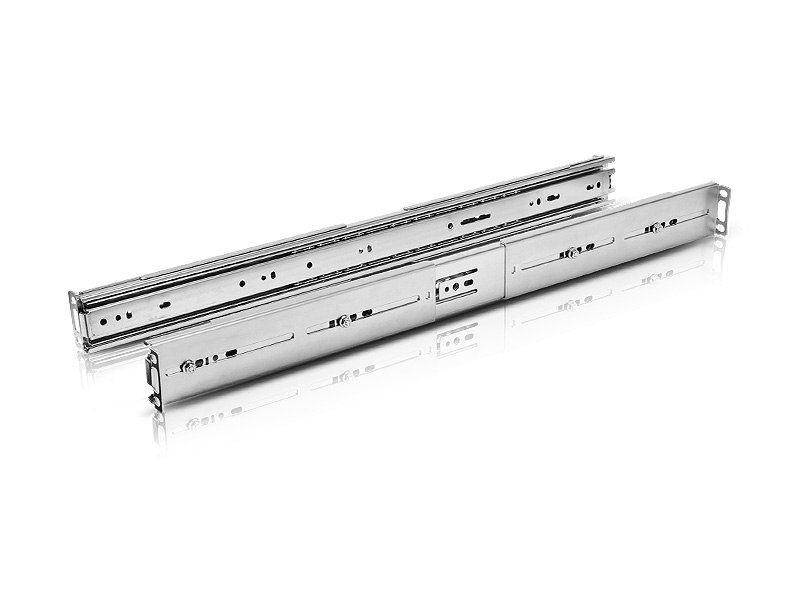

    Slide Rail
    84H322310-005
    Slide Rail, 22", w/4pcs mounting plates
    Click Part. No# to view item picture
  • Order Code M/B HDD Backplane PSU Rear Window Slide Rail
    RM22300 12"x9.6" N/A Option 3-Slot, Riser Option
    RM22300-L 12"x9.6" N/A Option 3-Slot, Riser Option
