RM146 Plus Series

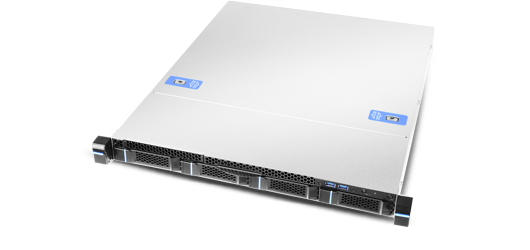

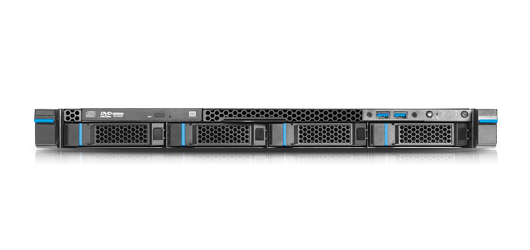

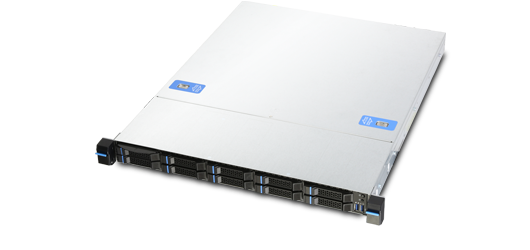

1U Easiest-to-Use Compact Server Chassis for SMBs
An excellent tool-less modular design of a 550mm-depth compact server chassis with high flexibility
Compare
Quick Search
  • By Chassis Type
  • By Motherboard
  • By RAID Card
  • By Power Supply
Compare
Features & Benefits

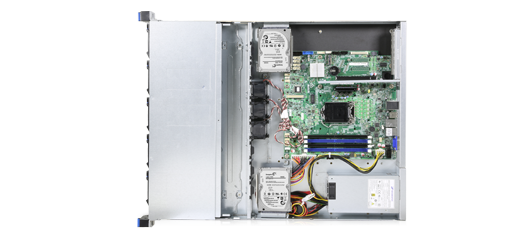

  • Supports M/B size up to 12" x 9.6" ATX

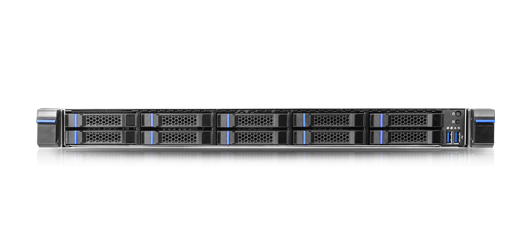

  • Modular designed HDD cage, supports 4 x 3.5" and 10 x 2.5" SAS/SATA HDD via 12Gb/s passive backplane
  • Tool-less & hot-swap 4 x 3.5’’ and 10 x 2.5” HDD tray
  • Built-in 3 x 4028 PWM fan, flexible for 28/48/56 mm-thickness, max to 6x
  • Front access information tag for easy server management

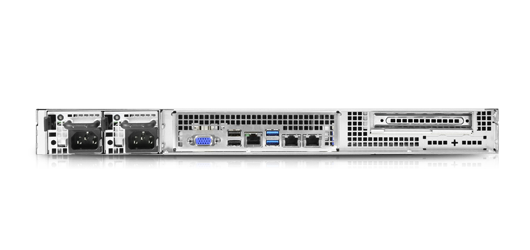

  • Supports 1U single and 1+1 1U redundant power supply
  • Optional tool-less ball bearing slide rail or cost effect friction rails
  • Optional internal 2 x 2.5" OS drive (T=9.5mm)
  • Specification
  • Download
  • Accessory
  • Compatibility
  • Order Information
  • Form Factor 1U
    MB ATX (12" x 9.6")
    Dimensions (D x W x H) 550 x 438.5 x 43.2 (mm)
    21.6" x 17.2" x 1.71"

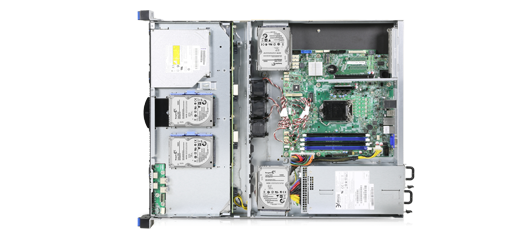

    Drive Bay RM14604 Plus (3.5" Hot-swap):4
    RM14604 Plus (2.5" Internal):2
    RM14604 Plus (Slim ODD):1
    Optional 2.5" (Internal) for OS:2
    RM14610 Plus (2.5" Hot-swap):10
    RM14610 Plus (2.5" Internal):2

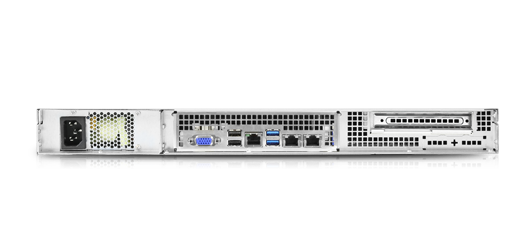

    Power Supply 1+1 Redundant or Single 1U
    Indicator 1 x Power Status
    2 x Lan Activity
    1 x UID
    1 x System Alarm
    1x HDD Status (RM14604 Plus Only)
    Front Control 1 x Power On/Off
    1 x UID
    2 x USB3.0
    System Security Intrusion Switch (Option)
    Cooling Fan Middle : 3 x 40mm (T=28mm) (Maximum to T=56mm, Up to 6 units)
    Expansion Slot 1 x Full Height PCIe Gen3 x16
    Storage Backplane 4 x 3.5“ : 12Gb/s SAS/SATA (RM14604 Plus)
    4 x 3.5" : 12Gb/s Mini-SAS HD (RM14604 Plus)
    10 x 2.5” : 12Gb/s Mini-SAS HD (RM14610 Plus)
    Net Weight 7.5kg
    Gross Weight 10.0kg
    Front Bezel Option
    Cubic Feet 2.82
    Container Loading (Single Packing) 20': 360, 40': 744
  • Category Description Revision Size Download
    Datasheet RM146 Plus Series Datasheet V1.3 2.1 MB
    User Manual RM146 Plus Series User Manual V1.0 2.8 MB
  • Category Part. No# Description Support
    Bezel
    384-14605-3100A0
    Front Bezel, 1U, Metal, Black
    Bracket
    384-14601-3200A0

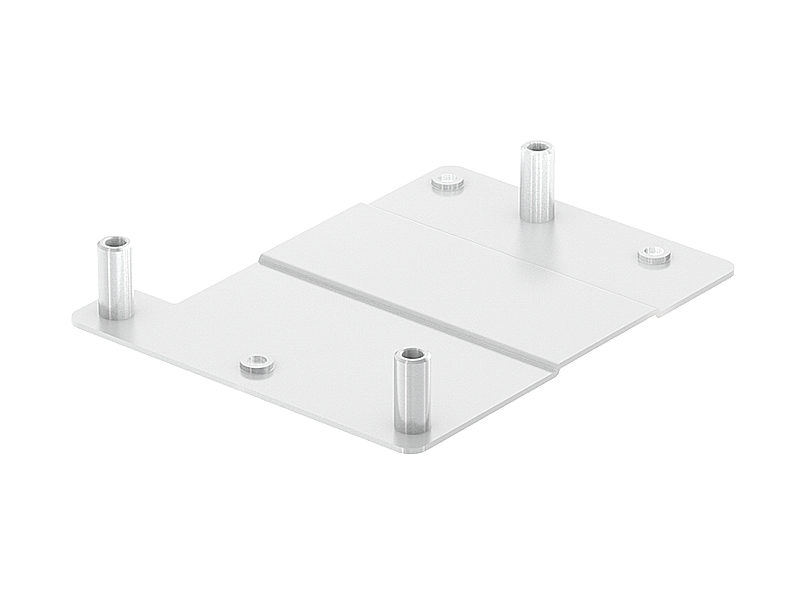

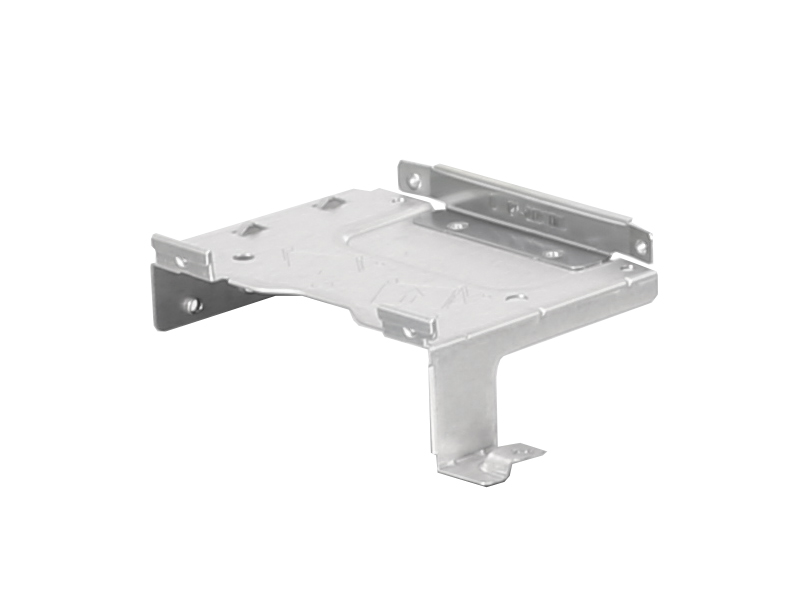

    Bracket, 2.5" HDD, Internal, Tool-less
    Bracket
    84H314610-022
    IOM Bracket,RM14604
    Cable
    126-13311-3000A0
    Cable, Display, 900mm
    Cable
    126-13311-3001A0
    Cable, Display, 900mm, 20-pin header to 17-pin (Discrete Pin)
    Cable
    126-13311-3002A0
    Cable, Display, for Supermicro M/B, 900mm
    Cable
    126-13311-3003A0
    Cable, Display, for Supermicro M/B, 900mm
    Cable
    126-14512-3021A0
    Mini-SAS HD to mini-SAS HD, 850mm
    Cable
    126-14612-3000A0

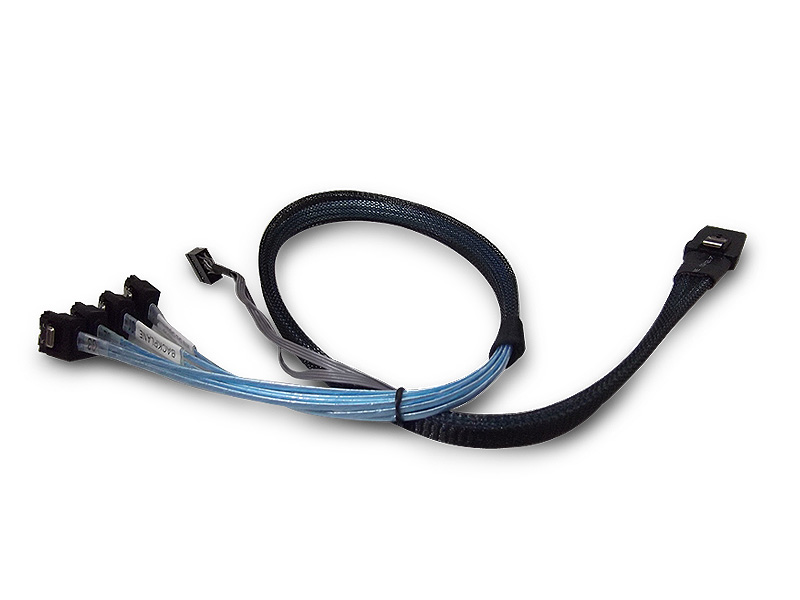

    Mini-SAS HD to 4*SATA(Host), w/sideband, 540mm
    Cable
    126-23612-3005A0
    Mini-SAS HD to Mini-SAS HD, 600mm
    Cable
    26H03313601A0
    USB3.0, 20P to Type A plug, 750 mm
    Cable
    384-14620-3307A0
    Cable, SATAIII, 650mm, w/Lock
    Cable
    384-14620-3310A0
    Cable, SATA III, 450mm, w/Lock
    Cable
    384-14620-3311A0
    Cable, SATAIII, 550mm, w/Lock
    HDD Kit
    370-13310-3005A0
    HDD Kit, screw packing, 2.5" HDD, M3*3.5, Flat, 60H141230-034*12PCS, for screw-on HDD tray
    HDD Kit
    370-13310-3006A0
    HDD Kit, screw packing, 3.5" HDD, #6-32 L4, Flat, 60H151103-042*16PCS, for screw-on HDD tray
    HDD Tray
    383-14655-3034B0
    2.5" HDD Tray, screw-on
    HDD Tray
    84H314610-005
    3.5" HDD Tray, panel BK, screw-type
    I/O Shield
    84H314610-009
    I/O Gasket, Intel S1200SP
    I/O Shield
    84H314610-018
    I/O Gasket, Asrock D1541D4U-2T8R

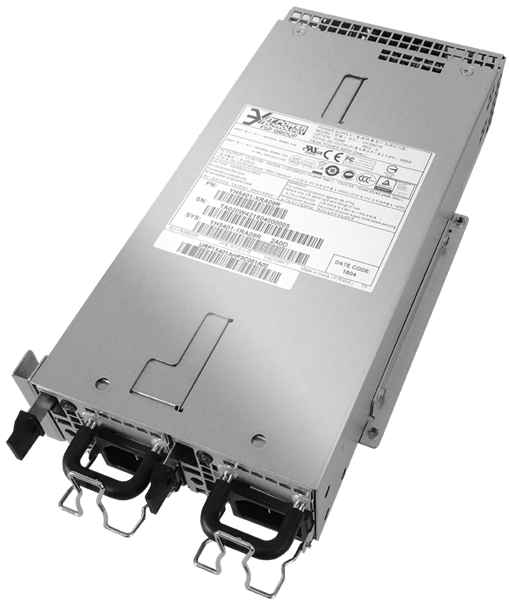

    Power Supply
    132-20350-1201B0

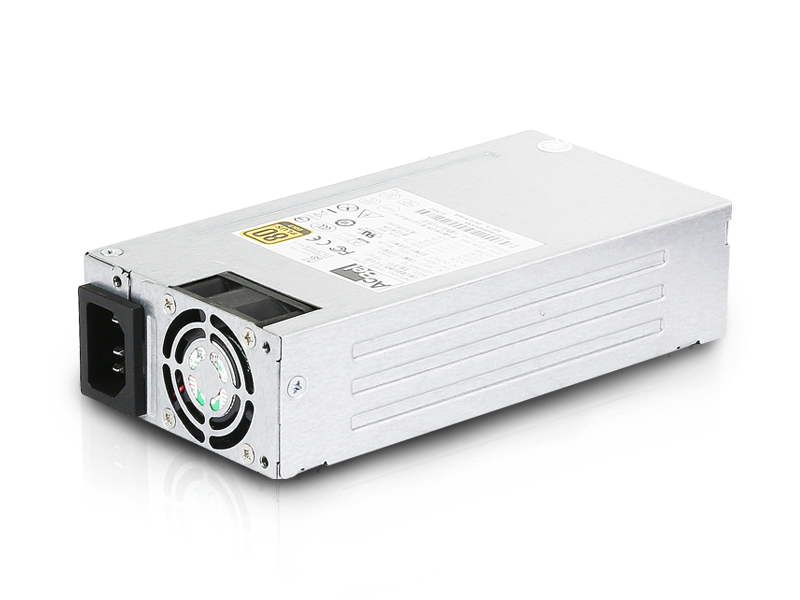

    PSU, 350W, 1+1 redundant
    Power Supply
    384-14620-3316A0
    PSU, 400w, Acbel, w/bracket, 20PCS/CTN
    Power Supply
    84H314610-020
    PSU, 400W, 80+ Gold, FSP400-60FGGBA w/bracket
    Rack Handle
    384-14609-3100A0
    Rack Handle, plastic part with latch, Black/Black, Left
    Rack Handle
    384-14609-3101A0
    Rack Handle, plastic part with latch, Black/Black, Right
    Rack Handle
    84H314610-024
    Rack Handle, plastic part with latch, Black/Blue, Left
    Rack Handle
    84H314610-025
    Rack Handle, plastic part with latch, Black/Blue, Right
    Riser Card
    84H314610-023
    Riser card with bracket, PCIe 16x, Gen 3, Rev.A0

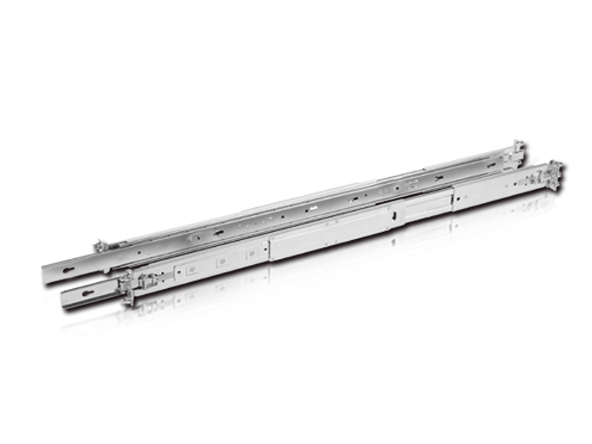

    Slide Rail
    384-14303-3100A0
    23.2“ Slide Rail, Post to Post: 23.6" to 39.3", Traveling Distance 9.2", Loading Weight 20.6kg, Non Tool-less
    Slide Rail
    384-14303-3101A0
    17.2“ Slide Rail, P2P:22.8" to 27.7", Traveling Distance 11.3", Loading Weight 20.6Kg, Non Tool-less
    Slide Rail
    84H314610-003
    23.6“, Post to Post: 26" to 33", Traveling Distance 22", Loading Weight 18.8kg, Tool-less
    Click Part. No# to view item picture
  • Order Code HDD Backplane Middle Fan PSU
    RM14604PT3 12Gb/s SAS/SATA 3 x 4028 Option
    RM14604PT3-400 12Gb/s SAS/SATA 3 x 4028 400W Single
    RM14604PT3-R350 12Gb/s SAS/SATA 3 x 4028 350W RPSU
    RM14610PM3 12Gb/s Mini-SAS HD 3 x 4028 Option
    RM14610PM3-R350 12Gb/s Mini-SAS HD 3 x 4028 350W RPSU
