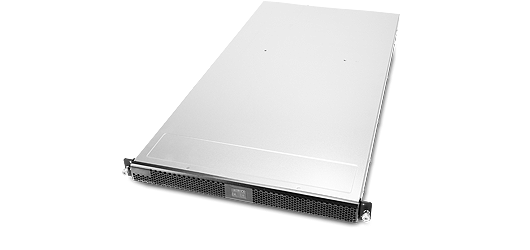

RM14500
1U 12-bay High Density Storage Server Chassis
With Chenbro patented HDD holder, it maximizes 1U storage capacity up to 18 HDDs, ideal for Object Storage/Cold Storage applications with its high CP ratio.
Compare
Quick Search
  • By Chassis Type
  • By Motherboard
  • By RAID Card
  • By Power Supply
Compare
Features & Benefits

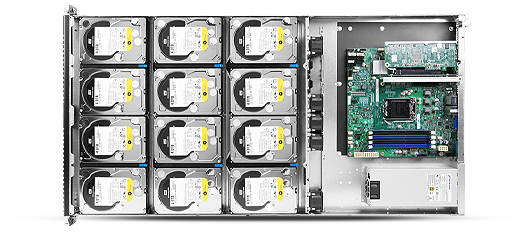

  • Patented HDD holders with embedded both 2.5" and 3.5" HDD concurrently
  • Easy HDD assembly and maintenance by tool-less drive bay design
  • Tool-less installation of fans with anti-vibration mechanism
  • Cable-through baffle to prevent air circulation
  • Special interior mechanical design with cellular venting holes for thermal performance enhancement
  • Embossment design at the chassis bottom to intensify strength of enclosure
  • Specification
  • Download
  • Accessory
  • Compatibility
  • Order Information
  • Form Factor 1U
    MB ATX (12" x 9.6")
    Dimensions (D x W x H) 860 x 438.5 x 43.5 (mm)
    33.86" x 17.26" x 1.71"
    Drive Bay Internal 3.5":12
    Internal 2.5":6

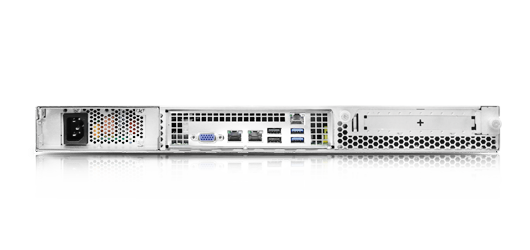

    Power Supply Flex ATX or 1U Redundant

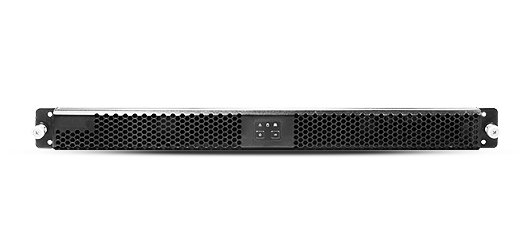

    Indicator 1 x Power Status
    1 x HDD Activity
    1 x LAN Activity
    Front Control 1 x Power On/Off
    1 x System Reset
    1 x UID
    System Security N/A
    Cooling Fan Middle: 5 x 40 mm (T=28 mm), PWM (Up to 7)
    Expansion Slot 1 x Full Height and Half Length
    Net Weight 8.60kg
    Gross Weight 12.3kg
    Cubic Feet 3.31
    Container Loading (Single Packing) 20': 314, 40': 647
  • Category Description Revision Size Download
    Configuration Guide RM14500 Configuration Guide V1.0 422.8 KB
    Datasheet RM14500 Datasheet V1.5 935.0 KB
    Product Brief Product Brief_RM14500 V1.0 395.8 KB
    Quick Installation Guide (QIG) RM14500_QIG V1.1 14.8 MB
    Technical Product Specification (TPS) TPS_RM14500 V1.0 2.0 MB
  • Category Part. No# Description Support

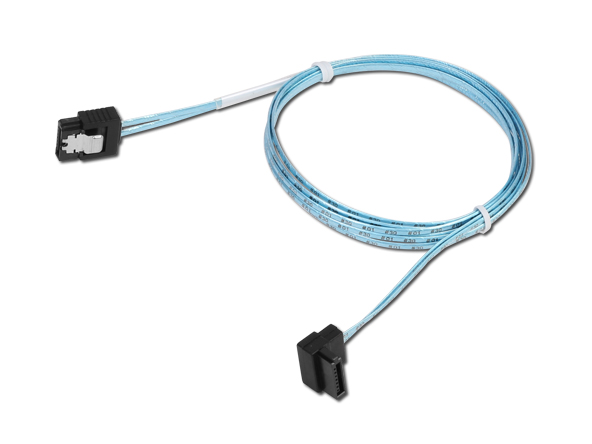

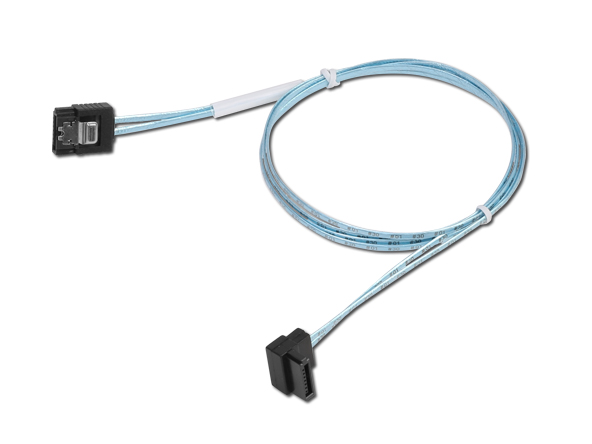

    Cable
    26H12314501A0

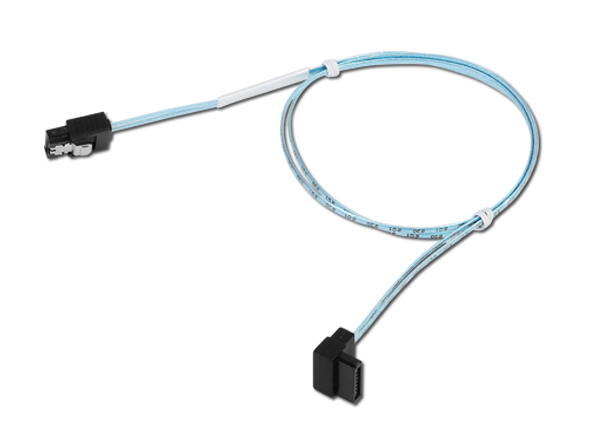

    Cable, SATA (Host) to SATA, 500mm (for 2.5”/ 3.5" HDD)
    Cable
    26H12314502A0
    Cable, SATA (Host) to SATA, 600mm (for 2.5”/ 3.5" HDD)

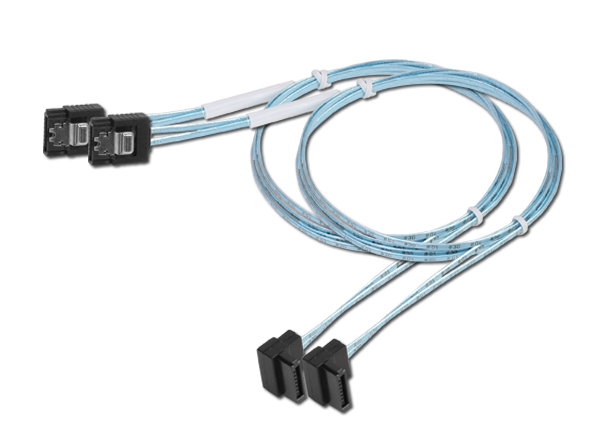

    Cable
    26H12314503A0

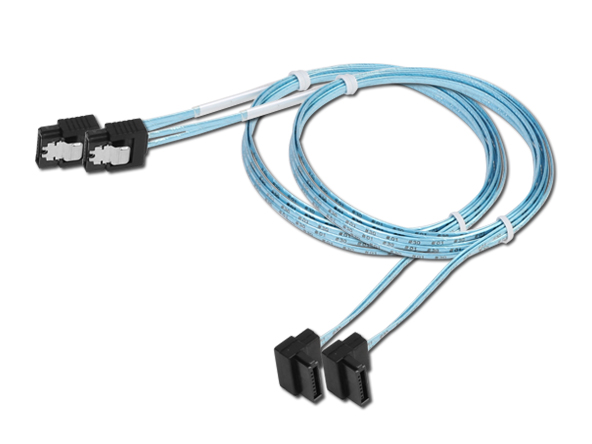

    Cable, SATA (Host) to SATA, 700mm (for 2.5”/ 3.5" HDD), 2pcs
    Cable
    26H12314504A0
    Cable, SATA (Host) to SATA, 800mm (for 2.5”/ 3.5" HDD), 2pcs
    Cable
    26H12314505A0
    SATA (Host) to SATA, 900 mm (for 2.5”/ 3.5" HDD)
    Cable
    26H12314506A0
    SATA (Host) to SATA, 1000 mm (for 2.5”/ 3.5" HDD)
    Cable
    26H12314507A0
    Cable, SATA (Host) to SATA, 350mm (for 2.5”/ 3.5" HDD)
    Cable
    26H12314508A0
    Cable, SATA (Host) to SATA, 450mm (for 2.5”/ 3.5" HDD)
    Cable
    26H12314509A0
    SATA (Host) to SATA, 550 mm (for 2.5”/ 3.5" HDD)
    Cable
    26H12314510A0
    Cable, SATA (Host) to SATA, 650mm (for 2.5”/ 3.5" HDD)

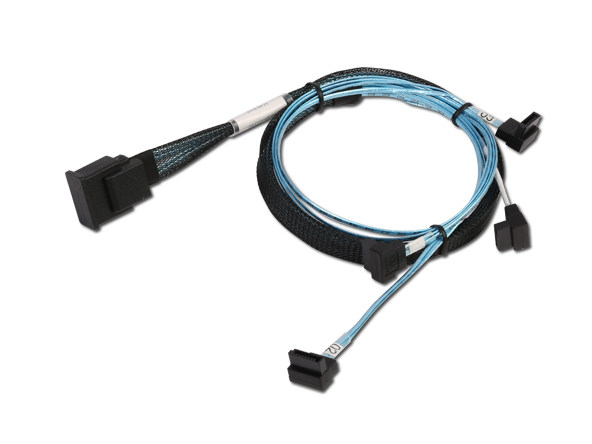

    Cable
    26H12314511A0
    Cable, mini-SAS to SATA, 4 pcs, 350/450/550/650mm (Only for 3.5” HDD)
    Cable
    26H12314512A0
    Cable, mini-SAS to SATA, 4 pcs, 500/600/700/800mm (Only for 3.5” HDD)
    Cable
    26H12314513A0
    Cable, mini-SAS to SATA, 700/800/900/1000mm (Only for 3.5” HDD), 4pcs

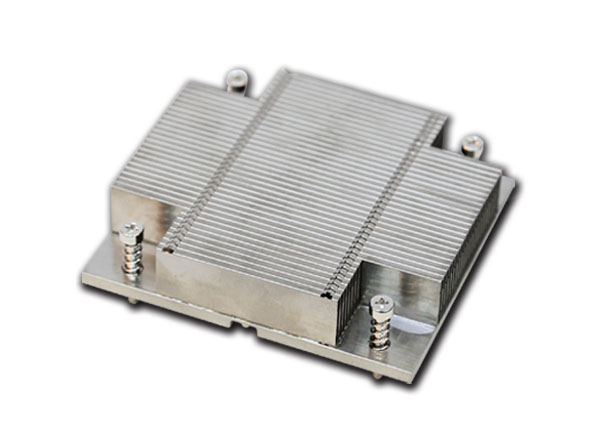

    Heat Sink
    384-14619-3300A0
    Heat Sink
    I/O Shield
    84H313610-022
    I/O GASKET, Supermicro X9DRD-7LN4F, X9DRH-7F, X10DRi & X11SSH
    I/O Shield
    84H313610-056
    I/O GASKET, Gigabyte MX31-BS0
    I/O Shield
    84H314610-009
    I/O Gasket, Intel S1200SP

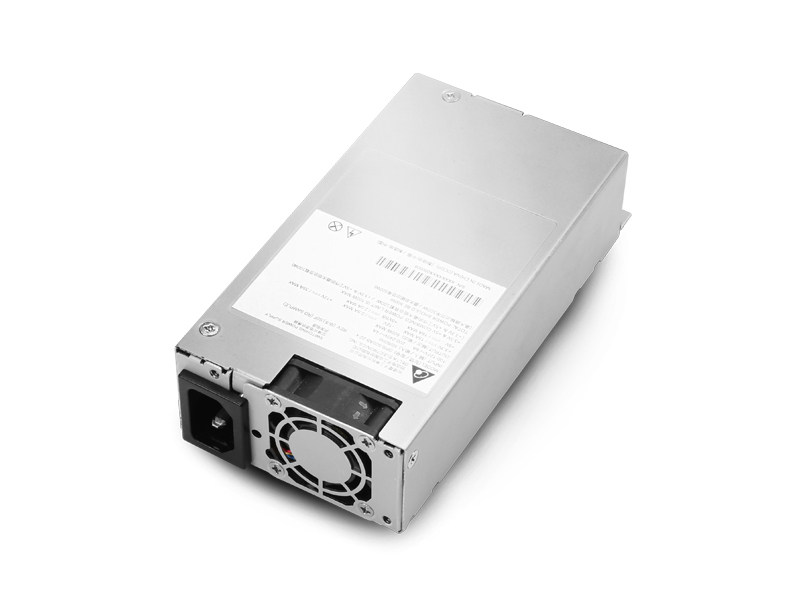

    Power Supply
    384-14504-3300A0
    PSU, 350w, 1U Redundant, YH5401-1RA02R(32H2035002201), 80+ Silver, w/bracket

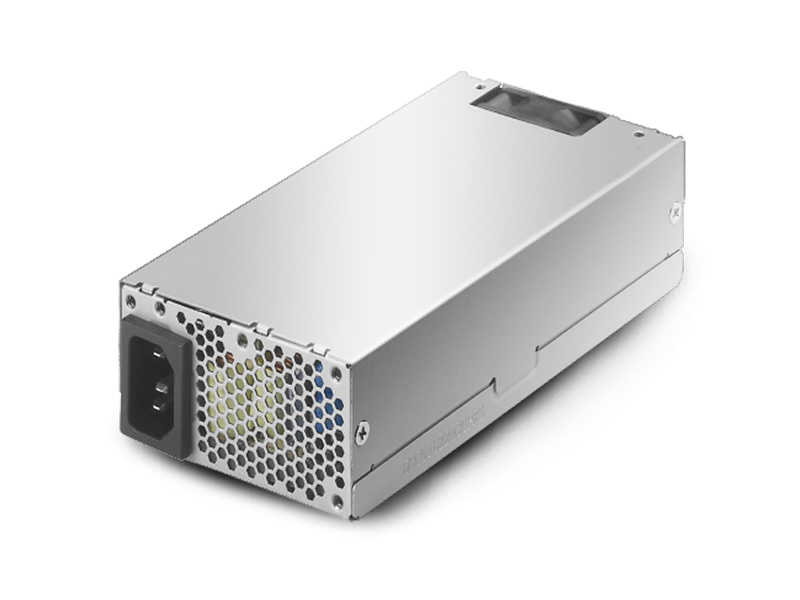

    Power Supply
    84H314510-011
    PSU, 400W, 1U Single, FSP400-70LQ( 32H1040000702), 80+ Gold, w/Bracket
    Riser Card
    84H314310-005
    1-slot, PCI-e x8, Short Version
    Riser Card
    84H314310-006
    1-Slot, PCI-e 16x (80H09319001C0),  w/ bracket

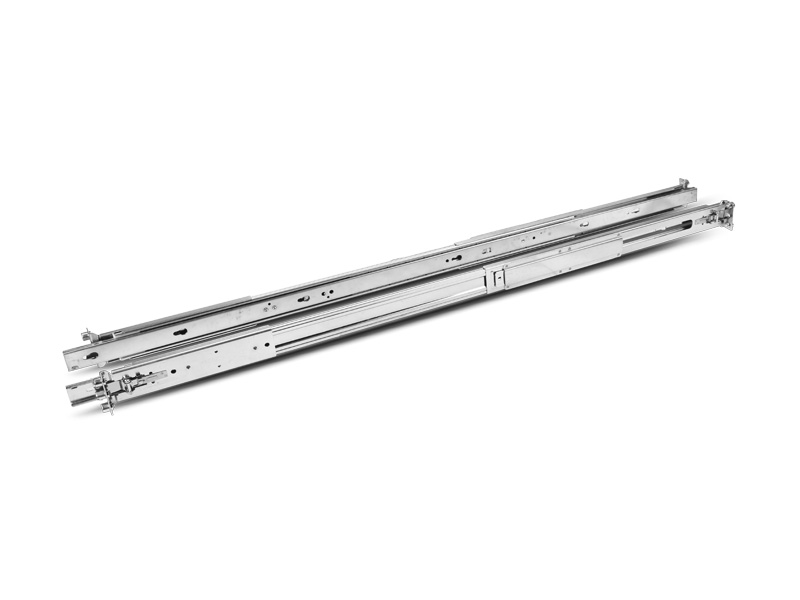

    Slide Rail
    84H314510-003
    Slide Rail, 23.6“, P2P:26" to 33", Traveling Distance 21.4", Loading Weight 18.8 Kg, tool-less
    Slide Rail
    84H323710-002
    34“, P2P:28.4" to 37.8", Traveling Distance 35.4", Loading Weight 22.7 Kg, tool-less
    Click Part. No# to view item picture
  • Order Code M/B Cable Kit PSU Back Panel Slide Rail
    RM14500 12" x 10.5" N/A Option 1 Slot, FH Option

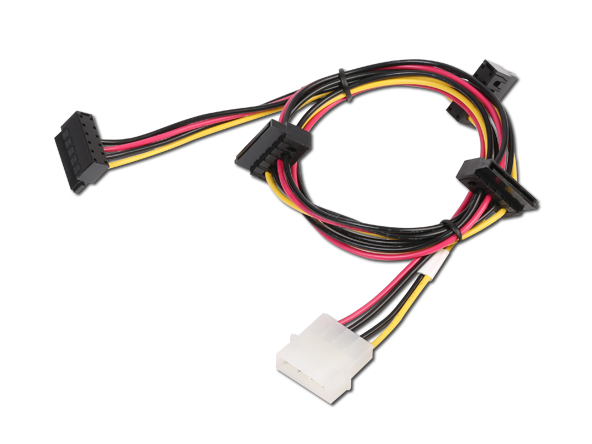

    RM14500-M 12” x 10.5” mini-SAS to SATA & HDD Power Cable Option 1 Slot, FH Option
