RM14204

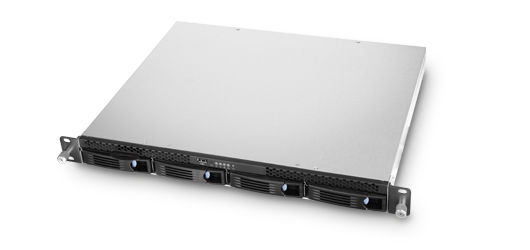

1U 4-bay NAS Server Chassis

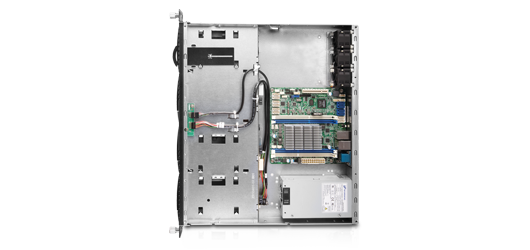

RM14204 is a 4-bay NAS chassis suitable for all Mini-ITX motherboards without auido jacks. With 3 internal 2.5" drive bays, it delivers the flexibility for wide-range NAS configurations.
Compare
Quick Search
  • By Chassis Type
  • By Motherboard
  • By RAID Card
  • By Power Supply
Compare
Features & Benefits
  • Supports 12Gb/s 4-port SAS/SATA backplane
  • Supports up to three internal 2.5" HDD bays
  • Supports up to 3 x 40mm PWM rear fans with anti-vibration mechanism
  • Supports Flex ATX PSU
  • HDD carrier for 2.5" or 3.5" drive
  • Tool-less installation for internal 2.5" HDD
  • Front access info tag for easy server management
  • Specification
  • Download
  • Accessory
  • Compatibility
  • Order Information
  • Form Factor 1U
    MB Mini-ITX (6.7” x 6.7”)
    Dimensions (D x W x H) 381 x 430 x 43.4 (mm)
    15” x 16.93” x 1.71”

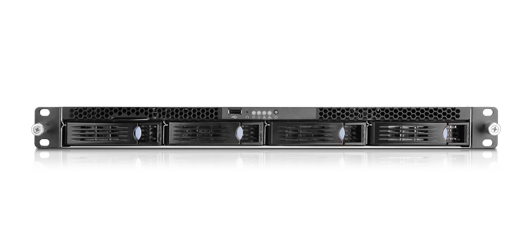

    Drive Bay 3.5" Hot-swap:4
    Internal 2.5":3
    Power Supply Flex ATX
    Indicator 1 x Power Status
    1 x HDD Activity
    2 x LAN Activity
    Front Control 1 x Power On/Off
    1 x System Reset
    1 x USB2.0
    System Security Intrusion Switch (Option)

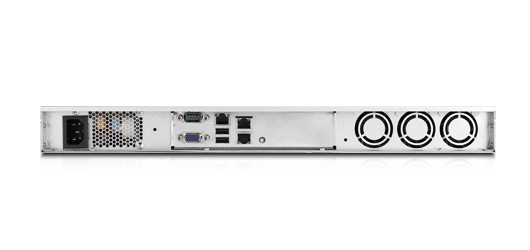

    Cooling Fan Rear: 2 x 40mm, T=28mm (Up to 3), PWM
    Expansion Slot N/A
    Storage Backplane 12Gb/s
    Net Weight 4.3kg
    Gross Weight 6.1kg
    Front Bezel Option
    Cubic Feet 2.07
    Container Loading (Single Packing) 20': 400, 40':800, 40'H:960
  • Category Description Revision Size Download
    Datasheet RM14204 Datasheet V1.1 816.7 KB
    Quick Installation Guide (QIG) RM14204 Quick Installation Guide V1.0 3.6 MB
  • Category Part. No# Description Support
    Cable
    83H263142-001

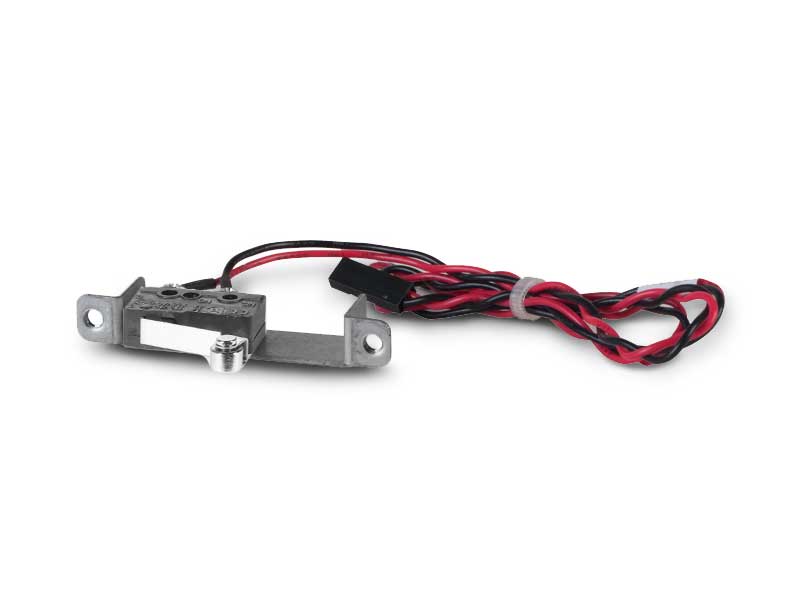

    Intrusion switch, 600mm, w/bracket
    Fan
    30H040028-141
    Fan, 40mm, PWM, Ball Bearing, L500mm, NMB
    Fan
    350-13703-3100B0
    Fan, Finger Guard, RM13704-52B
    Fan
    60H211240-081
    Screw, OD4, 8mm (Need 4pcs)
    Fan
    60H400000-056
    Rivet, RM13704-51A, TPR75, Natural
    I/O Shield
    84H314210-003

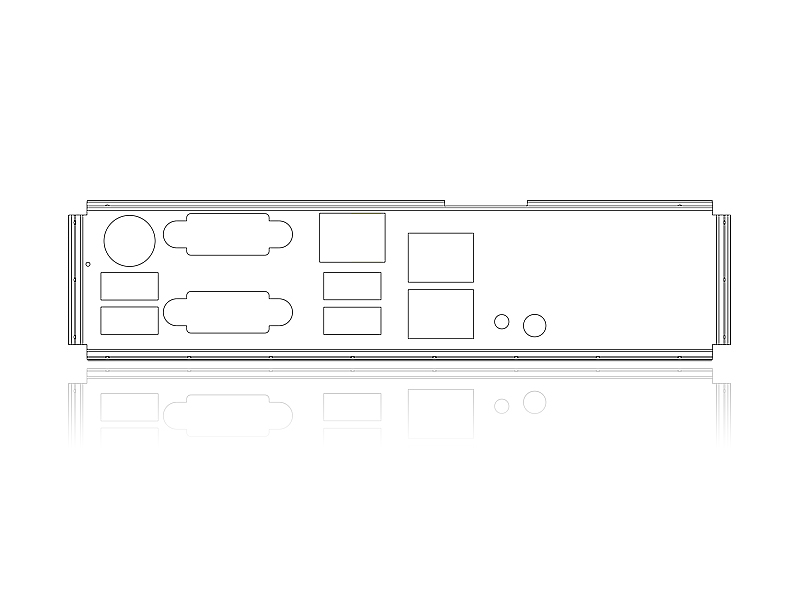

    I/O Gasket, ASRock E3C226D2I
    Power Supply
    32H1025000706

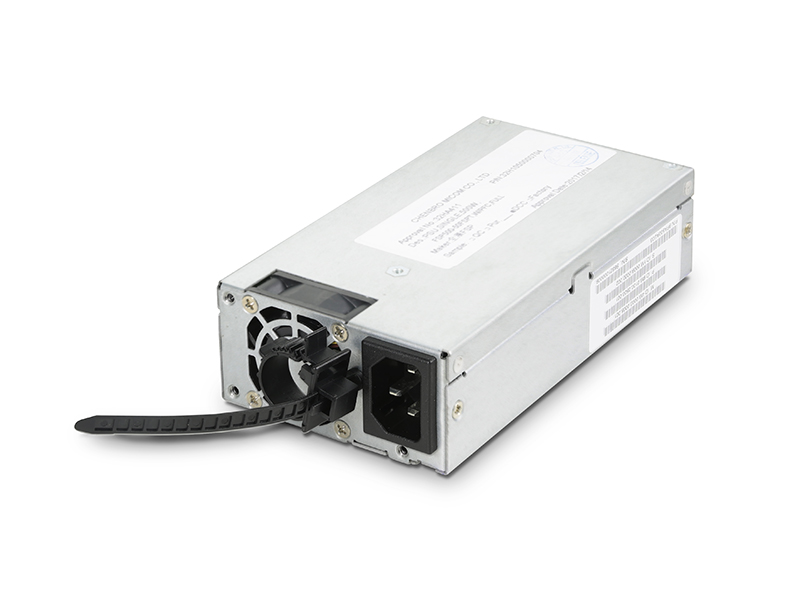

    PSU, single, 250w, FSP250-50LC, w/PFC, 80+ bronze, Full Range, w/bracket
    Power Supply
    32H1025001104

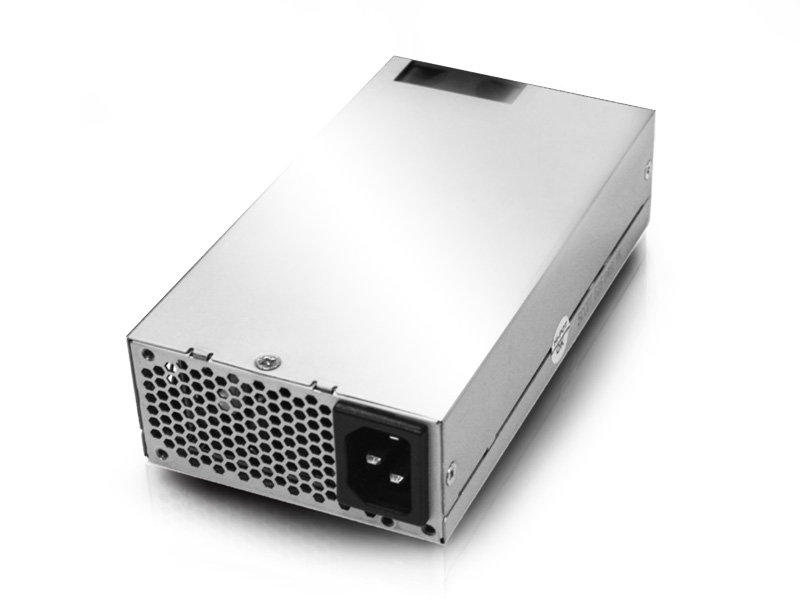

    PSU, single, 250w, FSB009-7HBG, w/PFC, 80+ bronze, full range
    Slide Rail
    84H311610-082
    Slide Rail, 26“, P2P:24.0" to 36.3", Traveling Distance 16", Loading Weight 30 Kg, Tool-less
    Slide Rail
    84H311710-095
    Slide Rail, 20“, P2P:25.7" to 36", Traveling Distance 27.2", Loading Weight 27 Kg, Non Tool-less
    Click Part. No# to view item picture
  • Order Code M/B HDD Backplane Middle Fan PSU Slide Rail
    RM14204T2-250 6.7” x 6.7” 12Gb/s SATA 2 x 40mm(rear) 250W Option
