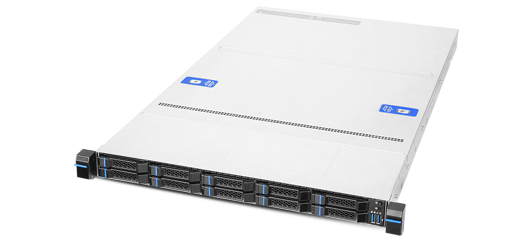

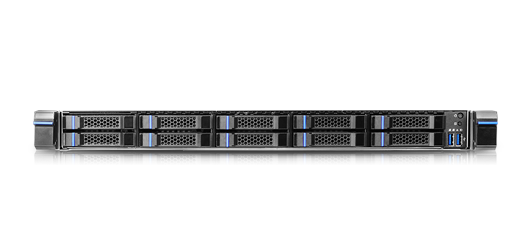

RM138 Series
1U Full Featured Computing Server Chassis
Powerful computing capability combined with flexible storage, add-in card, and fan configurations meet business IT, data center and cloud applications.
Compare
Quick Search
  • By Chassis Type
  • By Motherboard
  • By RAID Card
  • By Power Supply
Compare
Features & Benefits
  • Supports MB size up to 16.7" x 17" (Custom)

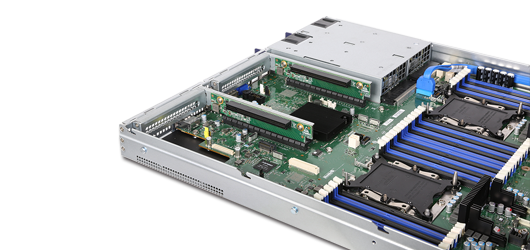

  • Supports Intel S2600WF family motherboards
  • Modular design for HDD cages
  • Tool-less 2.5" / 3.5" HDD tray
  • Diversified 12Gb/s HDD backplanes for flexible storage configurations
  • Supports two full-height PCI-e slot
  • Supports 1+1 redundant CRPS PSU
  • Specification
  • Download
  • Accessory
  • Compatibility
  • Order Information
  • MB Form Factor 16.7" x 17" (Custom)
    Dimension (D x W x H) 735.0 x 438.5 x 43.2 (mm)
    28.94" x 17.26" x 1.70"
    Drive Bay RM13804 (3.5" Hot-swap):4
    RM13804 (2.5" Internal):2
    RM13804 (Slim ODD):1
    RM13810 (2.5" Hot-swap):10
    Storage Backplane RM13804 : 3.5" 4-port 12Gbps, Mini-SAS HD
    RM13810 : 2.5" 10-port 12Gbps, Mini-SAS HD
    PSU Form Factor 1+1 CRPS
    Indicator 1 x Power Status
    2 x LAN Activity
    1 x HDD Status
    1 x UID
    1 x System Alarm
    Front Control 1 x Power On/Off
    1 x UID
    2 x USB3.0
    Cooling Fan RM13804: 40 x 56 mm (6, up to 8)
    RM13810: 40 x 56 mm (6, up to 8)
    System Security Intrusion Switch (Option)
    Expansion Slot Opening 2 x Full Height & Half Length
    Net Weight 11.6 kg/25.55 lb
    Gross Weight 15.3 kg/33.70 lb
    Cubic Feet 3.48
    Container Loading (Single Packing) 20': 200, 40': 380
  • Category Description Revision Size Download
    Datasheet RM138 Series Datasheet V1.3 V.1.3 2.9 MB
    User Manual RM138 Series User Manual V1.1 V1.1 3.0 MB
  • Category Part. No# Description Support
    Air Duct
    384-13815-3100A0

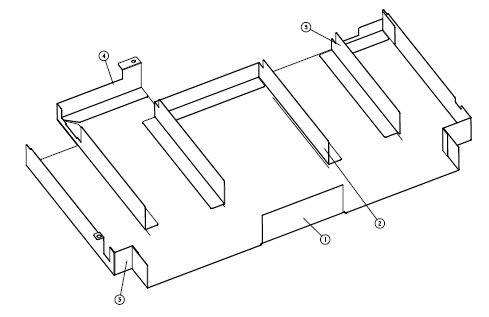

    Air Duct, PC UL94V0, Black, For S2600WF (4056 FAN Confiugration)
    Bezel
    384-14605-3100A0
    Front Bezel, 1U, Metal, Black (2nd Generation, Tool-less) [18PCS/CTN]
    Bracket
    55H073219A004

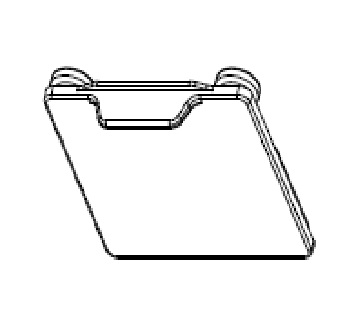

    Dummy Cover, for CRPS Module Opening
    Cover
    50H033137B006
    Fan Dummy Cover, Black, for Air Flow Management
    Fan
    383-13830-3004A0

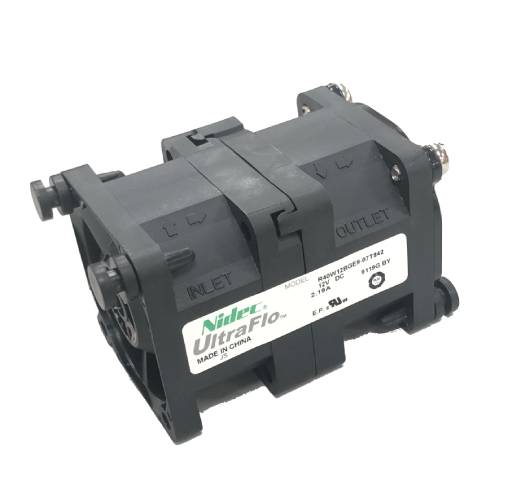

    40mm Fan, PWM, T56, Ball Bearing, L500mm, w/Finger Guard& Mounting Rubbers, NIDEC
    HDD Kit
    370-13310-3005A0
    Screw Packing, 2.5" HDD, M3*3.5, Flat, 60H141230-034*12PCS,  for screw-on HDD tray
    HDD Kit
    370-13310-3006A0
    Screw Packing,  3.5" HDD, #6-32 L4, Flat, 60H151103-042*16PCS,  for screw-on HDD tray
    HDD Tray
    383-14655-3034B0

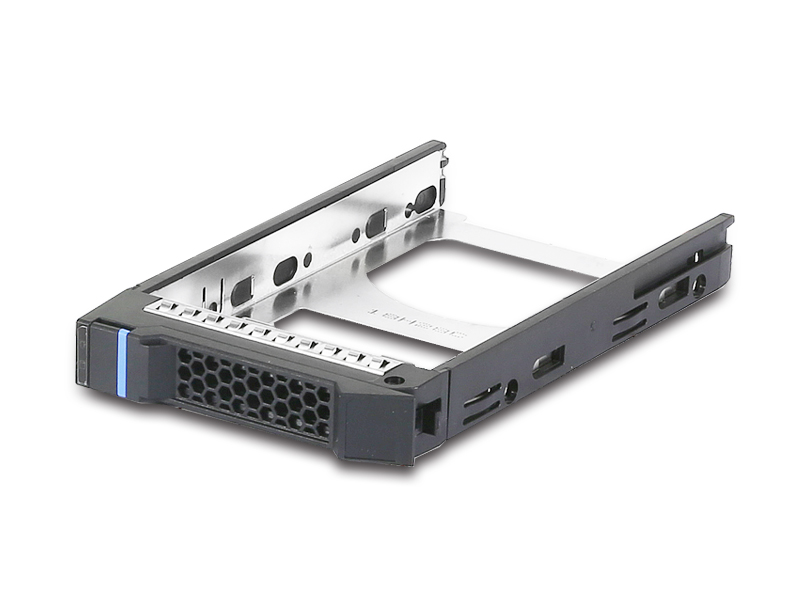

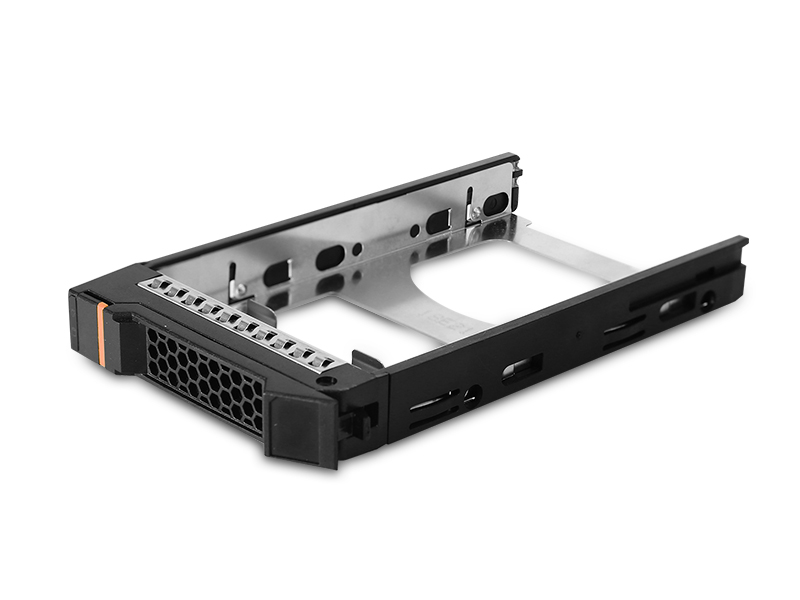

    2.5" HDD Tray, screw-on, Blue
    HDD Tray
    384-14602-3124A0

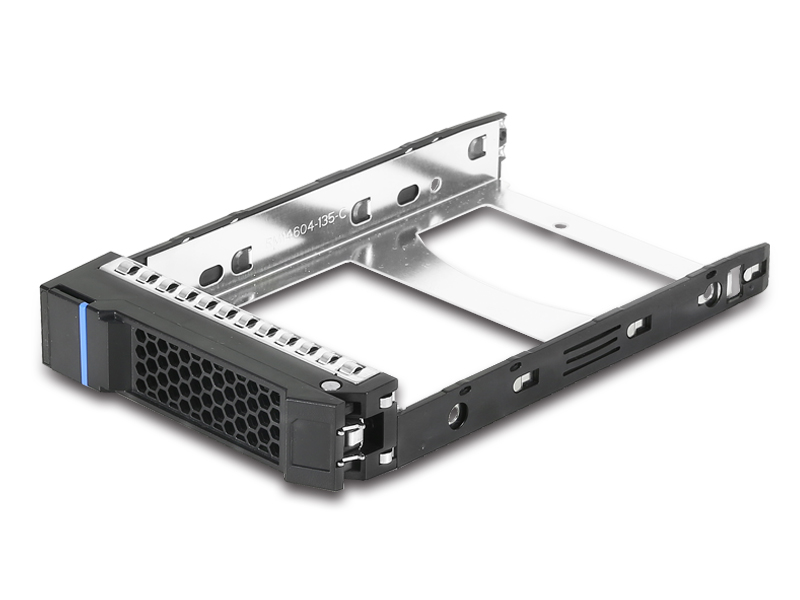

    3.5" HDD TRAY,Panel BK, Screw-on
    Power Supply
    32H1080001101
    CRPS module, 800W, ACBEL R1CA2801A, Full Range, 80+ Platinum [MPQ=8]
    Rack Handle
    384-14609-3100A0
    Cabinet Mounting EAR, plastic part with latch, Black/Black, Left
    Rack Handle
    384-14609-3101A0
    Cabinet Mounting EAR, plastic part with latch, Black/Black, Right
    Riser Card
    380-13809-3000A0

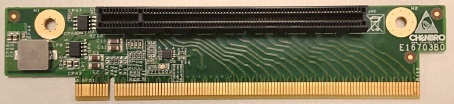

    1-slot, PCI-e 16x, for Intel S2600 M/B only
    Riser Card
    384-14612-3101A0
    1-slot, PCI-e 16x, w/Riser Retainer Bracket, for Intel S2600 M/B only
    Slide Rail
    384-23803-3300D0
    Slide Rail, 32.8“, P2P:26.3" to 36.9", Traveling Distance 30.7", Loading Weight 30.8 Kg, Tool-less
    Slide Rail
    84H314610-003
    Slide Rail, 23.6“, P2P:26" to 33", Traveling Distance 22", Loading Weight 18.8 Kg, Tool-less
    Click Part. No# to view item picture
  • Order Code Storage Backplane Front Fan PSU Expansion Slot

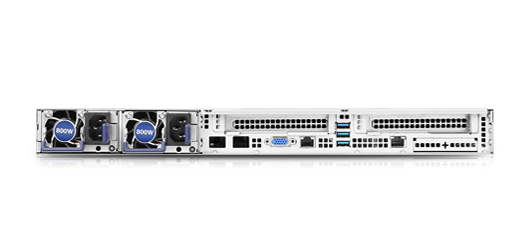

    RM13804M3 3.5" 4-port 12Gbps, Mini-SAS HD 40 x 56 (6) Option (CRPS) 2 x FH
    RM13804M3-R800 3.5" 4-port 12Gbps, Mini-SAS HD 40 x 56 (6) 800W CRPS 2 x FH
    RM13810M3 2.5" 10-port 12Gbps, Mini-SAS HD 40 x 56 (6) Option (CRPS) 2 x FH
    RM13810M3-R800 2.5" 10-port 12Gbps, Mini-SAS HD 40 x 56 (6) 800W CRPS 2 x FH
