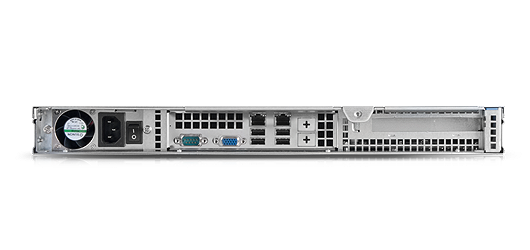

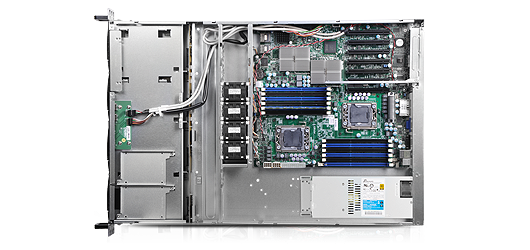

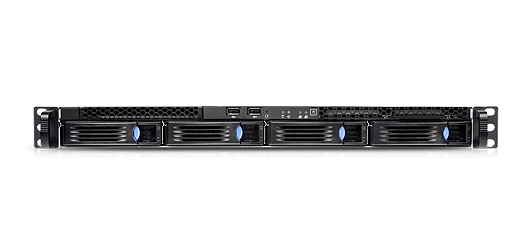

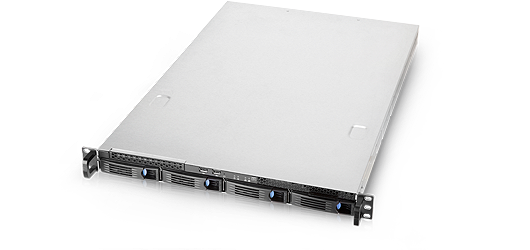

RM13704 (EOL)
1U Multi-function Computing and Storage Server Chassis
Supporting 2-port and 4-port 3.5" 12Gb/s backplanes make it suitable for front-end server and storage server.
Compare
Quick Search
  • By Chassis Type
  • By Motherboard
  • By RAID Card
  • By Power Supply
Compare
Features & Benefits
  • Support M/B up to 12" x 13"
  • Supports 2-bay and 4-bay 3.5" HDD configuration in one chassis
  • Support 2-port and 4-port 6Gb/s SAS & SATA backplane
  • Built-in 5 x 40mm PWM fans with anti-vibration mechanism
  • Built-in info tag for easy management
  • Built-in 2 x internal 2.5 HDD brackets
  • Specification
  • Download
  • Accessory
  • Compatibility
  • Order Information
  • Form Factor 1U
    M/B Form Factor Extended ATX (12” x 13”)
    Dimensions (Dx Wx H) 660 x 430 x 43.5 (mm), 26” x 16.9” x 1.7”
    Drive Bays 3.5" Hot-swap:4
    Slim ODD:1
    Slim FDD:1
    PSU Form Factor 1U Single or Redundant
    Indicators 1 x Power Status, 1 x HDD Activity, 2 x LAN Activity , 1 x Fan Failure and Overheat (RPSU SKU)
    Front Control Power On/Off, System Reset, 2 x USB2.0
    System Security Intrusion Switch
    Cooling Fans Middle: 4 x 40mm (T=48mm), PWM , Rear: N/A
    Expansion Slots 1 x Full Height and Full Length
    HDD Backplane 6Gb/s SAS & SATA
    Net Weight 7.2kg
    Gross Weight 9.6kg
    Front Bezel Option
    Cubic Feet 3.23
    Container Loading (Single Packing) 20’: 336, 40’: 682, 40’H: 796
  • Category Description Revision Size Download
    Datasheet RM13704 Datahseet V1.2 768.1 KB
    User Manual RM13704 Quick Installation Guide V1.1 477.9 KB
  • Category Part. No# Description Support

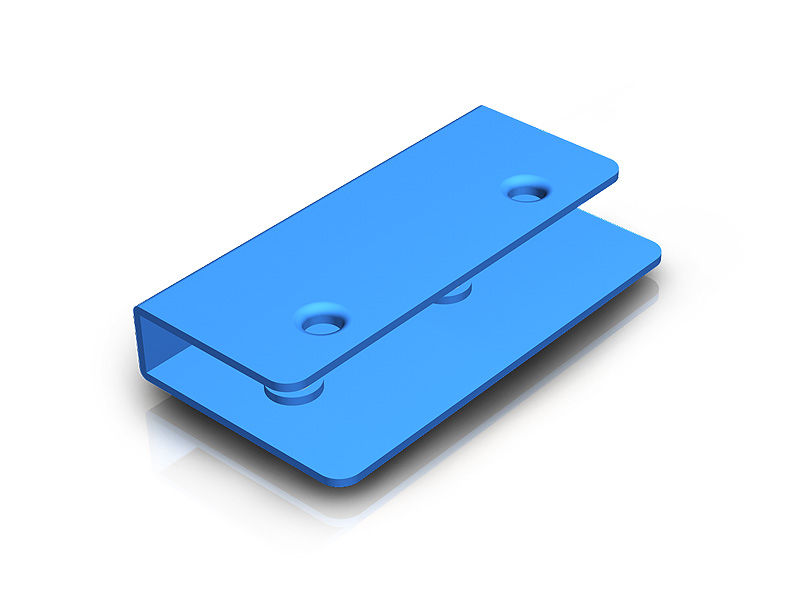

    Bracket
    84H312410-070
    Bracket, PSU, 1U, For P1H-5400VP/P1H-5500V
    Bracket
    84H313610-007
    Bracket, PSU, 1U, For AcBel FS9029-7H1G
    Bracket
    84H313710-002
    Bracket, PSU, 1U, For FSP500-701UP
    Bracket
    84H313710-006

    Bracket, PSU, 1U, For M1U-5650V4H/YH-8651BA11R

    Bracket
    84H313710-007
    Bracket, PSU, 1U, For FSP460-701UH
    I/O Shield
    84H313710-009
    1U, For Intel S2600CP/S2600CO
    Power Supply
    32H2065002202
    650W,1+1 Redundant YH-8651BA11R, P24/P8/P4+4,W/BRACKET, w/ PM Bus

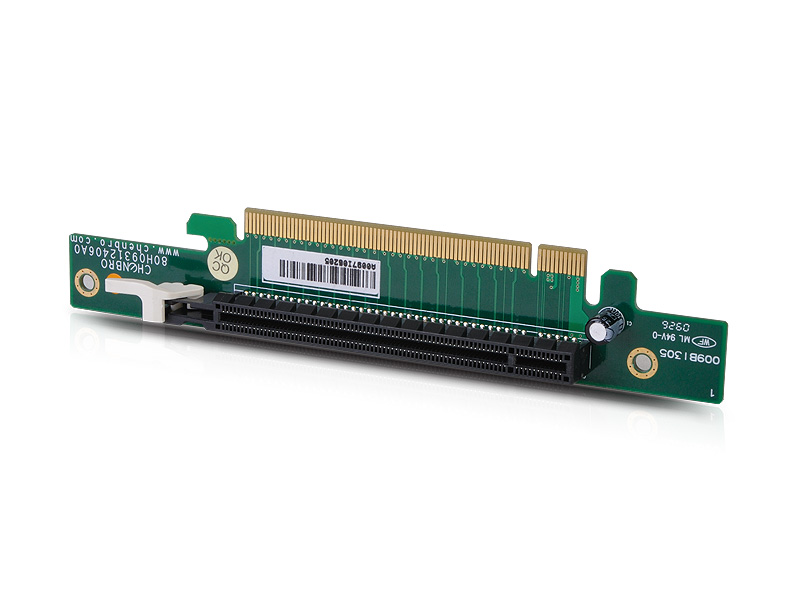

    Riser Card
    80H09312406A0
    Riser Card, 1-Slot, PCI-E 16x

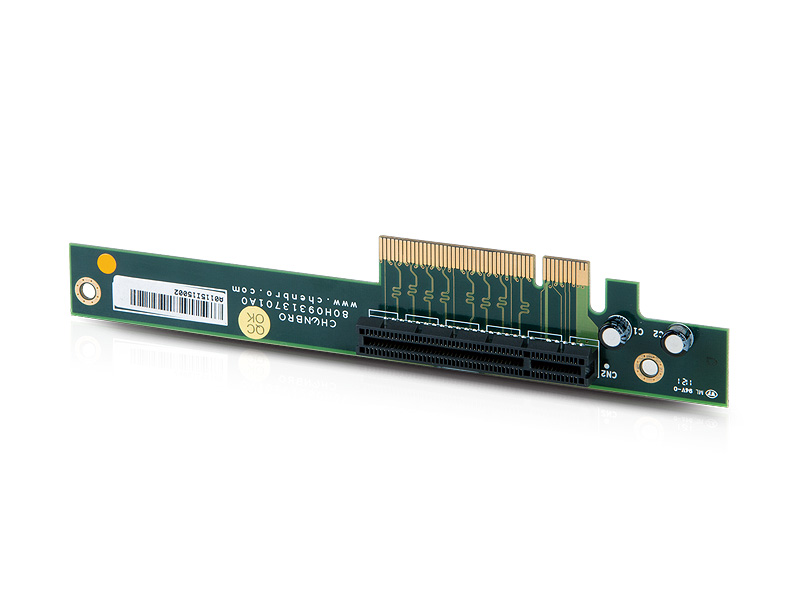

    Riser Card
    80H09313701A0
    Riser Card, 1-Slot, PCI-E 8x
    Slide Rail
    84H311610-082
    Slide Rail, 26“, P2P:24.0" to 36.3", Traveling Distance 16", Loading Weight 30 Kg, Tool-less
    Slide Rail
    84H311710-095
    Slide Rail, 20“, P2P:25.7" to 36", Traveling Distance 27.2", Loading Weight 27 Kg, Non Tool-less
    Click Part. No# to view item picture
  • Order Code M/B HDD Backplane PSU Rear Window Slide Rail
    RM13704T2 12"x13" 6Gb/s SAS& SATA Option(Single) 1-Slot, FF Option
    RM13704T2-R 12"x13" 6Gb/s SAS& SATA Option(Redundant) 1-Slot, FF Option
    RM13704T3 12"x13" 12Gb/s SAS& SATA Option(Single) 1-Slot, FF Option
