RM13108 (EOL)

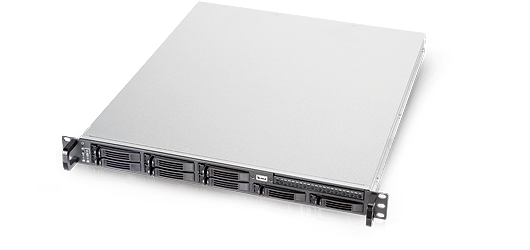

1U 2.5" High Storage Dense Server Chassis
With supporting 1U redundant PSU and 2.5" 6Gb/s backplane, it delivers high data security and the best I/O performance for computing applications.
Compare
Quick Search
  • By Chassis Type
  • By Motherboard
  • By RAID Card
  • By Power Supply
Compare
Features & Benefits

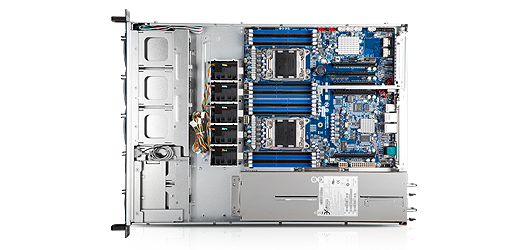

  • Supports M/B up to 12” x 13”
  • Built-in 8-port 6Gb/s SATA backplane for 2.5” HDD/SSD
  • Fan holder with anti-vibration mechanism
  • Supports 1U single or redundant PSU
  • Compatible with SK51102 in ODD bay
  • Specification
  • Download
  • Accessory
  • Compatibility
  • Order Information
  • Form Factor 1U
    M/B Form Factor Extended ATX (12”x13”)
    Dimensions (Dx Wx H) 597 x 430 x 43.5 (mm), 23.5” x 16.9” x 1.7”

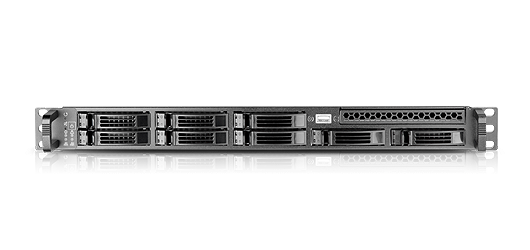

    Drive Bays Slim ODD:1
    2.5" Hot-swap:8
    PSU Form Factor 1U Single or Redundant
    Indicators 1 x Power Status, 2 x LAN Activity , 1 x Fan Failure and Overheat
    Front Control Power On/Off, Alarm Mute, System Reset, 1 x USB2.0
    System Security Intrusion Switch (option)
    Cooling Fans Middle: 5 or 6 x 40mm, T=28mm (Up to T=56mm), PWM
    Expansion Slots 1 x Full Height and Full Length
    HDD Backplane 6Gb/s SATA
    Net Weight 6.8kg
    Gross Weight 10.3kg
    Front Bezel Option
    Cubic Feet 3.33
    Container Loading (Single Packing) 20’: 330, 40’: 681, 40’H: 743
  • Category Description Revision Size Download
    Datasheet RM13108 Datahseet V1.2 999.0 KB
    User Manual 3Gb/s 8-port 2.5" SATA/SAS Backplane (80H103131-003) V1.0 181.8 KB
    User Manual 6Gb/s 8-port 2.5" SATA/SAS Backplane (80H10313107A0), Rev. A0 V1.0 2.1 MB
    User Manual LED Board(80H033131-001), Features and Jumper Settings V1.0 1.3 MB
    User Manual RM13108 Quick Installation Guide V1.1 458.8 KB
  • Category Part. No# Description Support
    I/O Shield
    84H313710-009
    1U, For Intel S2600CP/S2600CO

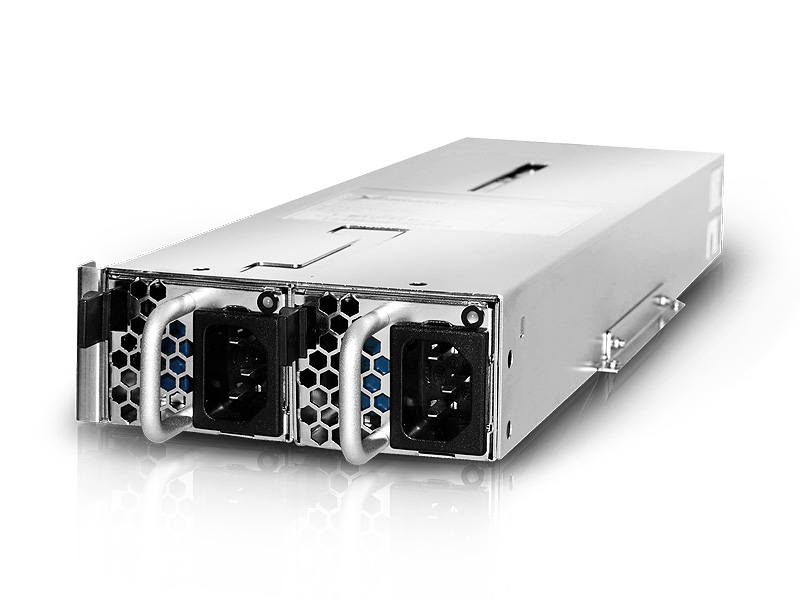

    Power Supply
    32H2065002202
    650W,1+1 Redundant YH-8651BA11R, P24/P8/P4+4,W/BRACKET, w/ PM Bus
    Power Supply
    32H245022-001
    PSU, 450W, 1+1 Redundant, YH-8451BER, PMBus 1.1
    Power Supply
    32H265022-001
    PSU, 650W, 1+1 Redundant, YH-8651BAR, PMBus 1.1
    Riser Card
    80H09312406A0
    Riser Card, 1-Slot, PCI-E 16x
    Riser Card
    80H09313701A0
    Riser Card, 1-Slot, PCI-E 8x
    Slide Rail
    84H311610-082
    Slide Rail, 26“, P2P:24.0" to 36.3", Traveling Distance 16", Loading Weight 30 Kg, Tool-less
    Slide Rail
    84H311710-095
    Slide Rail, 20“, P2P:25.7" to 36", Traveling Distance 27.2", Loading Weight 27 Kg, Non Tool-less
    Click Part. No# to view item picture
  • Order Code M/B HDD Backplane PSU Rear Window Slide Rail
    RM13108T2 12"x13" 6Gb/s SATA Option 1-FF Option
