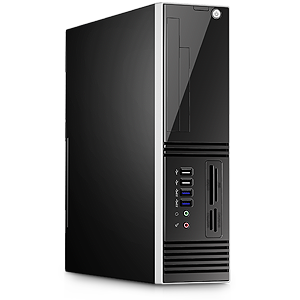

PC722 Series
Tool-less Slim Tower and Desktop Convertible uATX PC Chassis
PC722 supports Intel platform thermal requirement. Equipped slim ODD and FDD bays serve well the vertical markets, while the 2.5” internal bays are designed for SATA HDD or SSD delivering high performance in targeting applications.
Compare
Quick Search
  • By Chassis Type
  • By Motherboard
  • By RAID Card
  • By Power Supply
Compare
  • Feature & Benefit
  • Specification
  • Download
  • Accessory
  • Order Information
    • Supports the latest Intel platform thermal requirement
    • Supports 60mm side fan installation and adjustable air duct
    • Removable drive cage for easy installation
    • Advanced tool-less installation for side cover, 2.5" HDD/SSD, slim ODD & FDD, PCI cards, drive cage and PSU
    • Supports 2x USB2.0 and 2x USB3.0 ports
    • Security provision: Padlock loop, Kensington slot and intrusion switch
    • Stylish rotatable logo pad(PC72239)
    • Supports TFX PSU
  • M/B Form Factor Micro ATX
    Dimensions (Dx Wx H) 300mm x 90mm x 326mm, 11.8" x 3.5" x 12.8"
    Drive Bays Slim ODD:1
    Slim FDD:1
    Internal 2.5":2
    PSU Form Factor TFX
    Indicators 1 x Power Status
    1 x HDD Activity
    Front Buttons 1 x Power On/Off
    4 x USB 2.0/USB 3.0(option)
    1 x Headphone Jack
    1 x MIC Phone Jack
    System Security Kensington Slot, Padlock Loop, Intrusion Switch(option)
    Cooling Fans Side : 1 x 60mm(option)
    Expansion Slots 4 x Low Profile
    Sheet Metal Material SGCC
    Metal Thickness 0.6 mm
    Net Weight 3.0 Kg
    Gross Weight 3.6 Kg
    Container Information 20': 1,150, 40': 2,400, 40'H: 2,670
  • Category Description Revision Size Download
    Datasheet PC722 Datahseet V1.2 2.1 MB
  • Category Part. No# Description Support
    Fan
    30H060025-204
    Fan, 60x25mm, 3P3C, Sleeve, 3000RPM, L500mm
    FPIO
    83H801713-001
    FPIO, 2xUSB3.0+ 2xUSB2.0, For PC713/722/783/784
    Power Supply
    32H1030000712
    PSU, 300W, TFX Single, FSP300-60GHT, w/PFC,80+(BRONZE), Full Range
    Power Supply
    32H1030001103
    PSU, 300W, TFX Single, PCA023, w/PFC, Full Range, P24:550mm
    Click Part. No# to view item picture
  • Order Code PSU FPIO FAN Side Venting 2nd HDD Cage
    PC72239 Option USB2.0x4+Audio(HD) Option Yes N/A
