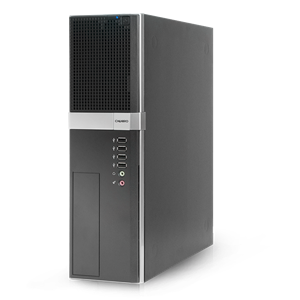

PC713 Series (EOL)
Value-added Tower and Desktop Convertible uATX PC Chassis
PC713 is ready for thermal performance requirement of Intel Haswell platform. It is designed with extra USB 3.0 ports, sturdy structure, and more room for silent fans installation than its predecessors.
Compare
Quick Search
  • By Chassis Type
  • By Motherboard
  • By RAID Card
  • By Power Supply
Compare
  • Feature & Benefit
  • Specification
  • Download
  • Accessory
  • Order Information
    • Intel Haswell platform thermal requirement ready
    • Supports 80mm/ 60mm front and rear fan installation
    • One-piece formed rear window for structure enhancement
    • Advanced tool-less installation for side cover, HDDs, ODDs, PCI cards, PSU and fans
    • Supports 2x USB2.0 and 2x USB3.0 ports
    • Security provision: Padlock loop, Kensington slot and intrusion switch

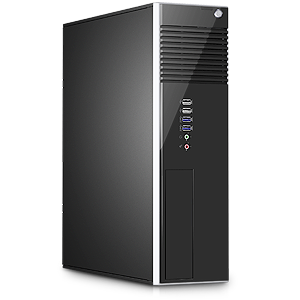

    • Stylish rotatable logo pad(PC71339)
    • Supports TFX PSU
  • M/B Form Factor Micro ATX
    Dimensions (Dx Wx H) 328mm x 112mm x 390mm, 12.9" x 4.4" x 15.4"
    Drive Bays External 5.25":1
    Internal 3.5":1
    Internal 2.5":1
    PSU Form Factor TFX
    Indicators 1 x Power Status
    1 x HDD Activity
    Front Buttons 1 x Power On/Off
    4 x USB 2.0
    1 x Headphone Jack
    1 x MIC Phone Jack
    System Security Kensington Slot, Padlock Loop, Intrusion Switch(option)
    Cooling Fans Front: 1 x 80 mm
    Rear: 1 x 60 mm
    Expansion Slots 4 x Low Profile
    Sheet Metal Material SGCC
    Metal Thickness 0.6 mm
    Container Information 20': 606, 40': 1,291, 40'H: 1,435
  • Category Description Revision Size Download
    Datasheet PC713 Datahseet V1.1 2.4 MB
  • Category Part. No# Description Support
    Fan
    30H060025-204
    Fan, 60x25mm, 3P3C, Sleeve, 3000RPM, L500mm
    FPIO
    83H801713-001
    FPIO, 2xUSB3.0+ 2xUSB2.0, For PC713/722/783/784
    Power Supply
    32H1030000711

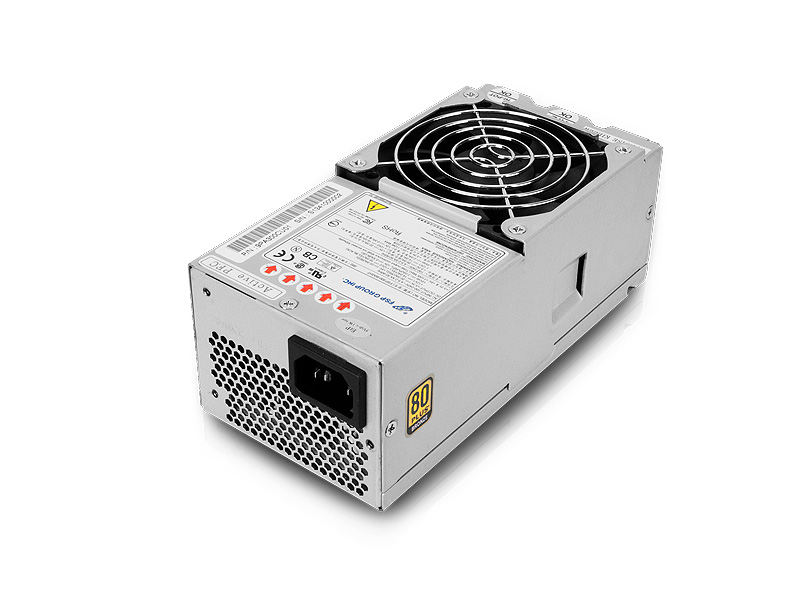

    PSU, TFX 300W, 80+ Bronze, w/PFC& Eup, Full Range
    Power Supply
    32H1030001102

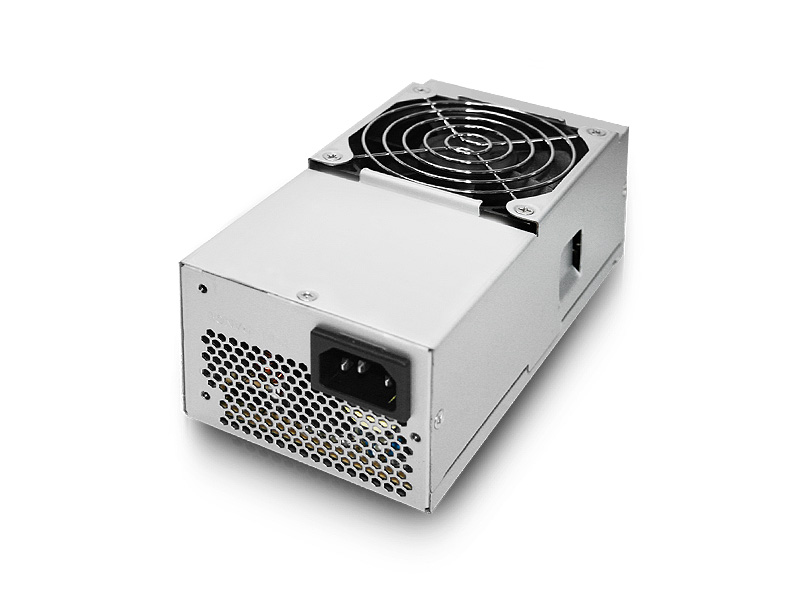

    PSU, 300W, TFX Single, PCA023, 80+(Bronze), Full Range
    Click Part. No# to view item picture
  • Order Code PSU FPIO FAN Side Venting 2nd HDD Cage
    PC71338 Option USB2.0x4+Audio(HD) Option Yes N/A
    PC71339 Option USB2.0x4+Audio(HD) Option Yes N/A
