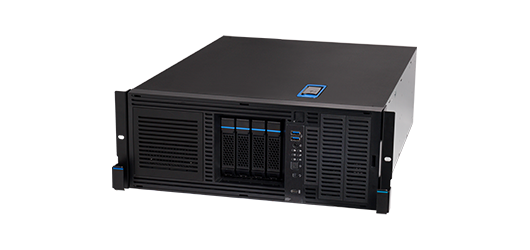

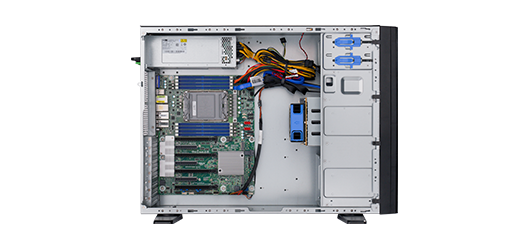

SR115
4U Mainstream Workstation Rackable Tower Server Chassis
SR115 is the general-purpose server as a workstation to fulfill small to mid-size enterprises' low to high workloads demands. Its flexible workstation deployment can support more applications.
Compare
Quick Search
  • By Chassis Type
  • By Motherboard
  • By RAID Card
  • By Power Supply
Compare
Features & Benefits

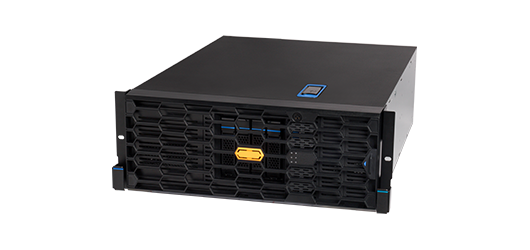

  • 4U tower and rackable supports rack kit option: ear handle, slide rail, and CMA
  • Eight PCIe slots support more I/O applications, including double-width GPU card
  • Flexible PSU support PS2 or CRPS
  • Multi-Storage: Internal or external storage kit support 2.5” or 3.5” HDD

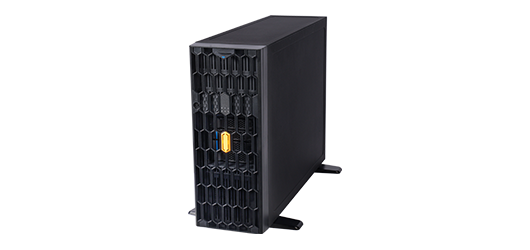

  • Security bezel and user-friendly toolless side cover
  • Coverage server and workstation applications
  • Lower acoustic
  • Specification
  • Download
  • Accessory
  • Compatibility
  • Order Information
  • M/B Form Factor EEB (12" x 13") ; ATX (12" x 9.6") ; Micro ATX (9.6” x 9.6”)
    Dimensions (D x W x H) 581.9 x 175.0 x 438.0 (mm) ; 23" x 6.89" x 17.24" (bezel not included)
    Drive Bays External: 2 x 5.25” and 1 x 3.5”:
    Storage: Option, max to 2pcs:
    4-Bay internal HDD cage with 80mm fan, 4500RPM:
    4-Bay external HDD hot-swap module with 80mm fan, 4500RPM:

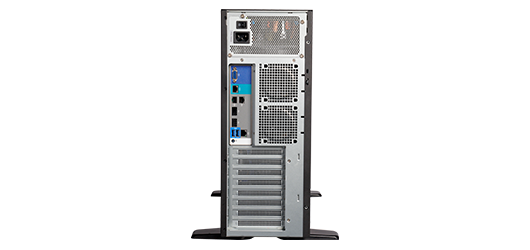

    PSU Form Factor Single ATX PSU

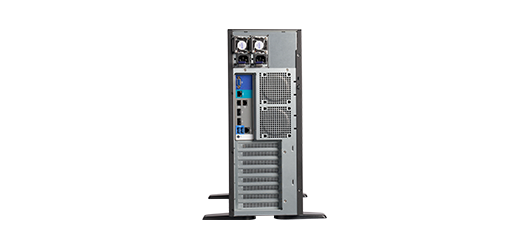

    Redundant CRPS 1+1 (* 1200W support 2 x GPU)
    Indicators 1 x Power Status, 1 x HDD Activity, 2x LAN Activity
    Front Buttons 1 x Power On/Off, 1 x System Reset, 2 x USB3.0, 1 x Audio combo, 1 x Type C (Option)
    System Security Intrusion Switch; Key Lock on the front door
    Cooling Fans 2x 80mm (T=25mm), PWM, 4500RPM, rear, option 1x 120mm (T=25mm), PWM, 2600RPM, middle, option
    Expansion Slots 8 x Full Height
    HDD Backplane 12Gb/s miniSAS-HD, option
    Net Weight 17.55KG
    Gross Weight 21.32KG
    Cubic Feet 6.934
    Container Loading 20' FCL: 126 pcs / 40' FCL: 252 pcs
  • Category Description Revision Size Download
    Datasheet SR115 Datasheet v.1.2 v1.2 781.9 KB
  • Product category Part. No# Description Support
    5.25” to 3.5” Kit
    SK41101H0110879

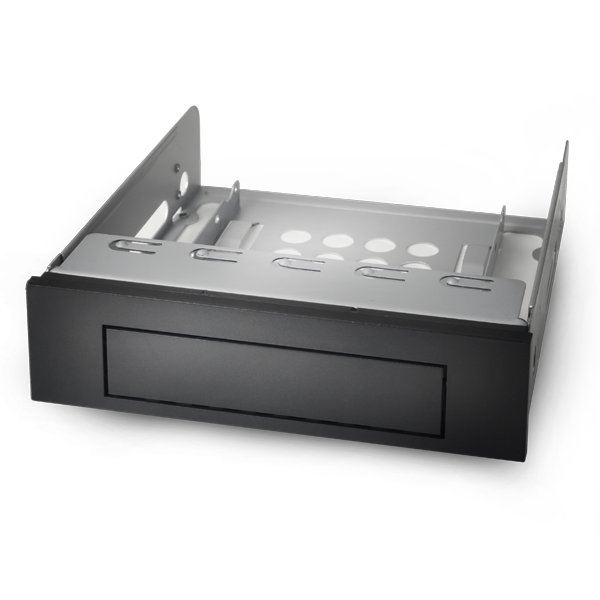

    5.25” to 3.5” Kit: 1 x 5.25" Bay to 1 x Internal 3.5" HDD Bay, 48pcs/carton

    SK41101H01*10879

    Bracket
    384-MEC01161B0A0
    GPU card fix bracket

    AS'Y COMPONENT,SR1156901,BRACKET,BULK,144PCS/CTN,SR1156901q015A00,GPU BRACKET

    CPU & Fan support Bracket in the middle
    384-MEC01160B0A0

    CPU & Fan support Bracket in the middle

    384-MEC01160B0A0;AS'Y COMPONENT,SR1156901,SUPPORT BRACKET,BULK,40PCS/CTN,SR1156901q019,GPU & FAN SUPPORT BRACKET

    Fan
    384-FAN00114B0A0

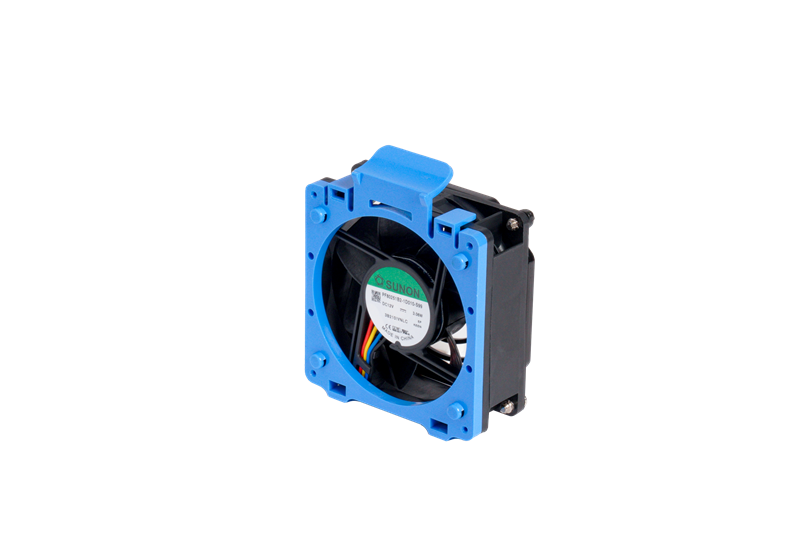

    80mm (T: 25mm), 4500RPM fan kit for rear (max to 2 pcs)
    Fan
    384-FAN00118B0A0

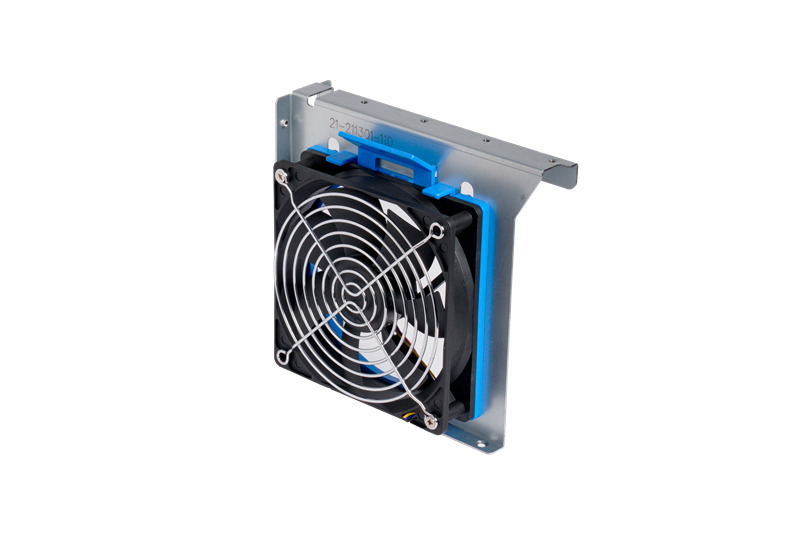

    120mm internal fan kit support 2600RPM

    AS'Y COMPONENT,SR1156901,FAN+FAN MODULE,BULK,48PCS/CTN,SR1156901q013A00,120FAN



    HDD Cage
    384-MIX00411B0A0
    Internal 4-Bay HDD cage

    w/ fan: 384-MIX00411B0A0



    HDD Module
    384-PCB000001BA0

    4-Bay HDD hot-swap module, toolless HDD TRAY

    w/o fan:384-PCB000001BA0

    HDD Module
    384-PCB00045B0A0

    4-Bay HDD hot swap module,lock screw HDD TRAY

    w/o fan:384-PCB00045B0A0

    HDD Module
    384-PCB00046B0A0

    4-Bay HDD hot swap module, toolless HDD TRAY

    w/ fan: 384-PCB00046B0A0

    HDD Module
    384-PCB00047B0A0

    4-Bay HDD hot swap module,lock screw HDD TRAY

    w/ fan: 384-PCB00047B0A0

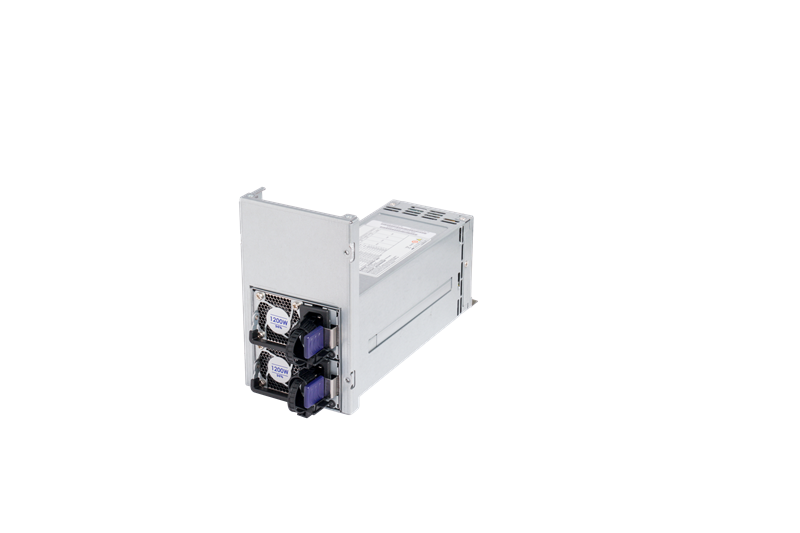

    Power Supply
    384-PSU00016B0A0
    FSP 2U CRPS 210mm support 800W, 1200W

    AS'Y COMPONENT,SR1156901,PSU+PSU BRACKET,BULK,20PCS/CTN,SR1156901q012A00,FSP-FC210 1200W 210MM

    Power Supply
    384-PSU00017B0A0

    FSP 2U CRPS 210mm support 800W, 1200W

    AS'Y COMPONENT,SR1156901,PSU+PSU BRACKET,BULK,20PCS/CTN,SR1156901q012A00,FSP-FC210,800W,210MM

    Power Supply
    384-PSU00018B0A0
    Acbel 2U CRPS 220mm support 800W, 1200W

    AS'Y COMPONENT,SR1156901,PSU+PSU BRACKET,BULK,20PCS/CTN,SR1156901q010A00,ACBEL,FSL026-7HBG,1200W,220MM

    Power Supply
    384-PSU00019B0A0

    Acbel 2U CRPS 220mm support 800W, 1200W

    AS'Y COMPONENT,SR1156901,PSU+PSU BRACKET,BULK,20PCS/CTN,SR1156901q010A00,ACBEL,FSL025-7HCG,800W,220MM



    Power Supply
    384-PSU00020B0A0
    Acbel 2U CRPS 265mm support 1200W

    AS'Y COMPONENT,SR1156901,PSU+PSU BRACKET,BULK,20PCS/CTN,SR1156901q011A00,ACBEL,FSG064-7HCG,1200W,265MM

    Click Part. No# to view item picture
  • Order Code
    SR1156901 01*929020
    SR1156901 01*929022
    SR1156901 01*929025
    SR1156901 01*929179
