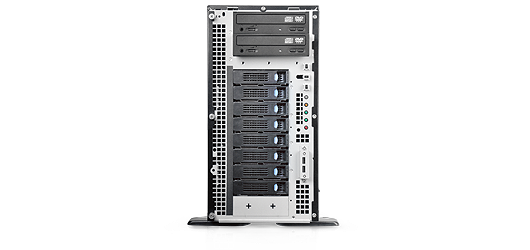

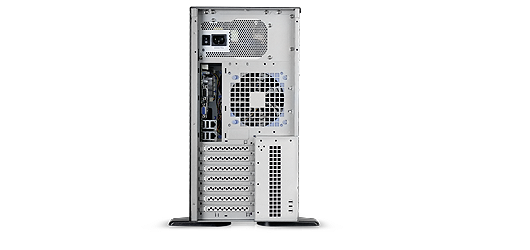

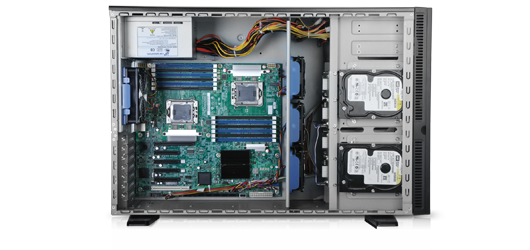

SR11269 (EOL)
Fault Tolerance Tower Server Chassis
With 5U form factor, SR112 is multi-function chassis, Rackmount or Stand-alone, for many kinds of applications in office or computing intensity applications.
Compare
Quick Search
  • By Chassis Type
  • By Motherboard
  • By RAID Card
  • By Power Supply
Compare
Features & Benefits
  • Optional 4-bay 3.5" HDD kit with 6Gb/s SATA or mini-SAS backplane
  • Optional 8-bay 2.5" HDD cage with 6Gb/s mini-SAS backplane (Build to Order)
  • Tool-less installation on bezel, HDD cage, side cover and fans
  • Supports 3x92mm hot-swap middle fans
  • Supports key lock and Kensington security slot
  • Rack-able by slide rail
  • Supports PS/2 single and 2+1 redundant PSUs
  • Specification
  • Download
  • Accessory
  • Compatibility
  • Order Information
  • M/B Form Factor Extended ATX (12” x 13”)
    Dimensions (D x W x H) 620 x 220 x 425 (mm) , 24.4” x 8.7” x 16.7” (Bezel not included)
    Drive Bays External 5.25":2
    External 3.5":1
    Internal 3.5":2
    3.5" Hot-swap:8(option)
    2.5" Hot-swap:16(option)
    PSU Form Factor PS/2 Single or 2+ 1 Redundant
    Indicators 1 x Power Status, 1 x HDD Activity, 2 x LAN Activity , 1 x Fan Failure and Overheat
    Front Buttons Power On/Off, Alarm Mute, System Reset, 2 x USB 2.0
    System Security Intrusion Switch, Key lock and Kensington security slot
    Cooling Fans Middle: 3 x 92mm (T=25mm), PWM, Hot-swap, Rear: 1 x 120mm, PWM
    Expansion Slots 7 x Full Height and Full Length
    HDD Backplane 6Gb/s SATA or mini-SAS (by 3.5” or 2.5” HDD cage)
    Metal Thickness 1.0mm
    Net Weight 15.5kg
    Gross Weight 20.0kg
    Front Bezel SR11269
    Cubic Feet 5.53
    Container Loading 20’: 140, 40’: 280, 40’H: 336
  • Category Description Revision Size Download
    Datasheet SR112 Series Datasheet V1.2 1.2 MB
    User Manual 6Gb/s 4-port mini-SAS Backplane(80H10211203A0), for 4-Bay 3.5" Hot-swap Kit V1.0 267.6 KB
    User Manual 6Gb/s 4-port SATA/SAS Backplane(80H10211202A0), for 4-Bay 3.5" Hot-swap Kit V1.0 399.6 KB
  • Product category Part. No# Description Support
    Bracket
    84H210710-035
    Bracket, Rackmount Handle, Black, 2pcs/set
    Bracket
    84H211210-003
    Bracket, PSU, C2W-5620V/C2W-5820V, For SR112
    HDD Kit
    84H211210-004

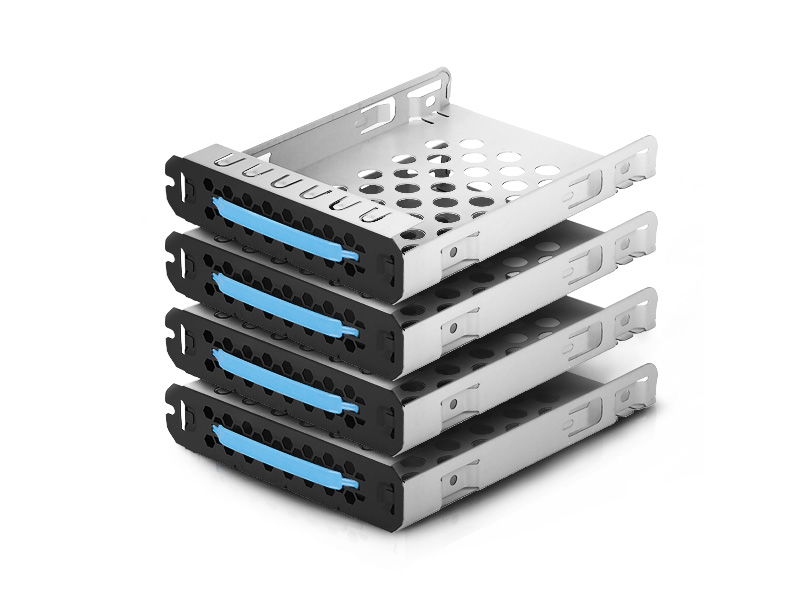

    HDD Kit, 4x 3.5" Non-Hotswap trays, Internal
    HDD Kit
    84H211210-005

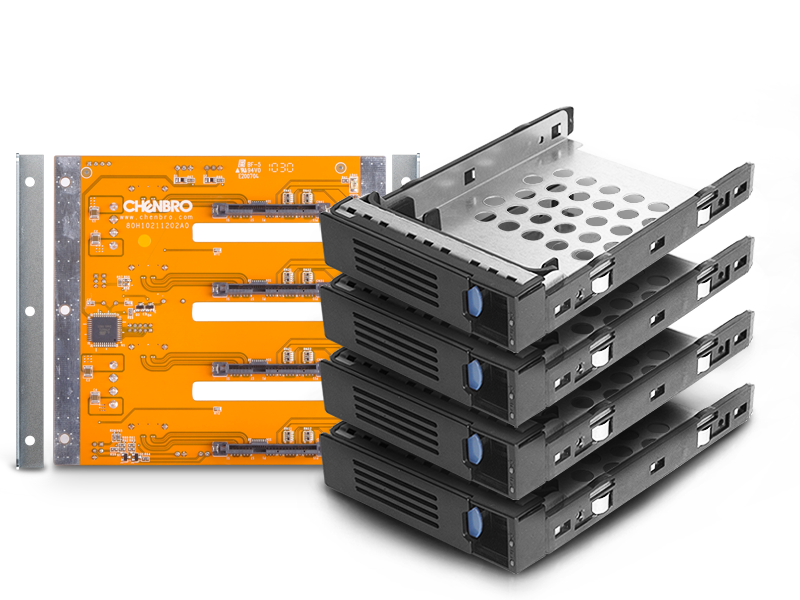

    HDD Kit, 4x 3.5" HDD Trays, w/4-port 6Gpbs SAS& SATA backplane
    HDD Kit
    84H211210-007

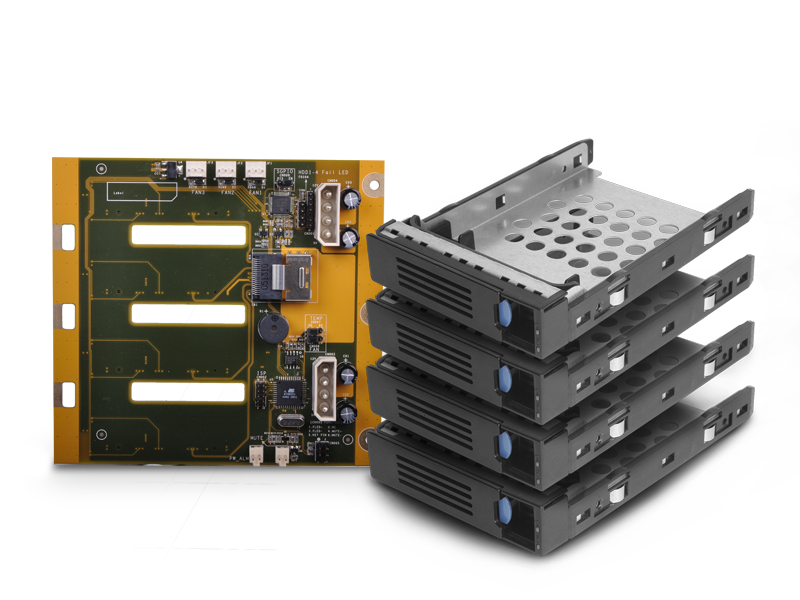

    HDD Kit, 4x3.5" HDD trays, w/4-port 6Gbps mini-SAS backplane
    Power Supply
    32H1060000102
    PSU, 600W, PS/2 Single, SS-600ES
    Power Supply
    32H160007-001
    PSU, PS/2 Single, 600W, FSP600-80GLC
    Power Supply
    32H2062000202
    PSU, 1+1 Redundant, 620W, C2W-5620V, PMBus 1.1
    Power Supply
    32H2065001101
    PSU, 650W,1+1 Redundant, Acbel R2IS7651A-G, 80+ Gold, PM Bus V1.2
    Power Supply
    32H2082000202

    PSU, 1+1 Redundant, 820W, C2W-5820V, PMBus 1.1

    Power Supply
    32H2087501101
    PSU, 875W, 1+1 Redundant, Acbel R2IS7871A-G, 80+ Gold, PM Bus V1.2
    Power Supply
    32H265002-011
    PSU, 650W, 1+1 Redundant,  MRM-6650P, w/SR107 Bracket, w/Fan Speed Control
    Power Supply
    32H265002-013

    PSU, 650W, 2+1 Redundant, R3G-6650P, w/SR107 Bracket

    Slide Rail
    84H210710-024
    Slide Rail, 26", Ball Bearing, SR20966/SR10566/SR107
    Click Part. No# to view item picture
  • Order Code M/B Size HDD Backplane PSU Cooling Fan Slide Rail
    SR11269M2-C8 12"x13" 2Pcs 6Gb/s mini-SAS Option 1x120mm+3x92mm Option
    SR11269T2-C8 12"x13" 2Pcs 6Gb/s SAS& SATA Option 1x120mm+3x92mm Option
