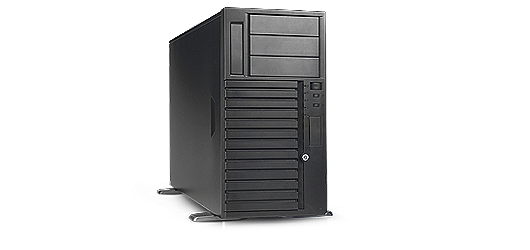

SR107 Plus
High Data Security SSI EEB Tower Server Chassis
Offers a scalable performance chassis solution with expanded storage options.
Compare
Quick Search
  • By Chassis Type
  • By Motherboard
  • By RAID Card
  • By Power Supply
Compare
Features & Benefits

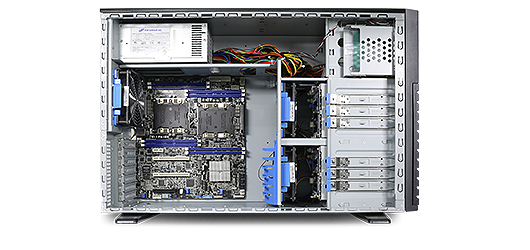

  • Supports up to 12" x 13" M/B

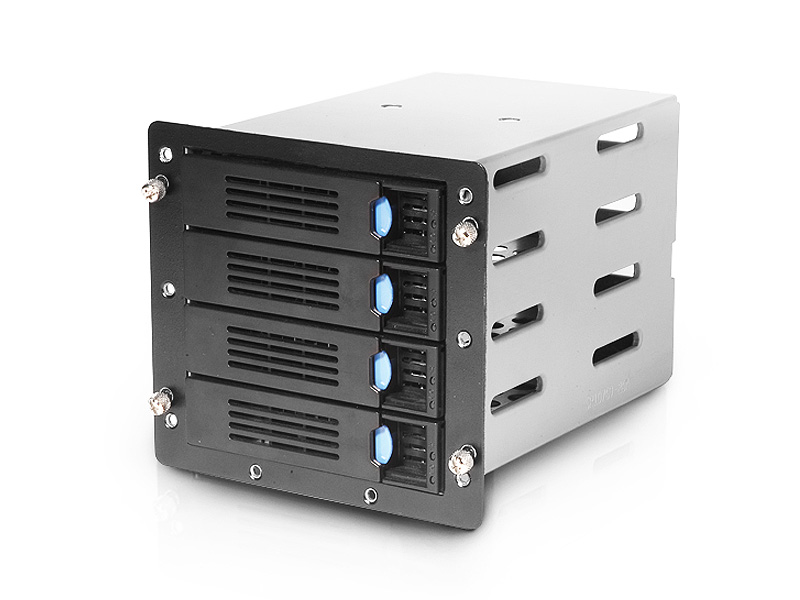

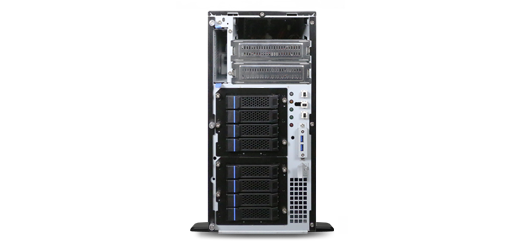

  • Supports two removable 4-bay 3.5" HDD Hot-swap and internal cages
  • 3.5" HDD Hot-swap cage with 12Gb/s Mini-SAS HD or SAS/SATA backplane
  • Hot-swap cage with four patented tool-less 3.5" HDD trays

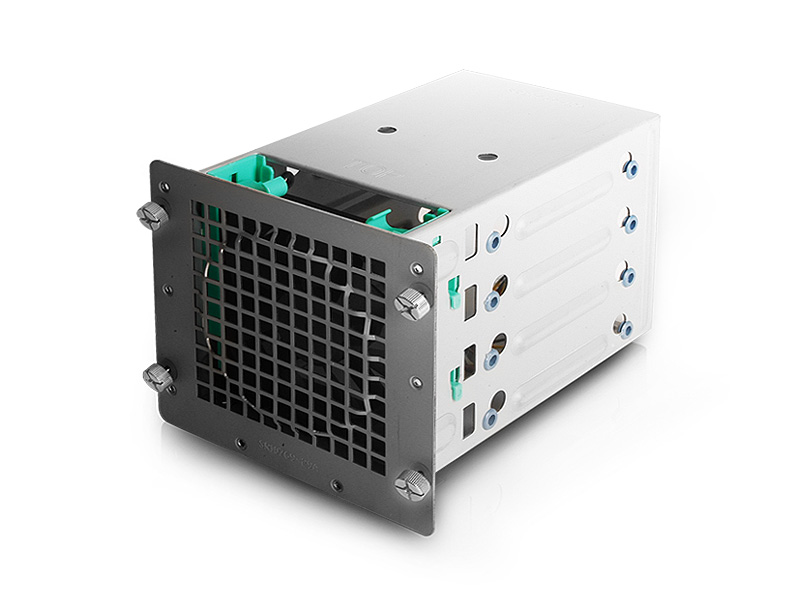

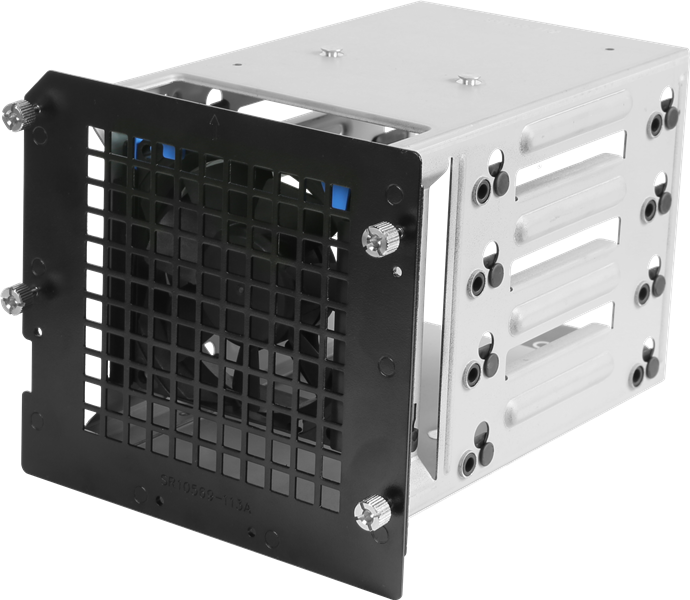

  • 3.5" Internal HDD cage with patented anti-vibration technologies
  • Supports up to 3 FH/FL GPU cards
  • Supports PCI-e 3.0 expansion slot opening
  • Tool-less installation for bezel, HDD cage, side cover and fans
  • Supports key lock, 3-wire intrusion switch and Kensington security slot
  • Front bezel lock for unauthorized access prevention
  • Supports rack installation by slide rails

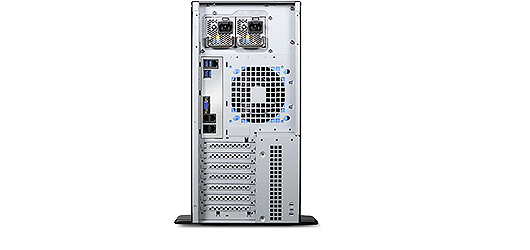

  • Supports single PS/2 and 1+1 redundant PSU
  • Specification
  • Download
  • Accessory
  • Compatibility
  • Order Information
  • M/B Form Factor SSI EEB (12" x 13")
    Dimensions (D x W x H) 620.0 x 220.0 x 425.0 (mm)
    24.40" x 8.66" x 16.73" (w/o bezel)
    Drive Bays 3.5" Internal (Option):8
    3.5" Hot-swap:8
    External 3.5":1
    External 5.25":3
    PSU Form Factor PS/2 Single or N+1 Redundant
    Indicators 1 x Power Status
    2 x LAN Activity
    1 x HDD Status
    1 x System Alarm
    Front Buttons 1 x Power On/Off
    1 x System Reset
    1 x Alarm Mute
    2 x USB2.0/USB3.0 (Option)
    System Security Intrusion Switch
    Key Lock
    Kensington Slot
    Cooling Fans Middle: 120 x 25 (2)
    Rear: 120 x 25 (1)
    Expansion Slots 7 x Full Height (6 x Full Length + 1 x Half Length)
    HDD Backplane 3.5" 4-port 12Gbps, Mini-SAS HD
    3.5" 4-port 12Gbps, SAS/SATA (Option)
    Metal Thickness 0.8mm
    Net Weight 18.0 kg
    Gross Weight 22.5 kg
    Front Bezel Option
    Cubic Feet 5.53
    Container Loading 20ʼ: 140
    40ʼ: 280
    40'H: 336 (Single Packing)
  • Category Description Revision Size Download
    Datasheet SR107 Plus Datasheet V1.0 V.1.0 7.3 MB
    User Manual SR107-Plus_User Manual V1.1 2.0 MB
  • Product category Part. No# Description Support
    Cable
    CL-PWR-US
    Cable, Power Cord, 3-Pin, 6ft, 120V USA
    HDD Module
    384-10701-2100A0
    HDD Module, 3.5" Hot-swap, 4-Port 12g Mini-SAS HD BP, SR10769+
    HDD Tray
    84H311810-042
    Tray, HDD 3.5"/2.5", BK, SR105/107/209
    Power Supply
    132-20650-0701C0
    PSU, Redundant 1+1, 650w, P24:740/P8:640/P4+4:650mm, C0, Acbel
    Power Supply
    132-20875-0700C0
    PSU, Redundant 1+1, 875w, P24:740/P8:640/P4+4:650mm, C0, Acbel

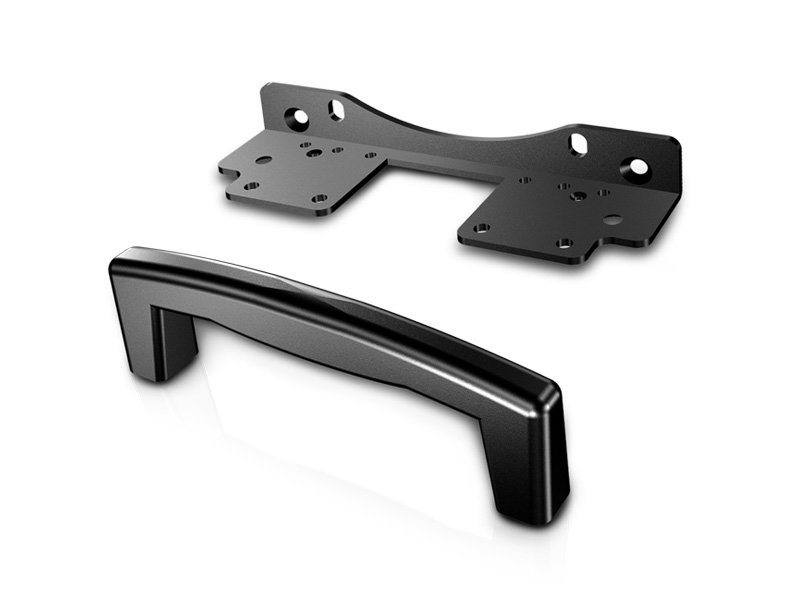

    PSU BRKT
    84H210710-103
    Bracket, PSU, Acbel R2IS Series, SR107
    Rail
    84H210710-024
    Rail, 23", SR105/107/112/209
    SK
    SK31101T3
    SK, 12g, 5.25" to 1 x Hot-swap 3.5" HDD Bay
    SK
    SK32303T3
    SK, 3-in-2, HDD Module, SATA/SAS, 12G,BK, Single Pack
    SK
    SK33502T3
    SK, 5-in-3 , 3 x ODD Bays to 5 x 3.5"  HDD Bays (12g SATA II/SAS)
    SK
    SK41101-BK-H
    SK, HDD Tray, Internal, 1 x 5.25" to 3.5" HDD/FDD Bay, BK
    SK
    SK41202
    SK, 1 x 5.25 (internal) to 1 x Slim ODD+ internal 3.5 HDD/FDD Bay
    SK
    SK41203
    SK, HDD Tray, Internal, 1 x 3.5" HDD/FDD to 2 x 2.5" HDD Bays
    SK
    SK51201T3
    SK, 1 x 3.5" to 2 x 2.5" HDD Bay, w/12gb/SATA BP
    Click Part. No# to view item picture
  • Order Code HDD Backplane HDD Cage PSU Cooling Fan
    SR10769-C8+ N/A 3.5" non Hot-swap Option 3x120 mm
    SR10769-C8+R650 N/A 3.5" non Hot-swap Option 3x120 mm
    SR10769-C8+R875 N/A 3.5" non Hot-swap Option 3x120 mm
