SR10769
High Data Security Tower Server Chassis

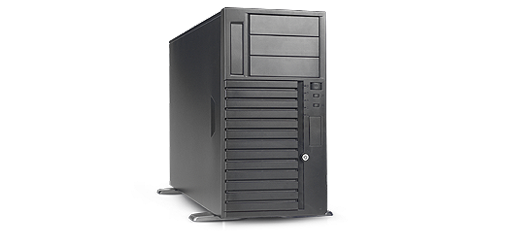

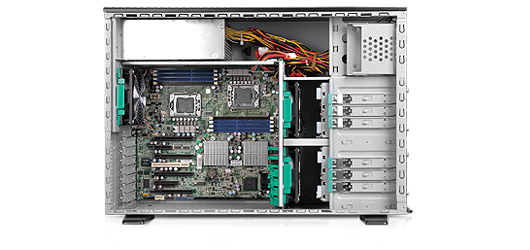

SR107 is not only an ideal chassis for SMB, also a cost effective Rack-able solution on 5U form factor with an optional slide rail support.
Compare
Quick Search
  • By Chassis Type
  • By Motherboard
  • By RAID Card
  • By Power Supply
Compare
Features & Benefits
  • Supports motherboard size up to 12" x 13"

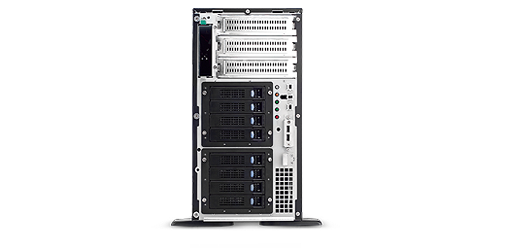

  • Supports 2 x 4-bay 3.5" HDD cage

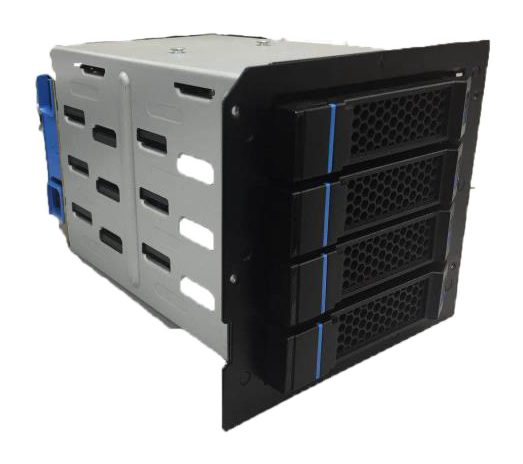

  • Optional 3.5" 4-bay HDD cages with 12 Gb/s SATA or mini-SAS backplane
  • Tool-less installation on bezel, HDD cage, side cover and fans
  • Support key lock and Kensington security slot

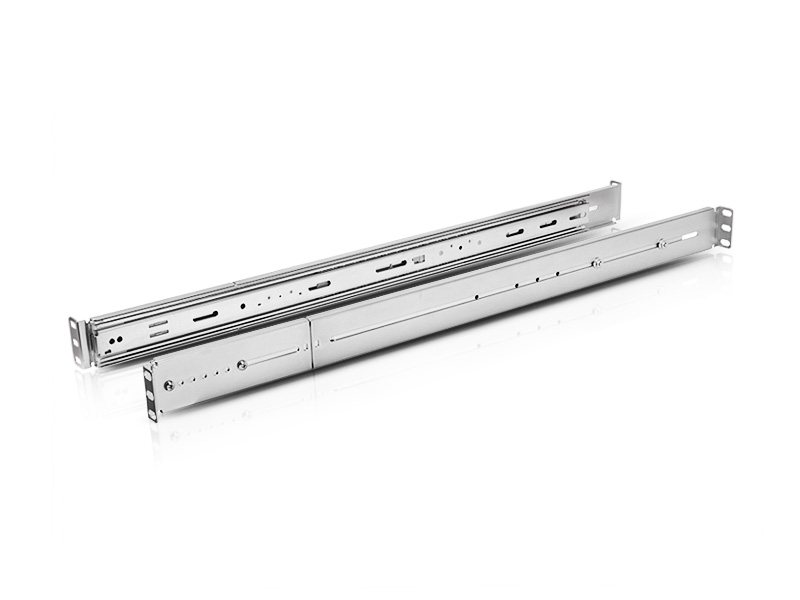

  • Rack-able by slide rails

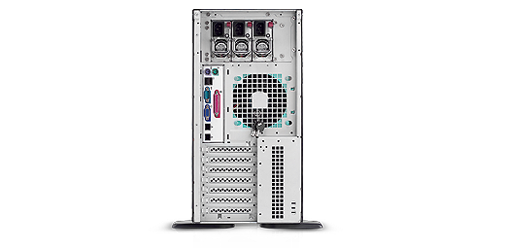

  • Supports PS/2 single and 1+1 redundant PSUs
  • Specification
  • Download
  • Accessory
  • Compatibility
  • Order Information
  • M/B Form Factor Extended ATX (12” x 13”)
    Dimensions (D x W x H) 620 x 220 x 425(mm)
    24.4" x 8.7" x 16.7"
    Drive Bays Internal 3.5":8(option)
    3.5" Hot-swap:8(option)
    PSU Form Factor PS/2 or n+1 Redundant
    Indicators Power Status LED x 1
    HDD Activity LED x 1
    LAN Activity LED x 2
    Event Warning LED x 1
    Front Buttons Power On/Off
    System Reset
    Alarm Mute
    USB2.0 x 2
    Cooling Fans 2 x 120mm(PWM), middle
    1 x 120mm(PWM), Rear
    Expansion Slots 7 Slots, Full Height Full Length
    HDD Backplane 12Gb/s SAS& SATA or 12Gb/s mini-SAS by Hot-swap Cage
    Metal Thickness 1.0, SECC
    Net Weight 18Kg
    Gross Weight 22.5Kg
    Front Bezel SR10769, SR10768, SR10766
    Cubic Feet 5.53
    Container Loading 20': 140
    40': 280
    40'H: 336
  • Category Description Revision Size Download
    Datasheet SR107 Series Datasheet V1.2 1.2 MB
    User Manual 6Gb/s 4-port 3.5" SATA/SAS Backplane(80H10220919A0), Rev A0 V1.1 322.4 KB
    User Manual SR209/SR105/SR107 Installation V1.0 1.3 MB
    User Manual 3Gb/s 4-port SATA/SAS Backplane(80H102209-010) Rev. B0, for 4-Bay 3.5" Hot-swap HDD Cage V1.0 181.3 KB
    User Manual 3Gb/s 4-port mini-SAS Backplane(80H102209-013), for 4-Bay 3.5" Hot-swap HDD Cage V1.0 252.2 KB
    User Manual 3Gb/s 6-port mini-SAS Backplane(80H102209-014), for 6-Bay 2.5" Hot-swap HDD Cage V1.0 366.3 KB
    User Manual 6Gb/s 4-port mini-SAS Backplane(80H10220918A0), for 4-Bay 3.5" Hot-swap HDD Cage V1.0 341.9 KB
    User Manual 6Gb/s 6-port mini-SAS Backplane(80H10220920A0), for 6-Bay 2.5" Hot-swap HDD Cage V1.1 572.9 KB
    User Manual 6Gb/s 4-port SATA/SAS Backplane(80H10220919A0), for 4-Bay 3.5" Hot-swap HDD Cage V1.0 313.4 KB
  • Product category Part. No# Description Support
    Cable
    CL-PWR-US
    Cable, Power Cord, 3-Pin, 6ft, 120V USA
    HDD Module
    384-10701-2100A0
    HDD Module, 3.5" Hot-swap, 4-Port 12g Mini-SAS HD BP, SR10769+
    HDD Tray
    84H311810-042
    Tray, HDD 3.5"/2.5", BK, SR105/107/209
    Power Supply
    132-20650-0701C0
    PSU, Redundant 1+1, 650w, P24:740/P8:640/P4+4:650mm, C0, Acbel
    Power Supply
    132-20875-0700C0
    PSU, Redundant 1+1, 875w, P24:740/P8:640/P4+4:650mm, C0, Acbel
    PSU BRKT

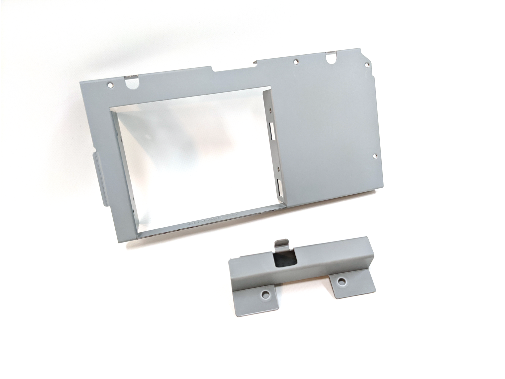

    84H210710-103
    Bracket, PSU, Acbel R2IS Series, SR107
    Rail
    84H210710-024
    Rail, 23", SR105/107/112/209
    SK

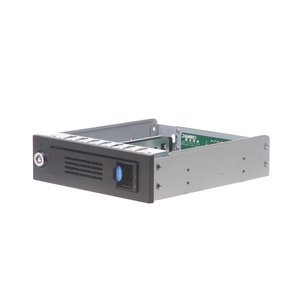

    SK31101T3
    SK, 12g, 5.25" to 1 x Hot-swap 3.5" HDD Bay
    SK

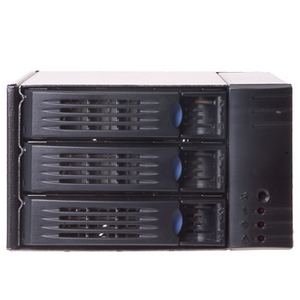

    SK32303T3
    SK, 3-in-2, HDD Module, SATA/SAS, 12G,BK, Single Pack
    SK

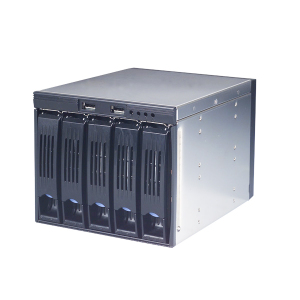

    SK33502T3
    SK, 5-in-3 , 3 x ODD Bays to 5 x 3.5"  HDD Bays (12g SATA II/SAS)

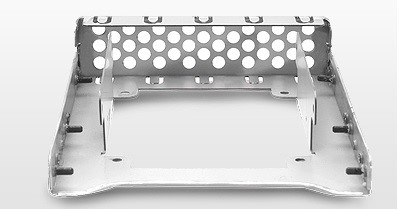

    SK
    SK41101-BK-H
    SK, HDD Tray, Internal, 1 x 5.25" to 3.5" HDD/FDD Bay, BK

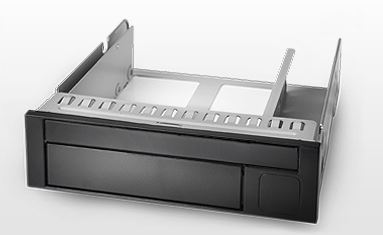

    SK
    SK41202
    SK, 1 x 5.25 (internal) to 1 x Slim ODD+ internal 3.5 HDD/FDD Bay
    SK
    SK41203
    SK, HDD Tray, Internal, 1 x 3.5" HDD/FDD to 2 x 2.5" HDD Bays
    SK

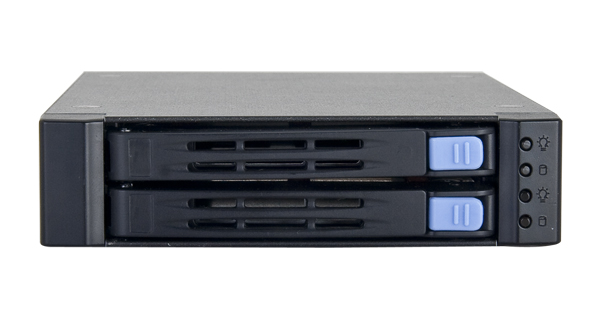

    SK51201T3
    SK, 1 x 3.5" to 2 x 2.5" HDD Bay, w/12gb/SATA BP
    Click Part. No# to view item picture
  • Order Code M/B Size HDD Cage PSU Cooling Fan Slide Rail
    SR10769-C0 12"x13" 2x 3.5" 4-Bay, Non Hot-swap Option 3x120mm(PWM) Option
    SR10769-C0 R650 12"x13" 2x 3.5" 4-Bay, Non Hot-swap Option 3x120mm(PWM) Option
    SR10769-C0 R875 12"x13" 2x 3.5" 4-Bay, Non Hot-swap Option 3x120mm(PWM) Option
