SR209 Series

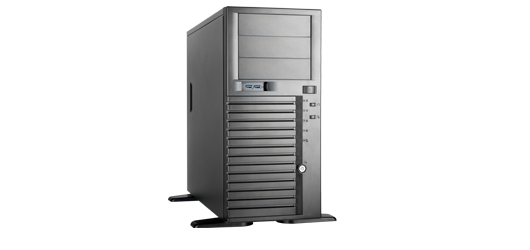

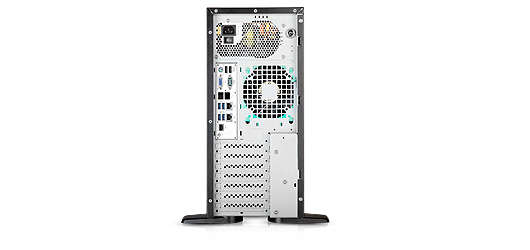

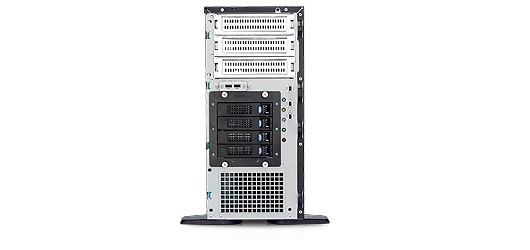

Cost Effective ATX Tower Server Chassis
With flexible HDD configurations, it is ideal server chassis solution ranging from entry to mainstream.
Compare
Quick Search
  • By Chassis Type
  • By Motherboard
  • By RAID Card
  • By Power Supply
Compare
Features & Benefits

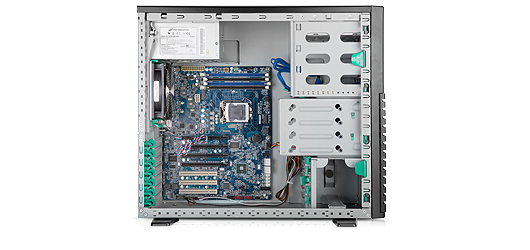

  • Supports up to 12"x9.6" M/B

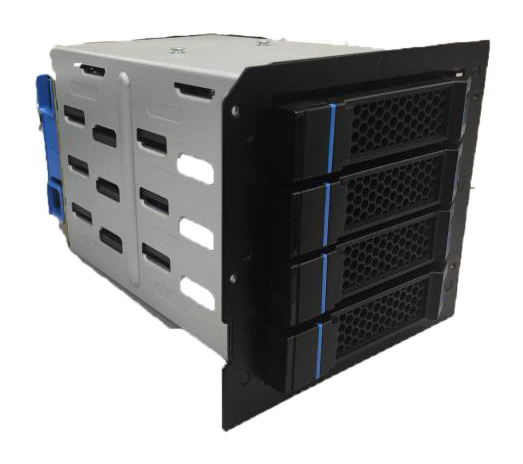

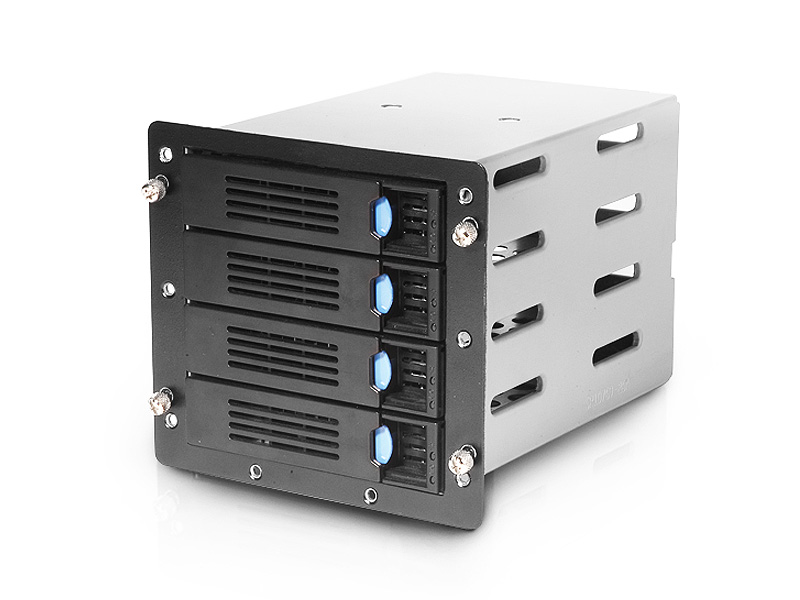

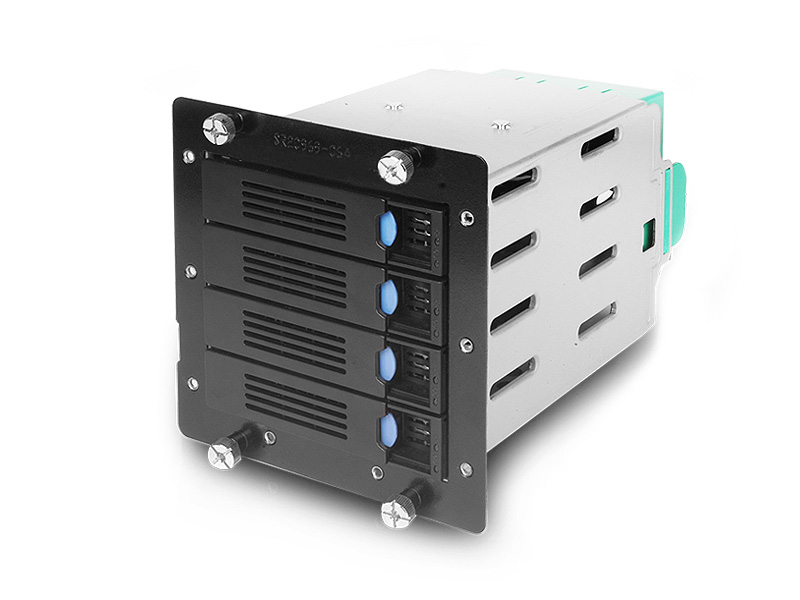

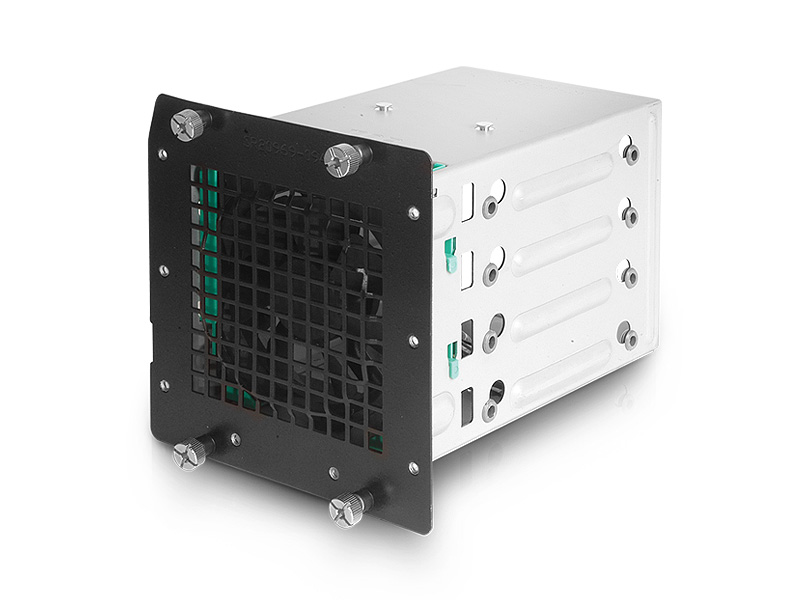

  • Optional 4-bay 3.5" HDD cages with 6Gb/s SATA or mini-SAS backplane
  • Optional 6-bay 2.5" HDD cage with mini-SAS backplane (Build to Order)
  • Tool-less installation on bezel, HDD cage, side cover and fans
  • Supports key lock and Kensington security slot
  • Front bezel lock to prevent unauthorized access

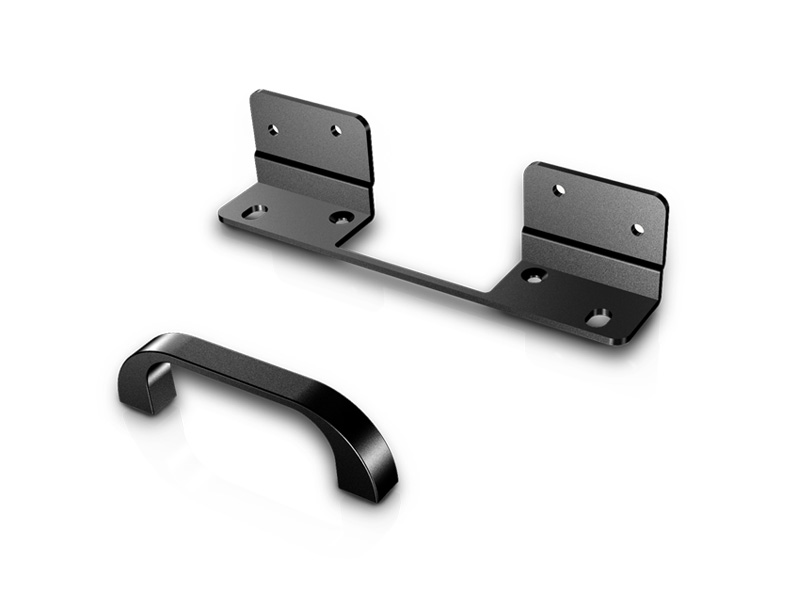

  • Rack-able by slide rail- SR20966 only
  • Supports single PS/2 PSU
  • Specification
  • Download
  • Accessory
  • Compatibility
  • Order Information
  • M/B Form Factor ATX (12” x 9.6”)
    Dimensions (D x W x H) 465 x 198 x 425(mm) , 18.3” x 7.8” x 16.7” (Bezel not included)
    Drive Bays External 5.25":3
    3.5" Hot-swap:4
    2.5" Hot-swap:6
    PSU Form Factor PS/2 Single
    Indicators 1 x Power Status, 1 x HDD Activity, 2 x LAN Activity , 1 x Fan Failure and Overheat
    Front Buttons Power On/Off, Alarm Mute, System Reset, 2 x USB 2.0
    System Security Intrusion Switch, Key lock and Kensington security slot
    Cooling Fans Front(option): 1 x 80mm or 92mm , Rear: 1 x 120mm, PWM
    Expansion Slots 7 (5 x full length + 2 x half length)
    HDD Backplane 12Gb/s SATA or mini-SAS (by 3.5” or 2.5” HDD Cage)
    Metal Thickness 0.8mm
    Net Weight 7.8kg
    Gross Weight 9.8kg
    Front Bezel SR20966, SR20967, SR20968, SR20969
    Cubic Feet 2.94
    Container Loading 20’: 350, 40’: 734, 40’H: 820
  • Category Description Revision Size Download
    Datasheet SR209 Series Datasheet V1.2 1.1 MB
    User Manual 3Gb/s 4-port mini-SAS Backplane(80H102209-013), for 4-Bay 3.5" Hot-swap HDD Cage V1.0 252.2 KB
    User Manual 6Gb/s 4-port 3.5" SATA/SAS Backplane(80H10220919A0), Rev A0 V1.1 322.4 KB
    User Manual 3Gb/s 6-port mini-SAS Backplane(80H102209-014), for 6-Bay 2.5" Hot-swap HDD Cage V1.0 366.3 KB
    User Manual 6Gb/s 6-port mini-SAS Backplane(80H10220920A0), for 6-Bay 2.5" Hot-swap HDD Cage V1.1 572.9 KB
    User Manual 6Gb/s 4-port mini-SAS Backplane(80H10220918A0), for 4-Bay 3.5" Hot-swap HDD Cage V1.0 341.9 KB
    User Manual 6Gb/s 4-port SATA/SAS Backplane(80H10220919A0), for 4-Bay 3.5" Hot-swap HDD Cage V1.0 313.4 KB
    User Manual SR209/SR105/SR107 Installation V1.0 1.3 MB
  • Product category Part. No# Description Support
    Cable
    CL-PWR-US
    Cable, Power Cord, 3-Pin, 6ft, 120V USA
    HDD Module
    384-10501-2102A0
    HDD Module, 3.5 HDD, 4-Port 12g SAS & SATA BP, TL Tray, SR105/209
    HDD Tray
    84H311810-042
    Tray, HDD 3.5"/2.5", BK, SR105/107/209
    Rail
    84H210710-024
    Rail, 23", SR105/107/112/209
    SK
    SK31101T3
    SK, 12g, 5.25" to 1 x Hot-swap 3.5" HDD Bay
    SK
    SK32303T3
    SK, 3-in-2, HDD Module, SATA/SAS, 12G,BK, Single Pack
    SK
    SK33502T3
    SK, 5-in-3 , 3 x ODD Bays to 5 x 3.5"  HDD Bays (12g SATA II/SAS)
    SK
    SK41101-BK-H
    SK, HDD Tray, Internal, 1 x 5.25" to 3.5" HDD/FDD Bay, BK
    SK
    SK41202
    SK, 1 x 5.25 (internal) to 1 x Slim ODD+ internal 3.5 HDD/FDD Bay
    Click Part. No# to view item picture
  • Order Code M/B Size HDD Cage PSU Cooling Fan Slide Rail
    SR20969-C0 12"x9.6" 3.5" 4-Bay, Internal Option 1x120mm+1x92mm N/A
