RM51424 (EOL)

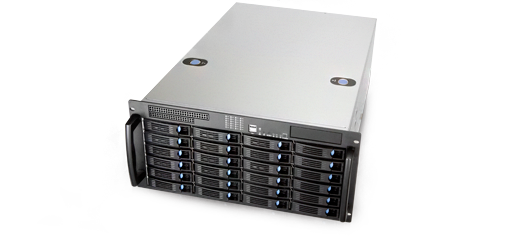

5U 24-bay High Storage Capacity Computing Server Chassis
It supports 16"x 13" motherboard and high storage capacity with 6Gb/s SAS backplanes to deliver excellent computing and disk I/O performance.
Compare
Quick Search
  • By Chassis Type
  • By Motherboard
  • By RAID Card
  • By Power Supply
Compare
Features & Benefits
  • Supports M/B size up to 16" x 13"( Quad CPU sockets)

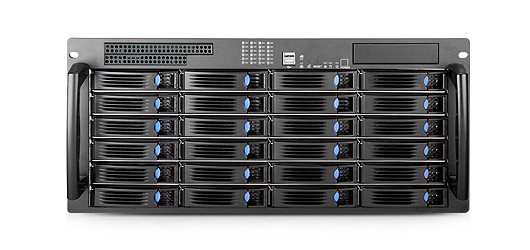

  • Supports 24 front access 3.5" hard drives and one internal 3.5" hard drive
  • Supports 6Gb/s mini-SAS backplane

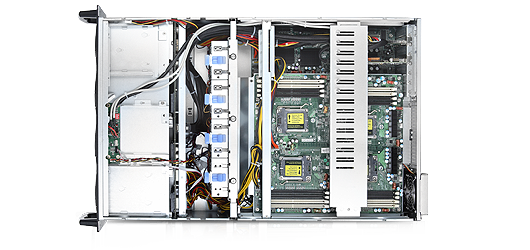

  • User friendly design on removable motherboard carrier
  • Built-in middle 8 x 80mm hot-swap fans with anti-vibration mechanism
  • Optional two exhausted 80mm fans

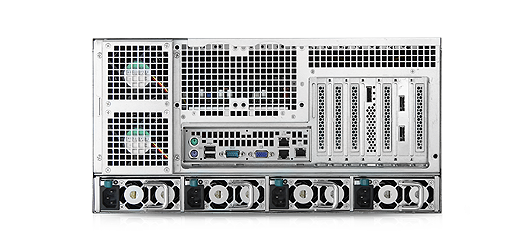

  • Built-in 1350W 3+1 redundant PSU
  • Specification
  • Download
  • Accessory
  • Compatiblility
  • Order Information
  • Form Factor 5U
    M/B Form Factor Extended ATX (12” x 13”), 16.4” x 13”
    Dimensions (Dx Wx H) 693 x 430 x 220 (mm), 27.2” x 16.9” x 8.8”
    Drive Bays External 3.5":1
    Slim ODD:1
    Slim FDD:1
    3.5" Hot-swap:24
    Internal 3.5":1
    PSU Form Factor 3+1 Redundant
    Indicators 1 x Power Status, 1 x HDD Activity, 2x LAN Activity , 1 x Fan Failure and Overheat
    Front Control Power On/Off, Alarm Mute, System Reset, 2 x USB 2.0
    System Security Intrusion Switch
    Cooling Fans Middle: 8 x 80mm (T=32mm), Hot-swap , Rear: 2 x 80mm (Option)
    Expansion Slots 7 x Full Height and Full Length
    HDD Backplane 6Gb/s SATA or mini-SAS
    Net Weight 46.1kg
    Gross Weight 55.5kg

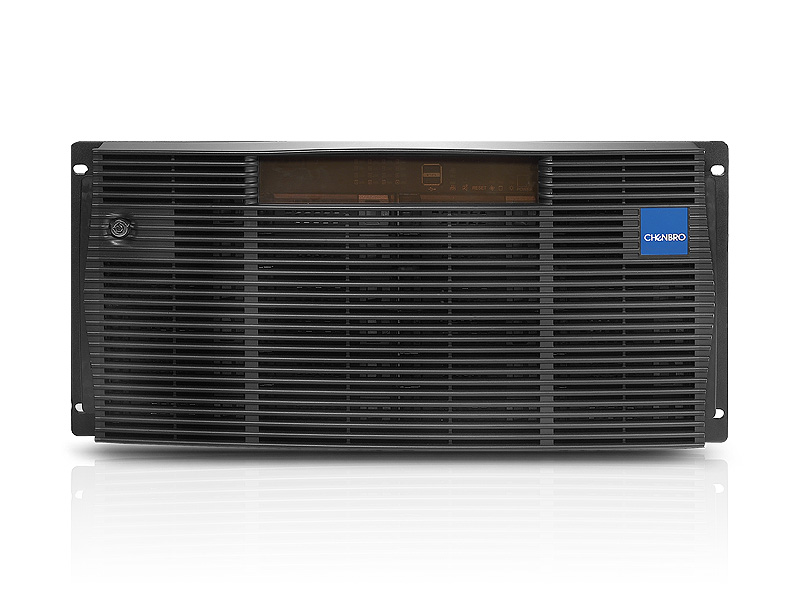

    Front Bezel Option
    Cubic Feet 10.21
    Container Loading (Single Packing) 20’: 97, 40’: 202
  • Category Description Revision Size Download
    Datasheet RM51424 Datasheet V1.2 918.0 KB
    User Manual LED Board(80H033215-003 Rev. 1.1~1.2), For 3Gbps SATA Backplane V1.0 240.4 KB
    User Manual 3Gb/s 4-port 3.5" mini-SAS Backplane(80H103215-013) Rev. A0 V1.0 605.9 KB
    User Manual 3Gb/s 4-port 3.5" mini-SAS backplane (80H103215-013) Rev. A1 V1.0 623.8 KB
    User Manual 3Gb/s 4-port 3.5" mini-SAS Backplane(80H103215-013) Rev. A2~A3.1 V1.0 628.6 KB
    User Manual 3Gb/s 4-port 3.5" mini-SAS Backplane(80H103215-013) Rev. B0 V1.1 501.9 KB
    User Manual 3Gb/s 4-port 3.5" mini-SAS Backplane(80H10321513C0) Rev. C0 V1.1 609.8 KB
    User Manual 6Gb/s 4-port 3.5" mini-SAS Backplane(80H10321516A1) Rev.A1 V1.1 664.7 KB
    User Manual LED Board(80H033215-005 Rev.A0~A2), For 3Gbps mini-SAS Backplane V1.0 142.9 KB
    User Manual LED Board(80H033215-005 Rev. A3) , For 3Gbps/6Gbps mini-SAS Backplane V1.0 151.3 KB
    User Manual RM51424 Quick Installation Guide V1.1 242.3 KB
  • Product category Part. No# Description Support
    Bezel
    84H351910-003
    Front Bezel, 5U, Plastic
    Cable
    26H113215-030
    Cable, SFF-8087 to SFF-8087, 600mm
    Cable
    84H342310-012
    Cable, USB3.0, 2-Port, w/3.5" Bracket(For 3.5" bay)
    Click Part. No# to view item picture
  • Order Code M/B Size HDD Backplane PSU Rear Window Slide Rail
    RM51424M2-RD50G 16"x13" 6Gb/s mini-SAS 1350W Redundant 7-Slot,FF Included
