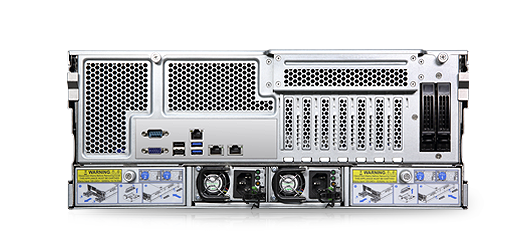

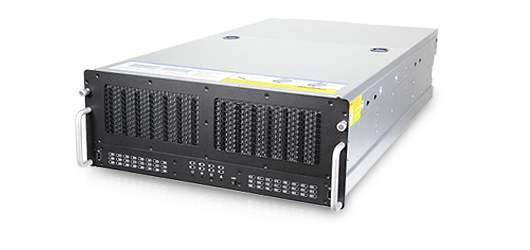

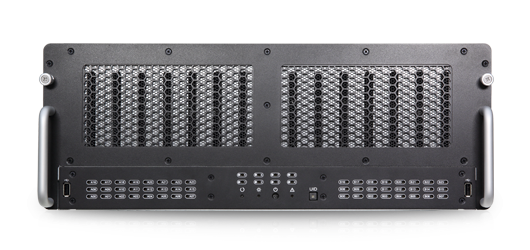

RM43348
4U 48-bay Top-loaded High Dense Storage Server Chassis

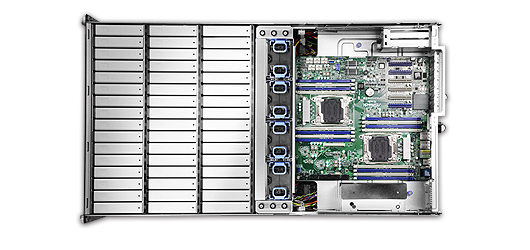

The chassis can accommodate forty-eight 3.5” top access hot-swap hard drives and an EATX motherboard supporting with the latest Intel® Xeon Scalable processors solutions.
Compare
Quick Search
  • By Chassis Type
  • By Motherboard
  • By RAID Card
  • By Power Supply
Compare
Features & Benefits
  • Hard drive LED indicators and identification labels for immediate disk function information
  • Hot-swap fan with hysteresis feature to smooth the fan speed transition
  • Redundant fan module and power supplies to provide failover on system reliability
  • Removable lift handles and motherboard tray, convenient for installation and maintenance
  • Optional cable management arm for slide rails to make the rear of system nice and neat
  • Specification
  • Download
  • Accessory
  • Compatibility
  • Order Information
  • Form Factor 4U
    MB Form Factor E-ATX(12” x 13”)
    Dimensions (D x W x H) 832.8 x 448 x 175.8 (mm)
    32.79” x 17.24” x 6.92”
    Drive Bays 3.5" Hot-swap:48
    3.5" (Fixed):2
    2.5"(Internal /Rear Access):2
    PSU Form Factor 1+1 Redundant, 1100W 80Plus Gold
    Indicators 1 x Power Status
    48 x HDD Activity
    8 x Fan Failure
    1 x Overheat & PSU Failure
    Front Control 1 x Power On/Off
    1 x System Reset
    1 x UID
    System Security N/A
    Cooling Fans Middle: 4 x 80mm (T=56mm), PWM
    Expansion Slots 7 x Low Profile
    HDD Backplane 2 x 24-port 12Gb/s Mini-SAS HD w/Expander
    Net Weight 30.0kg
    Gross Weight 55.0kg
    Cubic Feet 14.7
    Container Loading (Single Packing) 20': 76, 40': 154, 40'H: 172 (Single + Pallet)
  • Category Description Revision Size Download
    Datasheet RM43348 Datasheet V1.2 2.8 MB
    User Manual RM43348 Installation Manual A0 2.0 MB
  • Product category Part. No# Description Support
    Cable
    CL-PWR-US
    Cable, Power Cord, 3-Pin, 6ft, 120V USA

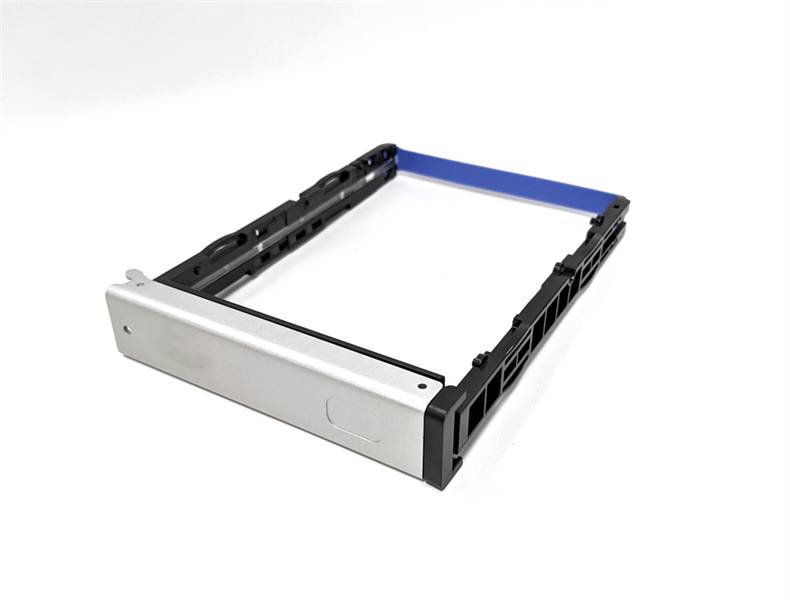

    HDD Tray
    84H343310-002
    Tray, HDD Tray, 3.5" Top Load, for RM43348, Bulk Pack

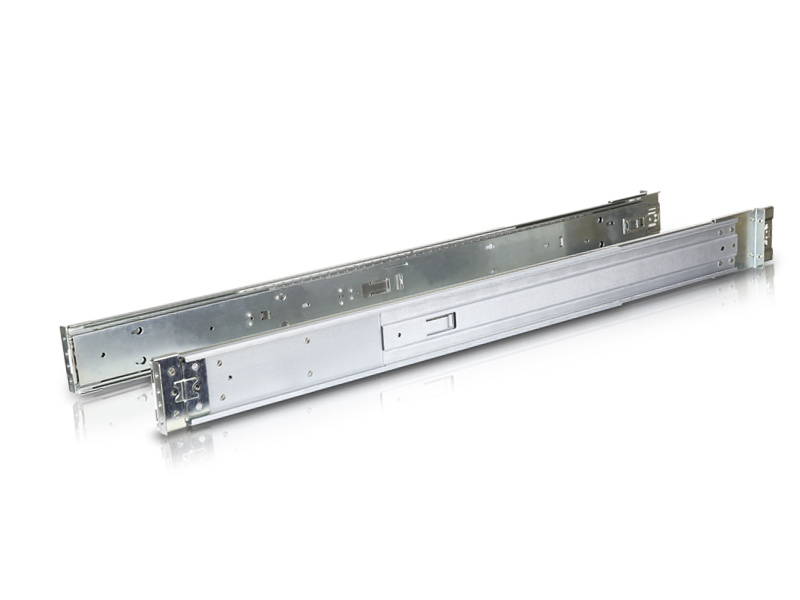

    Rail
    84H024010-012
    Rail, Guide Rail, 34.6" (2pcs/set), Tool-less
    Click Part. No# to view item picture
  • Order Code M/B Size Middle Fan HDD Backplane PSU Slide Rail
    RM43348E3-R1100NR 12"x13" 4 x 80mm,PWM 12Gb/s SAS Expander 1.1KW 1+1 Redundant Option
